AVP Armor Templates By VinMan

[VinMan]

Hey Do-it-Yourself Hunters.

I am working on a series of templates for AVP armor pieces.
Since I am doing the work, might as well make it available to all.

Please take note measurements are only approximate and will vary from person to person.
a dude 5'8" will not want to adjust down a tad. a dude 6'2" will want to adjust up a tad.

Use common sense and try them on to fit.

Here is the first in the series. As I continue the series I will make the others available as well.

Vin Man

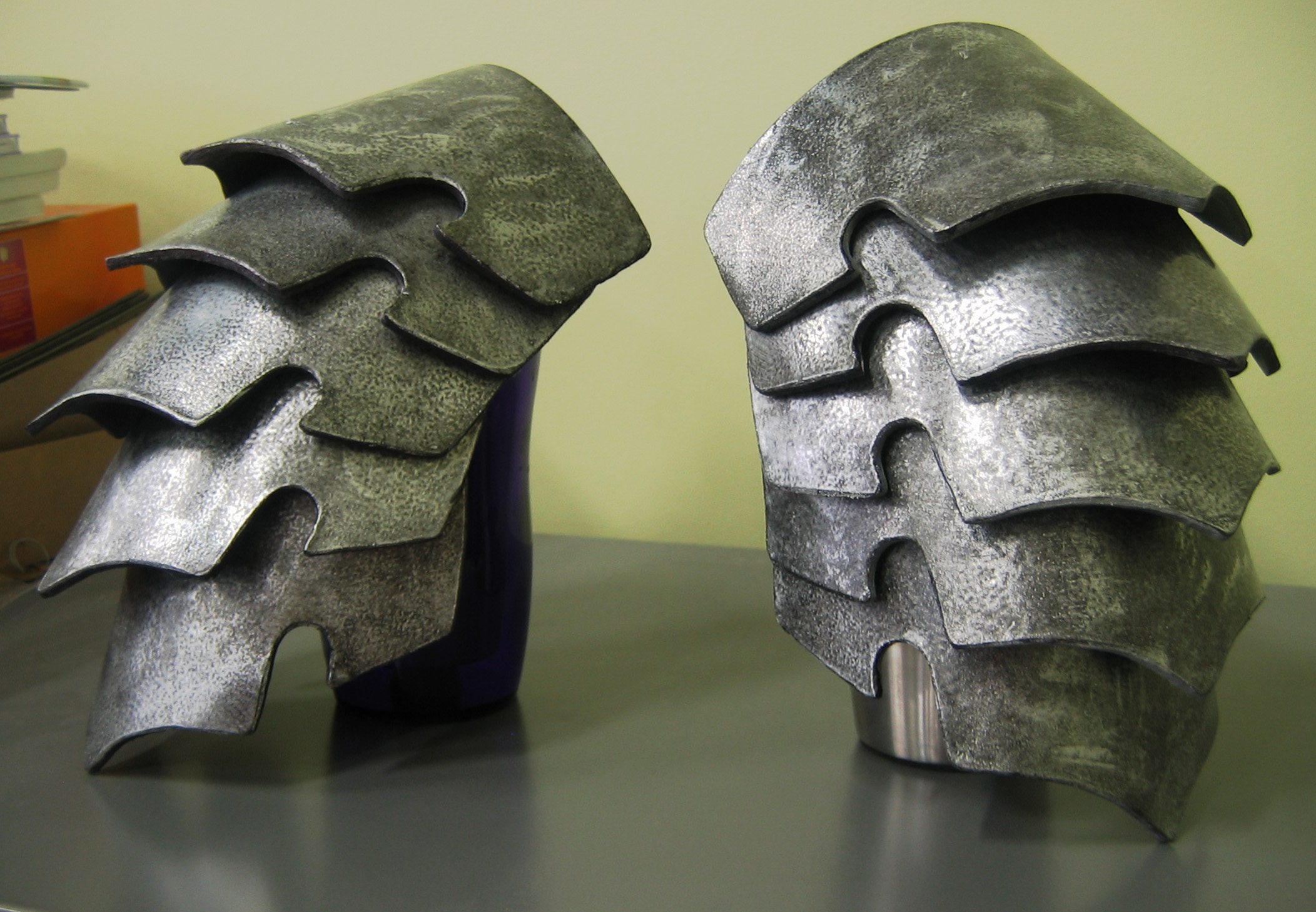

here are finished photos of the Shoulder Bells cut with a Dremel from Sintra sign plastic
• primered in black Plastiidip
• painted in silver Rustoleum Hammered Metal spray paint
• washed with gloss latex paint and blotted with a paper towel to age
• lightly rubbed with silver Rub and Buff paste to add dimension to the pitted texture

Hope you like the results!

Shoulder Bell

x 5 pieces

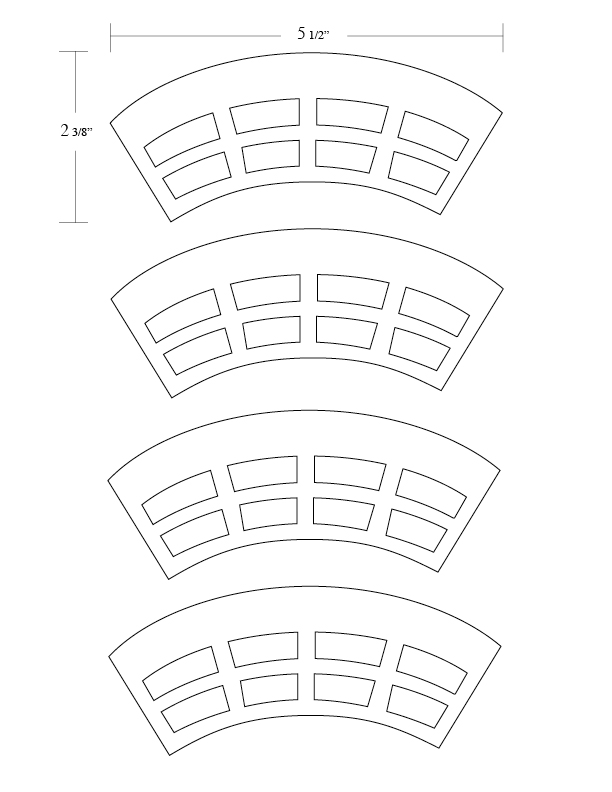

Shoulder Bell Vent Trim

Gauntlet Blades and Toe Dusters



[Brandon1]

sweet these will help me with some peices of my armor!



[cayman shen]

Nice--keep 'em coming!



[VinMan]

Here is a new one

Upper Arm / Bicep Armor



[twisted one]

Sweet VIn Man, what are you using for material, plastic, latex, metal...?



[VinMan]

Sweet VIn Man, what are you using for material, plastic, latex, metal...?

A combo of a few things.

1) I have a few sheets of sintra plastic that when boiled or heated in an oven you can shape really nicely.
2) 5 gallon plastic buckets
3) large diameter PVC pipe

It may be a while before I get to working on them but I am trying to get the templates built so I can knock them out one at a time.

here is another

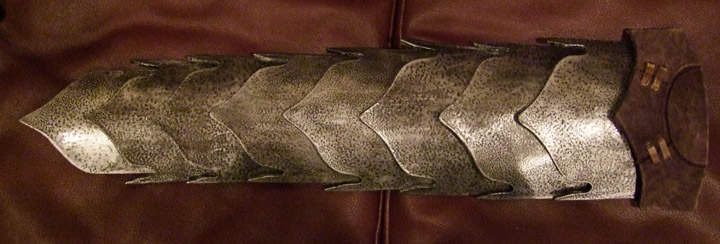

Front Groin Flap

Here is the next one

But Flap



[delonghi]

many thanks



[twisted one]

Thanks for the info. and the newly posted templates!!!



[strigoi]

Thanks for putting these up. I wasn't planning on useing AVP style armor but trying to design my own and then putting them together wasn't cutting it. I am going to use these and modify them. Thanks Again



[Natti]

Thanks so much for posting this info.



[VinMan]

Thanks so much for posting this info.

Here is the next in the series

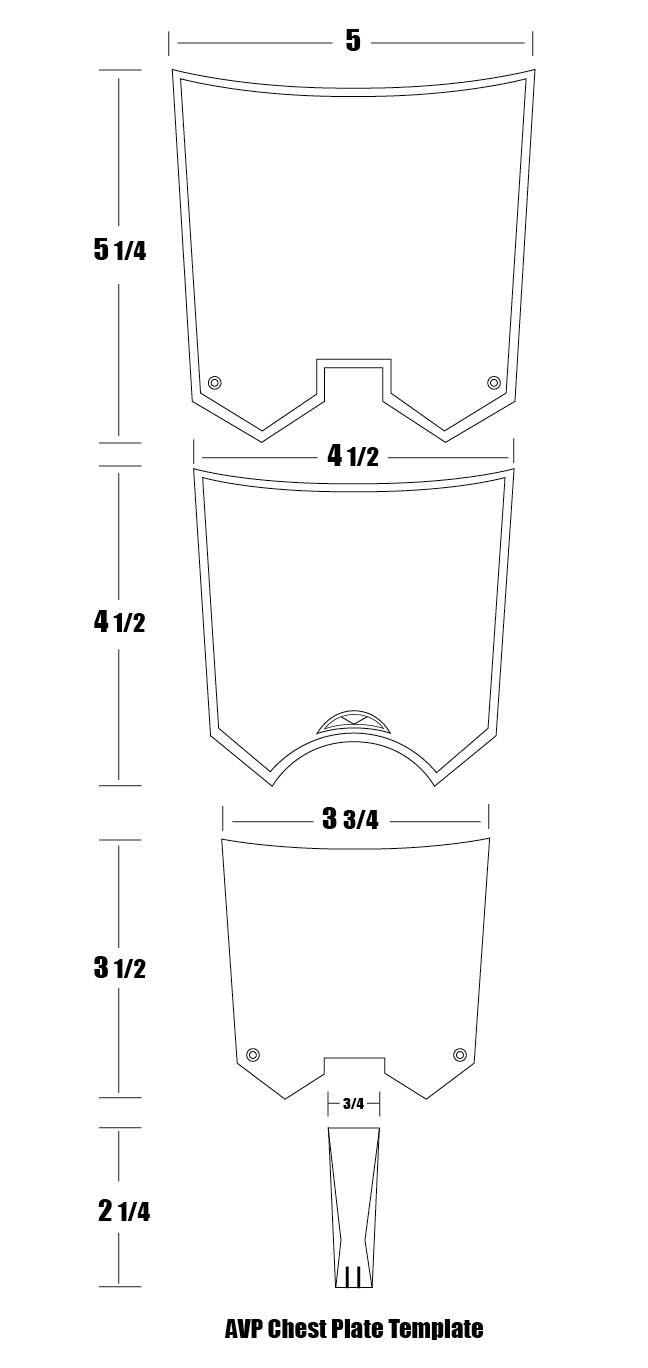

Chest/Sternum Plate



[twisted one]

Sweet, the next installment!!!



[Pred And Butter]

That's awesome. I was literally gathering cardboard at work today to start creating templates. Thanks for reading my mind and doing all the work.



[VinMan]

That's awesome. I was literally gathering cardboard at work today to start creating templates. Thanks for reading my mind and doing all the work.

I am glad these are starting to become a benefit to those creating their own armor

Here is another

I do not claim to be the end all be all in this matter.
These are so subject to a particular set of screen grabs and any other resource material out there.
I only attempt to the best I can in interpolating these into realistically working templates.

This one was the most difficult yet

Thigh Armor



[hunters prey]

major thanks for hte groin, but, and thigh plates. Those were giving me a headache.



[Predaman857]

These are awesome man! great work, these will help me with Ideas for these pieces.



[VinMan]

These are awesome man! great work, these will help me with Ideas for these pieces.

Here's a little one

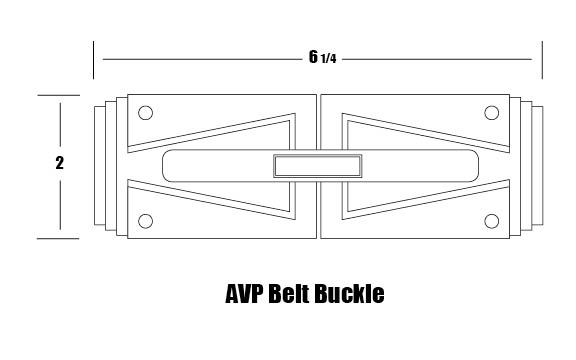

Belt Buckle



[twisted one]

YESSSS!!!! Love the tutorials!!!



[Natti]

I printed out the AVP shoulder armor and started the work on it with foam thanks so much agian for posting this!!!



[thebeastwithin]

dude this is so freakin helpful, you have no idea how much you just helped this poor noob out

hey, if you don't mind how did you get the curve to the sholder pads?
