Diegator's Dragon Ball Z Scouter - COMPLETE

[Diegator]

So there are a few scouter builds out here:

http://www.therpf.com/f9/dbz-scouter-wip-181169/
http://www.therpf.com/f24/starting-...-scouter-done-except-paint-131270/index2.html
http://www.therpf.com/f9/dragonball-z-scouter-build-131077/
http://www.therpf.com/f24/vegeta-saiyan-prince-new-mask-page-5-a-183466/

Ref of what I'm building:


Of course, like most cartoon things, it's drawn differently on every instance, but I settled for the above two shots as my reference and did some interpretation.

Here's my shot at it in CAD



Then did the fun 3D printing thing at my friend's house!

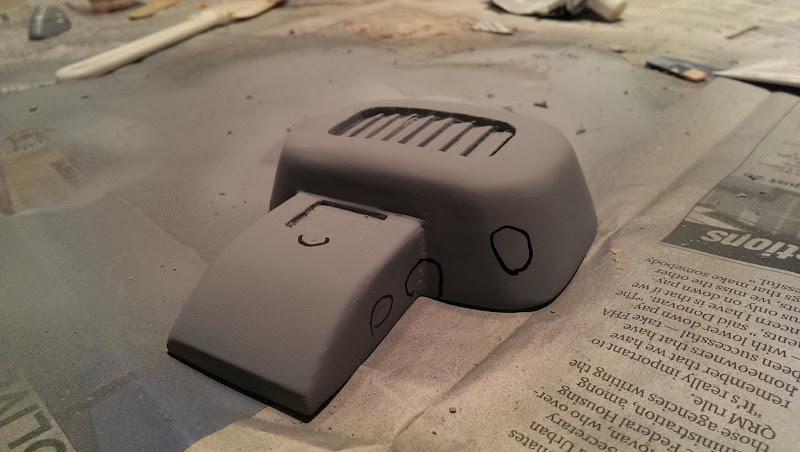

Then did the bondo/fill paint thing:

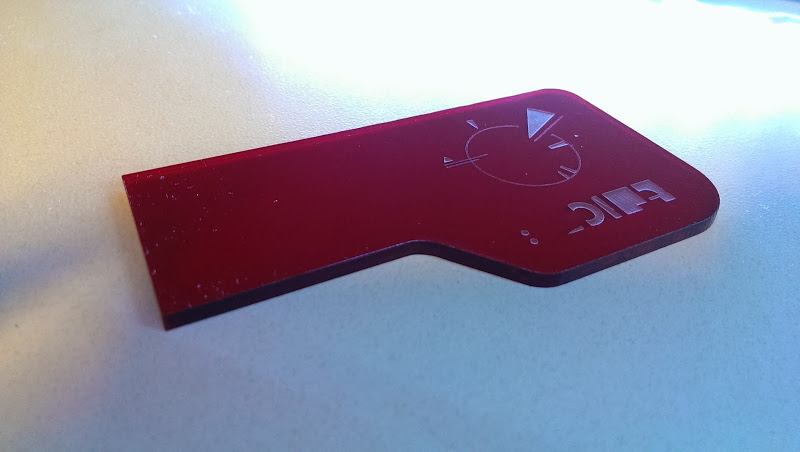

Drafted the lens in ACAD and had it laser etched out of acrylic, and bent:

With some fun LEDs for effect:

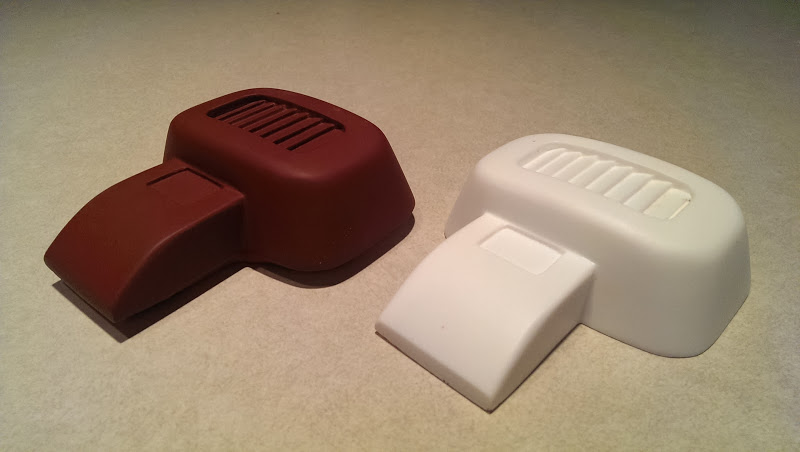

Did a silicone pour:


And here's the first cast!


Next:

• Painting
• Making the ear pad
• assembly
• ???
• PROFIT

Stay tuned!
