Fallout AERX modular laser pistol/rifle

[Phaestoz]

Thank you, I've currently got enough laser cut aluminum pieces for 4 or 5 pistol sets but it will be a while before I finish all of the additional pieces(rifle barrel/sights/stocks)

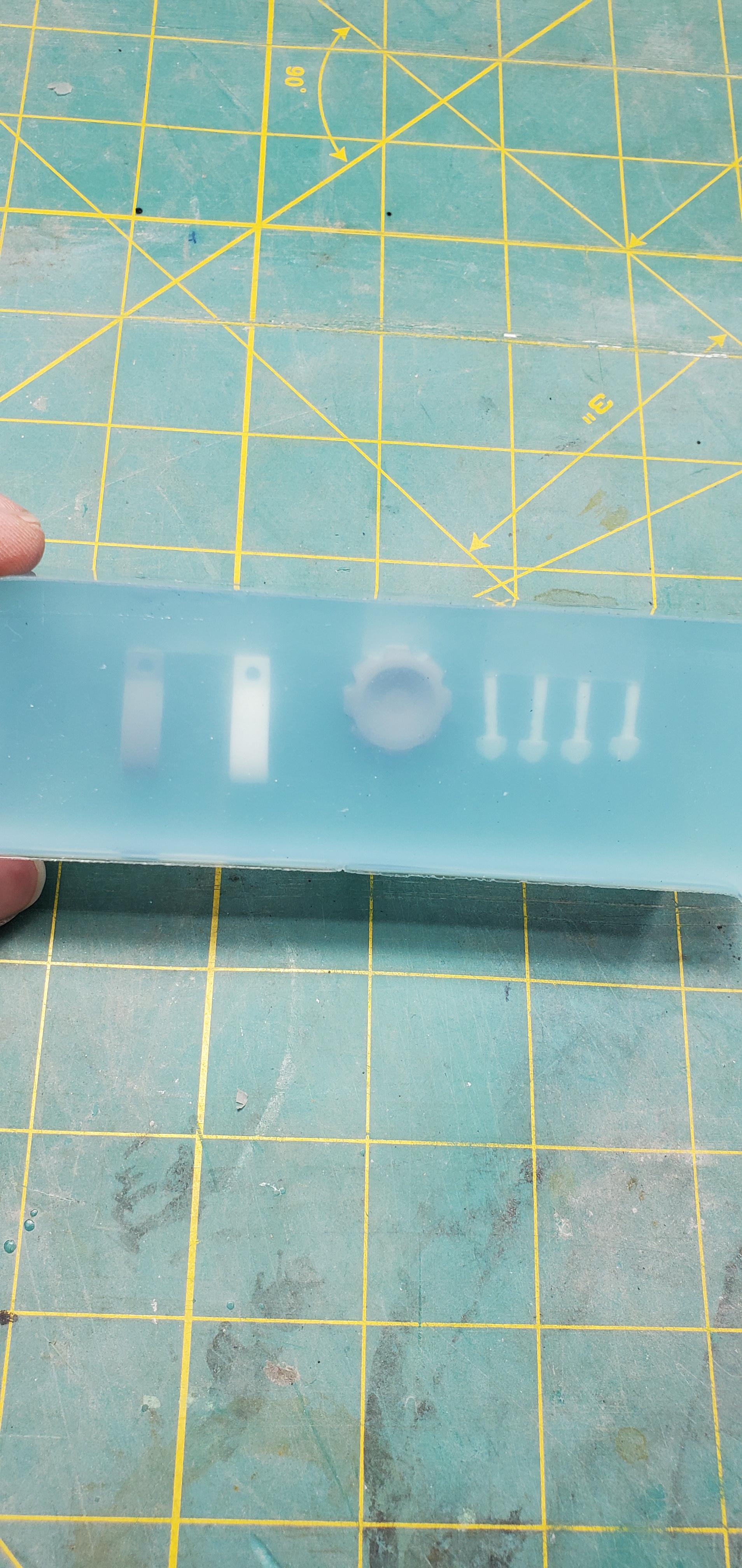

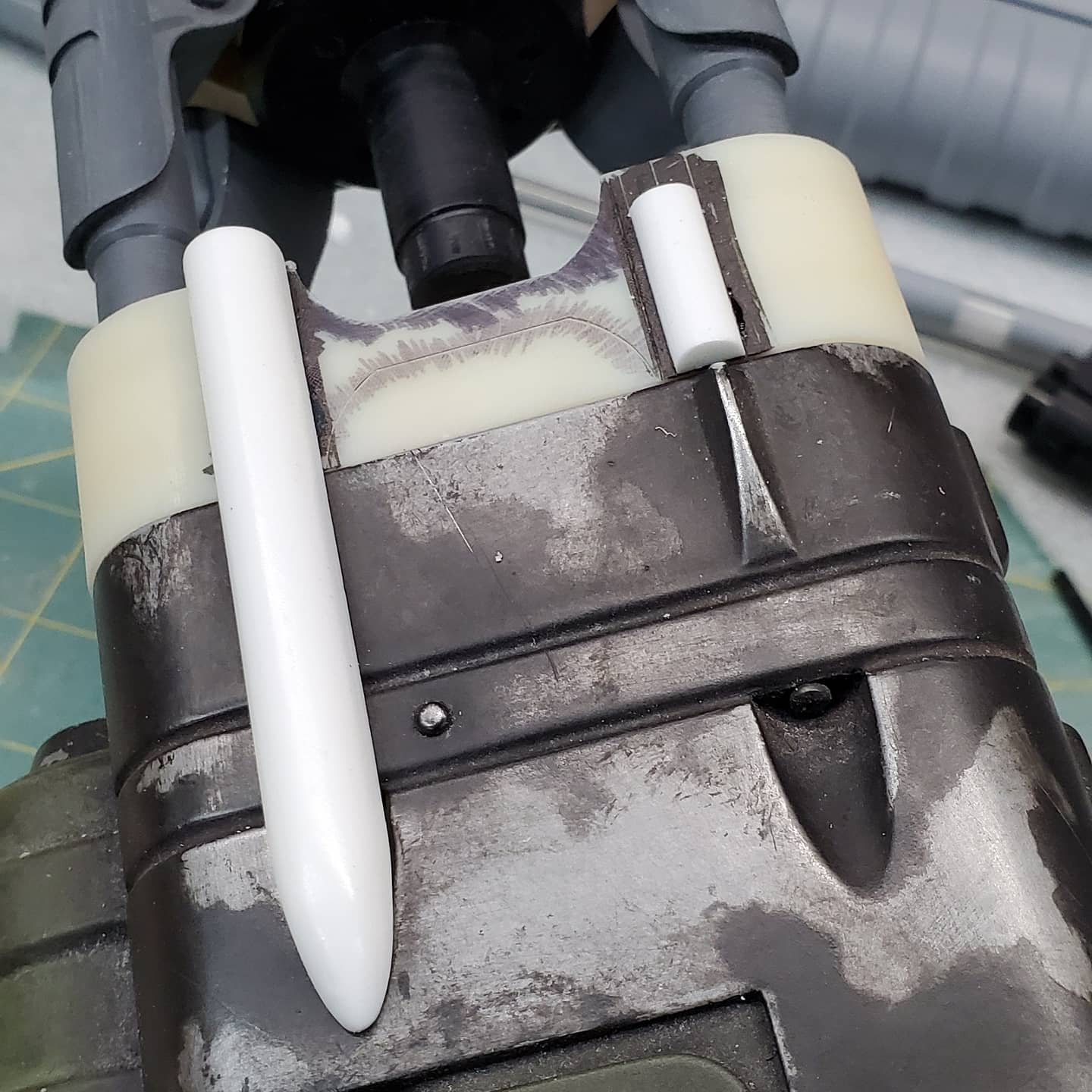

Not a whole lot of progress on the splitter barrel but the arms got a quick junk mold made to make a full set of 4



[Phaestoz]

No laser rifle updates except that I've ordered silicone for the rifle barrel.

Here's a related project I finished a while ago though:

Modeled by me in AutoCAD with working activation for the pistons and printed on a resin printer
then molded and cast with smooth cast 325 resin with florescent green dye

https://imgur.com/rf99SkS

Still haven't made any electronic inserts for it yet unfortunately



[yuumi2891103]

You nailed! Very professional work!
Thanks for sharing!

katsu



[Sluis Van Shipyards]

Hey a couple quick questions if you don't mind. First are you also using magnets to attach the beam splitter? I was going to build the beam focuser and that was my plan. I tested out how much weight would hold, but I haven't built anything yet. Second for you or anyone who has built this rifle, how are you getting the fusion cell to sit in its spot? I figured a spring loaded "contact" piece could easily hold it on the end facing the barrel, but the back end just sits on what, at least on the model, is a flat surface. I figured I would have to make a slight depression so it would seat.



[Phaestoz]

Hey a couple quick questions if you don't mind. First are you also using magnets to attach the beam splitter? I was going to build the beam focuser and that was my plan. I tested out how much weight would hold, but I haven't built anything yet. Second for you or anyone who has built this rifle, how are you getting the fusion cell to sit in its spot? I figured a spring loaded "contact" piece could easily hold it on the end facing the barrel, but the back end just sits on what, at least on the model, is a flat surface. I figured I would have to make a slight depression so it would seat.

I am using magnets to connect the barrel attachments as well as hold the battery in place



[Sluis Van Shipyards]

Ok thanks for confirming that idea will work! I showed my 17yo nephew this thread and he said his better be at least 75% as good. So he is very confident in my abilities. He said "Well you've only made Star Wars props before!"



[falconNL]

Wow, really nice!



[Phaestoz]

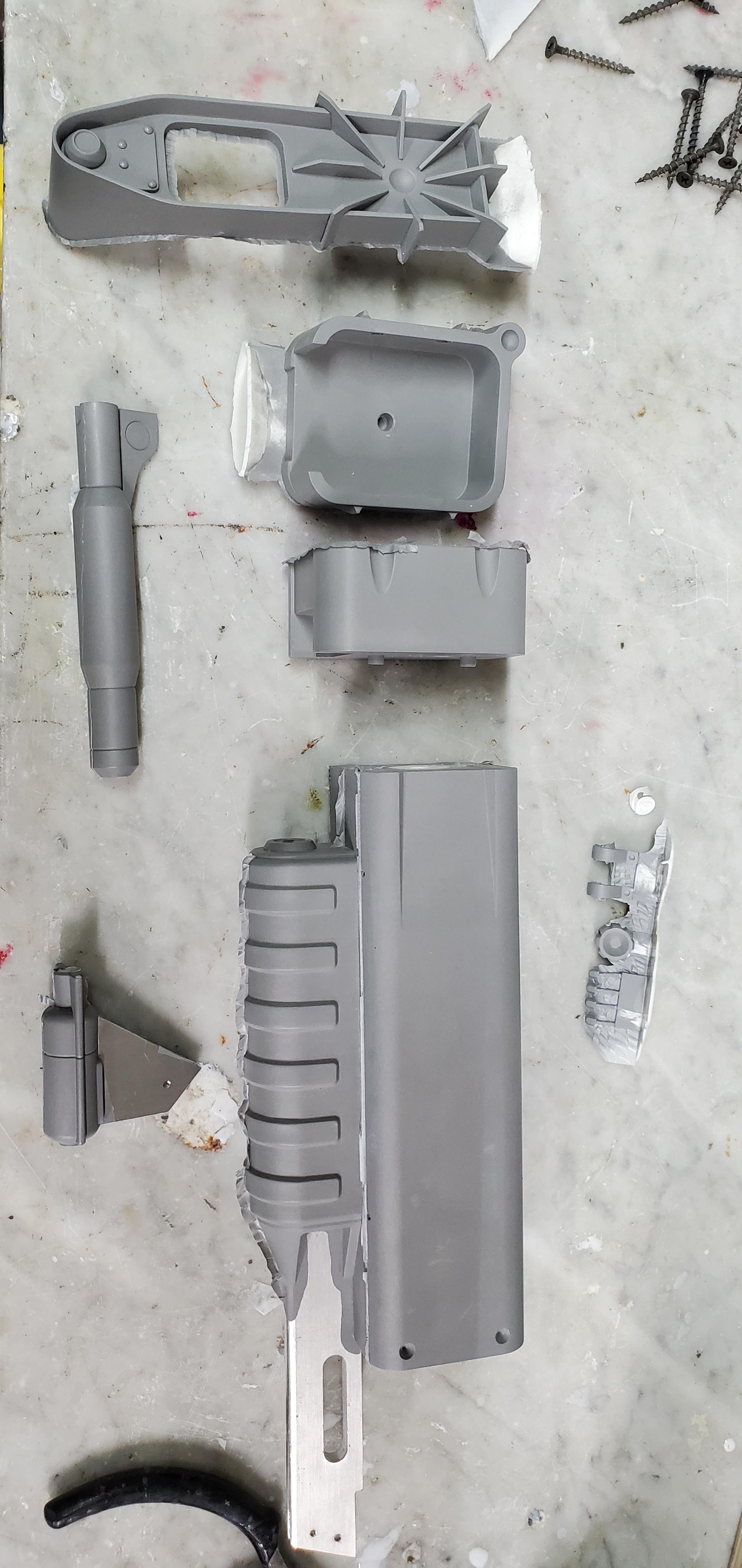

Got the long barrel molded and the first casting turned out really well. Working on cleaning a set up and painting before molding the stock.



[Phaestoz]

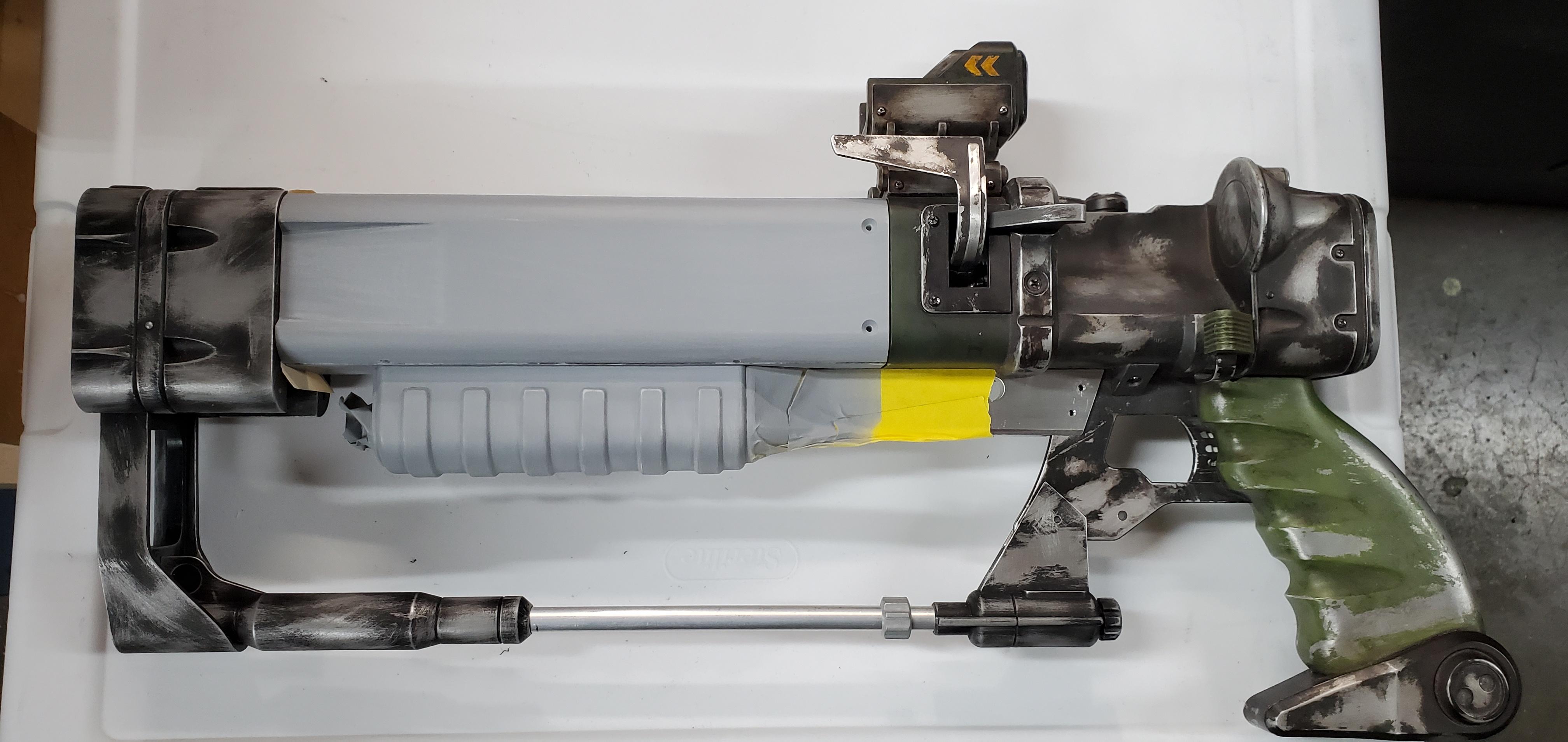

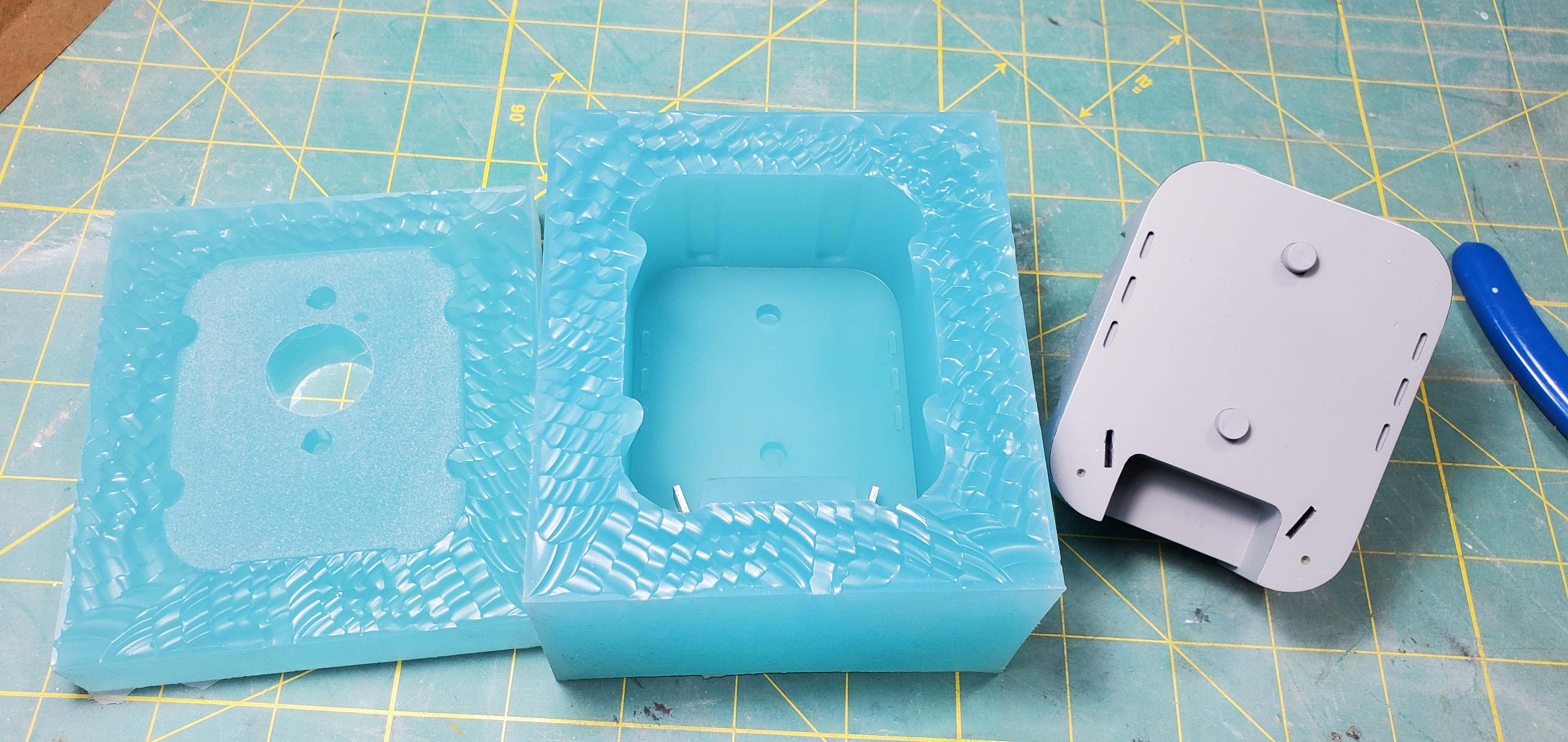

Got the rifle grip and stock molded and cast up. Also most of the painting is done on the barrel.



[Sluis Van Shipyards]

Well damn you set the bar for this one! Hopefully mine looks 90% that good!



[Phaestoz]

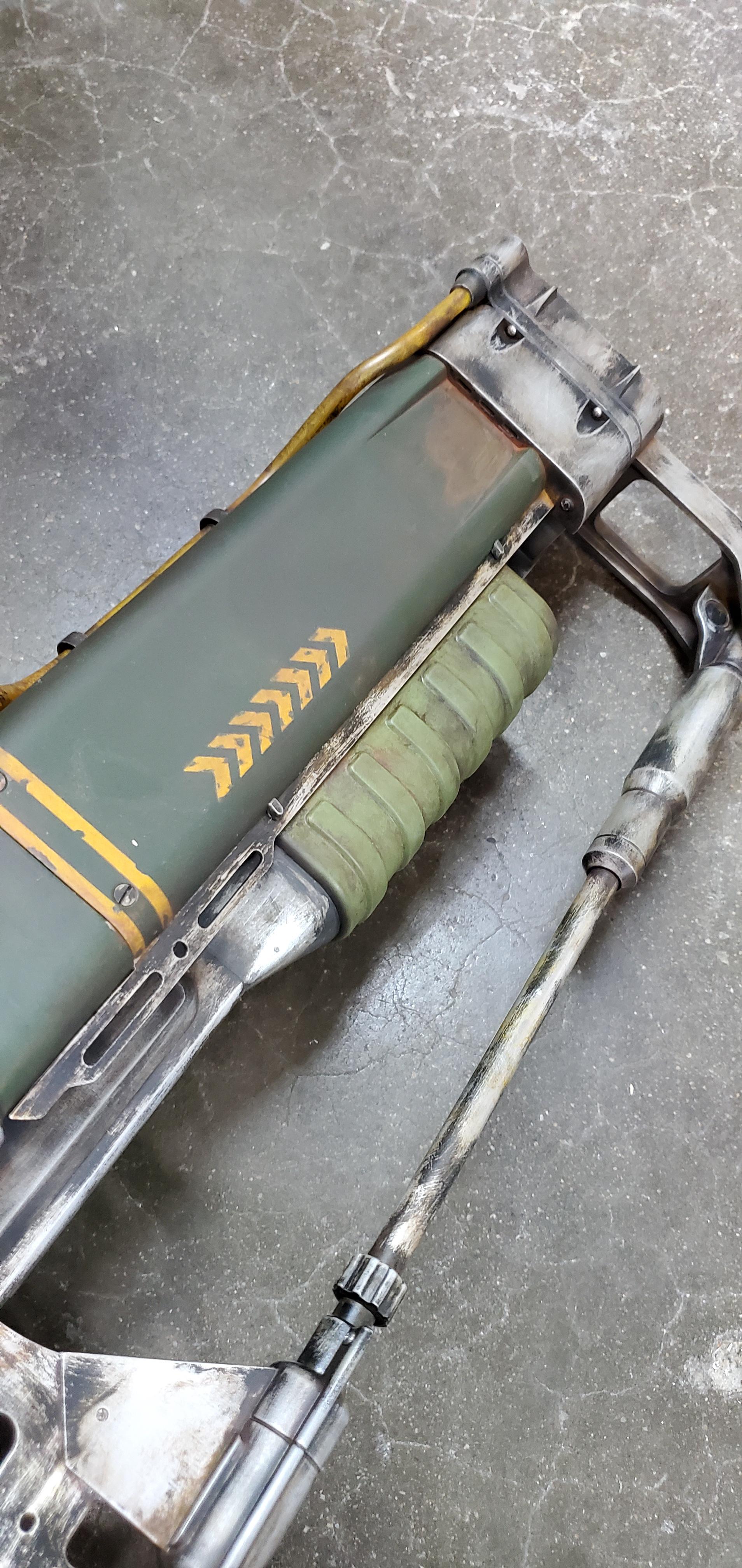

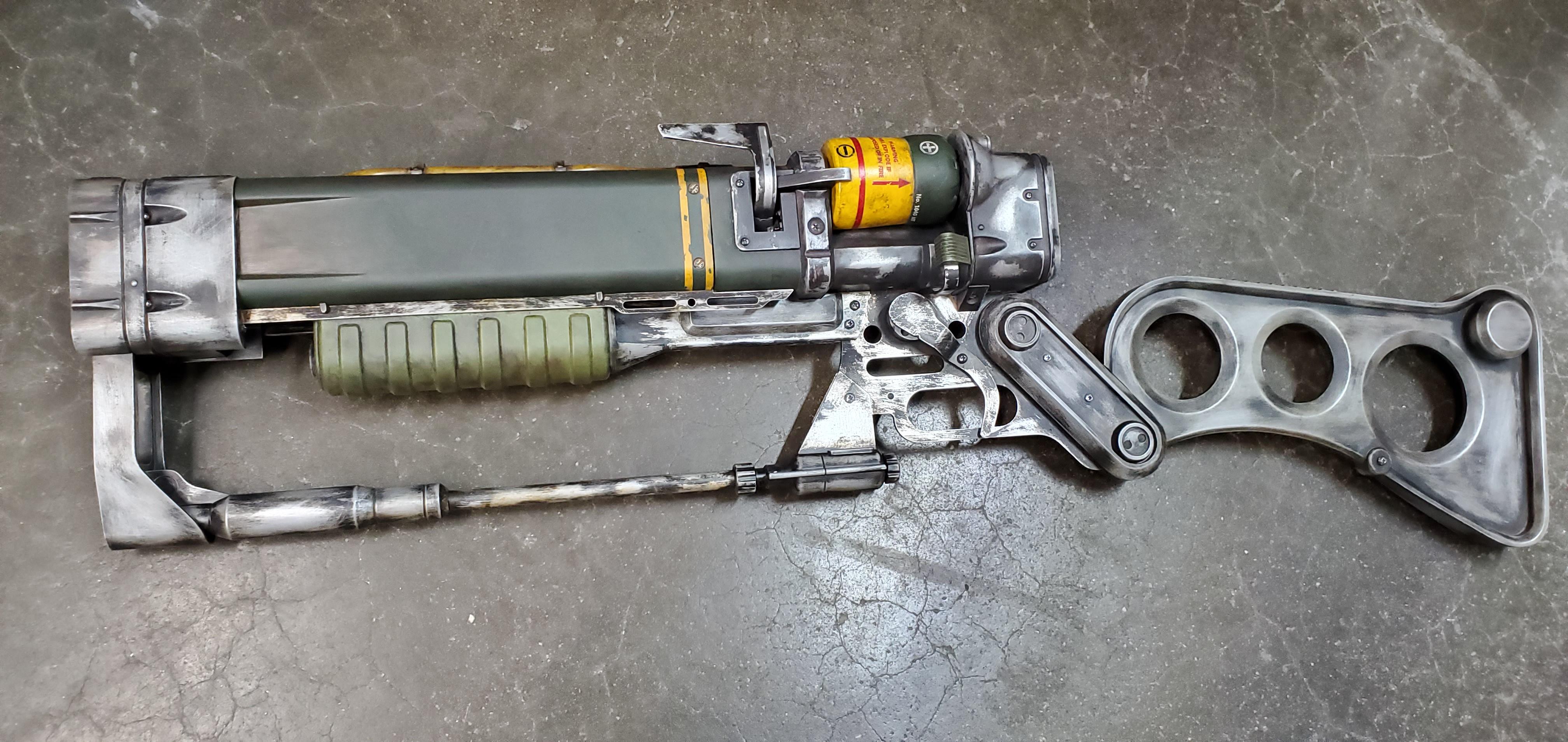

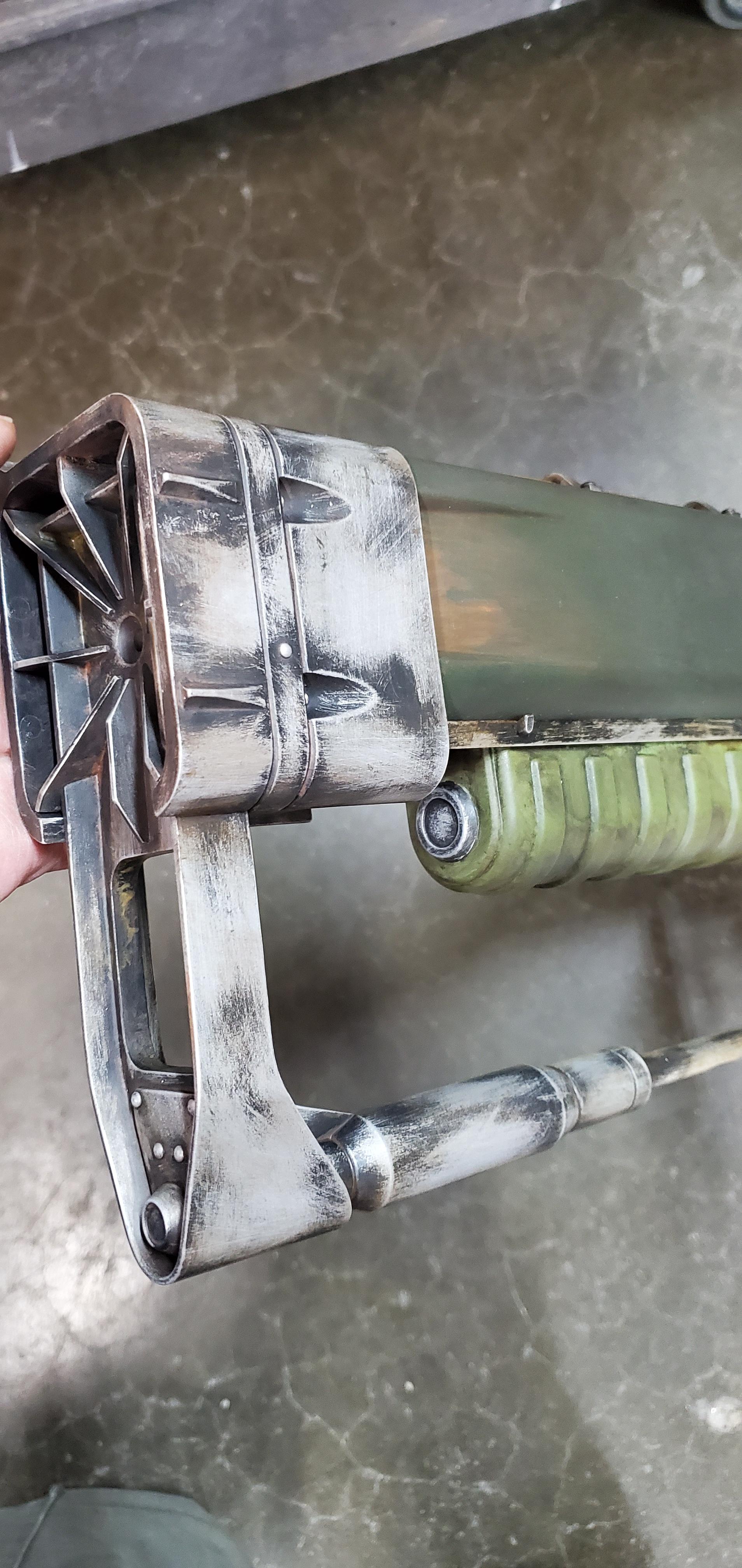

Finished painting and weathering the rifle barrel, grip, and standard stock. Next onto the sniper barrel and finishing the splitter barrel.



[zapwizard]

A near perfect match to the game. Nice build.



[Phaestoz]

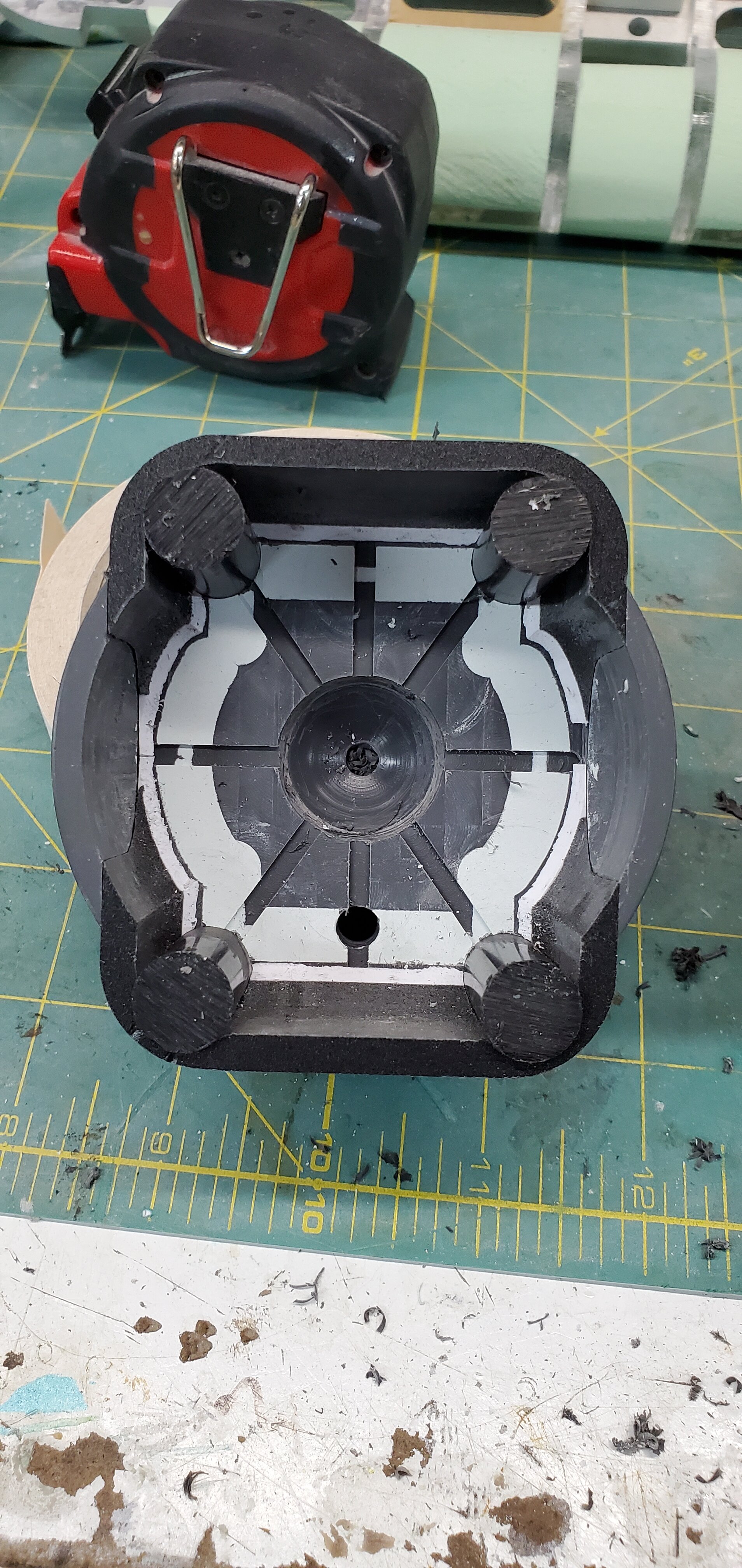

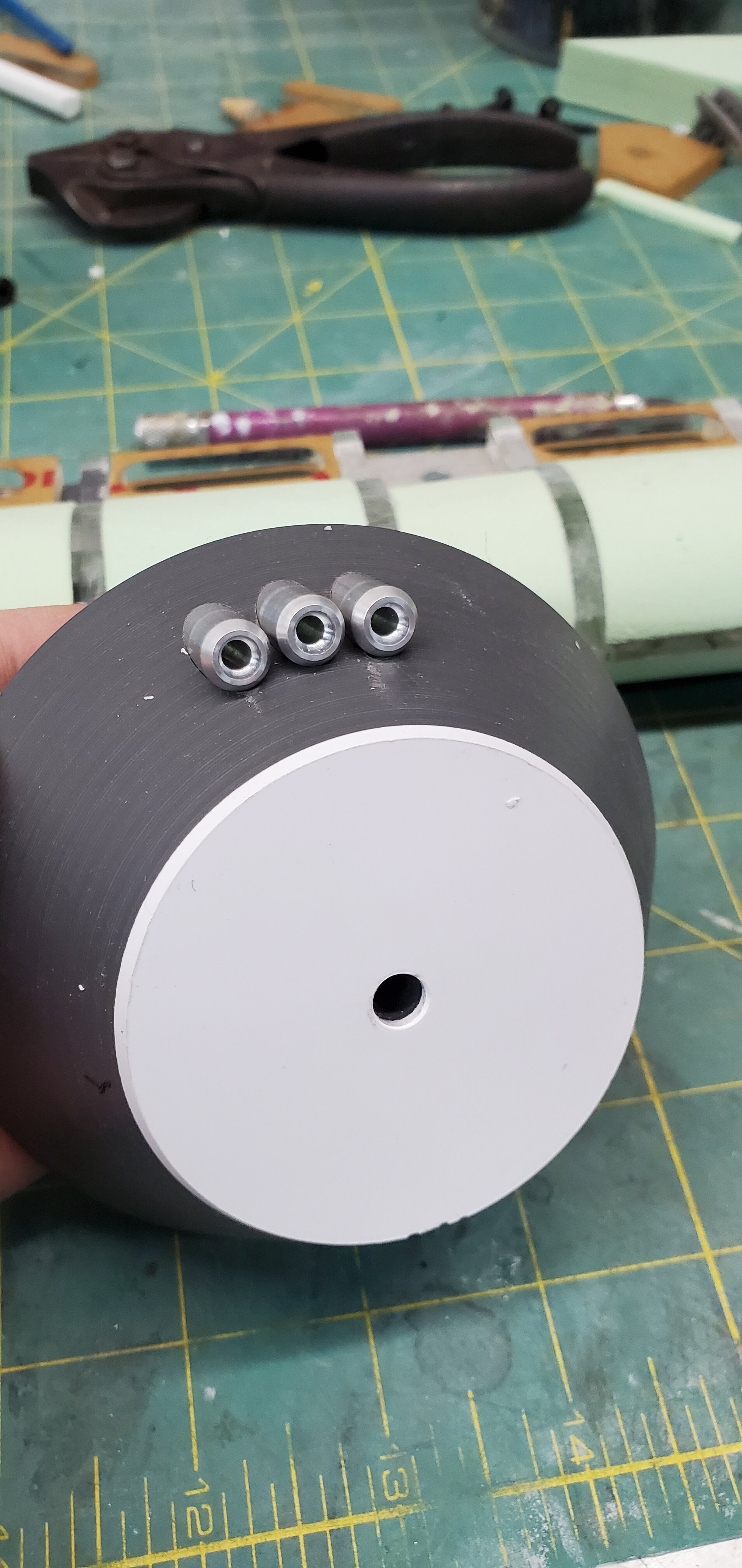

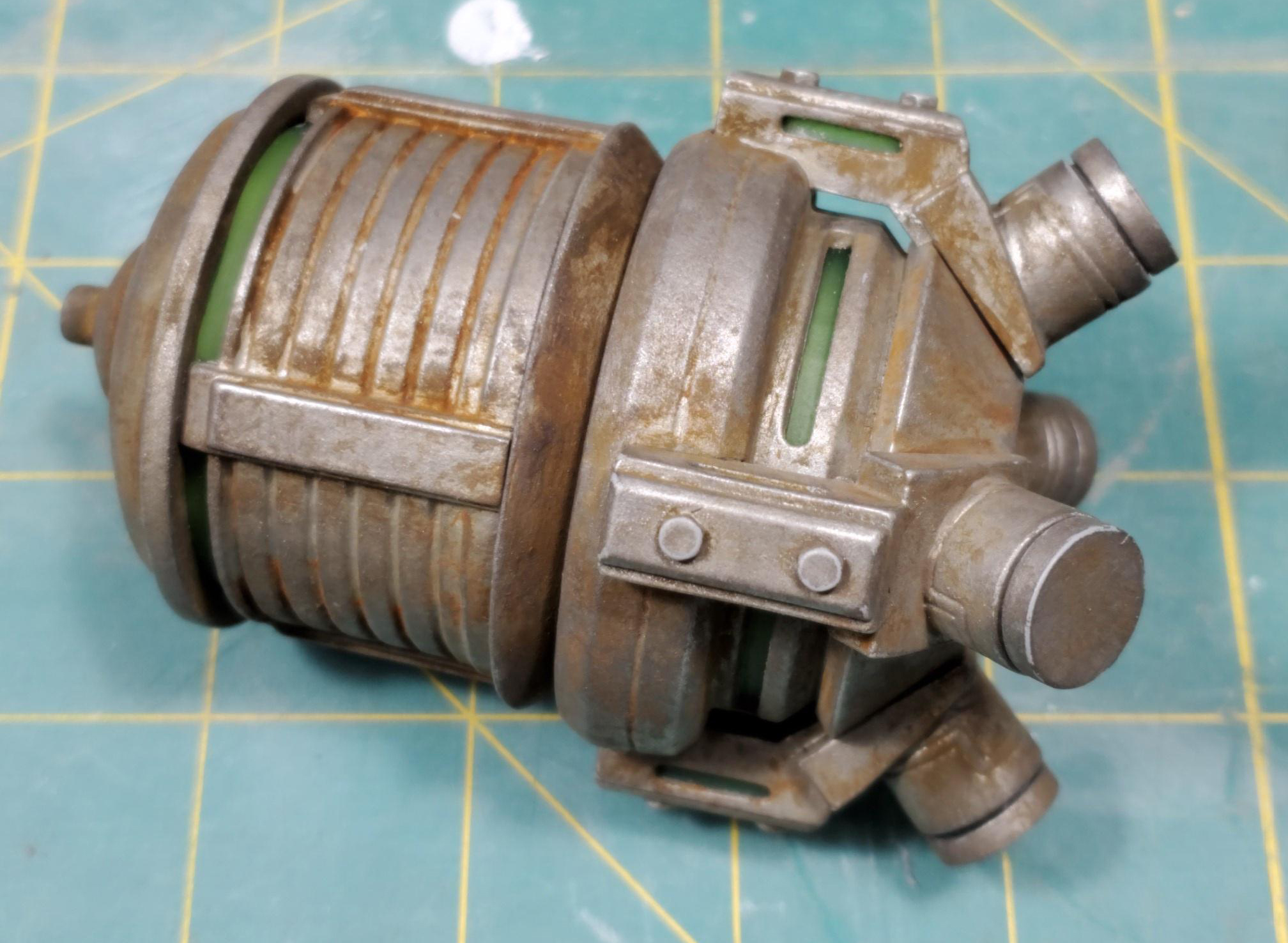

Started work on the sniper barrel to make sure the attachments will fit correctly



[ssdesigner]

Really nice work here, all of it. I do have a quick question:

Can you tell me how you get this look? I've always wondered how people get this rusted metal paint job. Is it drybrush? Powder? Unicorn magic?



[Roemsch]

Very cool project!! And a nice idea to do all these upgrades!



[Phaestoz]

Really nice work here, all of it. I do have a quick question:

Can you tell me how you get this look? I've always wondered how people get this rusted metal paint job. Is it drybrush? Powder? Unicorn magic?

Thank you! For the rusted look I used paint from sophisticated finishes. The base metal was their stainless steel paint that won't rust, then I went in and added blotches of iron paint that will rust with an activator. That way the whole piece isn't rusted when I brush on the rust activator and I can control the look of it.


As for progress, I've been taking a break from the project to finish a few other ones I have planned. I'll be back to work on the sniper barrel soon though.



[ssdesigner]

Thank you! For the rusted look I used paint from sophisticated finishes. The base metal was their stainless steel paint that won't rust, then I went in and added blotches of iron paint that will rust with an activator. That way the whole piece isn't rusted when I brush on the rust activator and I can control the look of it.


As for progress, I've been taking a break from the project to finish a few other ones I have planned. I'll be back to work on the sniper barrel soon though.

Wow! I didn't know that such a product existed, thanks! Were you able to finish it off with an acrylic matte clear coat?



[Phaestoz]

Wow! I didn't know that such a product existed, thanks! Were you able to finish it off with an acrylic matte clear coat?

I didn't end up clear coating it, but I don't think it would have any issues with an acrylic clear coat



[colinjreed]

I have no words, this is amazing!



[Axlotl]

Yah, super cool. I can't believe I'm only just now seeing this.
Any more progress?
