Game Fallout Iconic 10 mm Pistol

[yuumi2891103]

Indeed, drinking a liter of pure water is difficult. They say too much is bad for the kidney. I love to drink some isotonic water and a Kari Kari Umeboshi. (Salty prum pickle)



[yuumi2891103]

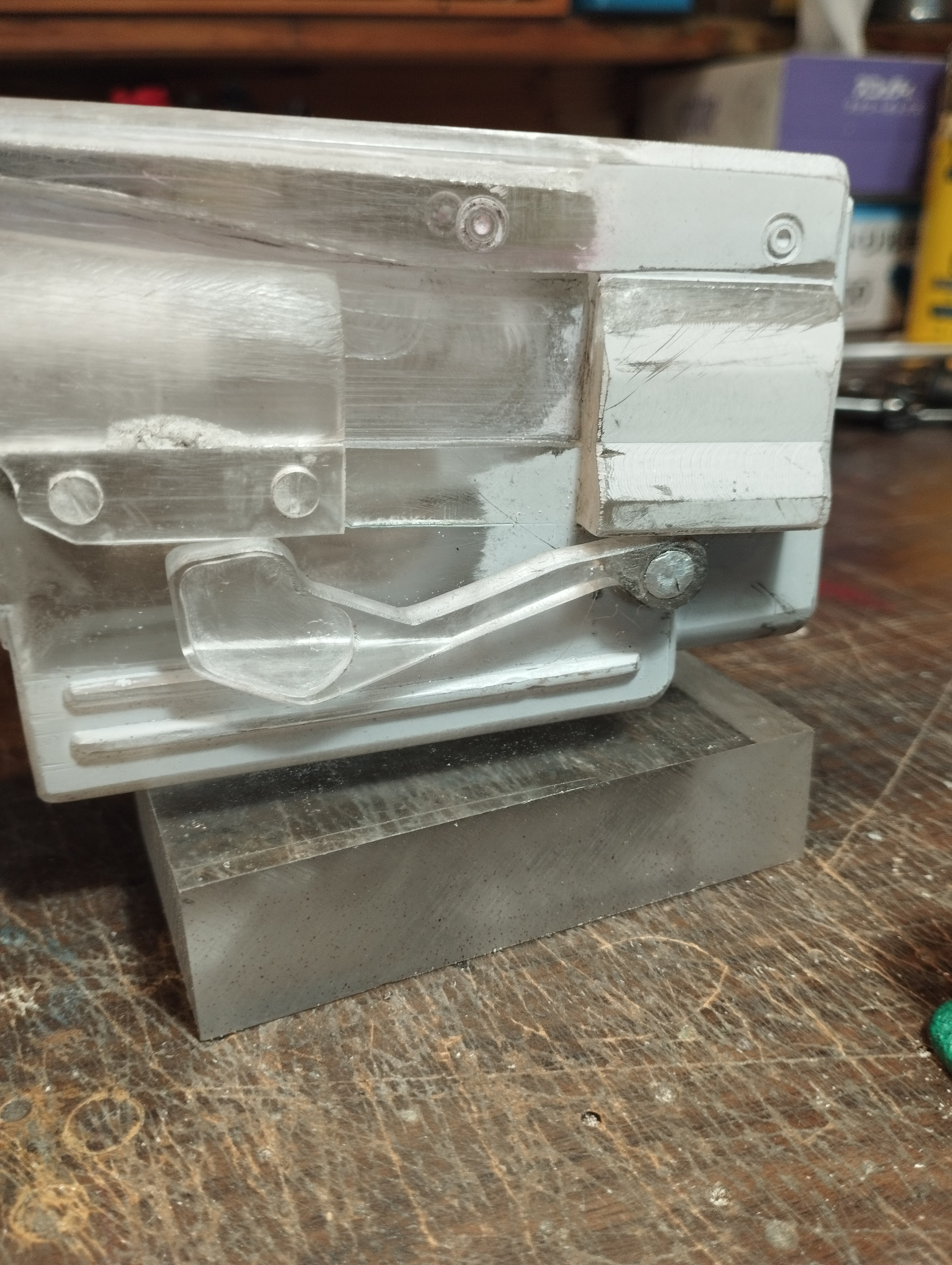

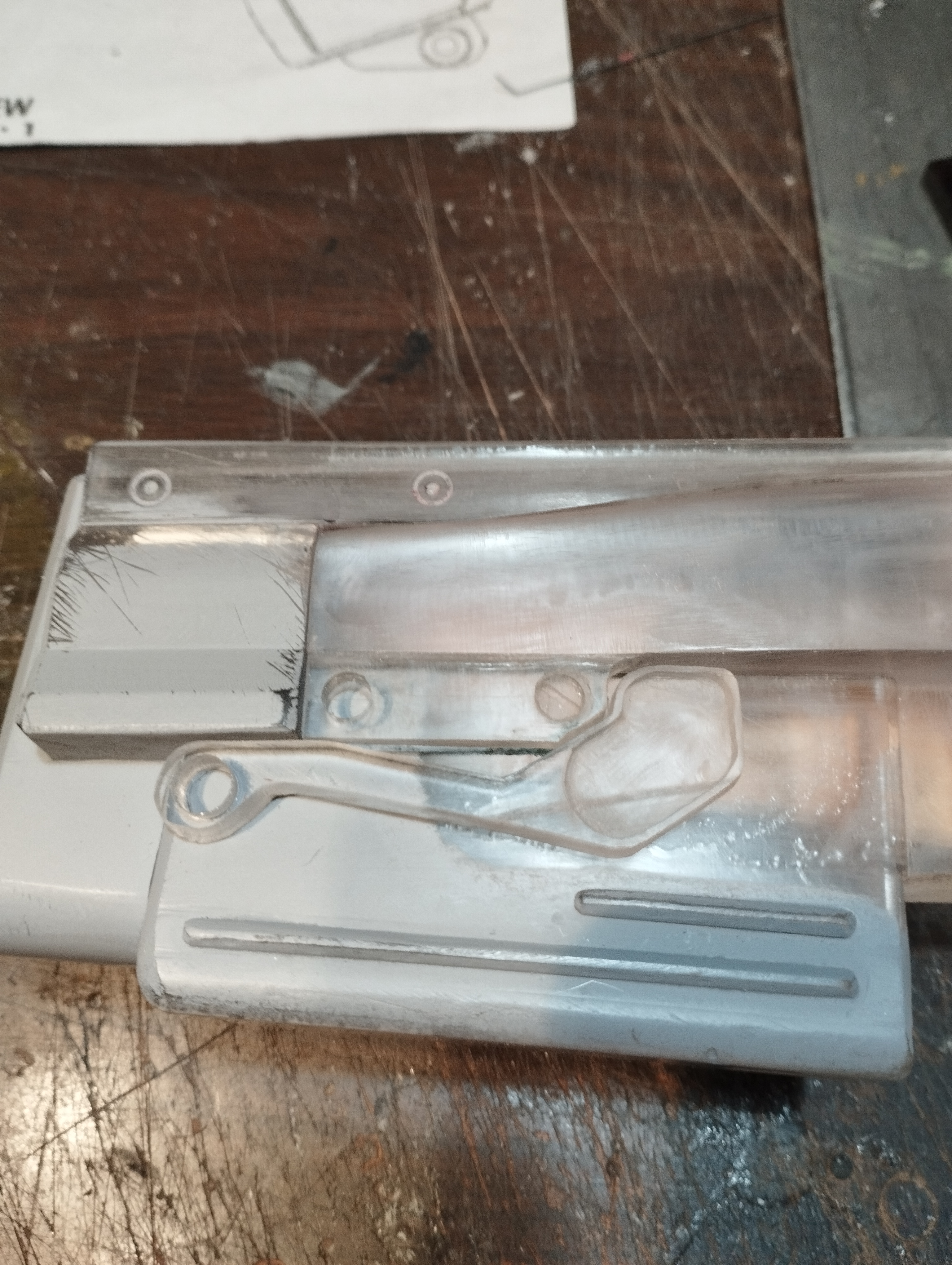

Today, I built these parts.

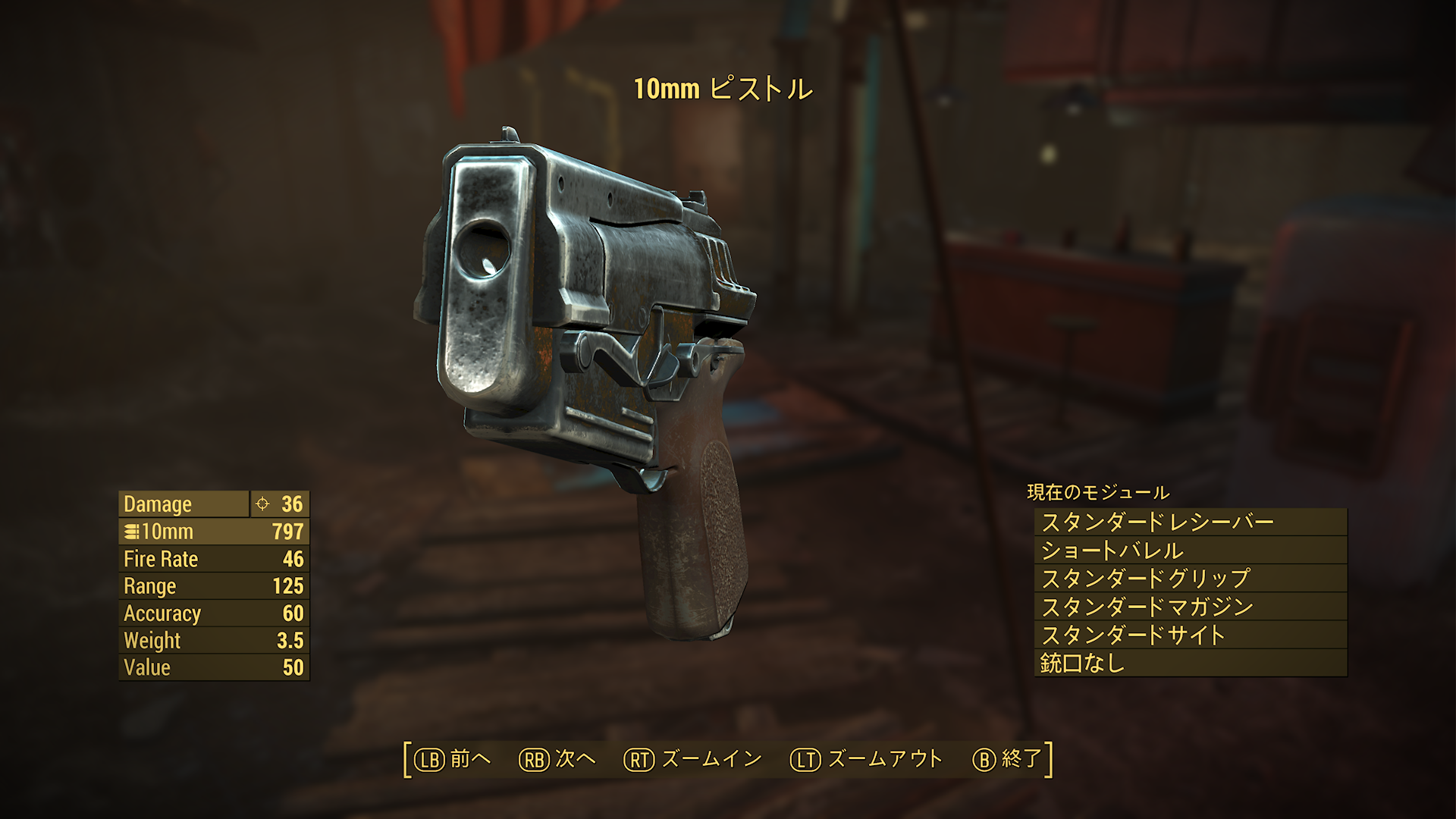

I'm not an expert on the gun but I guess it is some bolt-locking system (A mechanism that prevents the bolt from opening until the pressure inside the gun barrel drops to a safe level) because there is no tilt-locking lug on the barrel like the Colt 45 automatic. It is just another fictional gun in a game that doesn't exist but Fallout is the American game. Some experts of the gun might designed these. So these parts might have some meaning. Also, I guess this gun might be gas-operated because I see a gas port in the barrel near the muzzle. It is fun for me to imagine those those.​

If anyone has any comments, please let me know.​

I love guns!

Thanks for watching!

katsu



[joberg]

^^
Nice collection you have there Katsu-san



[yuumi2891103]

Making some coil springs.

Drilled a 6 mm hole on the barrel with a 7.5 mm shallow hole for the room for coil springs.

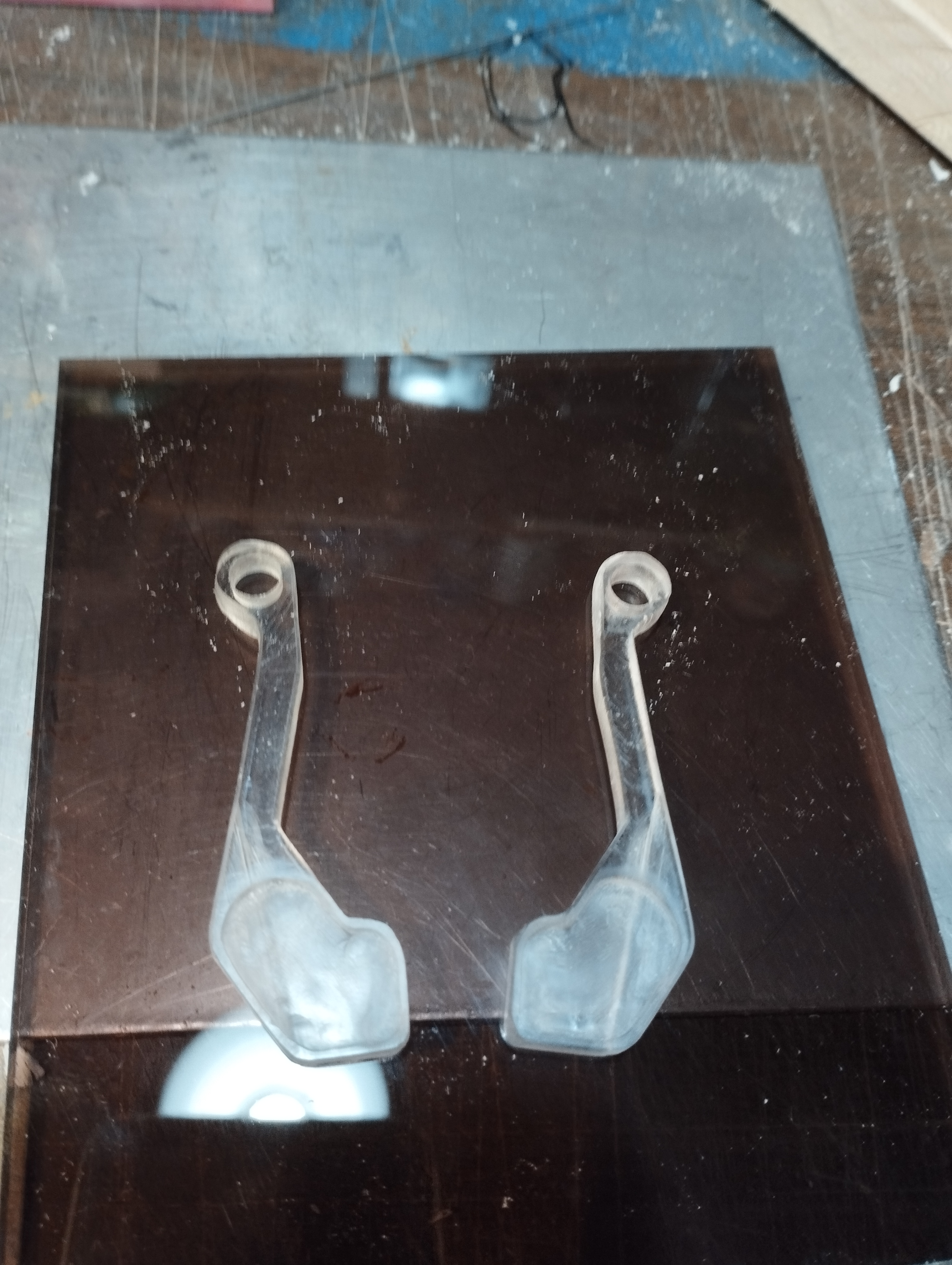

Fixed the locking arms with a 6 mm aluminum rod.

Thanks for watching.

katsu



[Atlas]

It could also be an overly-complicated dust cover, similar to those in an M249 or FN FNC, it would be in line with the screws on the slide.

Although I do like your idea of a slide lock too. It also could be some sort of a rate reducing mechanism.

_A



[yuumi2891103]

It could also be an overly-complicated dust cover, similar to those in an M249 or FN FNC, it would be in line with the screws on the slide.

View attachment 1840167

Although I do like your idea of a slide lock too. It also could be some sort of a rate reducing mechanism.

_A

Wow, thank you so much for the good info and pics. I really appreciate that I can hear your comment!



[joberg]

That's looking very good Katsu-san



[yuumi2891103]

Thanks a lot, joberg san!



[yuumi2891103]

The hammer was fixed with a small coil spring, and the dummy trigger was fixed. Put the coil spring in a receiver assy- that was a complicated work - and connected the barrel assy. and the receiver assy.

I gave up the linking trigger and hammer mechanisms.
Honestly, I forgot to leave the space for them in a grip part.

The rest of the work is to make some parts like the slide stop lever and so on.
That's the easy part.
I have to think about the magazine and bullet.

Thanks for watching,

katsu



[joberg]

Looking hefty...but lethal Katsu-san



[yuumi2891103]

Looking hefty...but lethal Katsu-san

Thank you, sir.



[yuumi2891103]

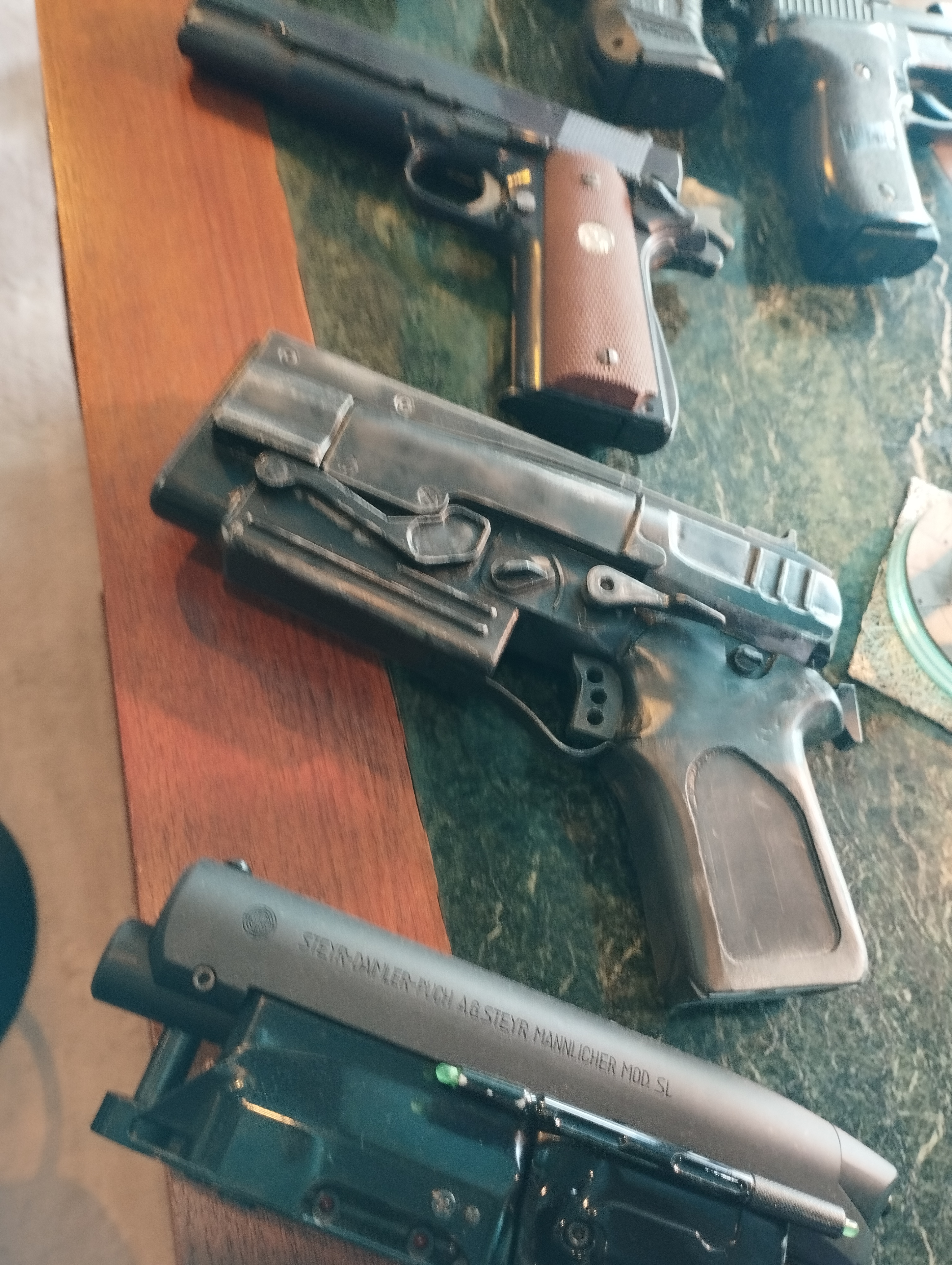

A paint job.

It took hours more than I thought to build some small parts but they were done and went to a paint job. Usually, a silver dry brush is used to create a weathering effect. But I tried the other way.

Primer applied.

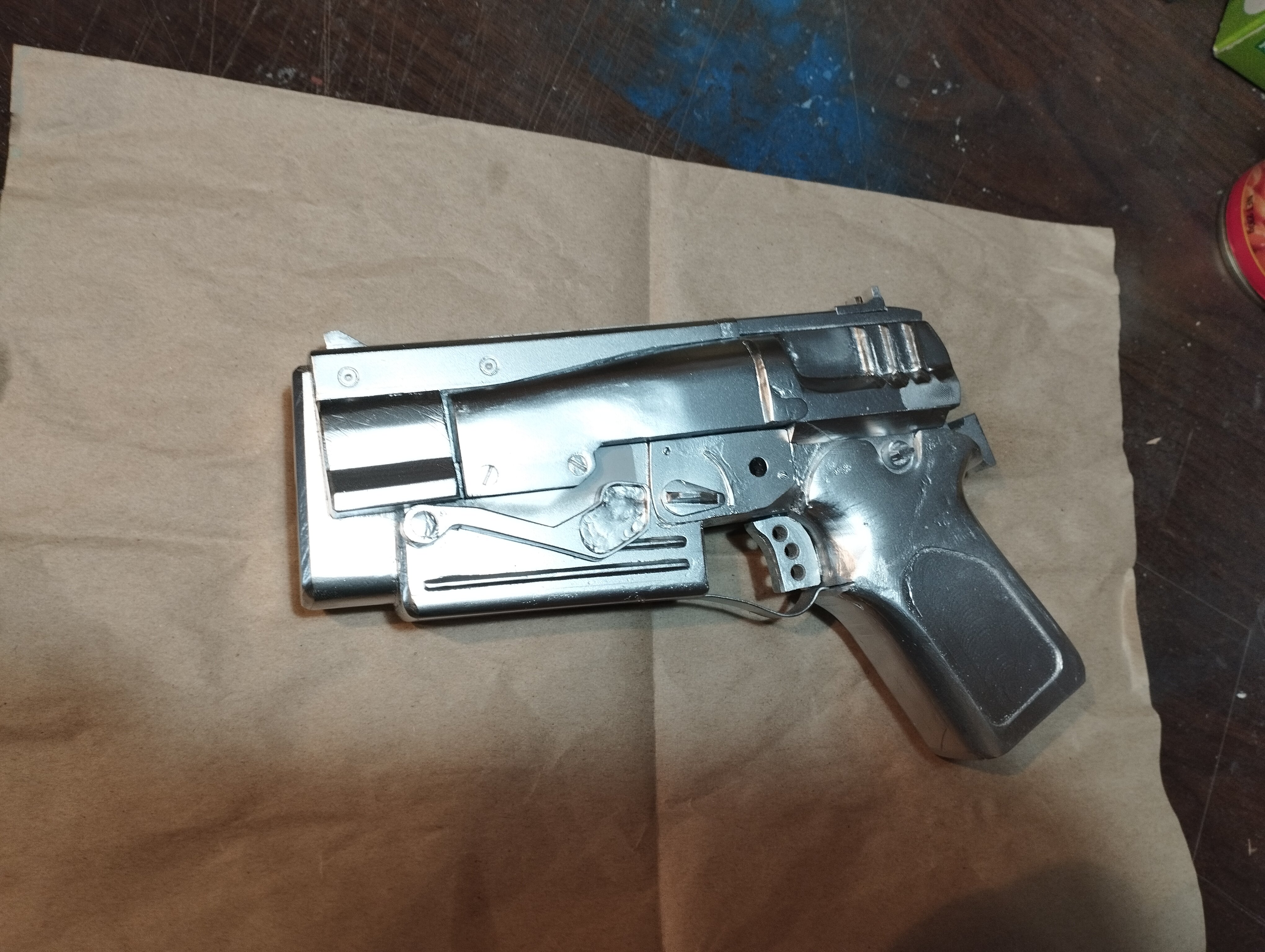

At first, spray metal color all over.

It looks like a chrome-plated finish.

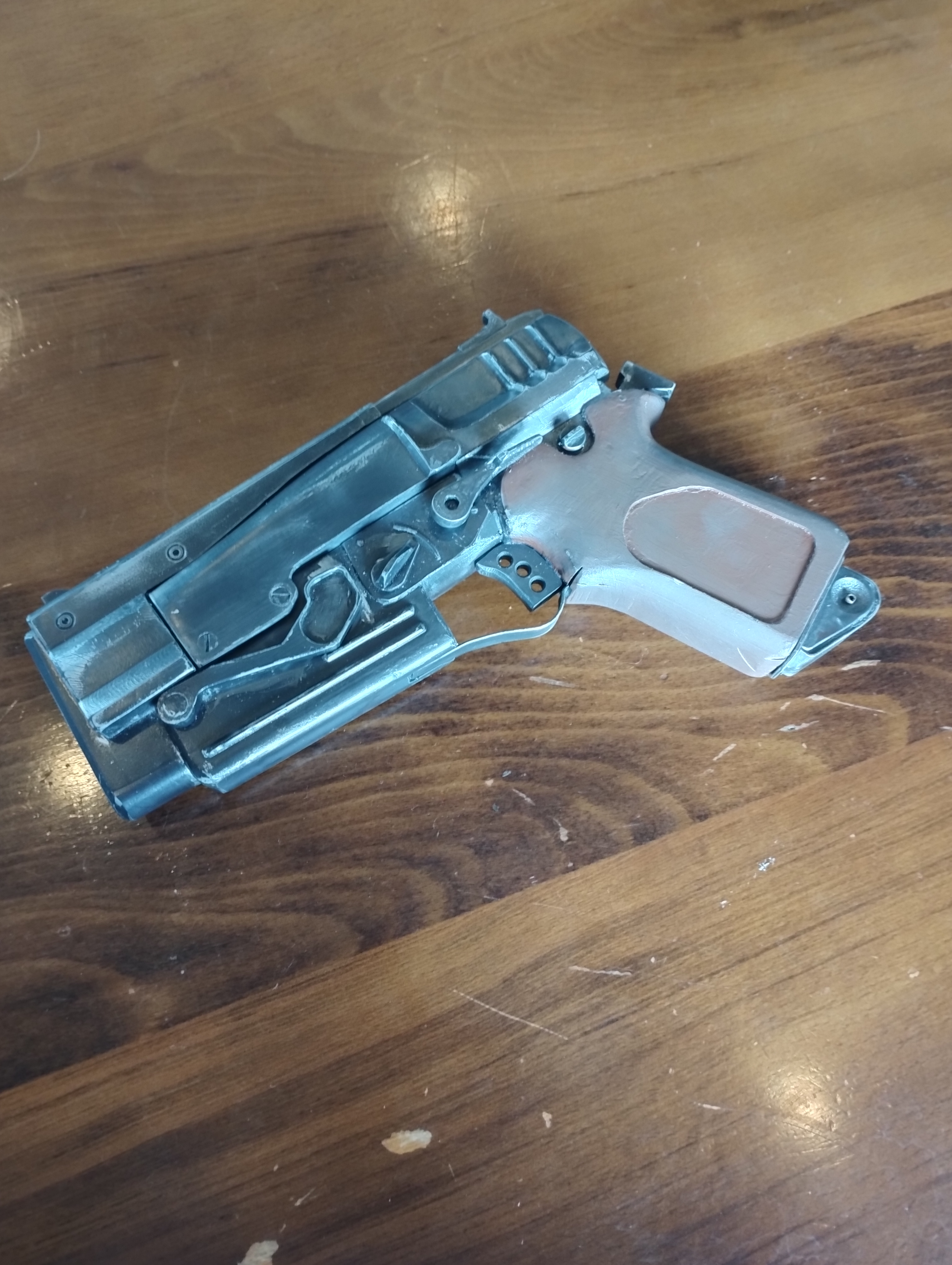

And then, splayed a black steel paint.

I polished it with 3M ultra-fine and micro-fine.

Carefully polished until the silver paint below is vaguely seen and ran 3M to leave a very smooth hairline on the surface.

The next things to do are make a checker on the grip and paint it. Then make a Magazine. That will be it.

Thanks for watching!



[joberg]

A+ Katsu-san



[yuumi2891103]

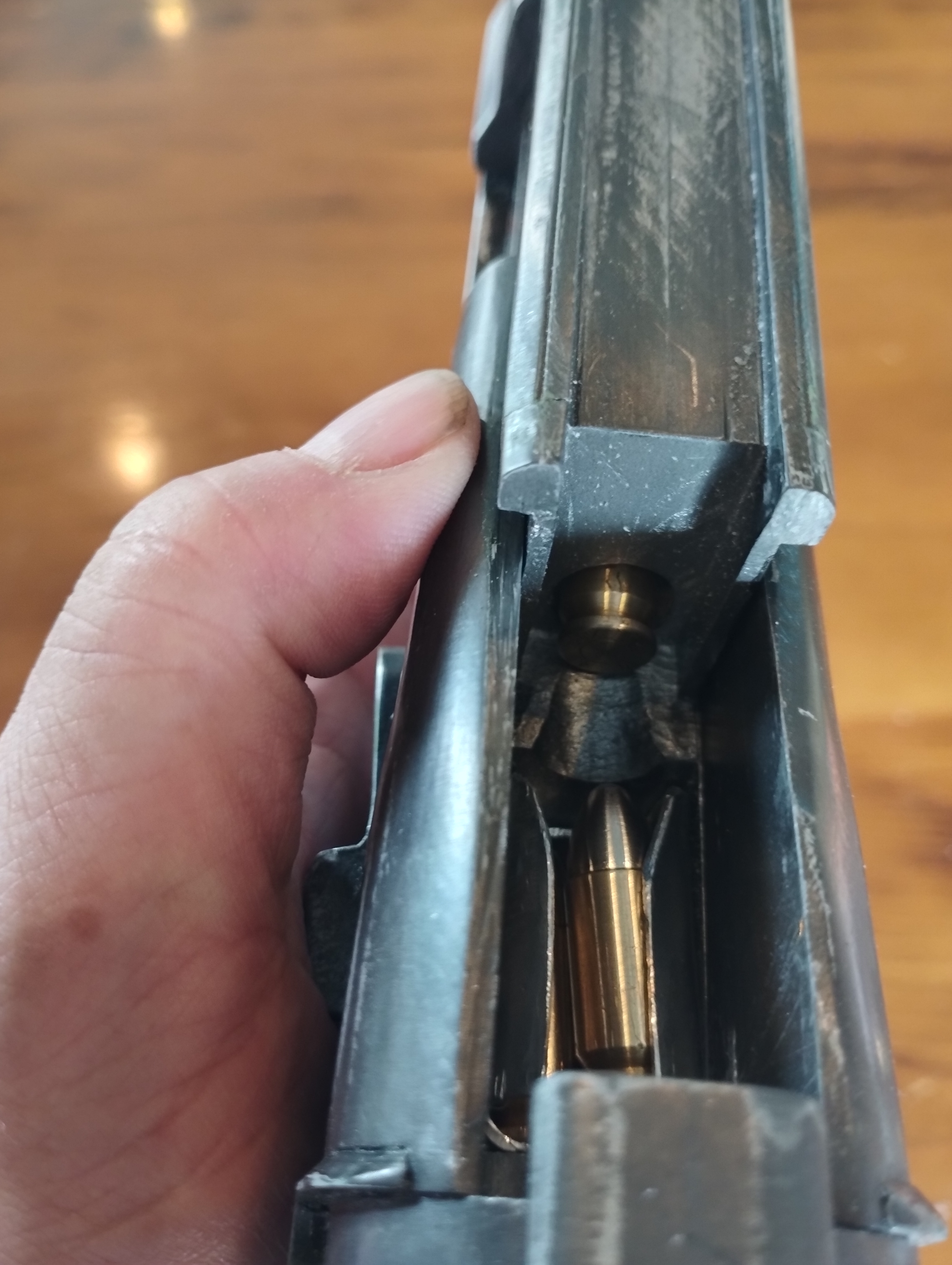

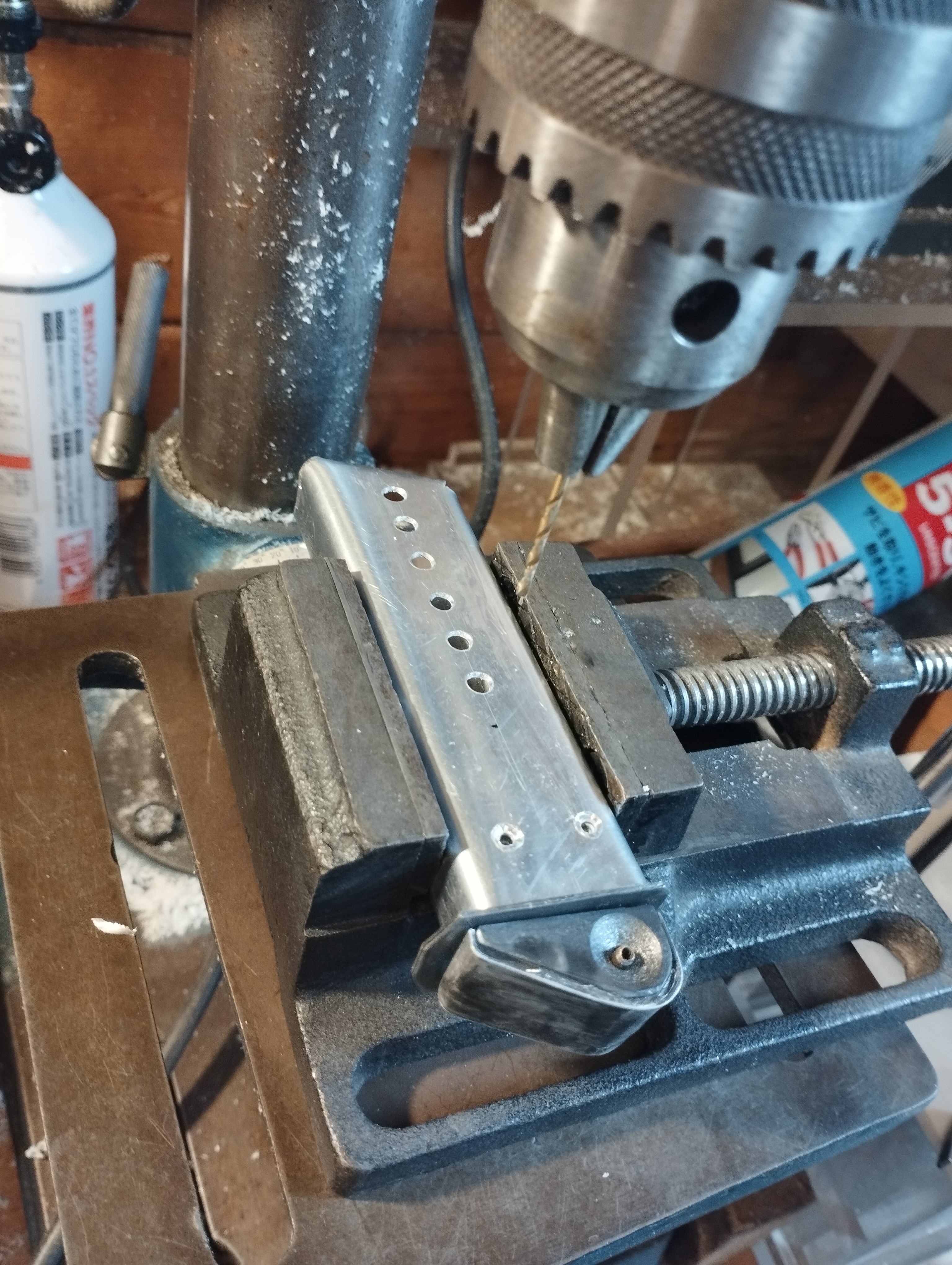

Making a magazine.

Using a 1 mm aluminum sheet with a vice bend it precisely.

Made a large square coil spring and bullet feeder and put them inside. I made a magazine bottom bumper and sealed the magazine assy.

Just polished the surface.

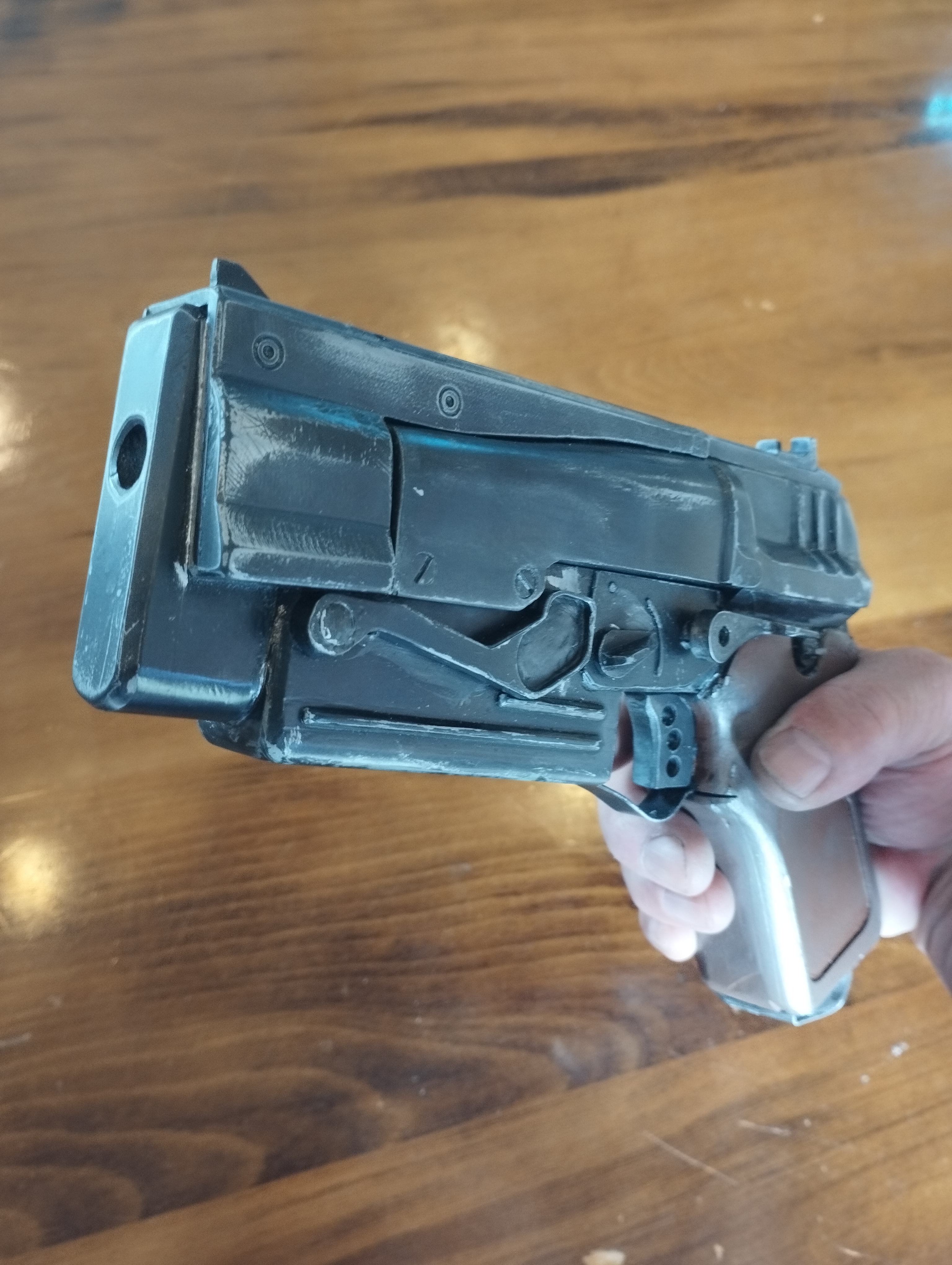

Finished.



[yuumi2891103]

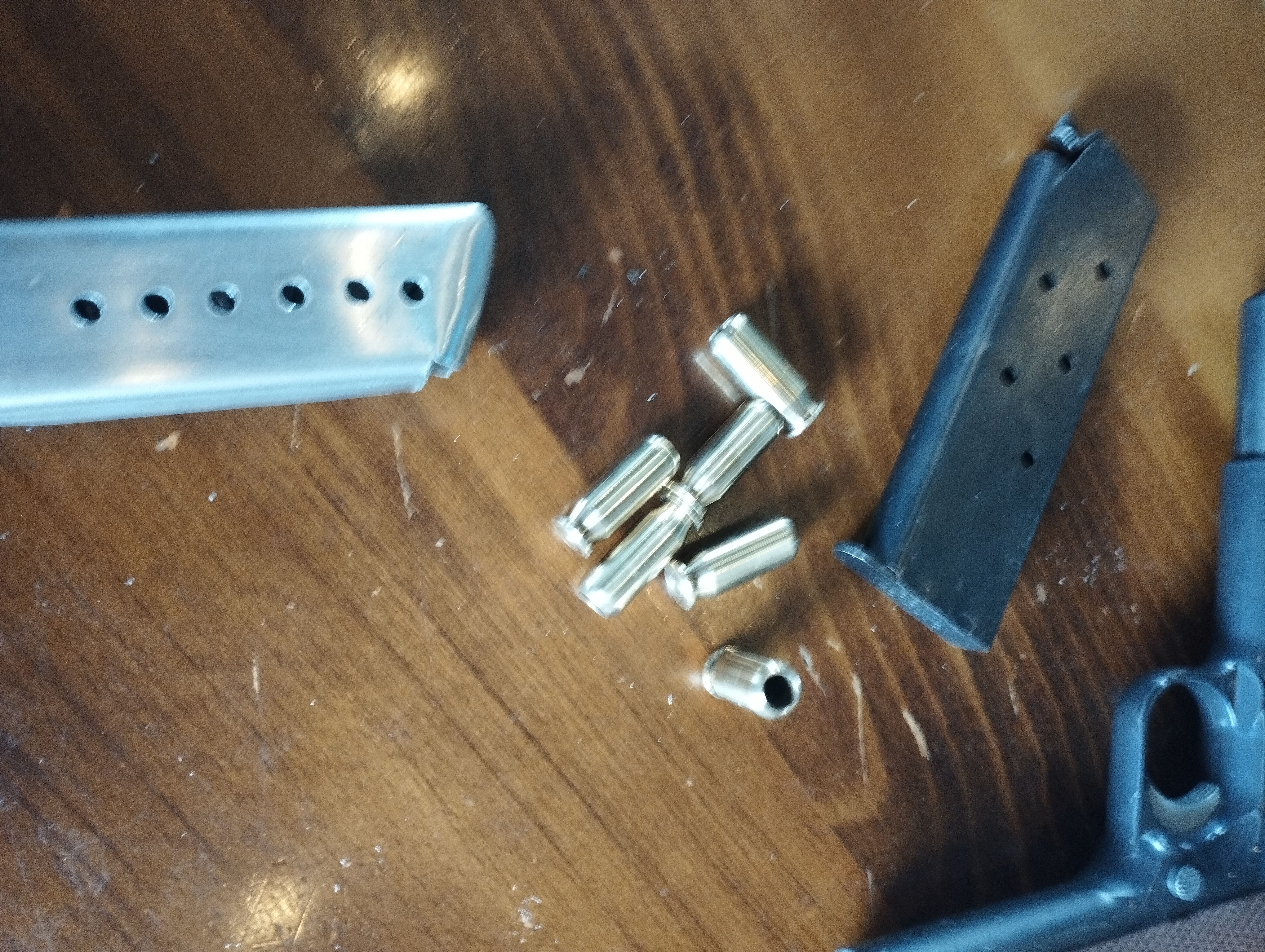

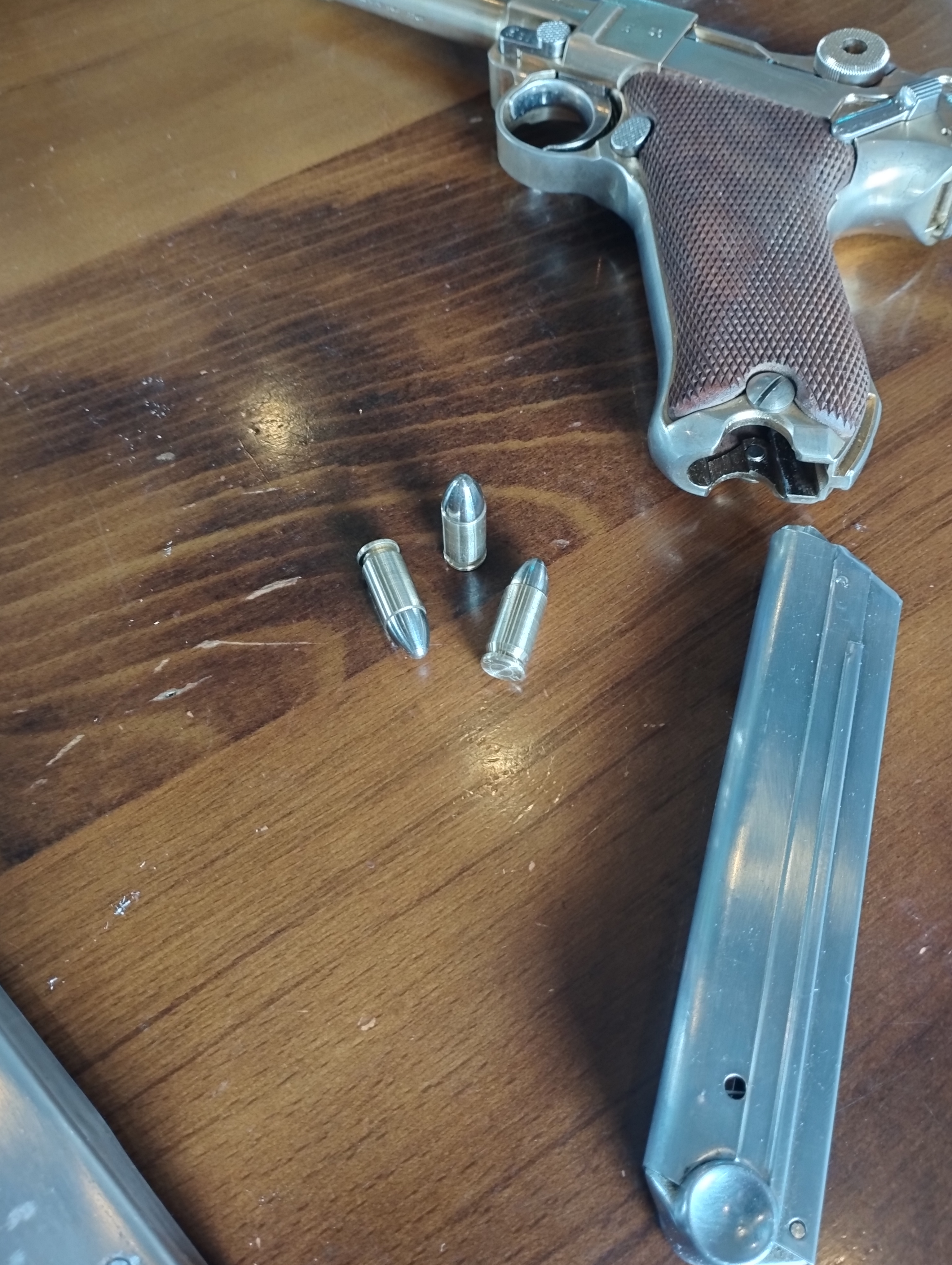

I couldn't get the 10 mm dummy bullet.
Here are some 9 mm Ruger and .45 ACP dummy bullets.

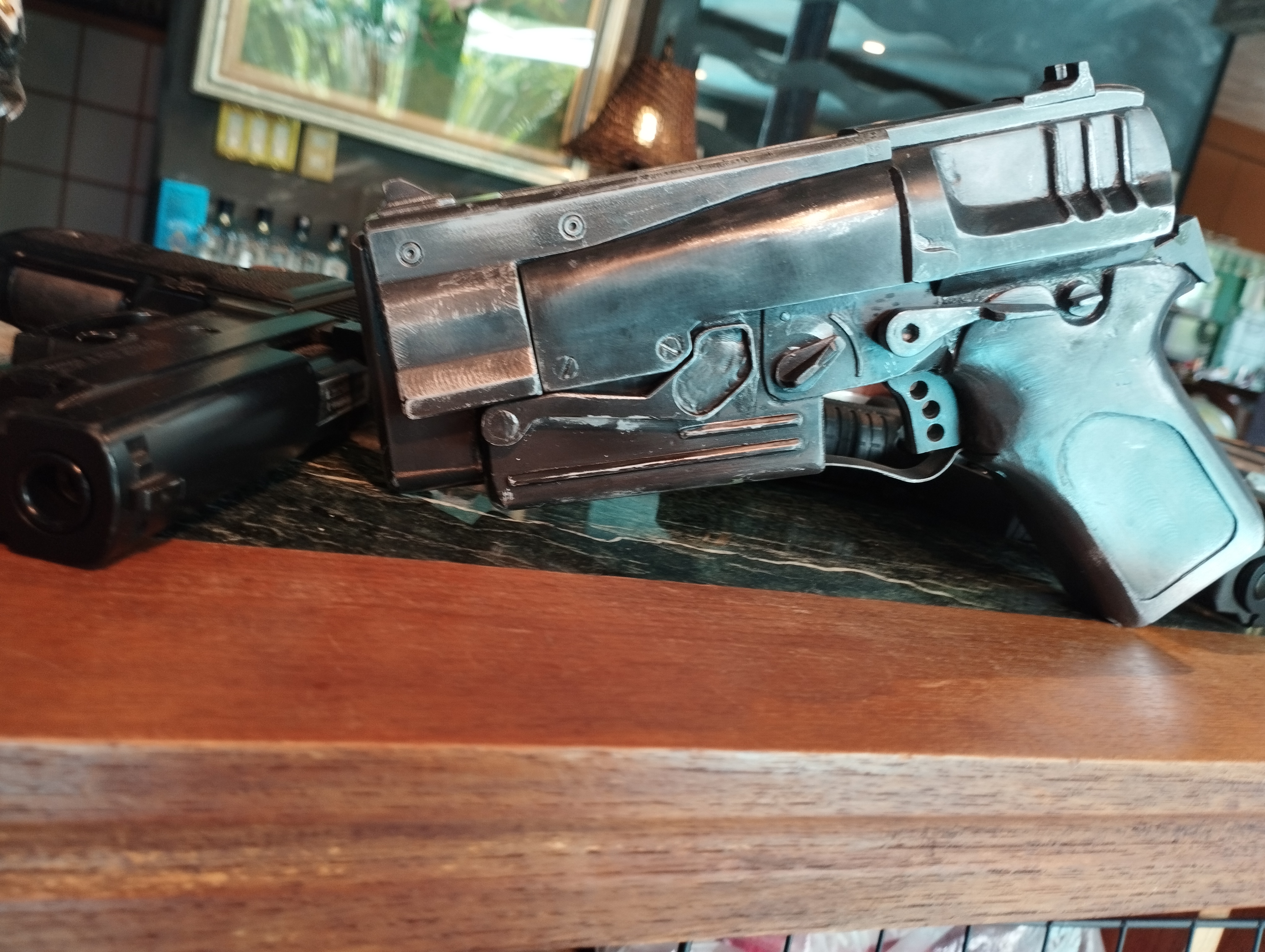

This is it.

I thank you for your kind support.
Have a nice and happy vacation.

katsu



[stevielewis]

Really nice work on this, Katsu-san!



[NakedMoleRat]

I hope that your daughter never gets pulled over by the police while she has that in her car.



[yuumi2891103]

brilliant work, I think I'll start from the beginning again .....

Thank you. Enjoy your build.

Really nice work on this, Katsu-san!

Thank you, Stevie san.

I hope that your daughter never gets pulled over by the police while she has that in her car.

I hope so, too. Japanese governments gun control is almost crazy. They knew who will be the first to get shot.



[NakedMoleRat]

Katsu-San, so..... what's next?



[yuumi2891103]

Katsu-San, so..... what's next?

I want to build a starship.
