egosheep said:
Incredible attention to detail in even catching that those cylinders were unique. I've added some 4K shots in case you need a closer look, these are the best I could find off the top of my head.

View attachment 1324421View attachment 1324422View attachment 1324423View attachment 1324424View attachment 1324425View attachment 1324426View attachment 1324427View attachment 1324428View attachment 1324429View attachment 1324430View attachment 1324431View attachment 1324432View attachment 1324433View attachment 1324434View attachment 1324435View attachment 1324436View attachment 1324437View attachment 1324438View attachment 1324439View attachment 1324440View attachment 1324441View attachment 1324442View attachment 1324443View attachment 1324444View attachment 1324445View attachment 1324446

If you need additional 4K reference shots, please give me some rough timestamps and I will get right on it.
Click to expand...

Wow, much appreciated!!

EDIT: After seeing these in 4k, I'm now noticing the tiny tick marks around the small cylinders aren't present on all of them. I now need to go back and redo them.

Last edited:

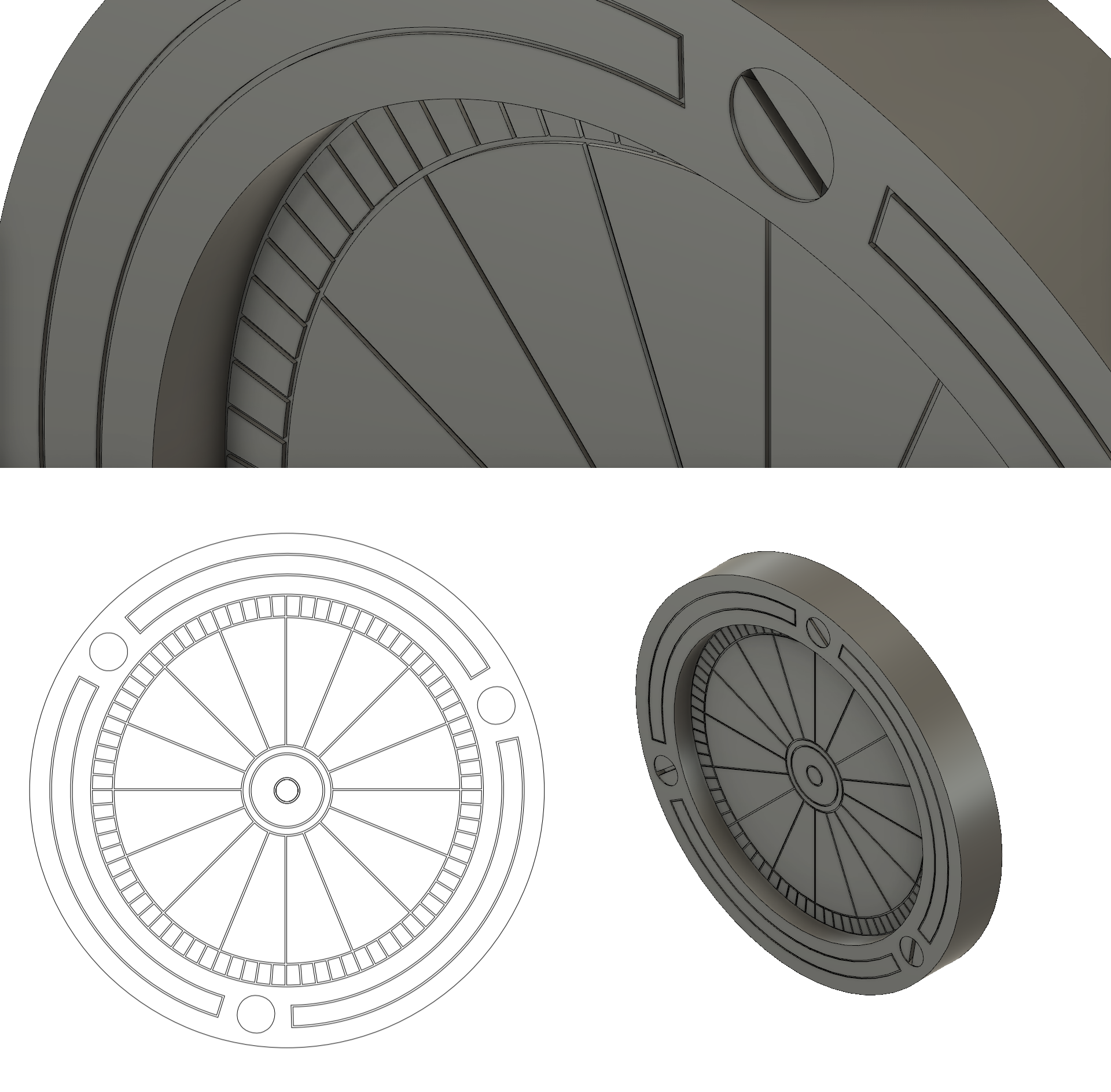

I finished the designs of the 2 large cylinders and 4 of the 5 small cylinders; Out of every scene and sceenshot with the physical prop, they NEVER show #5 (as far as I have seen). The only time you see it on screen is in the season 2 finale, where is was all CGI and used the fx reel model. They must have switched to the more detailed prop for season 3. I'm probably just going to have to go with the fx reel design for that one.

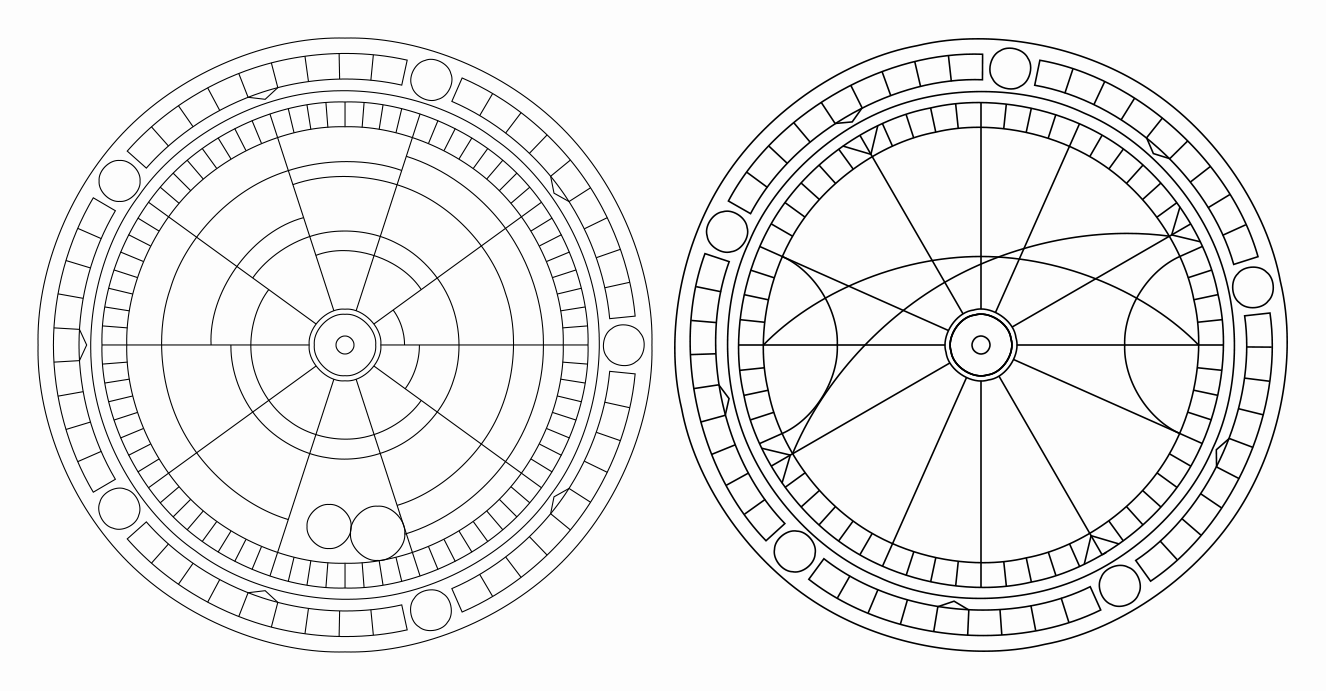

Large Cylinders.png

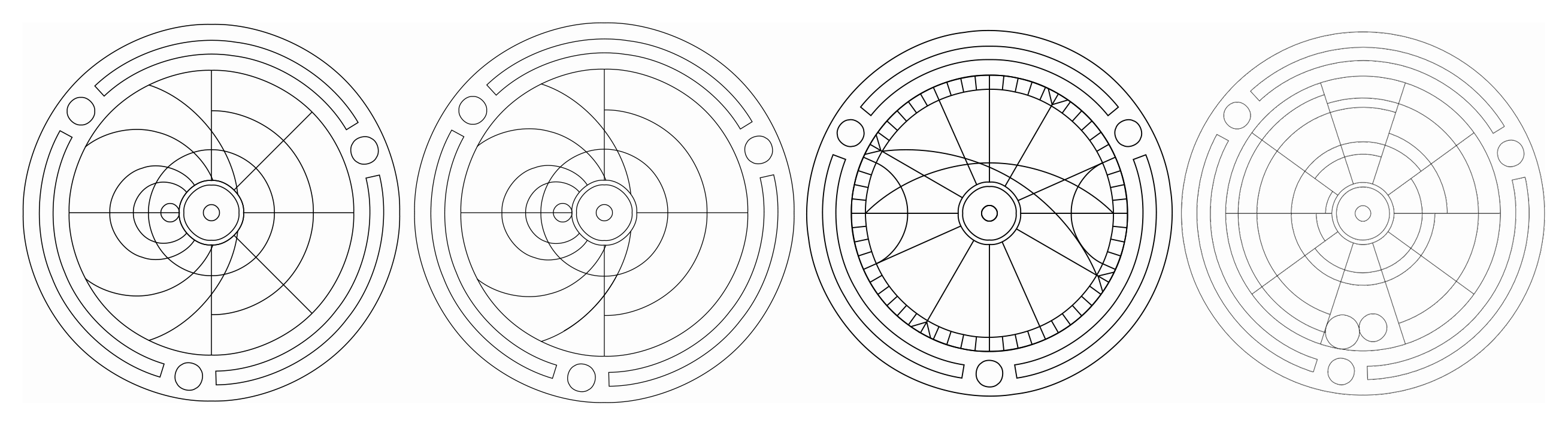

Small Cylinders.png

Amazing work on these. When I get home from work I will scrub through S03 to see if I missed any other good shots of the Orb.

I like that the large design on the left kind of looks like the Emperor's window from ROTJ.

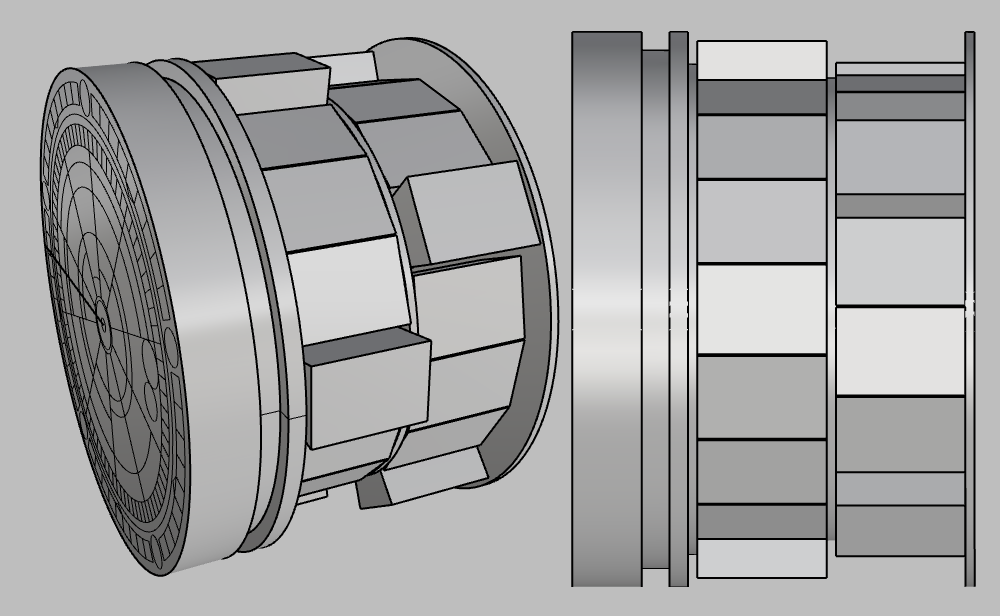

Working on getting everything sized up in Rhino, then importing into Fusion. I'm debating on having the black boxes sticking out or not. They will freely spin either way, though.

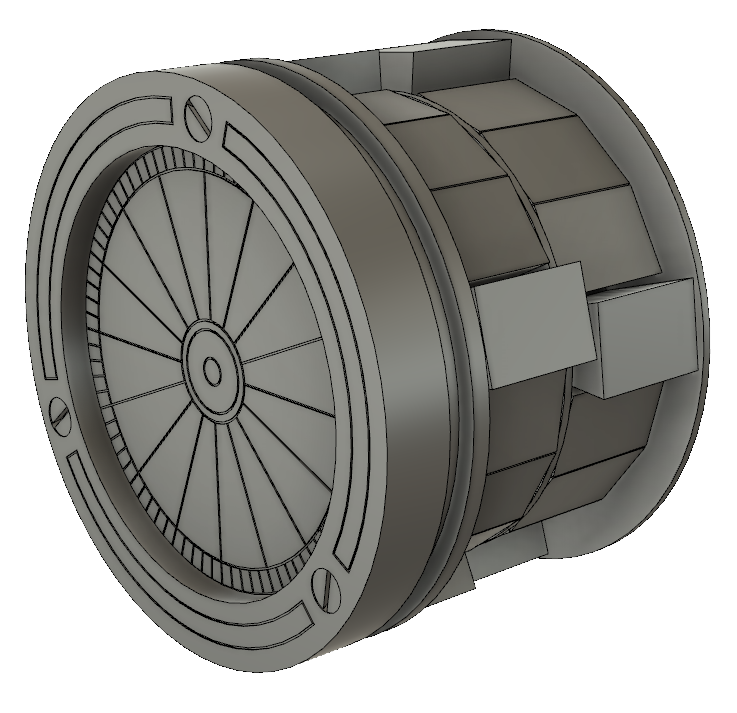

Large Cylinder 3D.png

marmaqan said:
Excellent job, congrats!

Do you expect to design a functional orb (no time travel related ;))? I mean, to be able to be rotated and so on?
Click to expand...
The only one I'm really concerned about is the particle chamber. It's the longest of all of them, and appears to pass through the center. Won't know for sure until I get that far in the modeling.

My current ideal order of 'functionality' is:

1. Cylinders
2. Particle Chamber
3. Orb Rotating.

If all else fails, my secondary is option is to make a static orb that rotates; no cylinders or particle chamber. I might make both versions, who knows.

That's looking amazing!!

Edit: I think static with a functional fuel chamber could be a good option for a final design. Is there enough interior clearance for the tumblers?

Last edited:
egosheep said:
That's looking amazing!!

Edit: I think static with a functional fuel chamber could be a good option for a final design. Is there enough interior clearance for the tumblers?
Click to expand...
Good question, I haven't gotten that far yet. Still need to model the fuel chamber and the large cylinder. Then I'll be able to see where everything fits.

You've nailed that Orb, such a fantastic job.
I wish I could say I had got beyond modelling the two halves and the cut out holes but that is as far as I've got due to other projects keeping me busy.
Looking forward to see you finish this off and have a physical orb in hand.

renaissance_man said:
You've nailed that Orb, such a fantastic job.
I wish I could say I had got beyond modelling the two halves and the cut out holes but that is as far as I've got due to other projects keeping me busy.
Looking forward to see you finish this off and have a physical orb in hand.
Click to expand...
Thank you! It's been quite the endeavor so far. Fusion360 is a different beast than Rhino, that's for sure.

This is looking very very accurate. Congrats.

I think that the best option is, as egosheep said, a static version with functional fuel chamber (if it fits, and if there is any posibility to fisically assemble it all together)

I definitelly keep following this post ;)
