M19 telescope mhr 1942 build

[SlyFox]

MR also used the curved/narrow foot of the '43 for their E-11. Personally I like both. Curious if through RO we'll see wide/straight foot '42 scopes too

Yes MR did use a '43 as the base for their replica, and even it was non-functional which means it can't be easy to do.

Very Possible! there could be '42 scopes in RO. Just from what I've seen so far in trailers and at SW celebration it looks to be only '43 scopes so far, and only resin casts at that! I've yet to see an actual real one. Probably only used for closeups with the real airsoft gun, real hengstler, and real flashlight. All the blasters I've seen so far are completely made of resin.



[jkno]

Good ol' times with real guns might be over :lol But we have OT for that.



[Field Marshall]

m19 and a m38 side by side .... telescopes I've run across in the last few days,,,



[Field Marshall]



[kevin926]

I'm using the m38 on my E11 shown in my build page. Great piece to have. Thanks



[jkno]

M38 on my E-11 above, M40 and M19 on display:



[Field Marshall]

Nice display boxes

M38 on my E-11 above, M40 and M19 on display:

http://img.photobucket.com/albums/v... Scale and Blasters/M40 amp M19 Scopes 02.jpg



[Field Marshall]

Don't know if everyone has seen this before,,, it is a short video of me using a laser to measure the M19 scope ... The replica I'm doing is going to be as close to real as possible...
This was first step... after i got the geometry i started making fixture and programming for the casting and the cnc .



[tomm1999]

That 3d scanner is awesome! Did you make the sterling barrels in steel too? I cant wait until you offer them, they look amazing!



[Pedro]

I already spoke with you about this on ebay but I'll say again, I'm dying for this replica! (Though not super interested in actual functionality, just appearance). Any idea how long this project will take you and how much they'll be? I'm in for one for sure.



[Field Marshall]

I know,,, its become a big priority.. Theres is a big need for it and im ramping it up fast.

I already spoke with you about this on ebay but I'll say again, I'm dying for this replica! (Though not super interested in actual functionality, just appearance). Any idea how long this project will take you and how much they'll be? I'm in for one for sure.

- - - Updated - - -

M19 disassembled for reverse engineering

- - - Updated - - -

prism assembly..... trying to make these .NOT a easy task

- - - Updated - - -

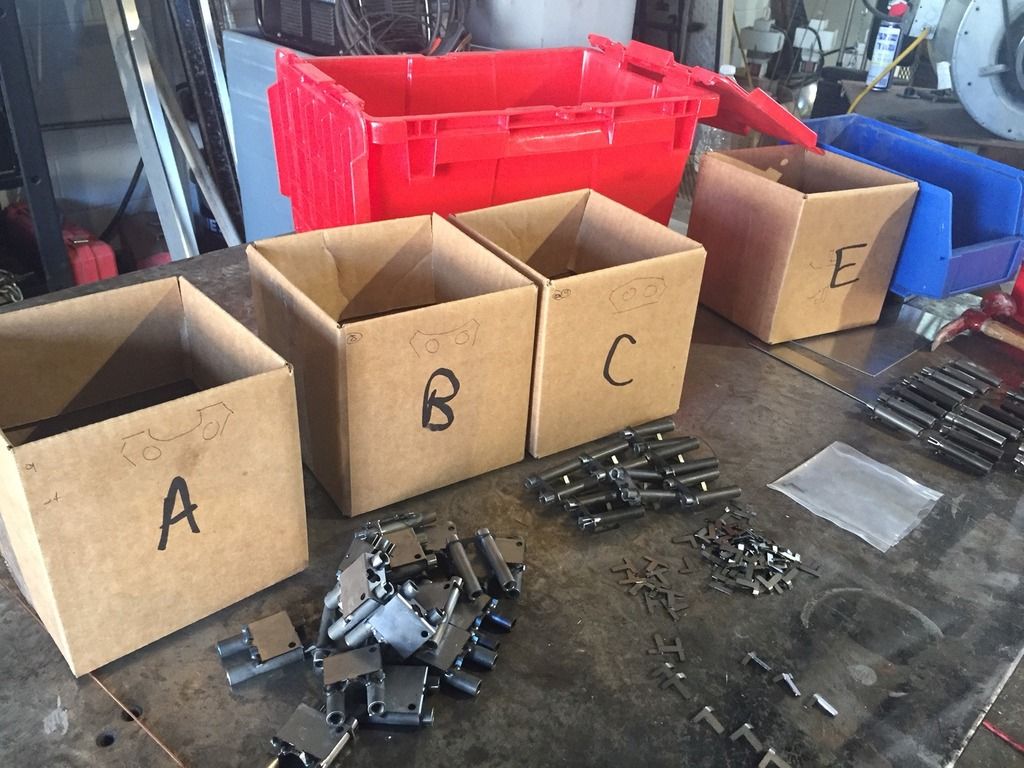

Had a chance to catch up on some power cylinders this weekend too....

Brackets after tig weld,,, waiting for grinding and deburring



[43moon]

Damn it man!!!! Trying to keep my wallet closed, but you are going to make it impossible for me. Truly spectacular work.



[Shoot2Thrill468]

I will be watching this thread with great interest.



[Field Marshall]

Check out my build blog

http://www.warmachinepaintball.com/

http://www.whitearmor.net/forum/topic/37883-fieldmarshall-build/page-1

Damn it man!!!! Trying to keep my wallet closed, but you are going to make it impossible for me. Truly spectacular work.

- - - Updated - - -

Thanks shoot2 thrill468

http://www.warmachinepaintball.com/

http://www.whitearmor.net/forum/topi...l-build/page-1



[Field Marshall]

For those who have emailed me wondering where you find these telescopes, they are in early ww2 tank periscopes

Good luck happy hunting!



[thd9791]

so exciting!

The M19 specifically can be found in M3 Periscopes. M4 might have an M38, and M4A1 seems to have the M77 and M77D telescopes which are similar to M38A telescopes with the extended center.



[juajn7fernandez]

Definitely following
Absurdly interested as well

Sent from my iPhone using Tapatalk



[laszlo]

Very interested too!



[Shoot2Thrill468]

If this turns out to be a complete *accurate* kit with brass ends and functional glass sights (proper reticle would be cool too ) than I am DEFINITELY in for one.



[Field Marshall]

Im going to make the aluminum one first....The optics i am still working on...Don't underestimate the complexity of those prisms and lens.They are Still very high tech even by todays standards... go look online at prisms just the 90 degree one are 60 to 200 dollars..The m19 has 4! I looking at having them done custom.. maybe in quantity they will be reasonable
Should know alot more after i get the first model machined......

If this turns out to be a complete *accurate* kit with brass ends and functional glass sights (proper reticle would be cool too ) than I am DEFINITELY in for one.

- - - Updated - - -

I know i cant wait for a replica because the original are very tough to find and extremely expensive

- - - Updated - - -

The m3 periscope is virtually non existent now...So keep your eyes open!
