Mark 46 build 3D print

[jayjayn]

looks amazing man!!



[TKCC71]

Thanks Jayan - Love your Foam Build as well. Wow signed by the one and only.


Well here's another update on the helmet. Had a little break in the weather and decided to add some red yesterday.



[TKCC71]

Feels like a good fit. Just need to add the servos and lights. Chest is being printed next.



[TKCC71]

Eyes are done and GTG. Sorry for the background noise. Kids are watching Micky clubhouse.

<iframe width="420" height="315" src="https://www.youtube.com/embed/t9OxjNuq2Ag" frameborder="0" allowfullscreen></iframe>



[markseven]

Awesome work so far. How did our achieve the red color? Black base coat + silver + candy red?

I'm making one out of foam (sealing stage now) and I was wondering how



[TKCC71]

Thanks, paint was done with Dupli Color Metalcast Red and Dupli Color Sunburst red.



[Tigerbalm]

Thanks, paint was done with Dupli Color Metalcast Red and Dupli Color Sunburst red.

Great build! Just wondering. What 3d printer do you have? Thinking of getting one just. Thanks



[TKCC71]

Thanks, Tigerbalm, Im using the Robo3DR1+. Printer has now been going 24/7. Change my print to .20 layer thickness and 20% infill. Takes a little longer but think I'm going to have a little less work in the finishing stages.

Here's the progress to date. Hopefully I will have the back and chest completely done this weekend for finishing.



[Leylander]

Hi,

Really nice helmet, great work!

I have a question, what size bed do you have and how did you allign the faceplate and such?

I have a bed of 20x20x18cm and the faceplate won't fit in one go. (helmet width of 195)



[creative stress]

Thanks, Tigerbalm, Im using the Robo3DR1+. Printer has now been going 24/7. Change my print to .20 layer thickness and 20% infill. Takes a little longer but think I'm going to have a little less work in the finishing stages.

Here's the progress to date. Hopefully I will have the back and chest completely done this weekend for finishing.

http://i1081.photobucket.com/albums...7-F7B9-4AB4-90BD-77F3D08769EC_zpsufjm4ksf.jpg

looks cool how long print time



[TKCC71]

Thanks Leylander,
My print bed is 8x9x10 inches.

For the facemask I did a plane cut about 1 inch just below the eyes. It printed much better in 2 as opposed to doing it in one go. Just had to do a little sanding and add some body filler to cover up the cut.

Hi,

Really nice helmet, great work!

I have a question, what size bed do you have and how did you allign the faceplate and such?

I have a bed of 20x20x18cm and the faceplate won't fit in one go. (helmet width of 195)



[TKCC71]

looks cool how long print time

Thanks creative, I'm basically doing it shell by shell. Average print time is anywhere's from 4-11 hours so far.. I started the chest on Sunday and have been printing 24/7. I could speed it up by doing a lower layer height but trying to save me a little more time in the finishing stages.



[Leylander]

Thanks Leylander,
My print bed is 8x9x10 inches.

For the facemask I did a plane cut about 1 inch just below the eyes. It printed much better in 2 as opposed to doing it in one go. Just had to do a little sanding and add some body filler to cover up the cut.

Thanks, I'll print it in 2 pieces as well.

How did you meisure the chest piece? I found a tutorial to use a simple body scan as a reference. But that does not result in a clean mesh to use as a dummy.



[TKCC71]

Thanks, I'll print it in 2 pieces as well.

How did you meisure the chest piece? I found a tutorial to use a simple body scan as a reference. But that does not result in a clean mesh to use as a dummy.

I used the Xbox 360 Kinect and scanned a full body shot of myself via Skanect. However you right, the mesh was not the greatest unless you pay for the full program but it does give me a good starting point. So I also use NETFABBs point to point measurement feature and calipers to validate and measure the other parts.



[Keroro]

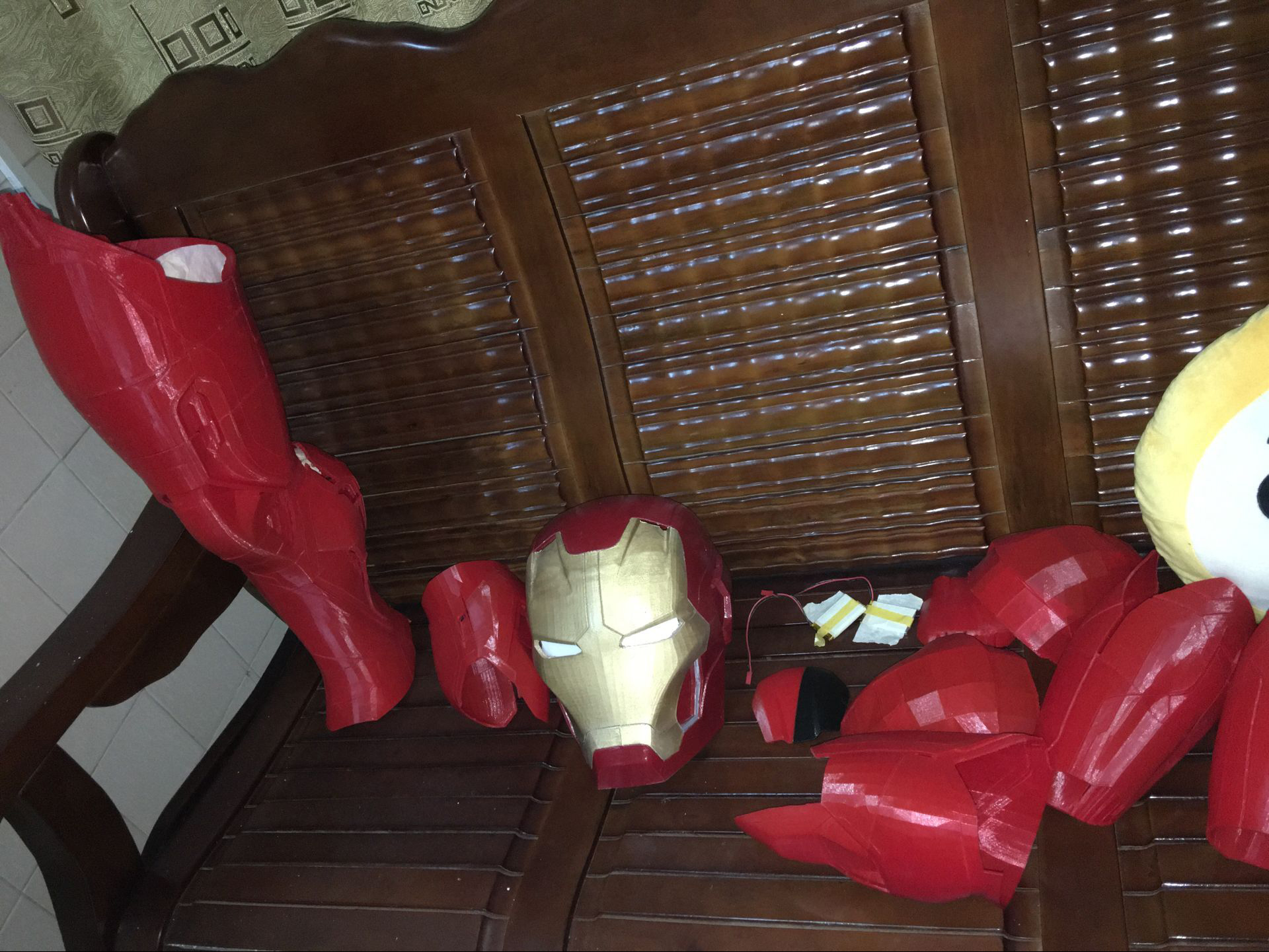

Hello, I can use the 3D Makr45 model with your Makr46 exchange?



[TKCC71]

Does anyone have any suggestions on how to mount the Chest Peice and back together. Magnets? Or could provide a link to someone who has done it before? Also I did the helmet with some rare earth magnets at Harbor Freight but they really don't seem strong enough. Open to some suggestions.



[Domonator]

Velcro, magnets, buckles and elastic are my goto to connect armor pieces.



[Leylander]

I'd suggest Neodymium magnets. They come in all sizes and strengths. Very small magnets ca carry +2kg



[TKCC71]

Thanks for the tips guys, will give the buckels and magnets a try this weekend. Hopefully will put the chest and back all together this weekend. Been doing a little body work to the individual pieces for both the chest and back. Still a little more work to go (Details lines etc..)but I think this is finally coming along. The back will have some more work with a touch up here and there after this dries. Also need to remove the flaps for adding the servos which will cause some more body work.



[creative stress]

Thanks for the tips guys, will give the buckels and magnets a try this weekend. Hopefully will put the chest and back all together this weekend. Been doing a little body work to the individual pieces for both the chest and back. Still a little more work to go (Details lines etc..)but I think this is finally coming along. The back will have some more work with a touch up here and there after this dries. Also need to remove the flaps for adding the servos which will cause some more body work.

[url]http://i1081.photobucket.com/albums/j360/Tjsailosullivan/2F156309-0134-4852-AC02-BDBF0C206414_zpspar5tlrl.jpg[/URL]

Its coming along nicely buddy this is the fun & sometimes stressfull part lol cant wait to see more [emoji106]

Sent from my SM-G900F using Tapatalk
