T1 and T2 Endoskeleton Research Thread

[Too Much Garlic]

Seventh piston checked, reworked and uploaded:

Terminator Endoskeleton Piston Model - 07 by NoHumorMan

Piston model for the T2 T-800 endoskeleton. 1:1 scale. It's the one sitting on the upper arm connecting shoulder and elbow - rear. You need to print 2 The inner rod hole is 8mm wide. I tried to match how they look on the prop.

www.thingiverse.com



[Too Much Garlic]

Thingiverse uploads now updated with pictures showing where each piston is located.



[Too Much Garlic]

Eight piston checked, reworked and uploaded:

Terminator Endoskeleton Piston Model - 08 by NoHumorMan

Piston model for the T2 T-800 endoskeleton. 1:1 scale. It's the one sitting on the Lower arm connecting shoulder and hand - middle. You need to print 2 The inner rod hole is 10mm wide. I tried to match how they look on the prop.

www.thingiverse.com



[Too Much Garlic]

Ninth piston checked, reworked and uploaded:

Terminator Endoskeleton Piston Model - 09 by NoHumorMan

Piston model for the T2 T-800 endoskeleton. 1:1 scale. It's the one sitting on the lower arm connecting elbow and hand - on either side of the middle piece. You need to print 4. The inner rod hole is 10mm wide. I tried to match how they look on the prop.

www.thingiverse.com



[Too Much Garlic]

Tenth piston checked, reworked and uploaded:

Terminator Endoskeleton Piston Model - 10 by NoHumorMan

Piston model for the T2 T-800 endoskeleton. 1:1 scale. It's the one sitting on the torso - shoulder blade - connecting torso and shoulder - rear. You need to print 2. The inner rod hole is 5mm wide. I tried to match how they look on the prop.

www.thingiverse.com



[Too Much Garlic]

Eleventh piston checked, reworked and uploaded:

Terminator Endoskeleton Piston Model - 11 by NoHumorMan

Piston model for the T2 T-800 endoskeleton. 1:1 scale. It's the one sitting on the torso - collar bone - connecting torso and shoulder - front. You need to print 2. The inner rod hole is 5mm wide. I tried to match how they look on the prop.

www.thingiverse.com



[Too Much Garlic]

Twelfth piston checked, reworked and uploaded:

Terminator Endoskeleton Piston Model - 12 by NoHumorMan

Piston model for the T2 T-800 endoskeleton. 1:1 scale. It's the one sitting on the torso - sits inside the torso - connecting shoulder motor to inside the chest. You need to print 2. The inner rod hole is 5mm wide. I tried to match how they look on the prop.

www.thingiverse.com



[Too Much Garlic]

Thirteenth and last of the big pistons I've worked on, checked, reworked and uploaded:

Terminator Endoskeleton Piston Model - 13 by NoHumorMan

Piston model for the T2 T-800 endoskeleton. 1:1 scale. It's the one sitting on the torso - sits inside the torso - connecting shoulder motor to inside the chest. You need to print 2. The inner rod hole is 5mm wide. I tried to match how they look on the prop.

www.thingiverse.com



[Too Much Garlic]

Started work on the foot pistons.



[Too Much Garlic]

We almost have a complete big toe section. I just need to figure out how to do the egg shaped piece between the toe and 2 pistons as well as the 2 types of connectors.

Probably looks a little more recognizable now. I hope.



[Too Much Garlic]

Start of the second toe:



[Too Much Garlic]

Was surprised to find so much variation between the different toe pieces.

The thinner rod appears to be done in a fashion where the thinnest rod goes inside the slightly bigger tube, creating motion not controlled as a piston. Without this also being able to move, there is very little motion in the up and down motion of the foot, as it attaches to the ankle piece, but with it, you'll be able to bend the foot much further down. The question is whether people even want or need this extra motion and with prints it will be super weak anyway, so if people want the extra motion, they'll probably have to switch the rods and tubes on that piece out with metal parts, so I'm wondering whether I should just merge the two movable sections on each foot into one, so the slight motion is only coming from the egg-shaped piece I haven't made yet and the thicker piston piece.

What are your thoughts?



[Too Much Garlic]

I couldn't understand what I was seeing in some of the pictures.

For one thing, the egg-shaped piece is a lot more intricate on the props and screen captures, sporting the cable control groove you also see on the pieces in the cut-out sections on the fingers. I will probably add that to my models.

Another thing. On the real endoskeleton the feet pistons seems to be cheat pistons. They do not work. The fatter detailed part is loose and can move around and is just slid in over a thinner rod that's just closed off at each end by the fork connectors, meaning... they are locked in place in terms of extending and retracting. That's so hilarious and simple. Well... that explains why the fatter parts were all over the place on several reference pictures. Well... I've made them as actual pistons so far, but knowing this... I have the option to simplify things a great deal from 7 individual parts to 4 on each toe.



[Too Much Garlic]

This is the cable control groove version I see on some endoskeletons. I haven't found any reference showing the groove being on top - only on the underside of the foot - so that's why I only added it there and not all around the model.

Since the originals weren't functional pistons, I'm going to go simple and merge several of the pieces. I'm all for prop accuracy and I don't want to do the extra work to actually make the piston option work, so it became an easy choice. The egg shaped model does seem to come in two types - basic and cable groove version, so I'm gonna do both.



[Too Much Garlic]

After a long while of not feeling well, I did a little work on the first piston, as well as the telescopic part and uploaded them. Labeled them v2. And as I upload these newer ones I'll delete the corresponding old uploads.

I resized the inner hole on piston 01 to accommodate the telescopic rod and that parts inner hole was done at 10mm. I've redone all the pistons with that inner hole measurement and most of the v2 uploads will just be that one change.

I will also upload the variant of piston 01 without the telescopic option that will just fit a standard piston rod, as some endoskeletons do show that feature lacking.

All the metal piston rods that came with the kit are 9.6mm and there are a few different lengths - I'll measure those and post the numbers and amounts of each here.



[Too Much Garlic]

Worked a little on one more toe section. I joined the bottom connector part to the main piston on all toes, but the top connector and piston rod are still separate, even though they should be connected to the bottom connector as they are on the original, but I'm still undecided whether I'll join the whole part and just leave the rods at the bottom of the foot to act as true pistons.

EDIT: Probably easier to see it like this:



[Too Much Garlic]

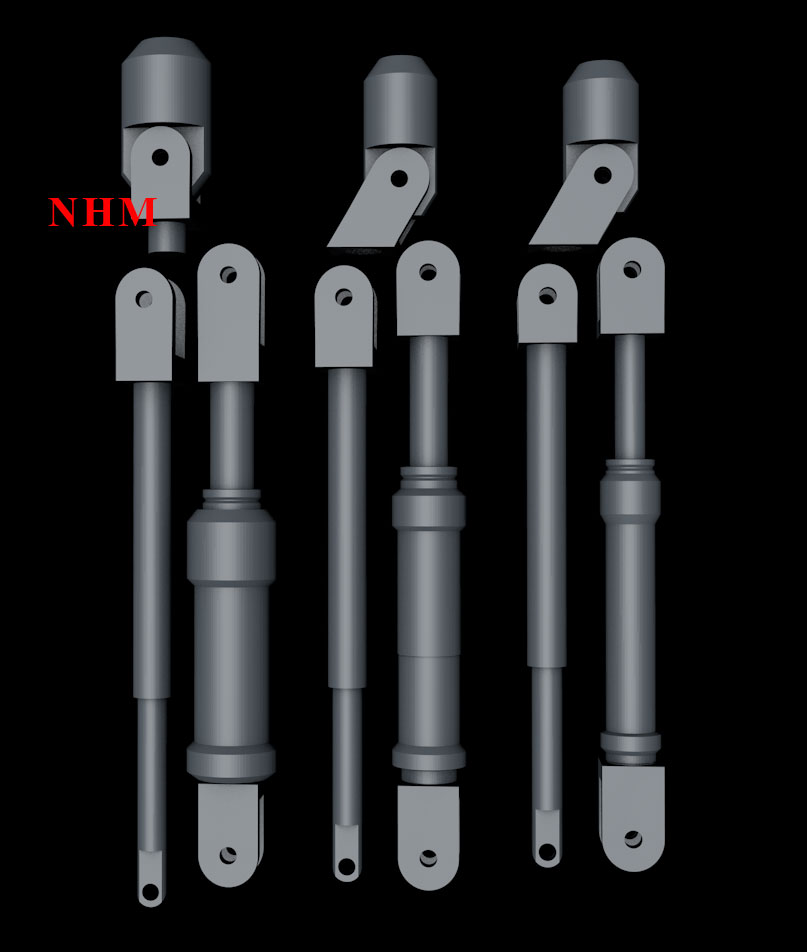

One more. Since the parts are fairly similar it is easier to just edit one of the earlier ones than to start from scratch. The top connector on the new one hasn't been tweaked completely, but I'm getting tired and will stop working on it for today.



[Too Much Garlic]

A little further along. On the last two main detailed rods I need to round the model at the front, instead of having it be a straight angle change. I'll see how I'll be able to do that.



[Too Much Garlic]

Well... that was rather easily solved. Feeling kinda anticlimactic.



[The Terminator]

"EXCELLENT"

Been checking out the 2160p version of T1 and there's quite a bit difference between T1 and T2.
But at least it "feels" the same and share design aesthetic.
