Expanse(TK-1) Helmet
I have been working on what could have been a one-day “unbuild”. So far I have been able to disassemble the major components without too much difficulty or special tools. My only limitations have been my goals to keep any destructive deconstruction to a minimum and to document the process as much as possible as an aid to others and as a reassembly guide for myself.
Based on my research so far, the helmets which are forecast as the basis for Season 2 are the Chinese TK-1. I found images of a few pages of a Chinese language TK-1 manual which match the elements given in the Tested Interview. I have not yet been able to locate a complete copy of the manual so I do not have the correct terminology to use when discussing this design. However I will try to use consistent terms to aid in the exchange of information.
The helmet has four main components which I will call; visor, dome,faceshield, and headcover.
In use, the headcover is firmly fitted to the wearer's head and provides the foundation to which the other helmet components attach. The headcover has a rigid front which frames the face and a cloth hood which encloses the head down to the neck. The outside of the frame has a two-piece metal front and the inside surfaces are padded. In the rear of the hood there is a full-length zipper to allow the headcover to be easily put on and removed. The hood also has two rows of lacing (like lace-up boots) to allow the hood to be closely fitted to the head. The metal frame is painted white and the hood is made from an olive green synthetic.
A short electrical cable with connectors on each end passes through a metal grommet in the hood. The original purpose appears to be to connect a microphone. This will not be needed for the replica.
A bracket at the top of the frame provides a hook where the dome is attached. On each side of the frame a cone-pointed post of a two-part quick release fastener provides two more points of attachment for the dome.
The dome is a one-piece metal unit which covers the top of the head from the forehead in the front to the nape of the neck in the back. On the sides it extends down to the bottom of the ears. This piece is roughly a half sphere with protrusions at each ear and three horizontal ridges at the rear. On each side below the ears there is a hinged metal element which covers the cheeks down to the jawline. I will call these elements, flaps. In the normal down position, the flaps curve in toward the neck. The hinges allow the flaps to rotate up approximately 90 degrees out to the side. This widens the bottom to make it easier to don and remove the helmet and the flaps provides a natural handhold to accomplish the actions. Inside there is a simple leather and cord suspension system. The dome and flaps are painted white and there is a red five-pointed star on the front.
In addition to these main elements there are some dome parts which seem to be extraneous to use on The Expanse replica. This includes some small pulleys, a wire rope, clips, ring and webbing.
In use, the headcover is put on and tightened. The dome is hooked at the top front, tilted back over the head, and the posts inserted into the socket portion of the fasteners on the sides of the dome. This securely mates the dome to the headcover.
The visor is a black tinted plastic shield attached to a metal arch which can be placed to shade the wearer's eyes or raised up and out of the way . The white painted arch is attached to each side of the dome at the ear bumps with a ball-bearing retention system. This allow the visor to “click” into several distinct positions from directly in from of the face to directly overhead. From the limited exposure of the Tested interview and released images so far, the visor is not a part of the Season 2 EVA design.
The final element is the faceshield. A clear, curved plastic plate is set into a one piece metal frame with a black rubber gasket. On the inside of the faceshield frame there is a hollow gray rubber gasket to provide a seal to the front frame of the headcover. The faceshield attaches to the headcover by hooking over the bracket at the top and and hinged quick release link fastener on the bottom.
The lower front of faceshield contains all of the rubber tubing necessary for oxygen distribution. Some of these elements are retained in the
replica and others are extraneous to the design.
I have been working on what could have been a one-day “unbuild”. So far I have been able to disassemble the major components without too much difficulty or special tools. My only limitations have been my goals to keep any destructive deconstruction to a minimum and to document the process as much as possible as an aid to others and as a reassembly guide for myself.
Based on my research so far, the helmets which are forecast as the basis for Season 2 are the Chinese TK-1. I found images of a few pages of a Chinese language TK-1 manual which match the elements given in the Tested Interview. I have not yet been able to locate a complete copy of the manual so I do not have the correct terminology to use when discussing this design. However I will try to use consistent terms to aid in the exchange of information.
The helmet has four main components which I will call; visor, dome,faceshield, and headcover.
In use, the headcover is firmly fitted to the wearer's head and provides the foundation to which the other helmet components attach. The headcover has a rigid front which frames the face and a cloth hood which encloses the head down to the neck. The outside of the frame has a two-piece metal front and the inside surfaces are padded. In the rear of the hood there is a full-length zipper to allow the headcover to be easily put on and removed. The hood also has two rows of lacing (like lace-up boots) to allow the hood to be closely fitted to the head. The metal frame is painted white and the hood is made from an olive green synthetic.
A short electrical cable with connectors on each end passes through a metal grommet in the hood. The original purpose appears to be to connect a microphone. This will not be needed for the replica.
A bracket at the top of the frame provides a hook where the dome is attached. On each side of the frame a cone-pointed post of a two-part quick release fastener provides two more points of attachment for the dome.
The dome is a one-piece metal unit which covers the top of the head from the forehead in the front to the nape of the neck in the back. On the sides it extends down to the bottom of the ears. This piece is roughly a half sphere with protrusions at each ear and three horizontal ridges at the rear. On each side below the ears there is a hinged metal element which covers the cheeks down to the jawline. I will call these elements, flaps. In the normal down position, the flaps curve in toward the neck. The hinges allow the flaps to rotate up approximately 90 degrees out to the side. This widens the bottom to make it easier to don and remove the helmet and the flaps provides a natural handhold to accomplish the actions. Inside there is a simple leather and cord suspension system. The dome and flaps are painted white and there is a red five-pointed star on the front.
In addition to these main elements there are some dome parts which seem to be extraneous to use on The Expanse replica. This includes some small pulleys, a wire rope, clips, ring and webbing.
In use, the headcover is put on and tightened. The dome is hooked at the top front, tilted back over the head, and the posts inserted into the socket portion of the fasteners on the sides of the dome. This securely mates the dome to the headcover.
The visor is a black tinted plastic shield attached to a metal arch which can be placed to shade the wearer's eyes or raised up and out of the way . The white painted arch is attached to each side of the dome at the ear bumps with a ball-bearing retention system. This allow the visor to “click” into several distinct positions from directly in from of the face to directly overhead. From the limited exposure of the Tested interview and released images so far, the visor is not a part of the Season 2 EVA design.
The final element is the faceshield. A clear, curved plastic plate is set into a one piece metal frame with a black rubber gasket. On the inside of the faceshield frame there is a hollow gray rubber gasket to provide a seal to the front frame of the headcover. The faceshield attaches to the headcover by hooking over the bracket at the top and and hinged quick release link fastener on the bottom.
The lower front of faceshield contains all of the rubber tubing necessary for oxygen distribution. Some of these elements are retained in the
replica and others are extraneous to the design.
Last edited by a moderator:
smithjohnj
Sr Member
Expanse(TK-1) Helmet
Visor Removal

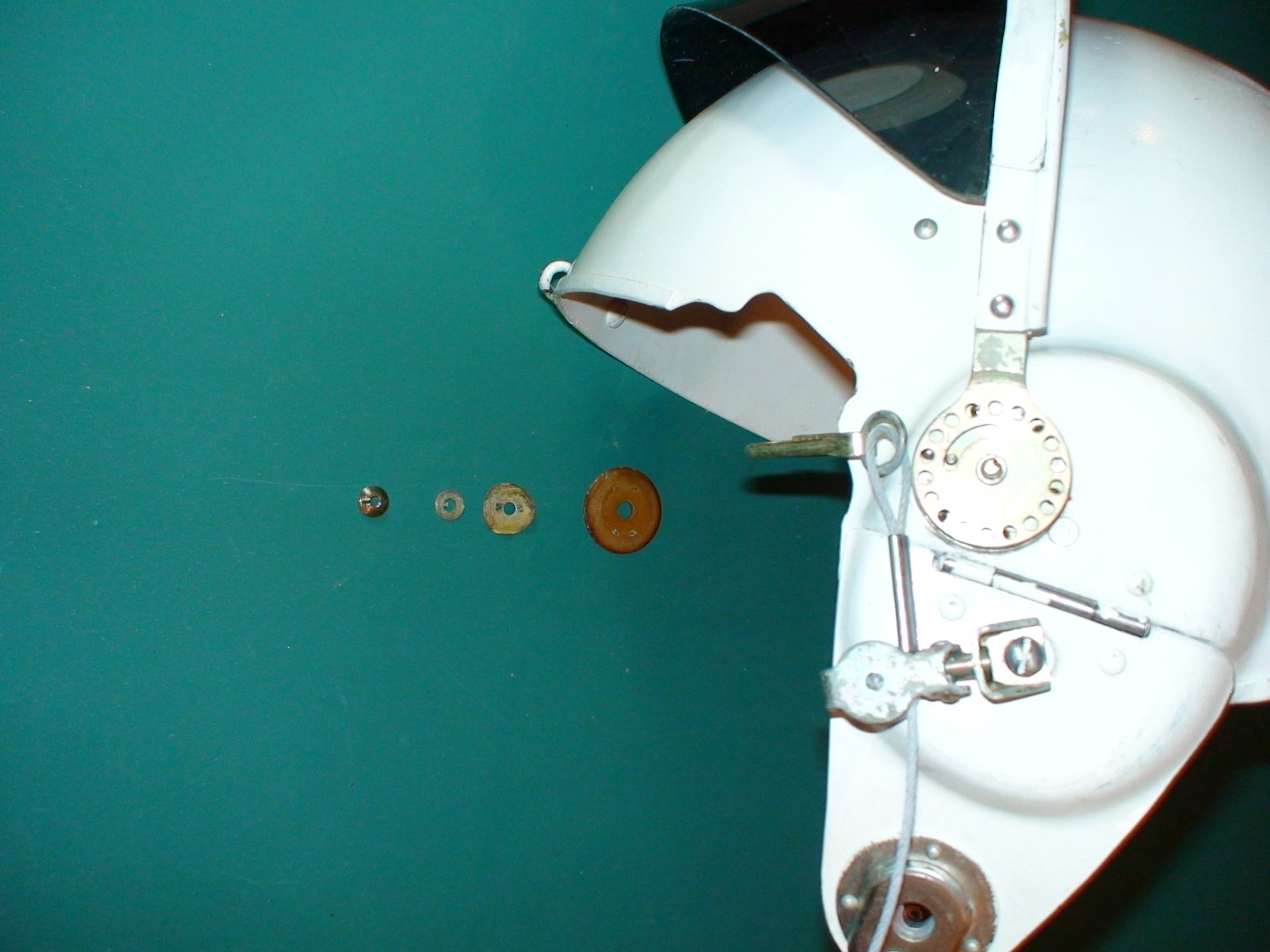

The first part of the dis-assembly, the visor, is very simple. The visor is attached by two single-slot nuts, one on each side of the dome. Although there are specialized slotted nut wrenches which make the job of installing and removing this type of nut easy, in my case both nuts were loose enough that I was able to get the nut moving with a regular bladed screwdriver and then complete the job by hand.
