Measured the disc. The measurements should be close to by a millimeter off maybe.
- Outer diameter: 22,8cm
- Inner diameter: 11cm
- Total hight on the inside: 2,5cm
- Hight until the split: ~1,3cm
Angles are a bit more difficult for me to measure. It does slope down from 2,5 to about 1,5cm so a rough 1cm slope. My math is not good enough to calculate the accompanying angle though
Not really important for this but;
(I also read before that the Identity Discs made by Spinmaster are smaller then the movie props were. I don't have any links handy for that though.)
Good luck with your project, I hope this helps you.
Looking forward to see your results. Then I can learn from that for when I start working on my suit
Last edited:
That's correct. The Spinmaster discs are sized to the smaller identity discs that the female programs used at about 9". I read that the hero discs used by the male actors were an inch larger in diameter.
Thanks!
I just realized that the outer diameter I measured included the blade on the outside aswell. I gestimate that adds about ~1cm but I'll measure that again when I get home.
Back with another update!
Unfortunately the last few weeks have again been busy so I didn’t get much work done on the disc.

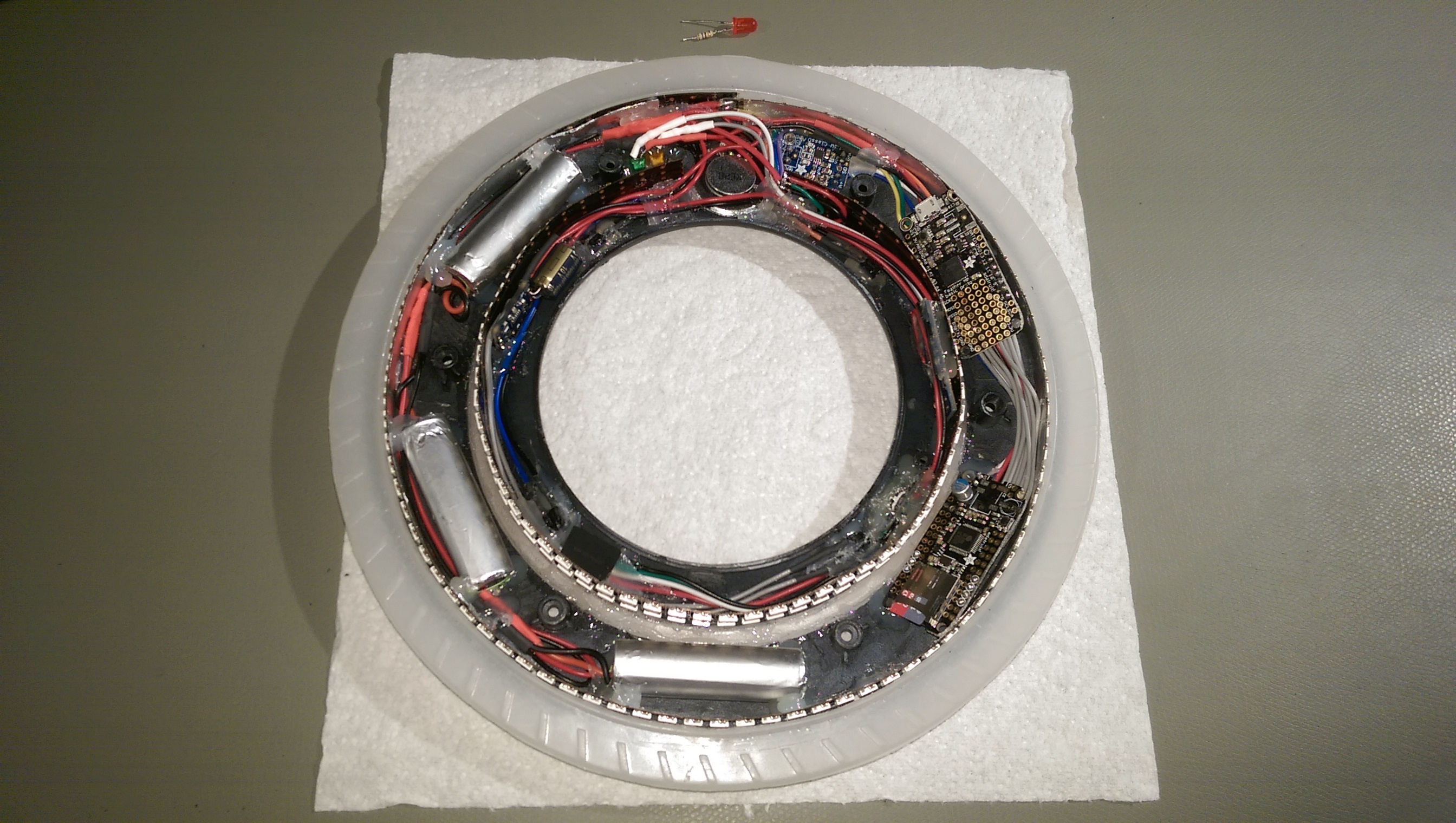

I did finally get all the hardware finished now.

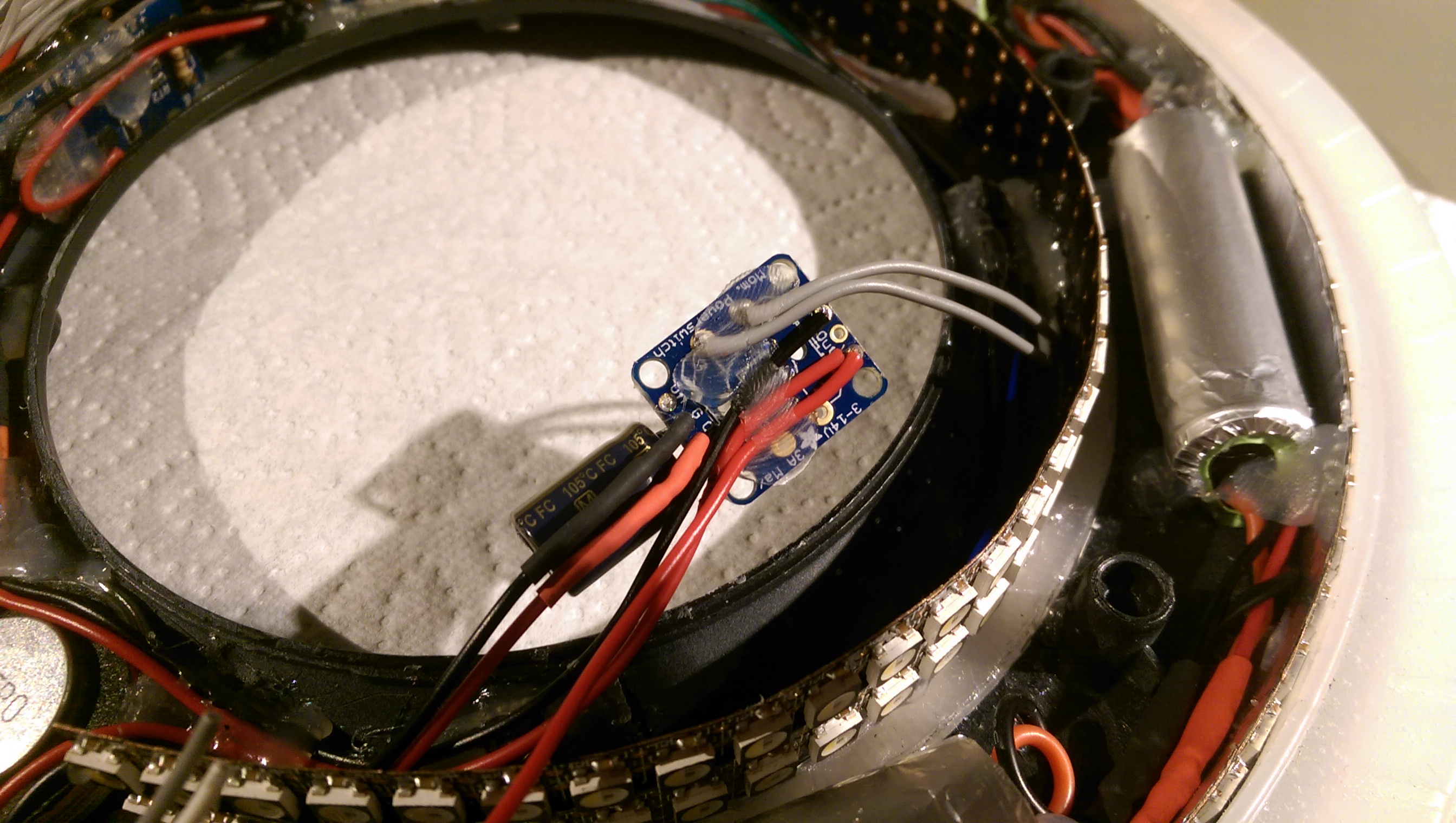

The Adafruit Push-button Power Switch Breakout has been installed and I added the 1000µF 10V capacitor to the output. In the NeoPixel Überguide Adafruit specifies you should add a capacitor to the power input of the NeoPixel strips to prevent power spikes from damaging the NeoPixels. I opted to add the capacitor to the main power input which also works and saved me from more complex wiring.

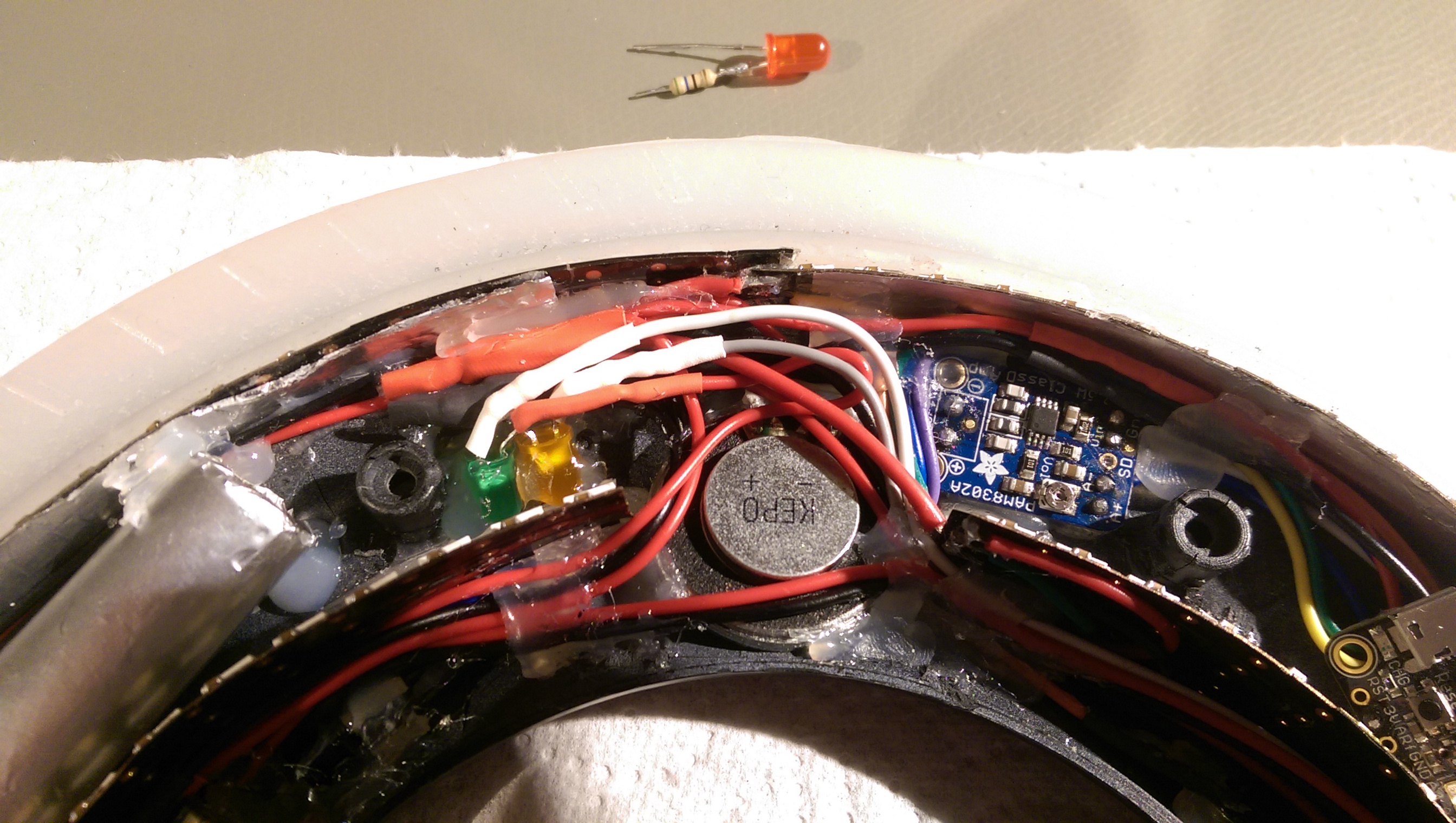

I also installed the status LED’s for the charger so I could see the charging status on the C-ring on the back of the disc.

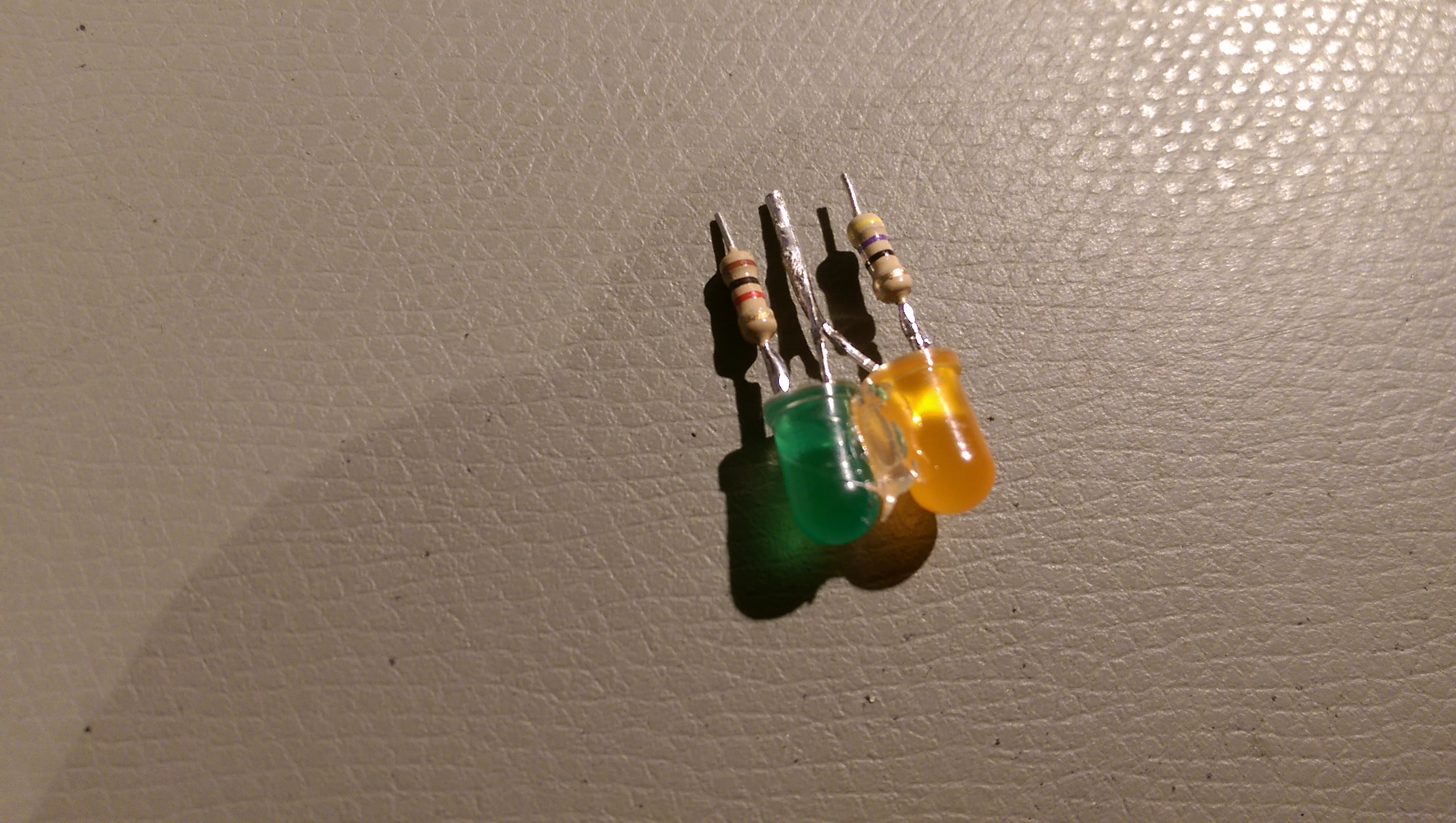

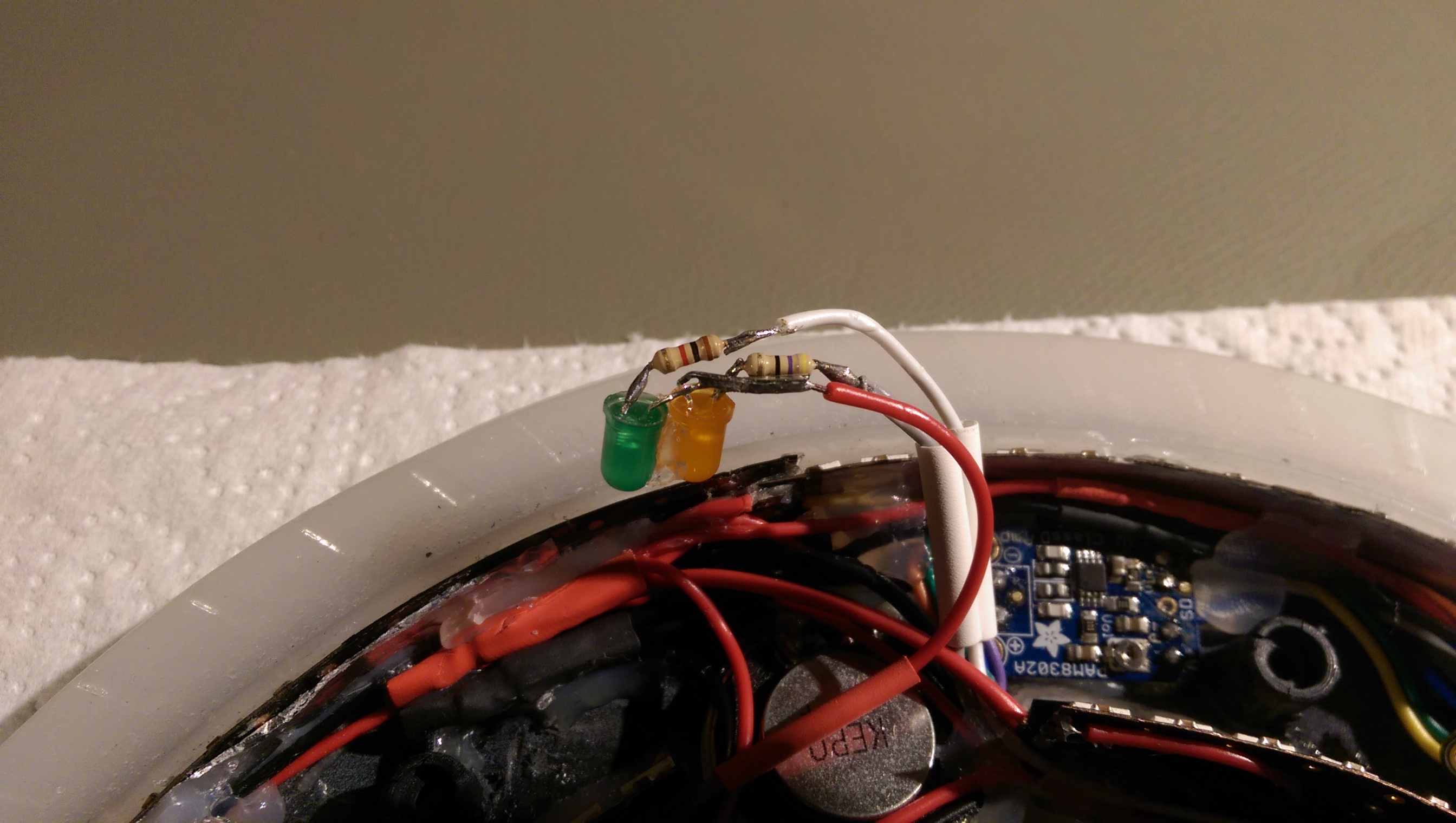

After calculation the correct resistor values I glued the LED’s together so I could solder the anodes of the LED’s together. After that I hooked up the wiring and heatshrinked everything.
I calculated the required resistors by checking the forward voltage on my LAB power supply which turned out to be 2.5V for both LED’s. The maximum current draw turned out to be 2mA for the green LED and 50mA for the orange LED. With those numbers I calculated the required resistor values using this site (link= http://led.linear1.org/1led.wiz).

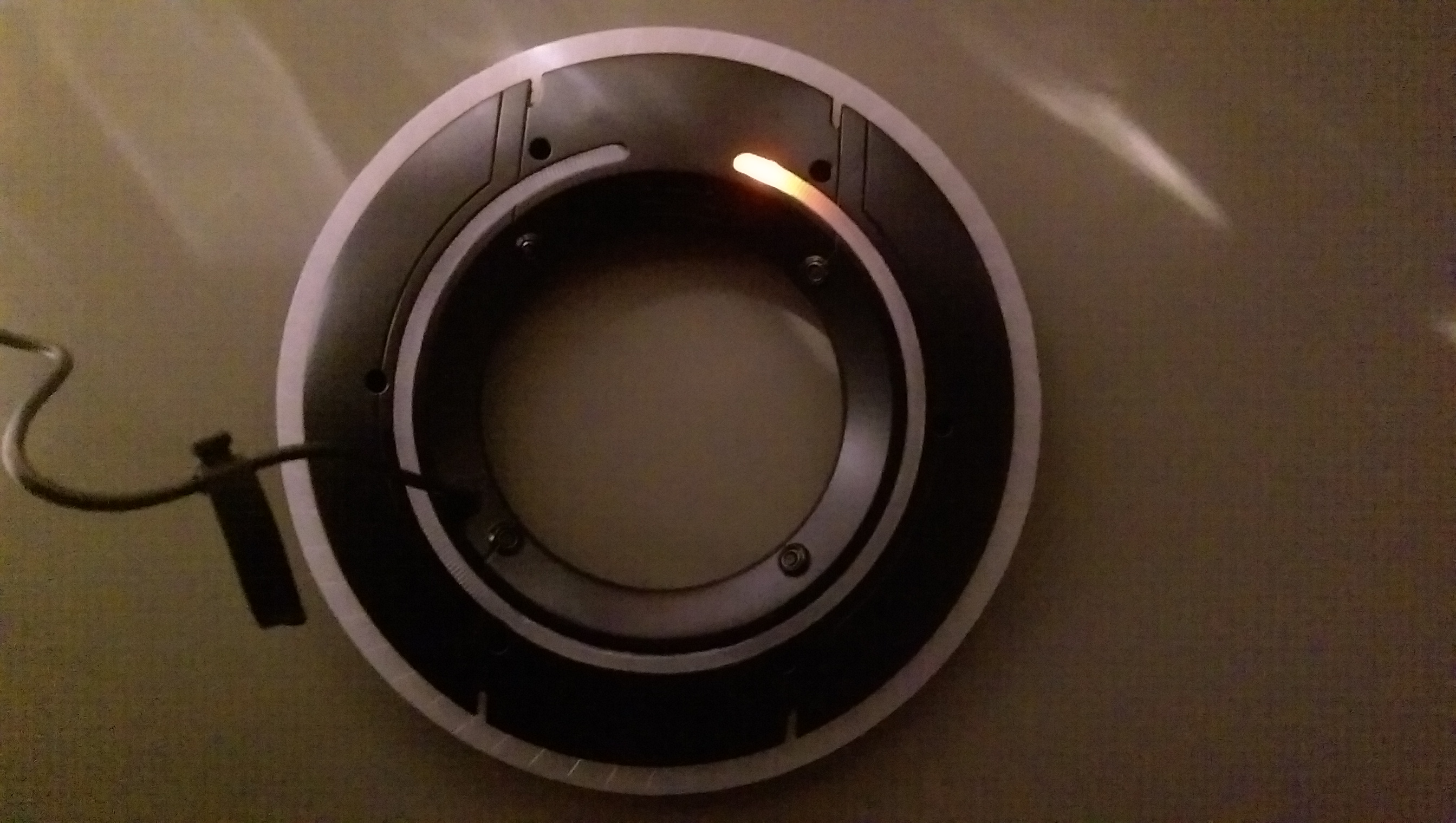

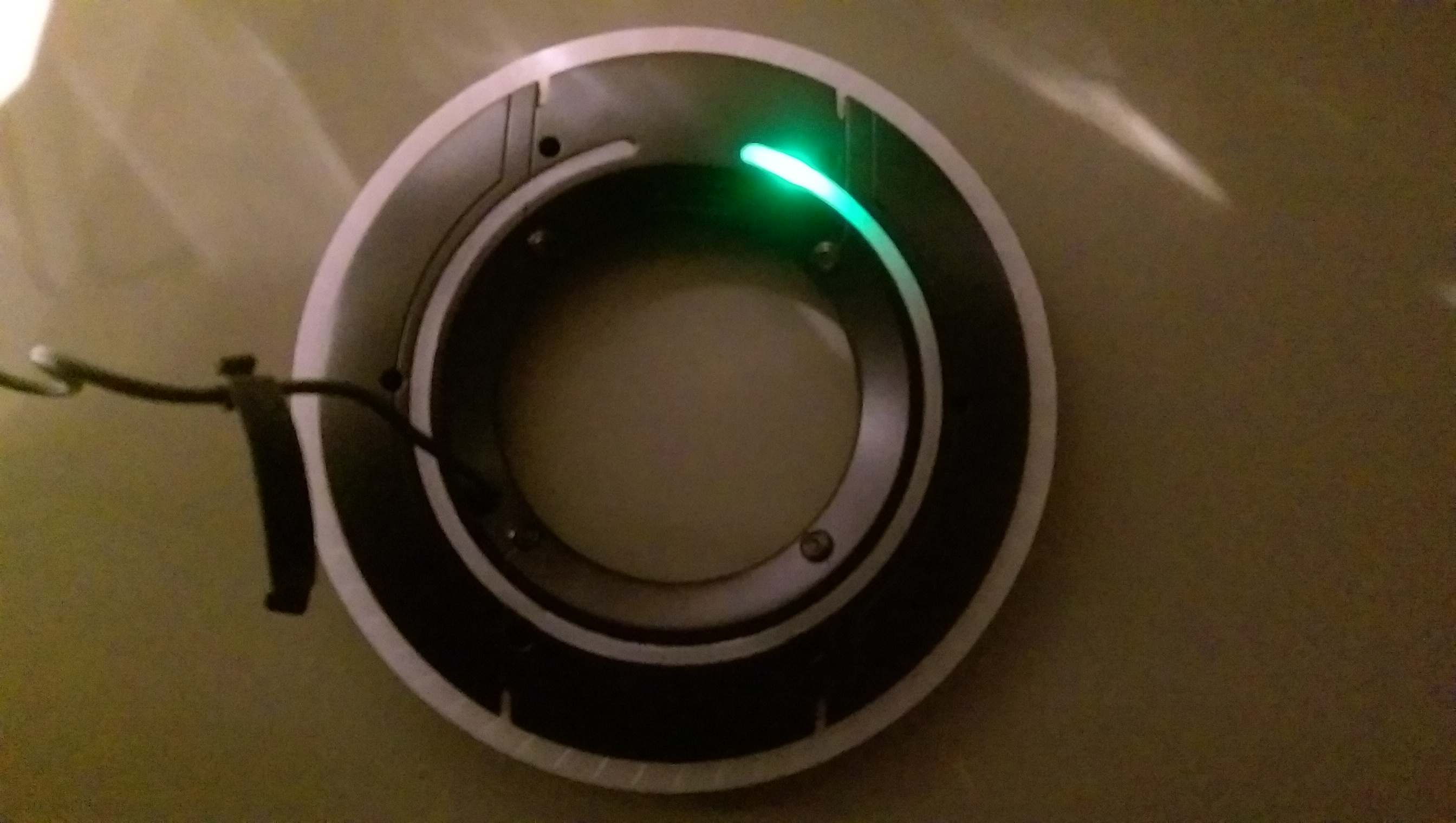

The disc now also has it’s charging status LED’s installed. The pictures turned out a bit grainy but it still shows the result with which I’m very happy.
I do plan on hooking up a voltage divider to the Feather M0 so that can measure the battery voltage and have a red LED come on when the batteries are running low.
When I was putting everything together I did realize I made a mistake, not a big one but next time I will definitely not repeat this. What I did was hook up the LED’s power to the output of the charger in my design instead of to the input of the charger. This means my LED’s are powered by the voltage the charger put’s out and this varies during charging. So I decided to calculate the resistors using 4,1V of input voltage which is the maximum output voltage of the charger. Since I glued the charging board in place already it’s too much hassle to correct it. For the purpose of giving me status indication it still works fine. So it’s not an issue but it does warrant a new version of the schematic and I will not be repeating this in the next disc I modify

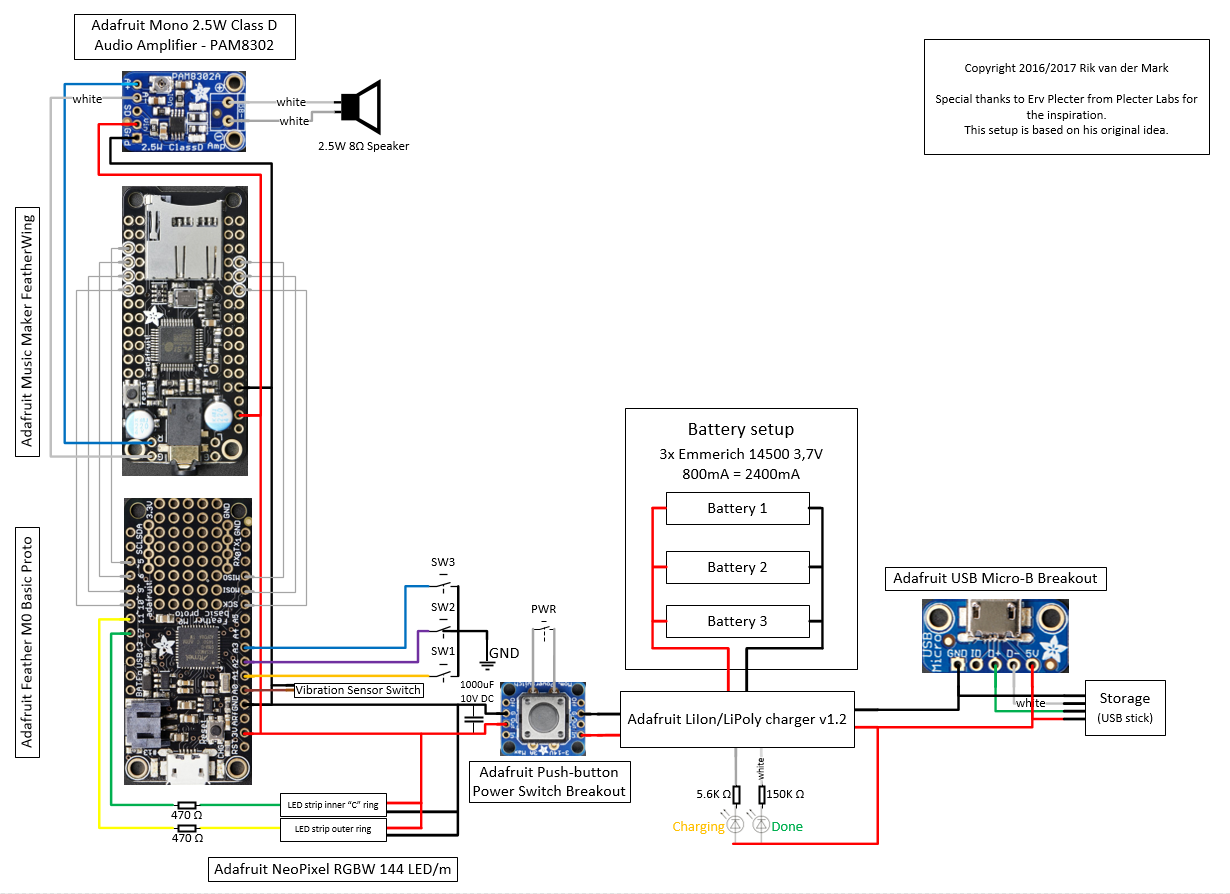

The resistor values on there are calculated with a 5V power source as a reference. Always keep in mind to calculate your own resistor values as those might be different depending on the LED’s that are used.

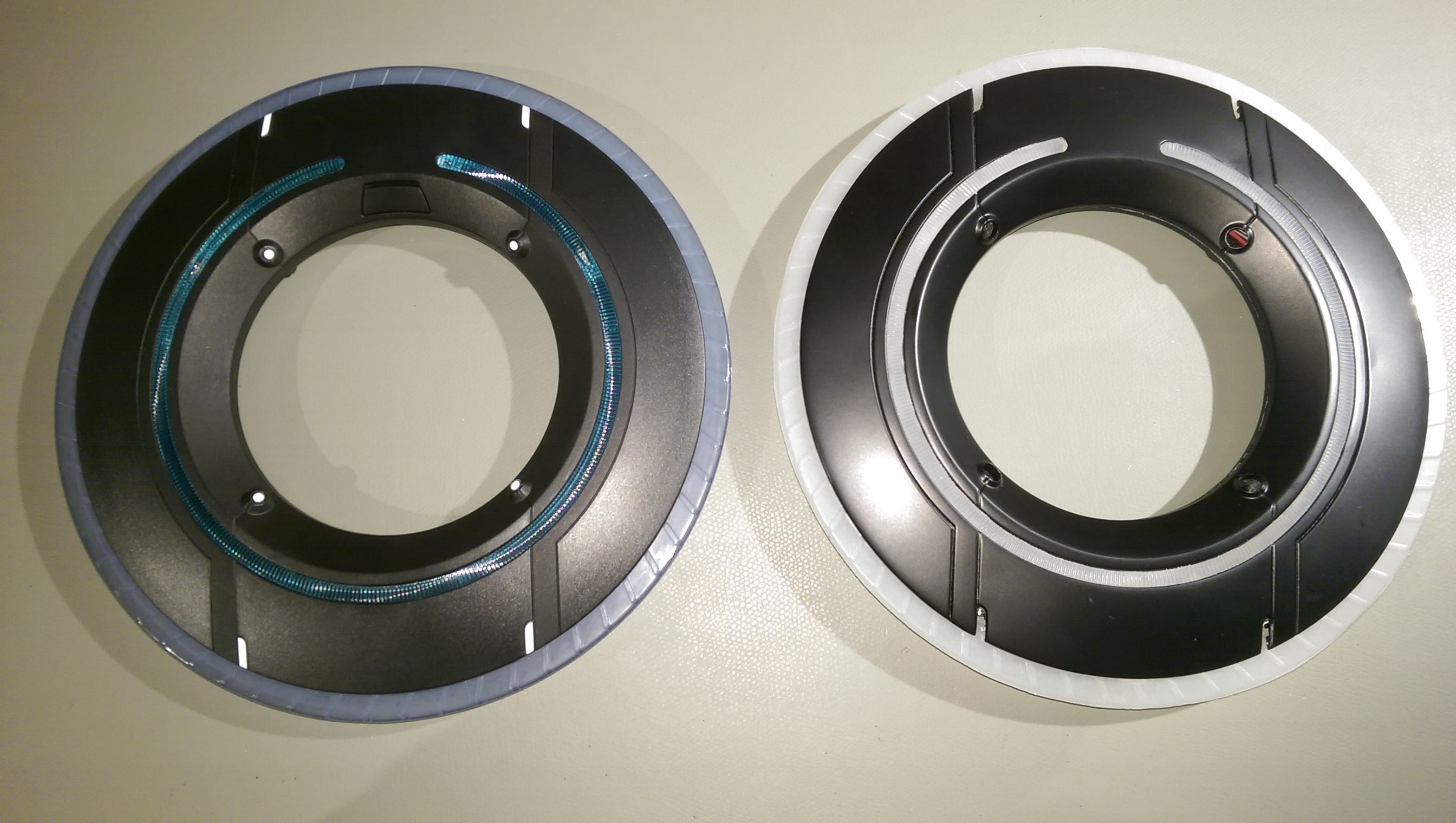

To concluded for now, a side by side of the original and my modified disc.
I did notice I forgot to add the LED bezels in the top half of the disc so there is some more to come hardware wise. Those also will be getting white LED’s so they’re lit up.
Unfortunately the last few weeks have again been busy so I didn’t get much work done on the disc.
I did finally get all the hardware finished now.
The Adafruit Push-button Power Switch Breakout has been installed and I added the 1000µF 10V capacitor to the output. In the NeoPixel Überguide Adafruit specifies you should add a capacitor to the power input of the NeoPixel strips to prevent power spikes from damaging the NeoPixels. I opted to add the capacitor to the main power input which also works and saved me from more complex wiring.
I also installed the status LED’s for the charger so I could see the charging status on the C-ring on the back of the disc.
After calculation the correct resistor values I glued the LED’s together so I could solder the anodes of the LED’s together. After that I hooked up the wiring and heatshrinked everything.
I calculated the required resistors by checking the forward voltage on my LAB power supply which turned out to be 2.5V for both LED’s. The maximum current draw turned out to be 2mA for the green LED and 50mA for the orange LED. With those numbers I calculated the required resistor values using this site (link= http://led.linear1.org/1led.wiz).
The disc now also has it’s charging status LED’s installed. The pictures turned out a bit grainy but it still shows the result with which I’m very happy.
I do plan on hooking up a voltage divider to the Feather M0 so that can measure the battery voltage and have a red LED come on when the batteries are running low.
When I was putting everything together I did realize I made a mistake, not a big one but next time I will definitely not repeat this. What I did was hook up the LED’s power to the output of the charger in my design instead of to the input of the charger. This means my LED’s are powered by the voltage the charger put’s out and this varies during charging. So I decided to calculate the resistors using 4,1V of input voltage which is the maximum output voltage of the charger. Since I glued the charging board in place already it’s too much hassle to correct it. For the purpose of giving me status indication it still works fine. So it’s not an issue but it does warrant a new version of the schematic and I will not be repeating this in the next disc I modify
The resistor values on there are calculated with a 5V power source as a reference. Always keep in mind to calculate your own resistor values as those might be different depending on the LED’s that are used.
To concluded for now, a side by side of the original and my modified disc.
I did notice I forgot to add the LED bezels in the top half of the disc so there is some more to come hardware wise. Those also will be getting white LED’s so they’re lit up.
Maybe Magpie
New Member
Thanks a bunch for those measurements! I'll get back to you when I've got something worth sharing on that front. TRON fans gotta stick together in these trying dead-fandom days, hee. Hopefully we'll get a new movie soon (without Jared Leto, I friggin' hope)
No problem! Glad to help
We have to stick together indeed, that's why I'm sharing my build and plan in sharing other stuff I do both here, on my website and on YouTube. I feel it's very fulfilling to help others as stuff others have shared helps me.
Thing is people usually stay interested in something for a short time. In the beginning I didn't think of doing a Tron Cosplay / bring parts of the movie to life either. So we might still see more Tron fans popping up
We might inspire new people like others before us inspired us.
I'm looking forward to a new movie, but only if it has decent production quality with the right actors that do the part/movie justice. We'll have to wait and see.
Maybe Magpie
New Member

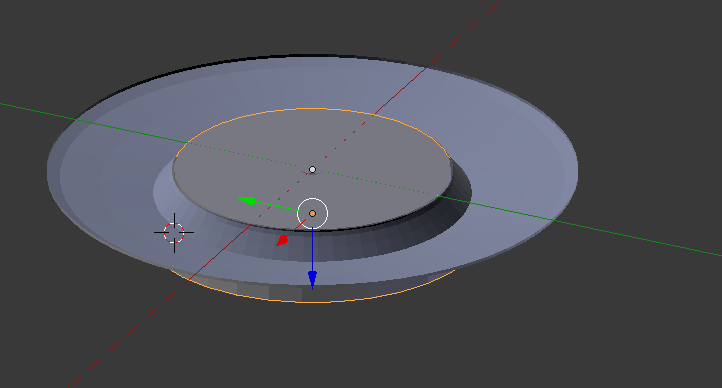

Houston, we have disc-off! I modeled out the specs for the disc holder I got off Shapeways as well (thank the users for calipers) to make sure it'd interface correctly and huzzah! Now I just need to properly place the bezel mounts. The measurements match up, so thanks. You're a lifesaver! I'll cut it into quarters so smaller printers can just print 4 (well, 8, considering there's two halves) of the same file and bam.
Look great! Thanks for sharing, glad I could help you
I like how you took smaller printers into consideration in your design. Good thinking!
I might get one in the future but I'll probably start out with a smaller one first so stuff like this would help someone like me a lot ^^
Good luck with the rest of your project!
Hi, I think a fast/easy way to add sound would be using a small speaker and the following board from Adafruit:
Adafruit Audio FX Mini Sound Board - WAV/OGG Trigger 16MB Flash
I thought of that one in my initial design but did not go for it since I wanted to store the entire soundtrack album aswell.
Good luck with your build!
Last edited:
