Let's get this made. In light of the holidays let's extend this to new years.
I'm on the way! Tomorrow is payday

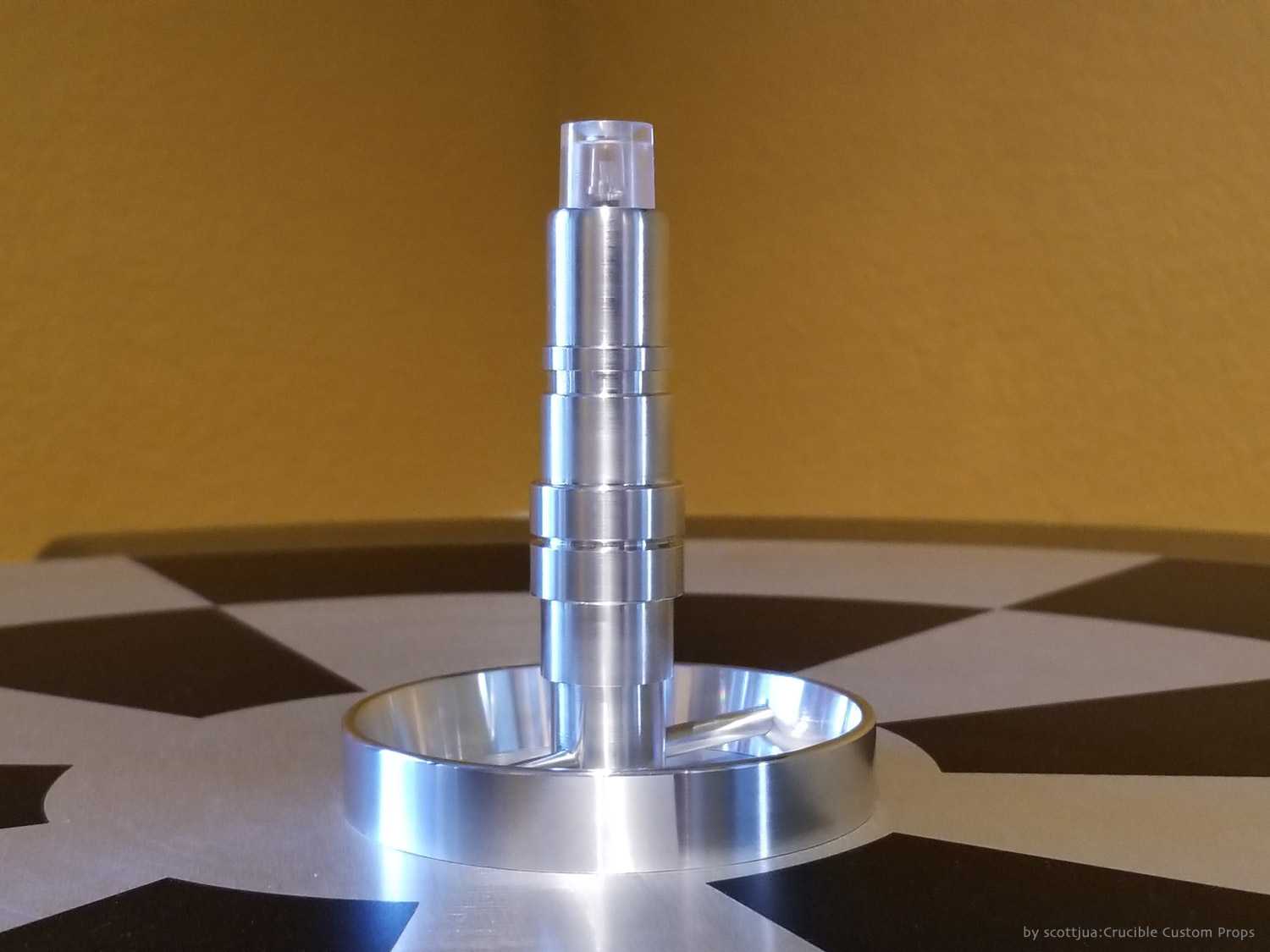

Boom... prototype in hand and installed.
So there are going to be some very minor changes, that are all internal to this prototype. Outwardly it should look identical, aside from the led being a little shorter inside the dome/top. So you won't see the heatshrink.
http://scottandtemphotography.com/graflexSaber/yoda/yodaproto/20171201_152514.jpg

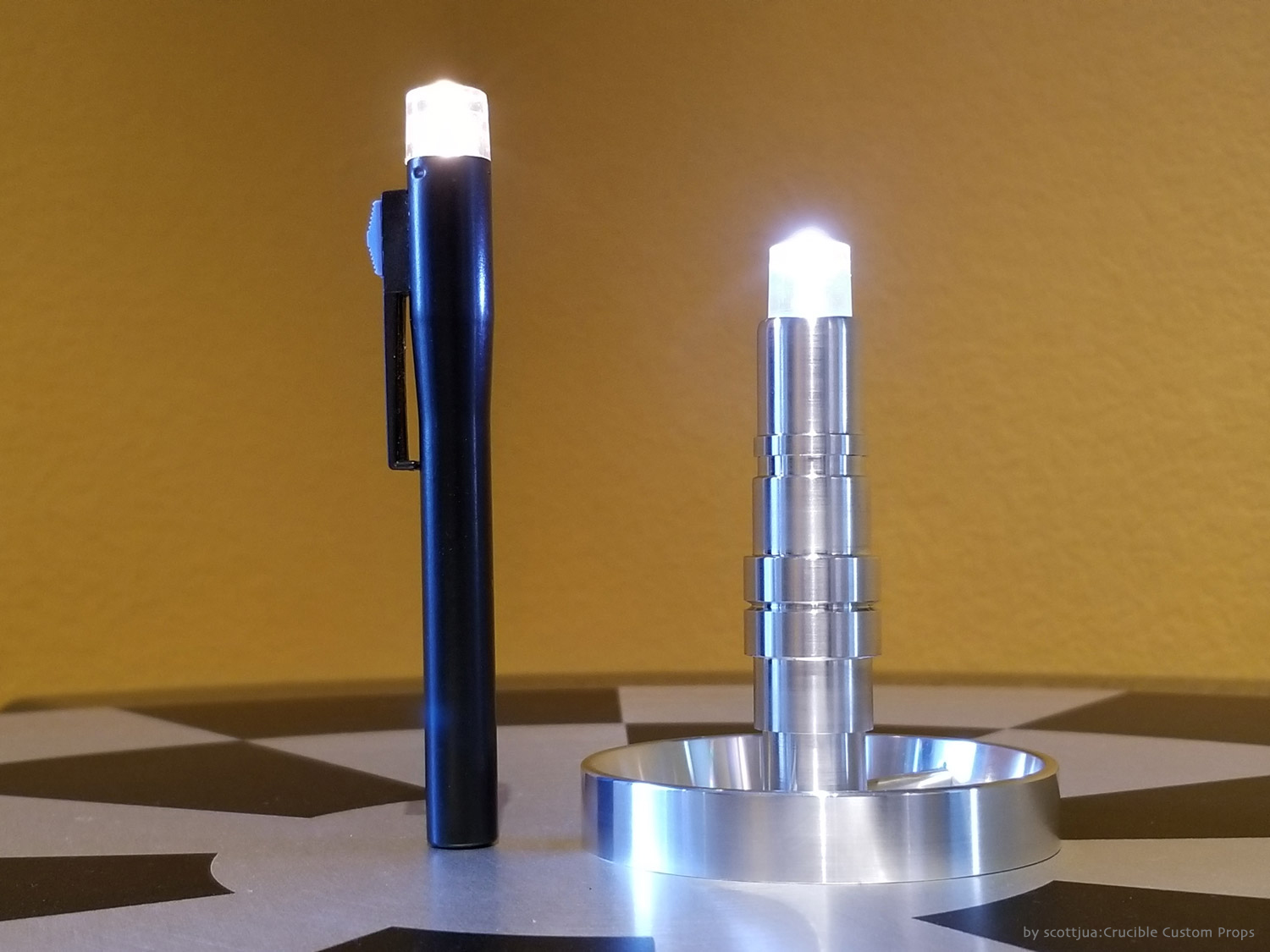

Also, here is the original part. I was pointed to this by thd9791, as he spotted this on eBay and alerted me. It's a vintage Ever Ready pen torch (or flash light in the USA). I saw it and right away thought he was right. The timeline works, the place those were most common, so I bought it. When it came I saw immediately on getting it to work, that the light plays, reflects, and looks EXACTLY like the original prop's top. It also made perfect sense form the standpoint of being a form factor that's nearly identical to what the original prop was, as a pen flashlight. I started scaling the image based on known R2D2 claw scales, and it all matched up. Based on that I started measuring my hand made guess work scratch built one, and found that my dimensions were super close. So I did some adjustments and it brought us to where this run and prototype are in scale.
http://scottandtemphotography.com/graflexSaber/yoda/yodaproto/20171201_152234.jpg

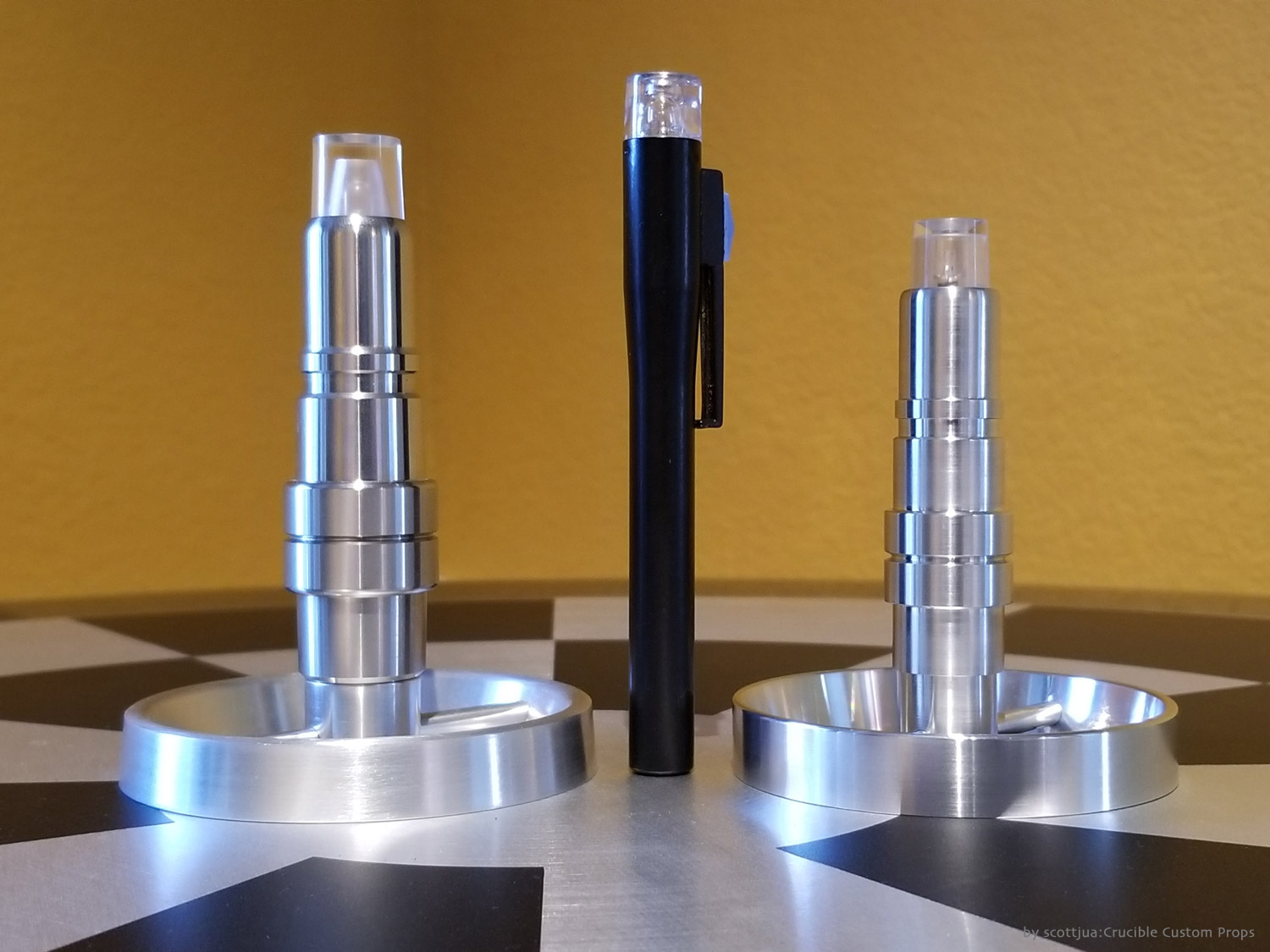

Finally, to compared the scale to the RPF run from a few years ago, you can see ours is much smaller based on the found pen light part.
http://scottandtemphotography.com/graflexSaber/yoda/yodaproto/20171201_152144.jpg
Interestingly the proportions are very similar, except my reference doesn't show the tapers in the sections like the previous run interpretations. From what I can see in the images I have access to, the sections are just straight cuts. So we went that direction.
So there's the part/story and the prototype. Hope you guys like it!
Oh... production LEDs will be warm white to match the screen used reference.
http://scottandtemphotography.com/graflexSaber/yoda/yoda_run3.jpg
