Anh Escape Pod Research Thread

[jawsmodels]

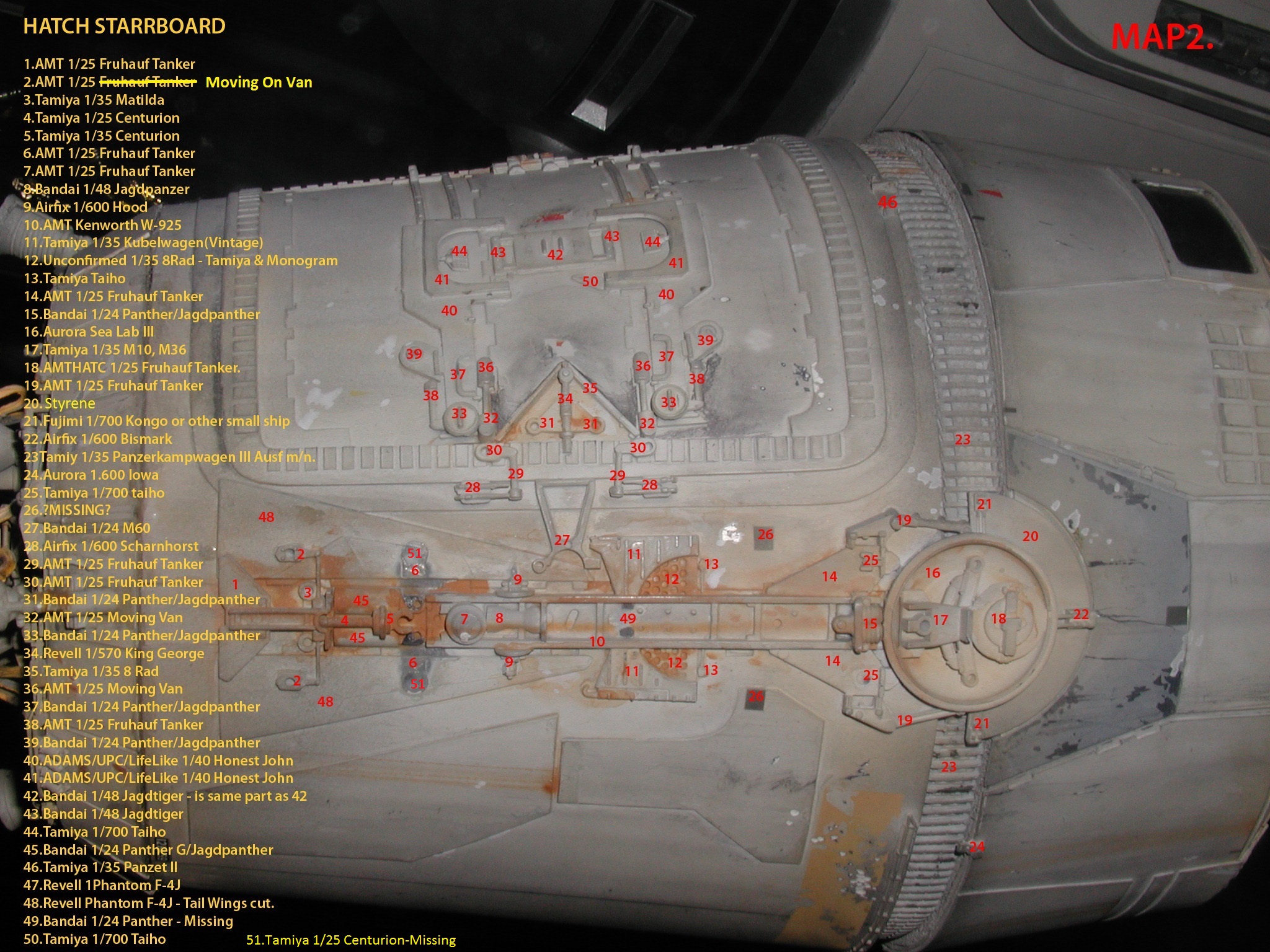

Just found the cylinder parts under part #4(Centurion) on Map2.
They are from the Bandai 1/24 Jagdpanther. Most probably in the Panther G also.
Pictured is the sprue, the part on a ruler & 2 of the cylinders with the Centurion part on top.
Confirmed Kiill:cheers



[DaveG]

Are the parts map photos still available? They seem to have been deleted from this thread. Thanks!



[Aurora]

Part map are on studioscalemodelers.com



[DaveG]

Thanks, for some reason my access to SSM isn't working right now, Joe's trying to fix it for me.



[rbeach84]

Is SSM forum getting new members again?

Regards, Robert



[Yeoman]

Hi Folks, I realise this is an ancient thread. Is there any chance that someone might be able to post the Parts maps again. I know 2 and 3 are out there but I can't seem to find a complete Map 1 or ay others if there be some. I have tried the SSM route to no avail. Many thanks in advance. Rich



[bwayne64]

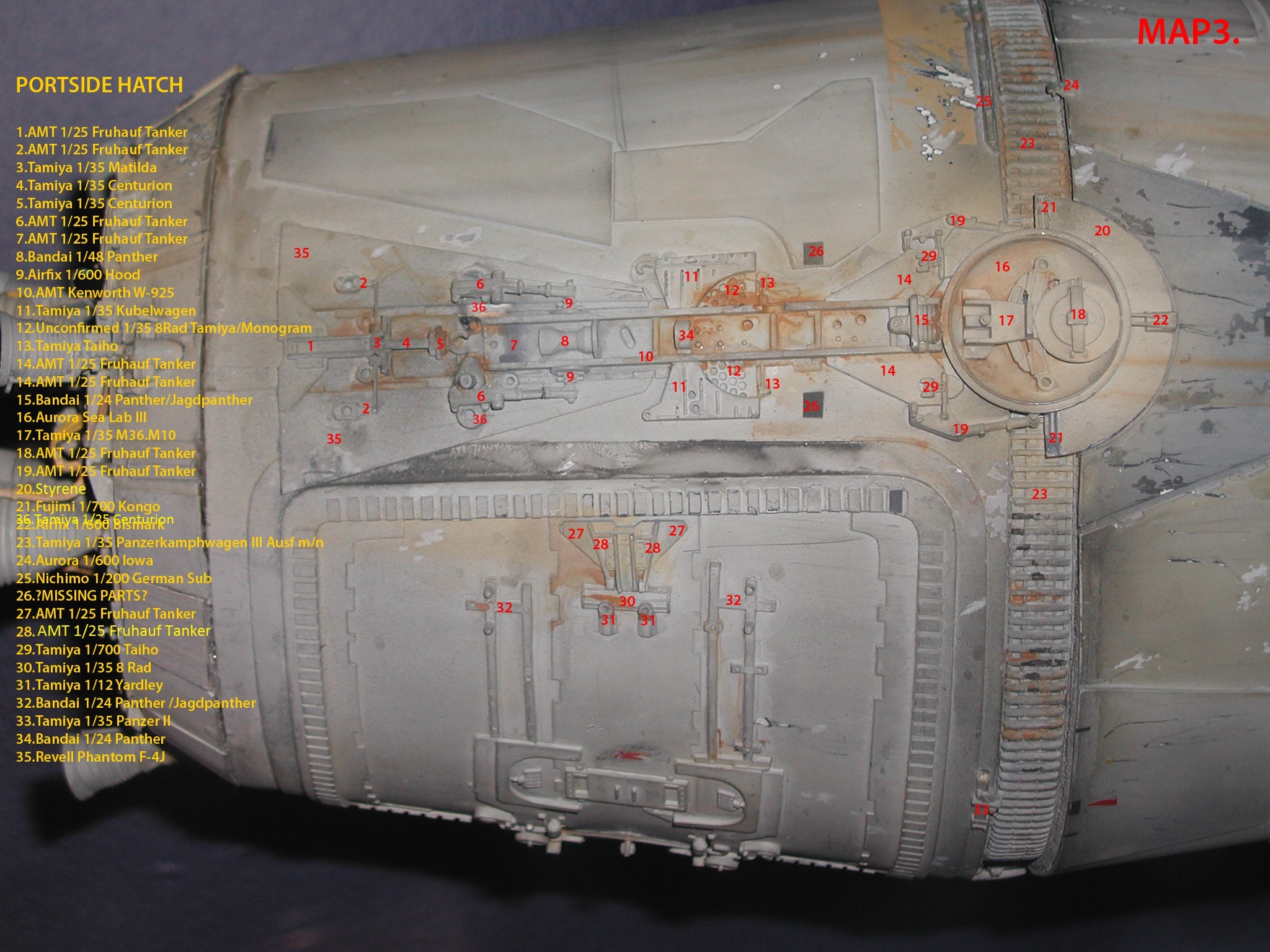

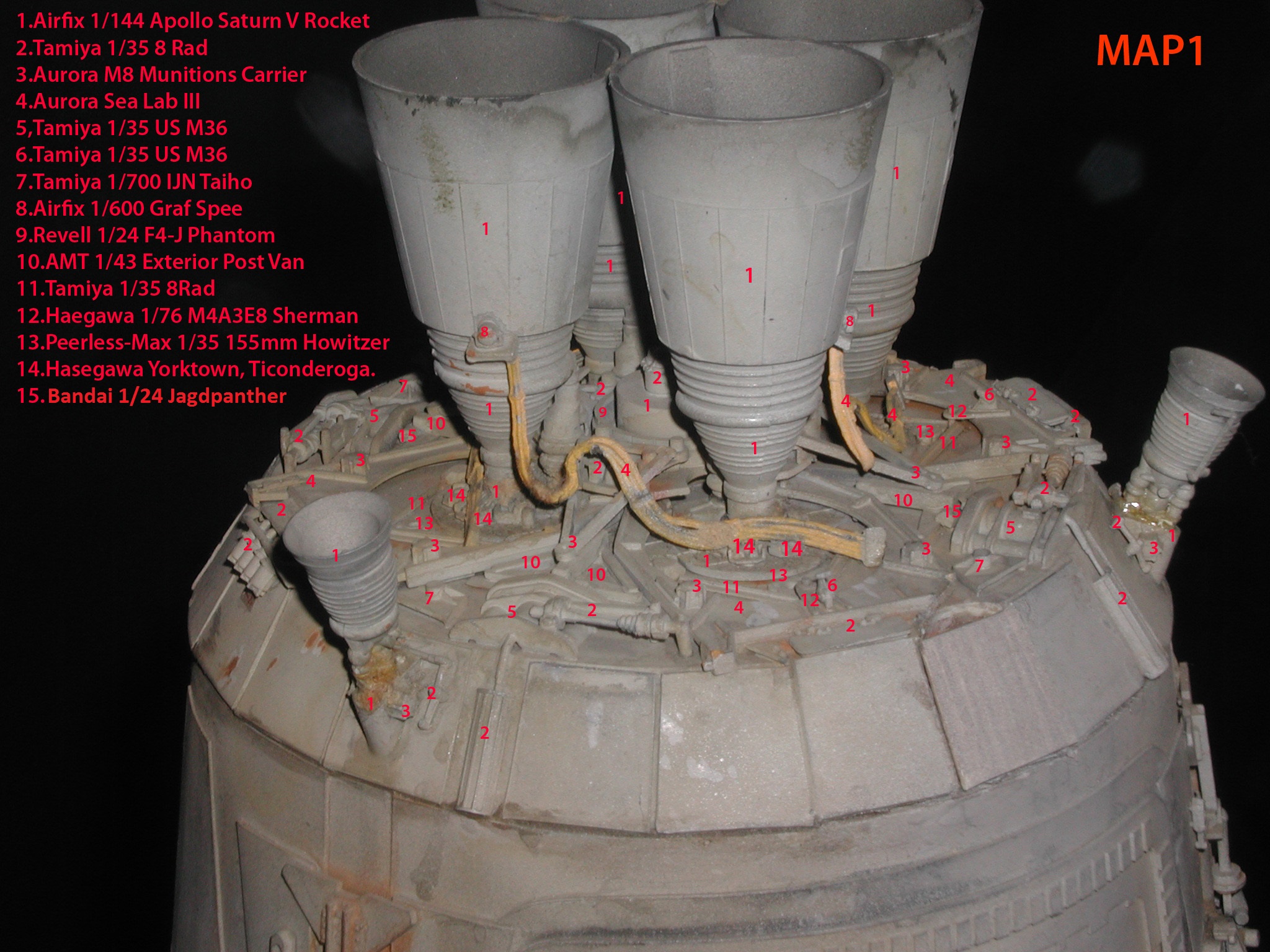

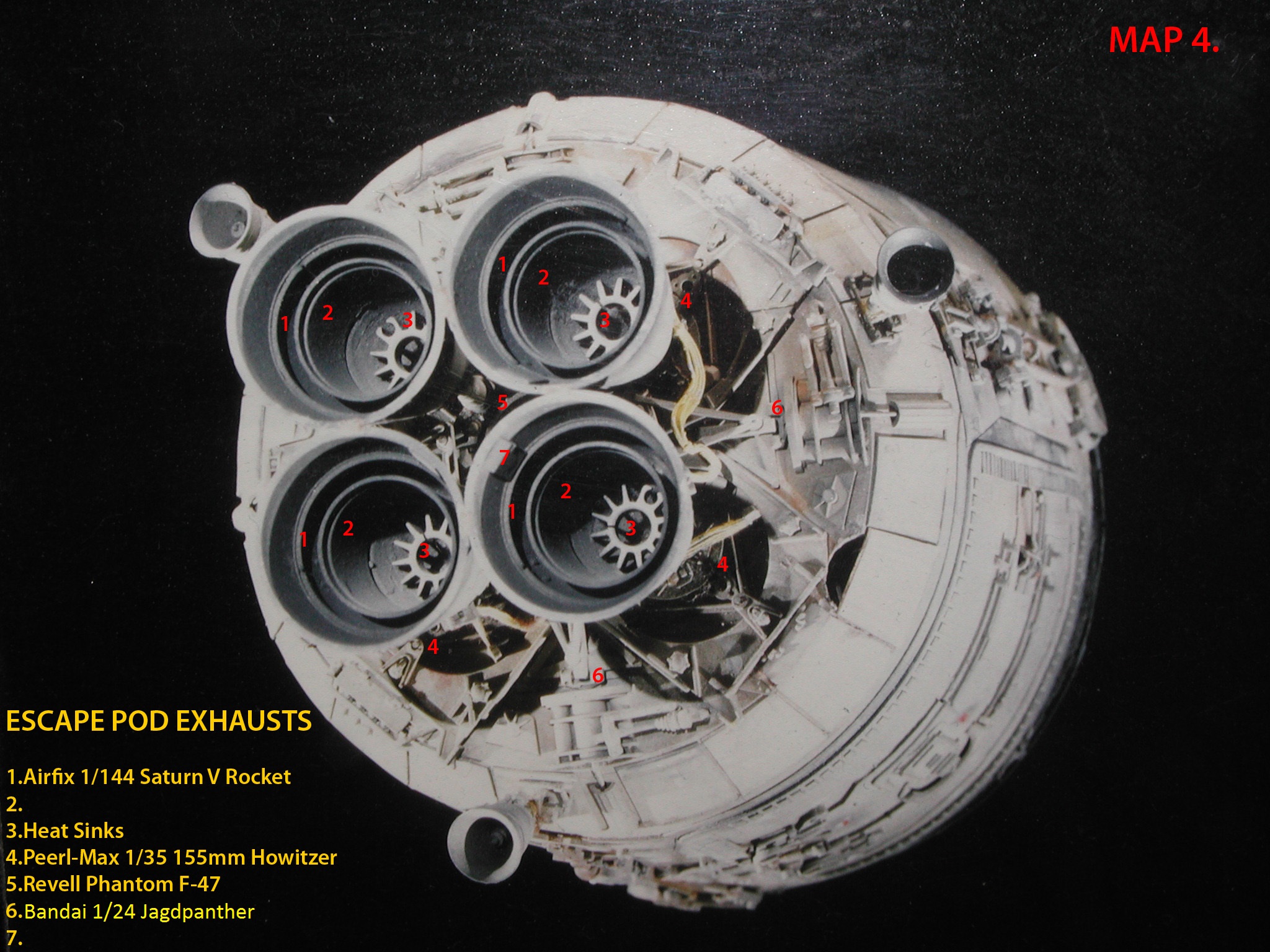

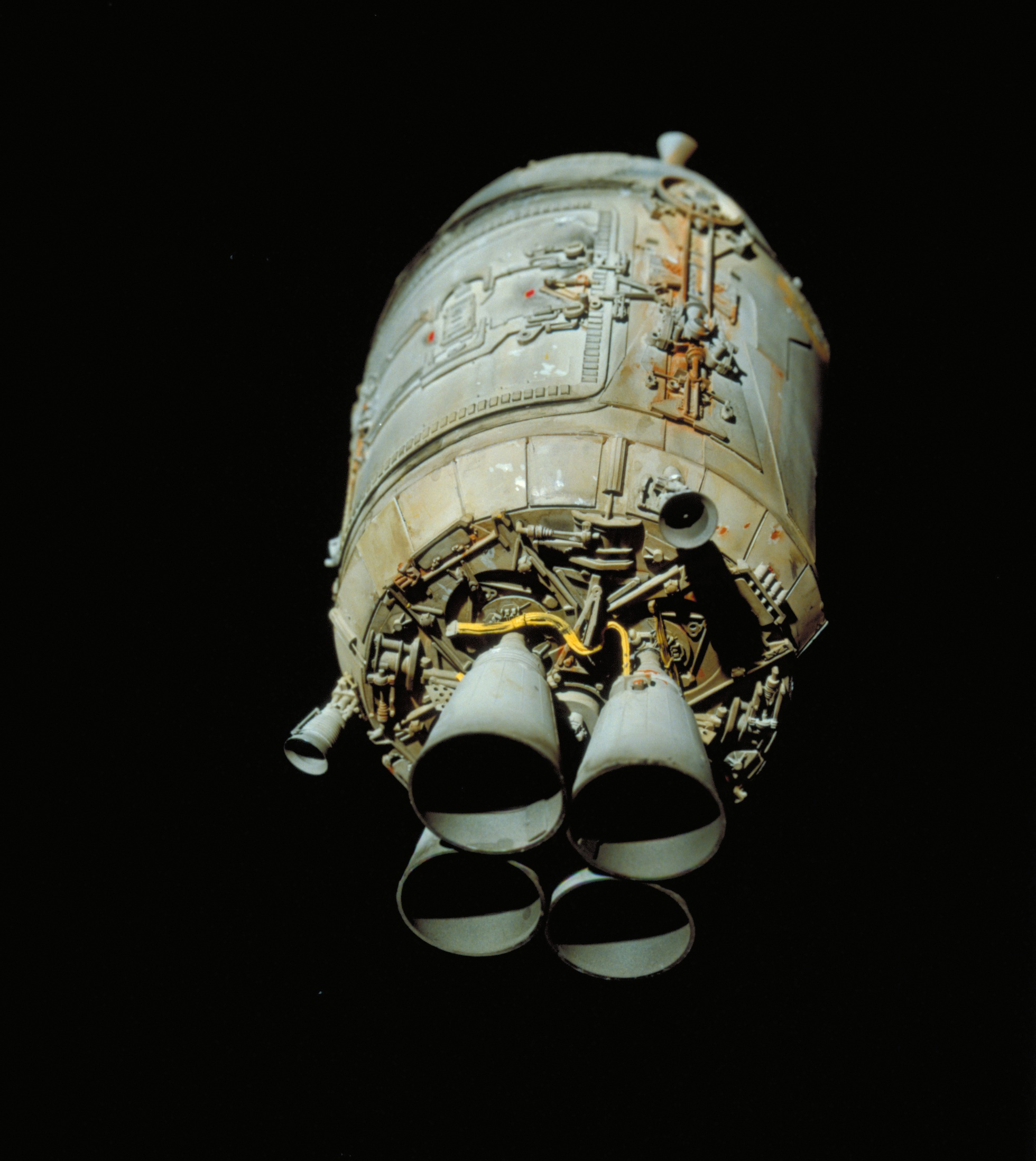

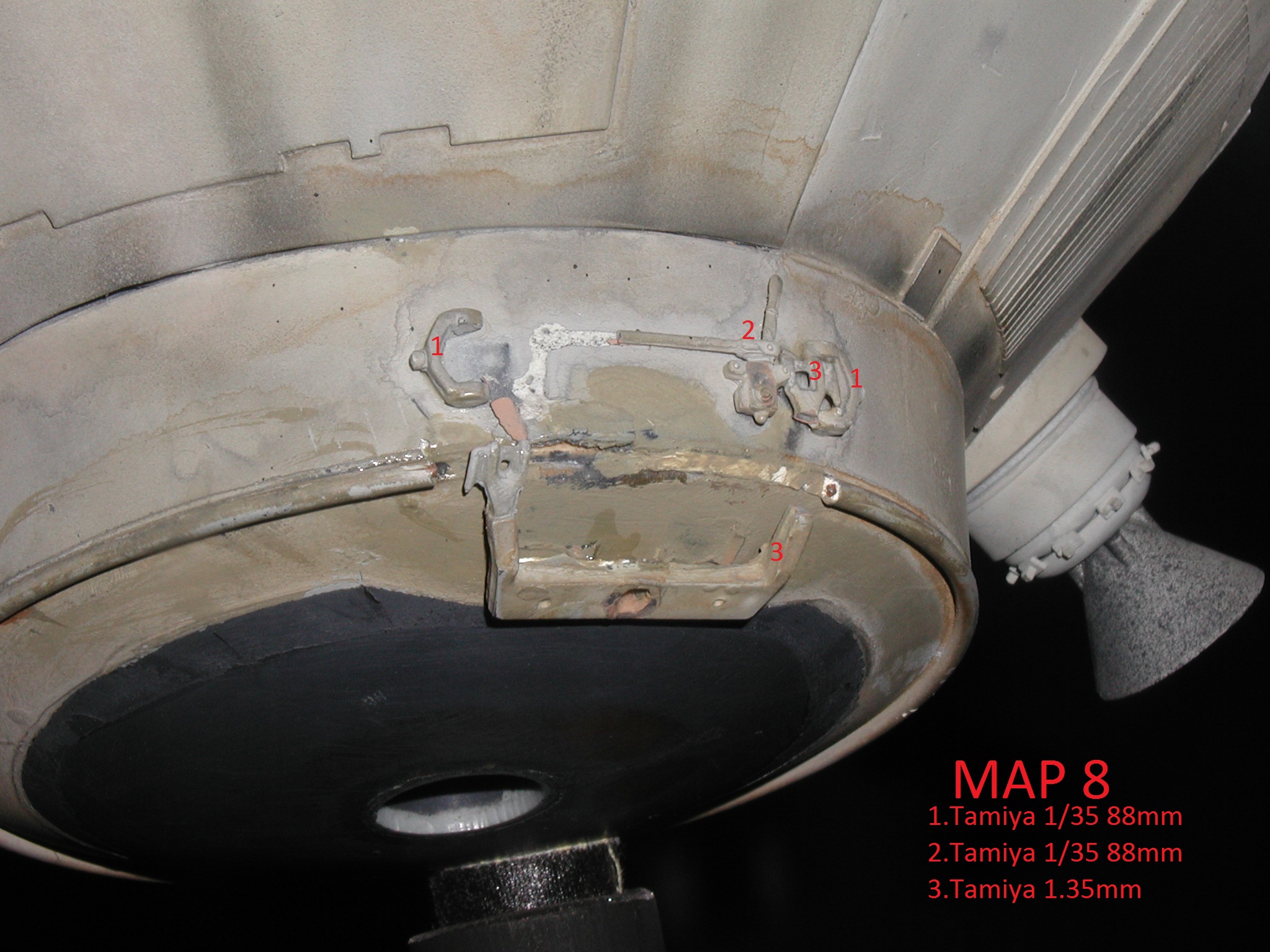

Here are the maps, I believe were here. Hopefully I won't get in trouble for posting them again. Let me know Jase, ; ) Map 7 didn't have numbers or labels. Don't know why.



[jackstraw9388]

Thank You!



[bwayne64]

Your welcome !



[jackstraw9388]

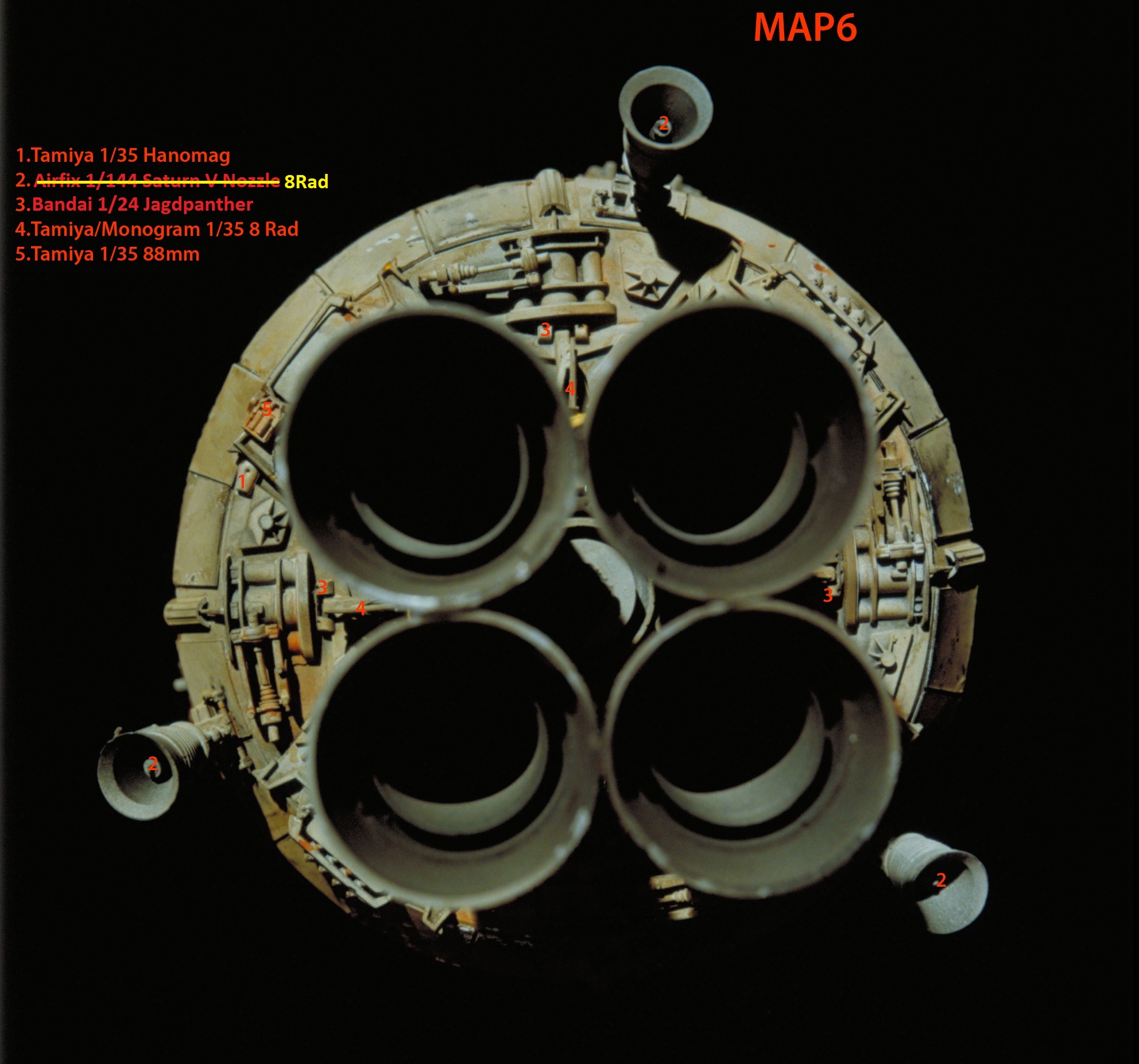

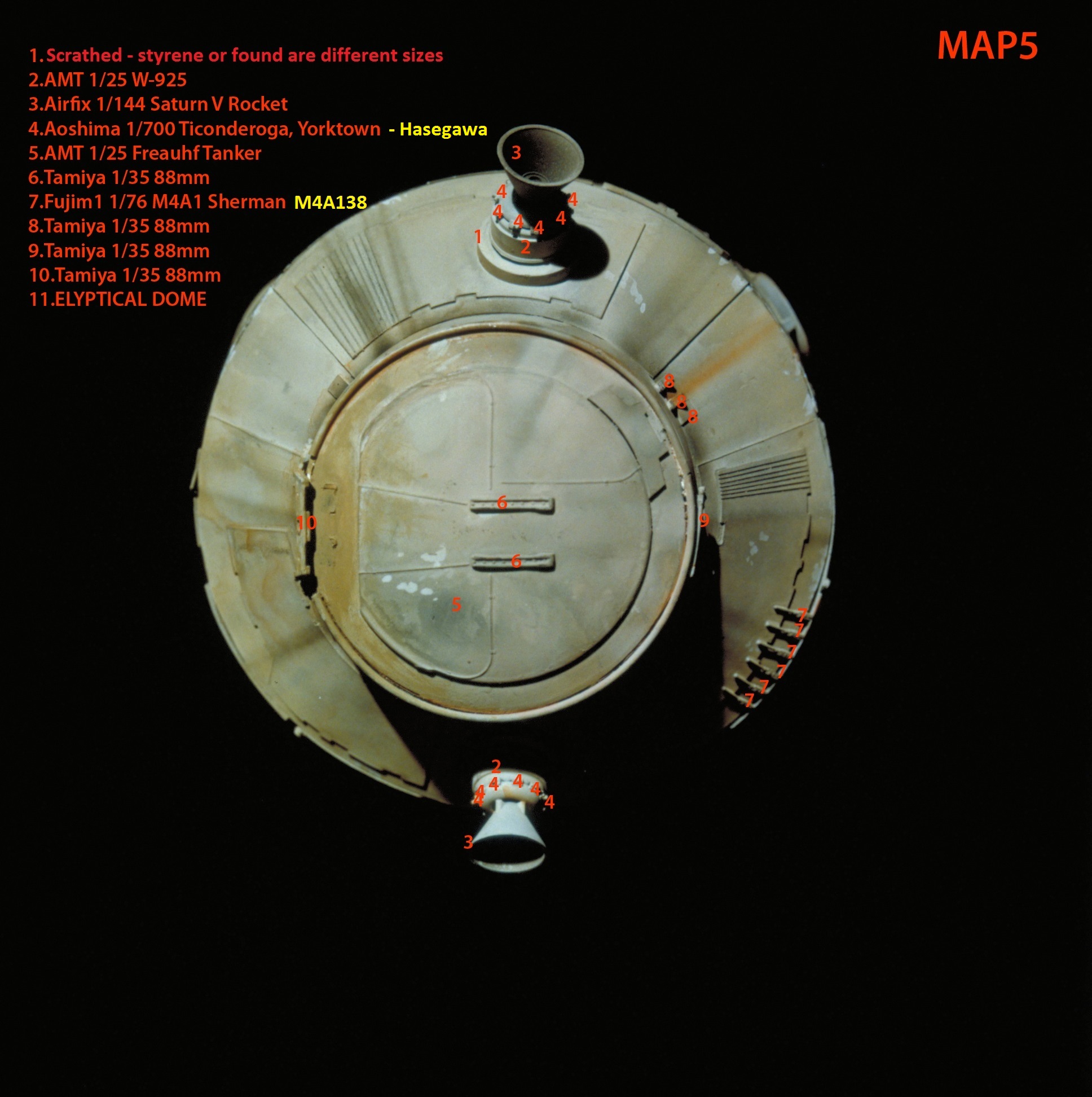

OK so I've spent some quality time with these maps over the past couple of weeks. I have 3 questions. I hope someone can help me out. It states that the Revell F-4J Phantom is 1-24 scale. I have not been able to find it at this scale. Could it be the 1-32 scale instead? One other question I had do to lack of a better pic. On Map 5 #8. Tamiya 1/35 88mm. They look like 3 L brackets. Can anybody help me out with this ID. I've looked at my kit scans and just don't see them. Finally on Map 6 #2 8rad. the part inside the engine bell. Is that part from 8rad A-7 Thanks again for your time. Tim



[Studio Kitbash]

Revell Phantom is 1/32, confirmed (not 1/24)
Not sure on the other two questions, will check later today.



[jackstraw9388]

Thanks Kitbash!



[3DImpact]

Finally on Map 6 #2 8rad. the part inside the engine bell. Is that part from 8rad A-7 Thanks again for your time. Tim

Yes, that's A7 - it needs a bit snipped off to fit in there if I remember correctly, but it's A7.

Dan



[jackstraw9388]

Thanks Dan! That's great news!



[jackstraw9388]

My kit scans for the Tamiya 1-24 Centurion MK III is incomplete. Does anyone have the D sprue for the Tamiya 1-24 Centurion MK III they could share. Thanks!



[jcoffman99]

Just posted this yesterday. Hope it helps.

British Army Centurion Mk III Tamiya | No. 30614 | 1:25



[jackstraw9388]

That's it ! Perfect. Thank you jcoffman99!

​



[jackstraw9388]

Thanks for doing both sides of the sprues.
