blickfangQ2- Iron Man XLV Mk 45 Build (3D Printed)

[blickfangQ2]

Glued in some details:

Unfortunately the superglue was too aggressive and the silver paint was damaged a bit. But nothing too bad...



[blickfangQ2]

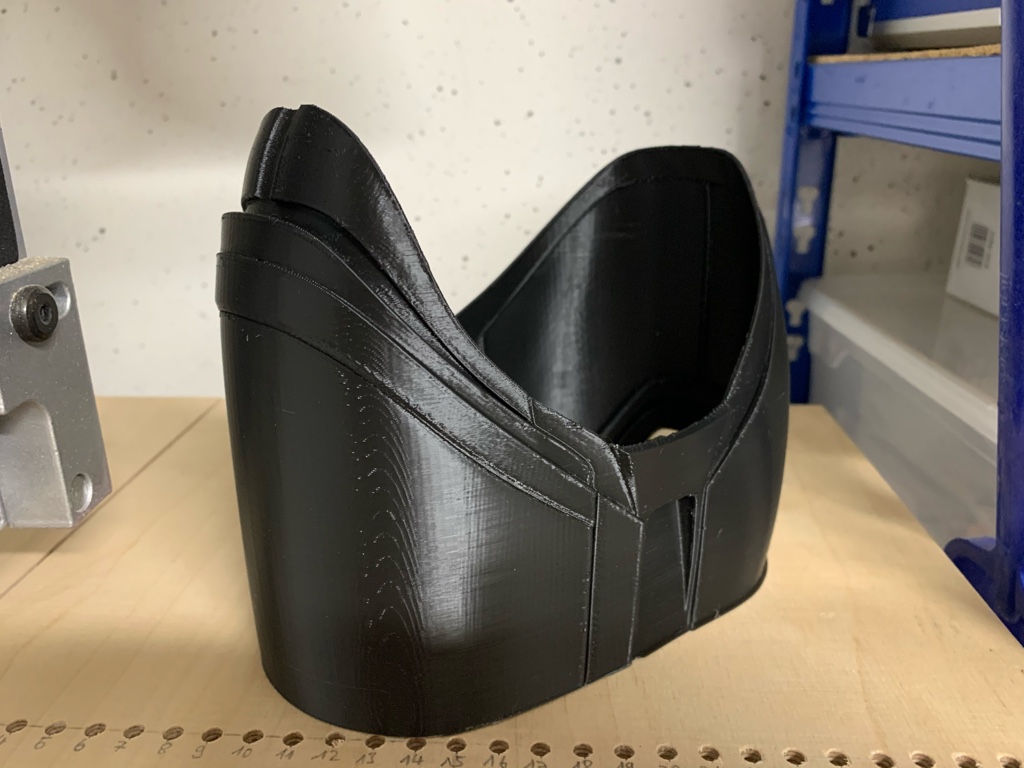

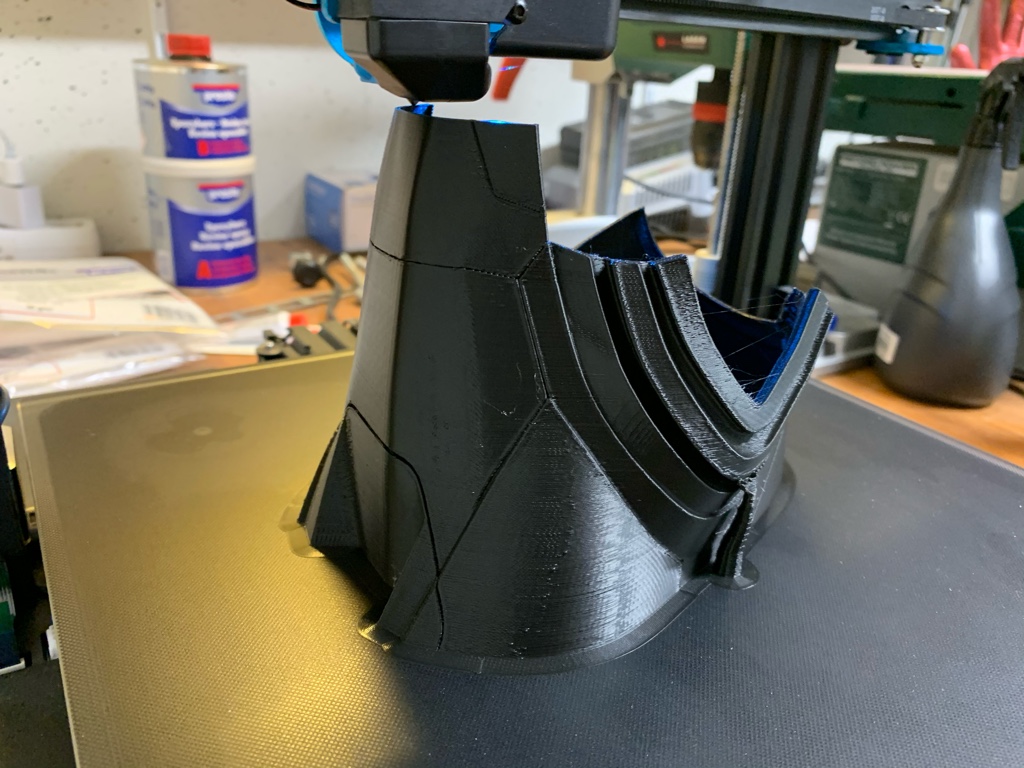

I printed the Biceps:

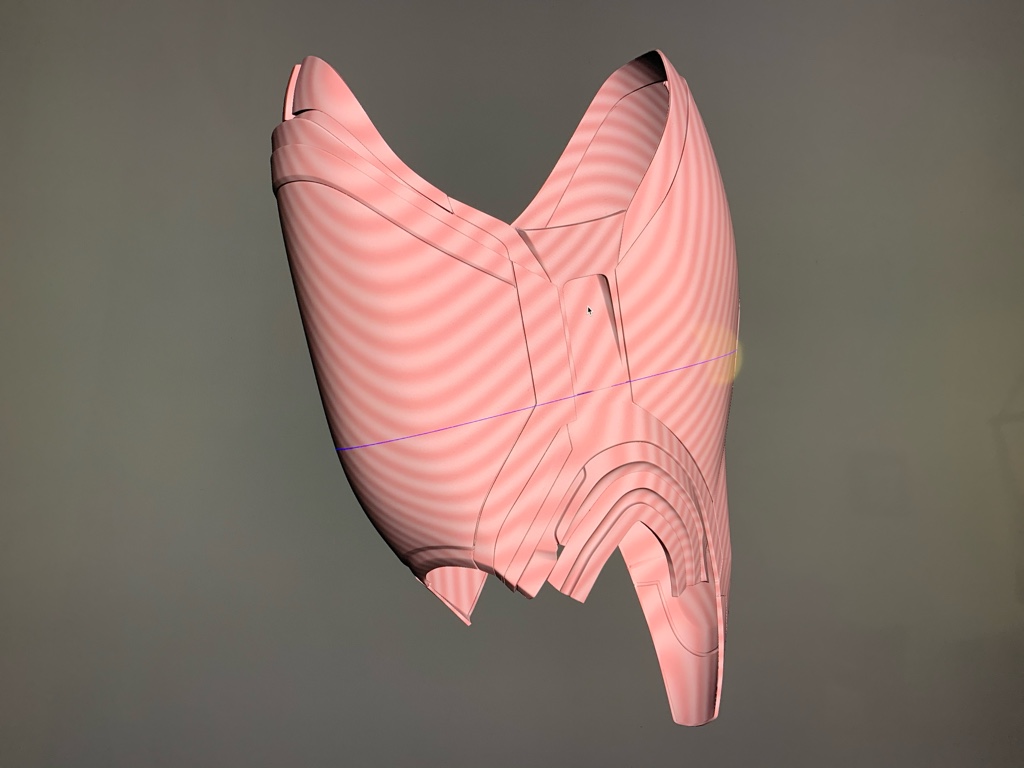

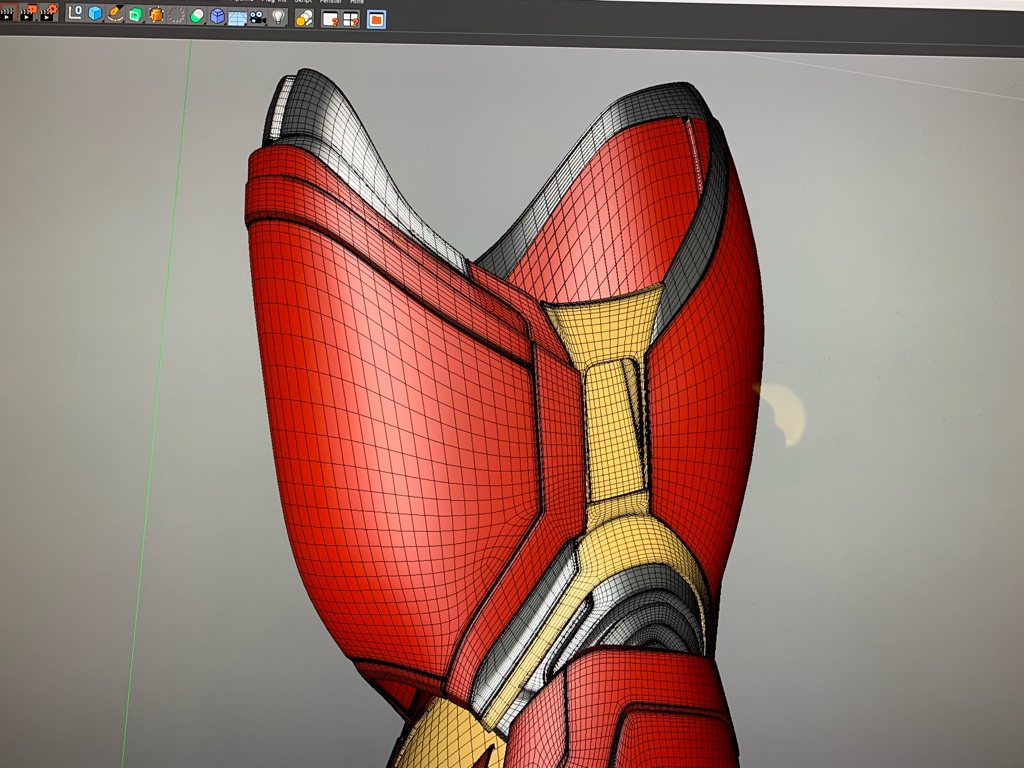

I cut it in half with meshmixer so I barely needed support!

I adjusted my print settings further.
0.20 mm Layer height ist a lot better than 0.28 and still fast enough. I love my Sidewinder X1... so fast... printed at 100mm/s (walls 50mm/s)
About 6-7 hours for each half



[Vanishqt]

3D printing is easy. Try it without a template and without a 3D printer. that is a challenge



[blickfangQ2]

3D printing is easy. Try it without a template and without a 3D printer. that is a challenge

I don’t know what you are trying to say here besides talking other people’s work down and eliminating motivation.
I guess there are always people denying progress in Tools.
For example: Try to build a table without screws and and Glue. It’s sure possible, but I guess you won’t argue with the craftsmanship that goes into tables and other woodwork built with power tools. With new tools, new ways of construction are born.
Saying 3D Printing is easy is also simply not true. It’s a base. I can guide you to plenty examples where people create very bad results although their prints looked good in the first place.
Besides I worked dozens of hours preparing and modifying files that where never supposed to be 3D printed. I guess there is always a preferred way to crafting and building and that is very subjective.
So to sum this up: please stop bashing other people work, stop trying to show of how great you are by talking other people’s work down.
This is a supportive community and if you have this attitude you might want to look somewhere else for attention.
Cheers



[blickfangQ2]

Back to topic... more progress:

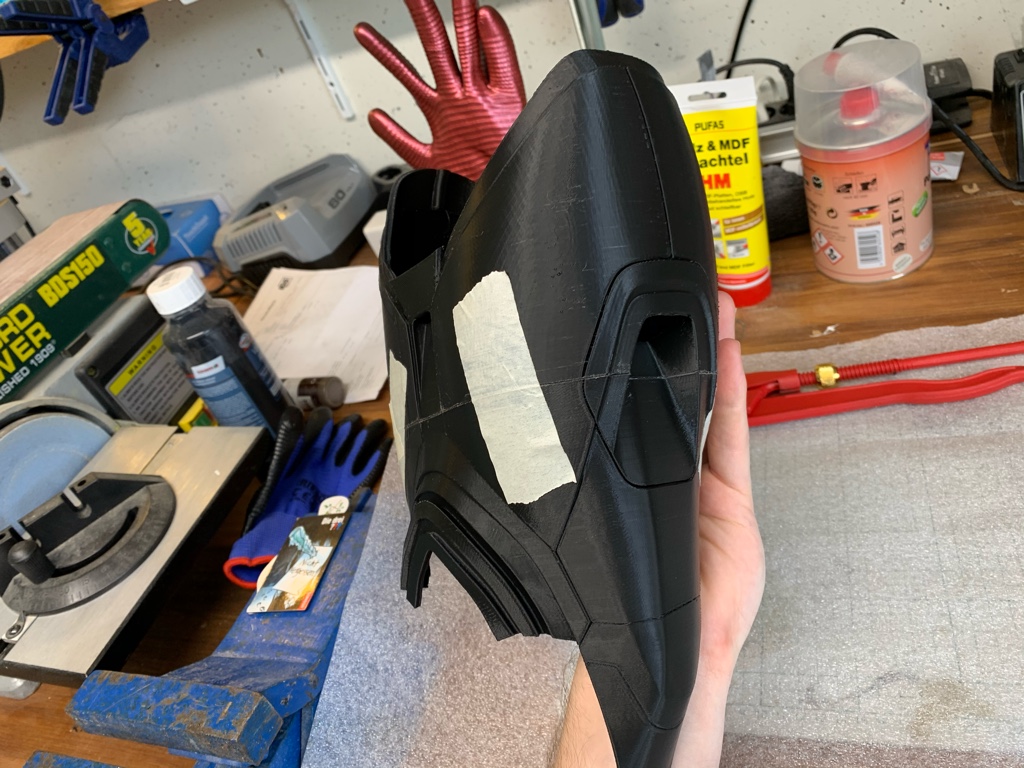

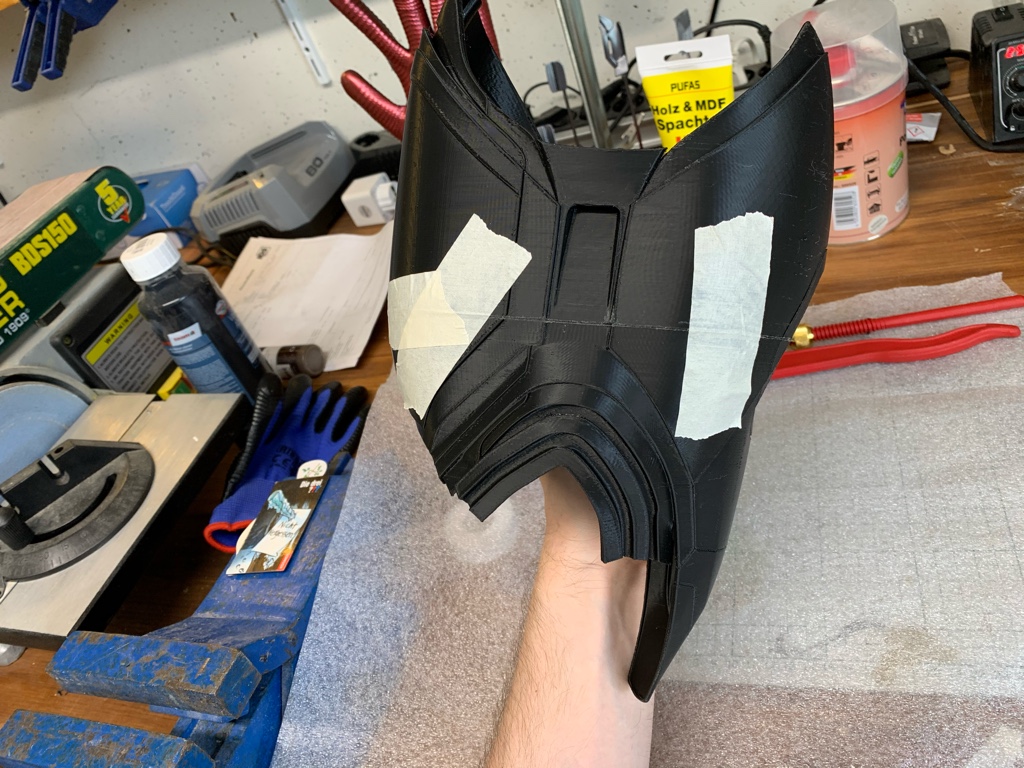

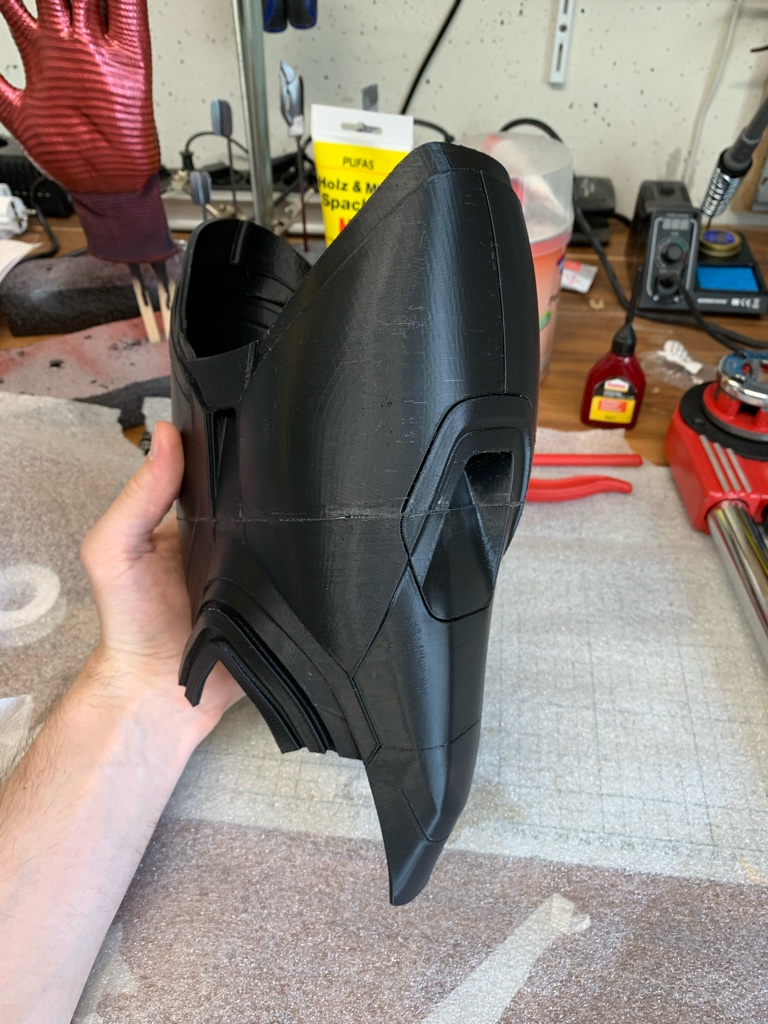

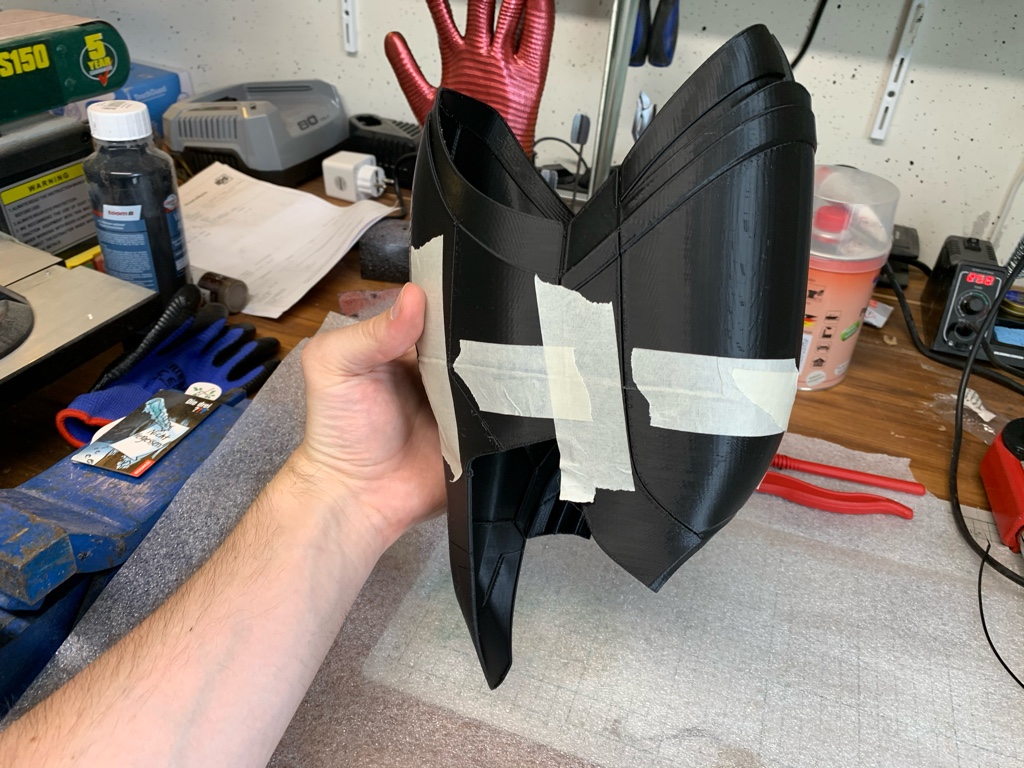

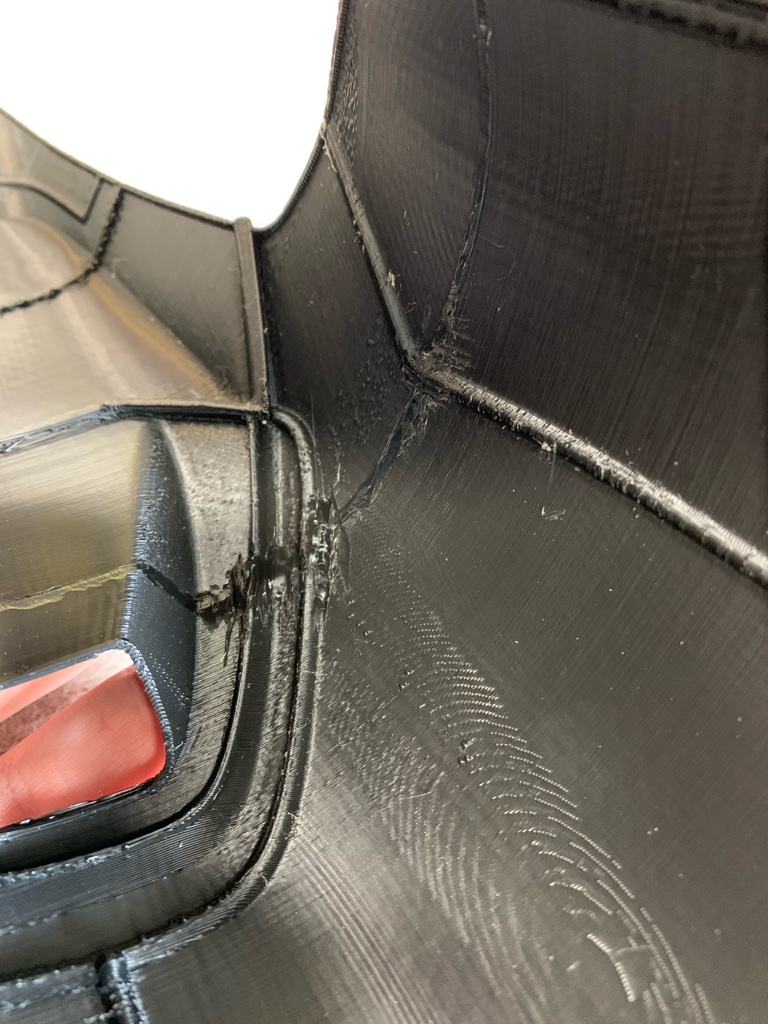

Fixed the pieces together with some tape and soldered them together with the overhang Brim that was still there for buildplate adhesion

Will start sanding now [emoji1303]



[USS Endeav]

Looking very good!

Is the wood filler soft when fully dry? or softer than the print material



[blickfangQ2]

Looking very good!

Is the wood filler soft when fully dry? or softer than the print material

Thanks!
I would say the wood filler is softer than the PLA and very easy to sand. I’m experimenting with applying the wood filler with a tiny bit of water. That way it doesn’t dry out during applying and gets in every corner.



[USS Endeav]

Have you considered Dolphin Glaze? it applies easily, fills in well and hardens to a more durable state. It would increase sanding efforts if you apply more than the skin needed. In any event, your doing great work.



[blickfangQ2]

Have you considered Dolphin Glaze? it applies easily, fills in well and hardens to a more durable state. It would increase sanding efforts if you apply more than the skin needed. In any event, your doing great work.

Interesting stuff... I’ll look into it if it’s available in Germany

Here is more Progress:

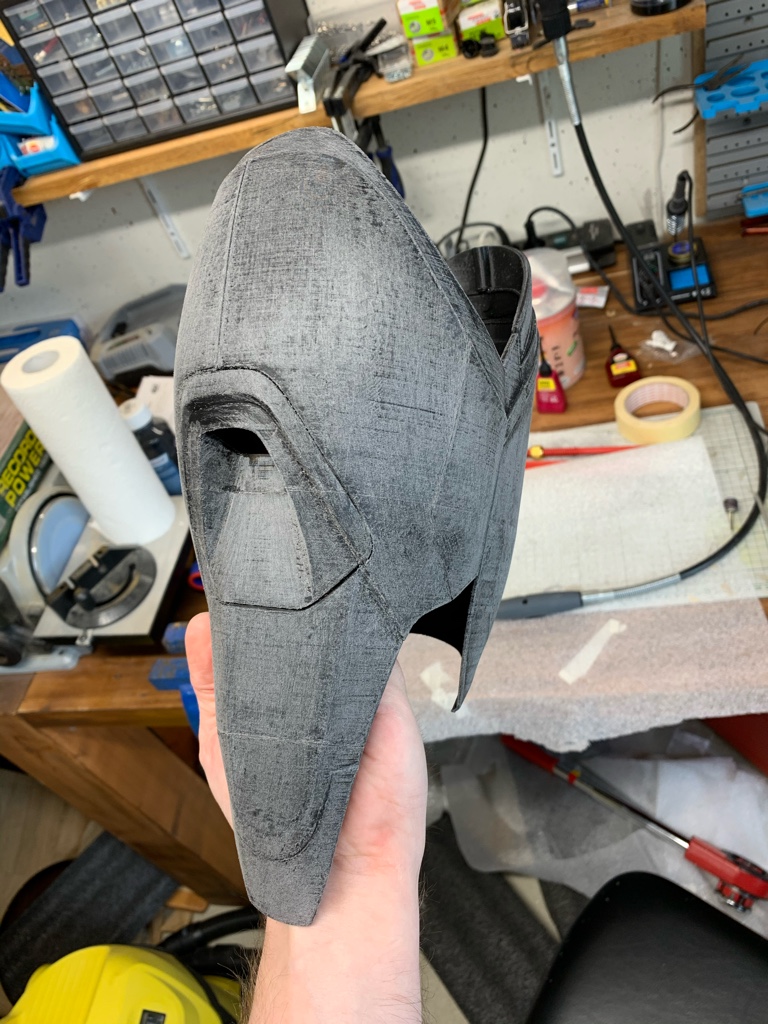

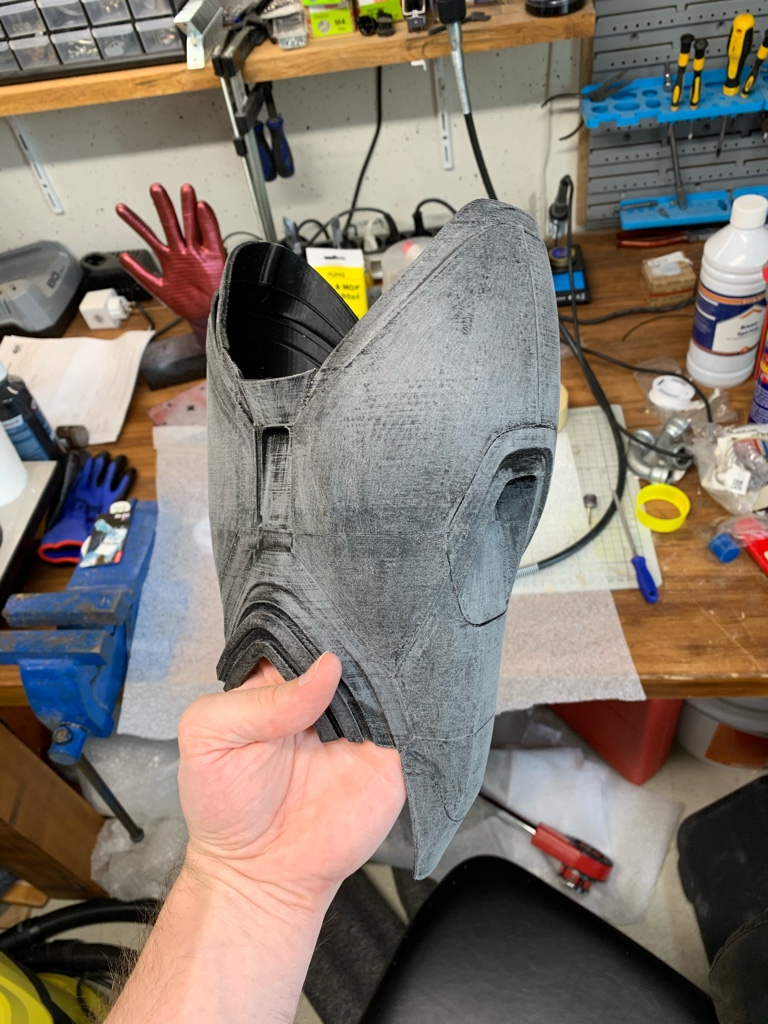

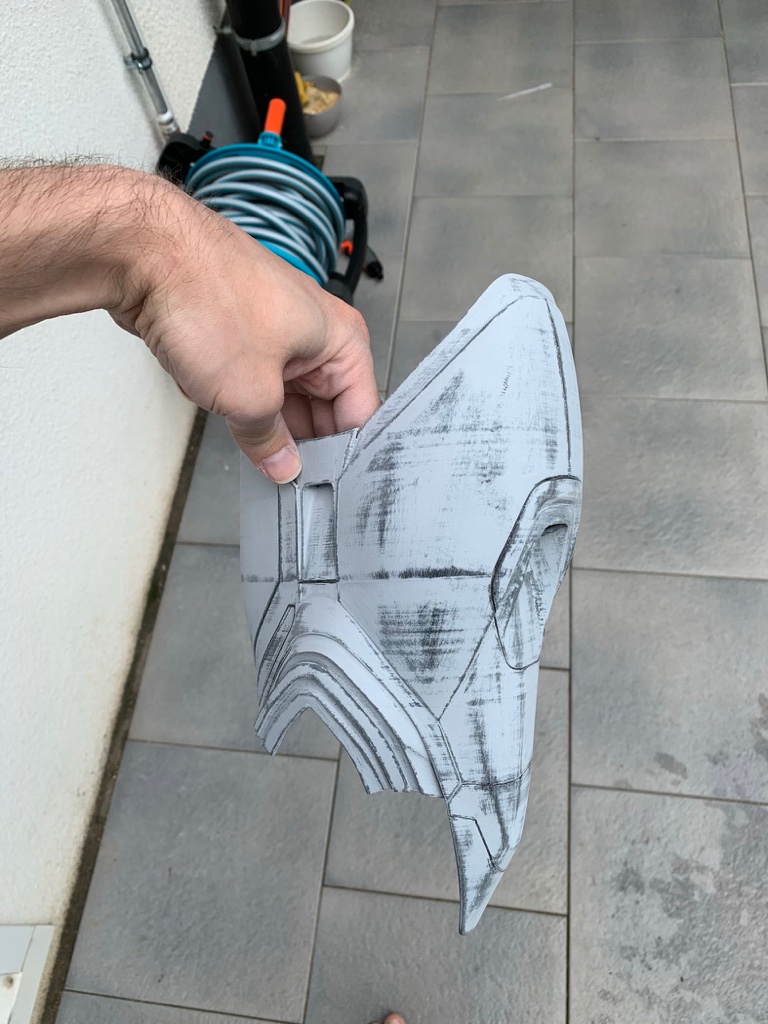

- 100 grid paper on a Dremel drum
- 150 grid paper by Hand



[Vanishqt]

I don’t know what you are trying to say here besides talking other people’s work down and eliminating motivation.
I guess there are always people denying progress in Tools.
For example: Try to build a table without screws and and Glue. It’s sure possible, but I guess you won’t argue with the craftsmanship that goes into tables and other woodwork built with power tools. With new tools, new ways of construction are born.
Saying 3D Printing is easy is also simply not true. It’s a base. I can guide you to plenty examples where people create very bad results although their prints looked good in the first place.
Besides I worked dozens of hours preparing and modifying files that where never supposed to be 3D printed. I guess there is always a preferred way to crafting and building and that is very subjective.
So to sum this up: please stop bashing other people work, stop trying to show of how great you are by talking other people’s work down.
This is a supportive community and if you have this attitude you might want to look somewhere else for attention.
Cheers

sorry for my Post.

nice Job. I made it too



[USS Endeav]

Dolphin Glaze is a Upol product and is made in the UK so I'd hazard a guess it is available in Germany as well as elsewhere in Europe. I can get it in the US so it's probably everywhere. It's a great filler in that it sands smoothly, doesn't crack or crumble and has a favorable working time so you can get the application as smooth as possible, reducing sanding efforts. Your parts thus far look very good. I'm looking forward to the finished suit.

Any plans for electronics?



[blickfangQ2]

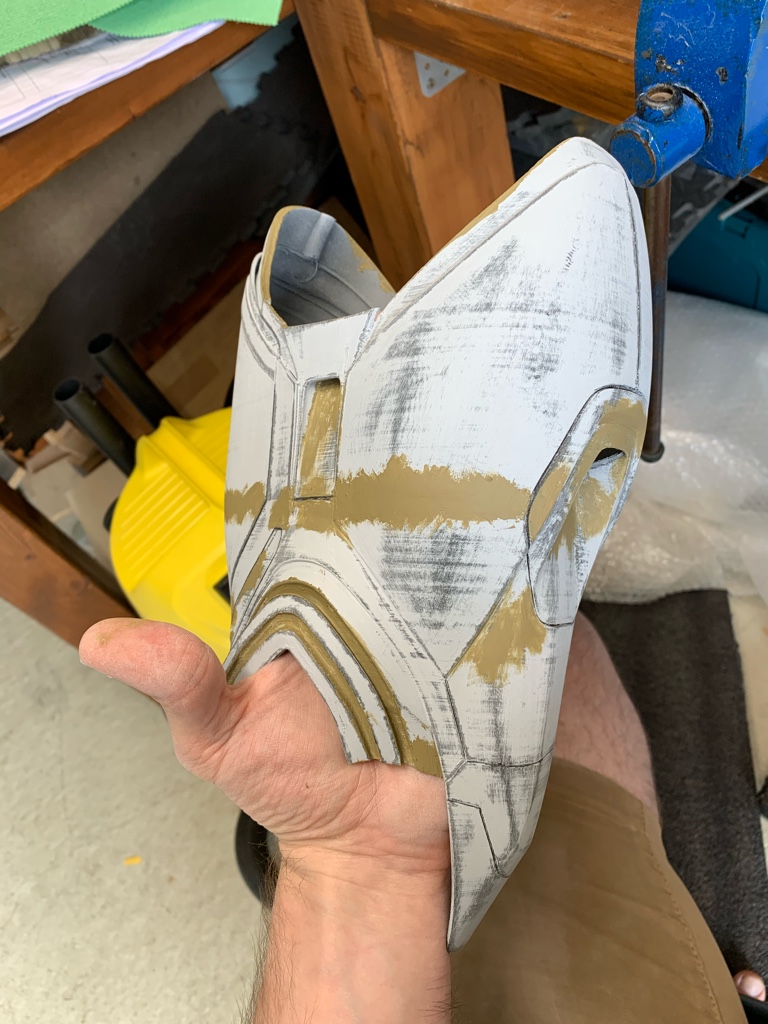

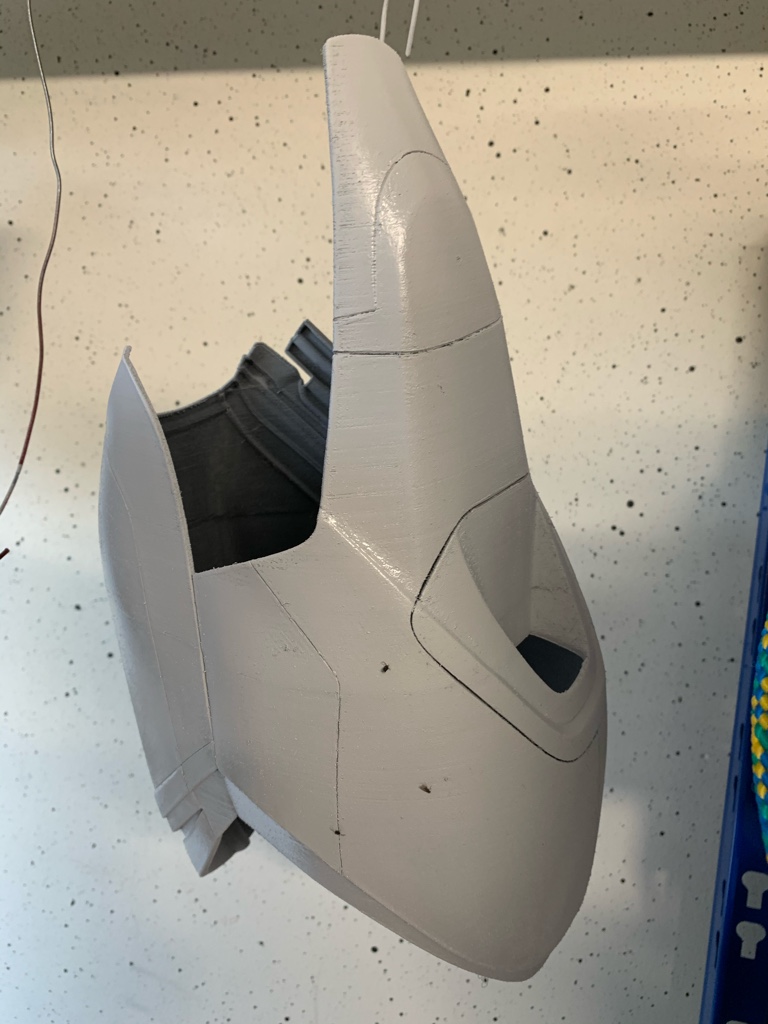

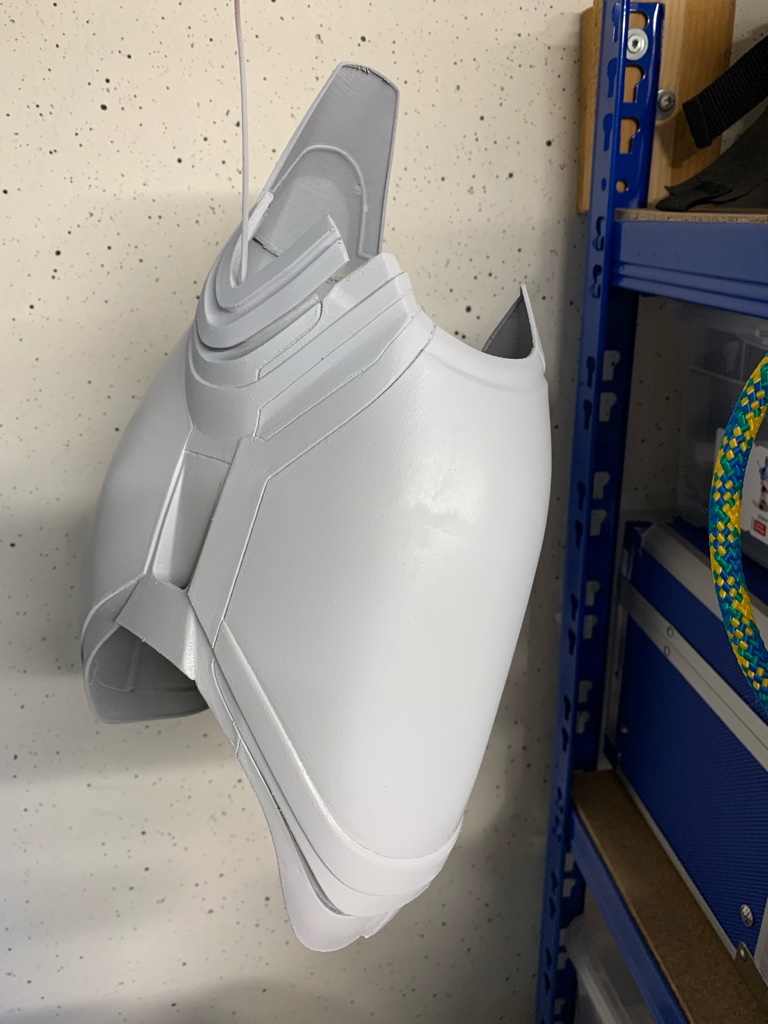

First coat of filler primer to see where I have more work to do... I managed to catch a few flys [emoji28]

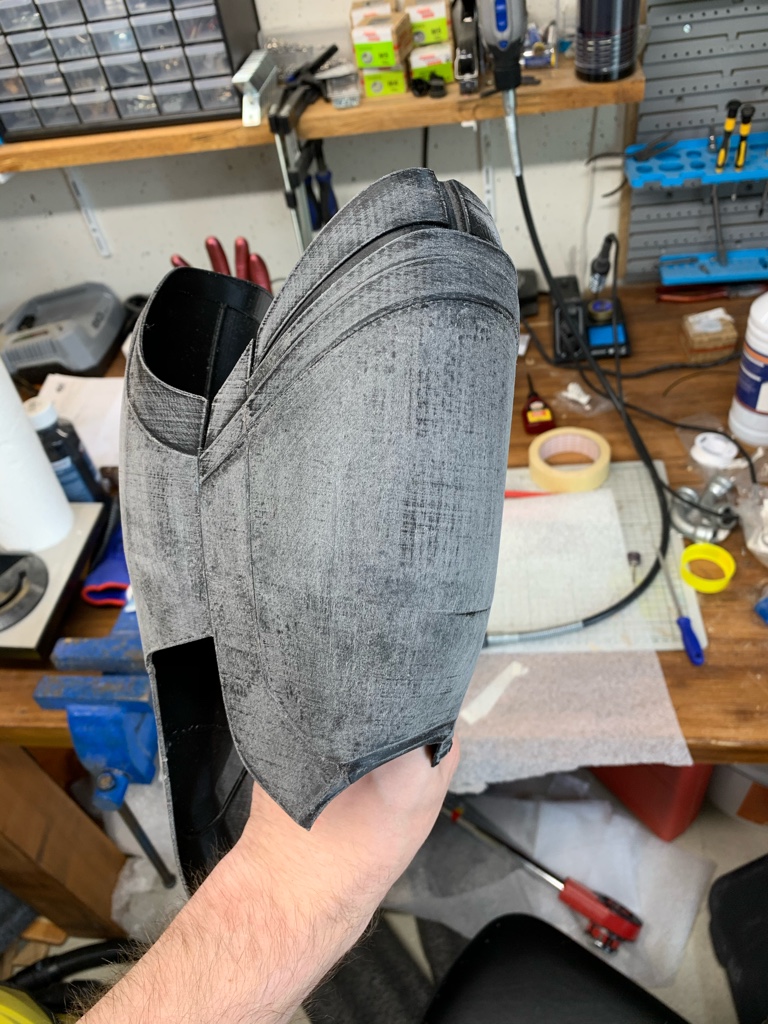

Sanded it by Hand with 150grid Paper again:

Some presto filler:

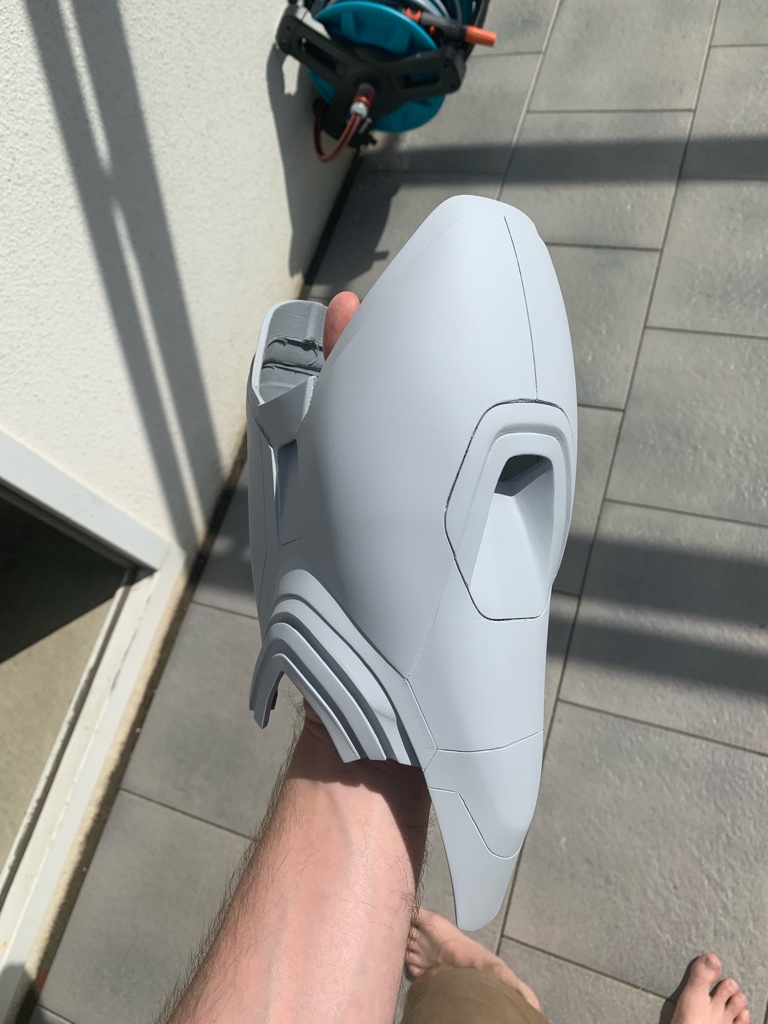

And Boom [emoji2956] not too bad! But still lots of little dents and a few layer lines...



[blickfangQ2]

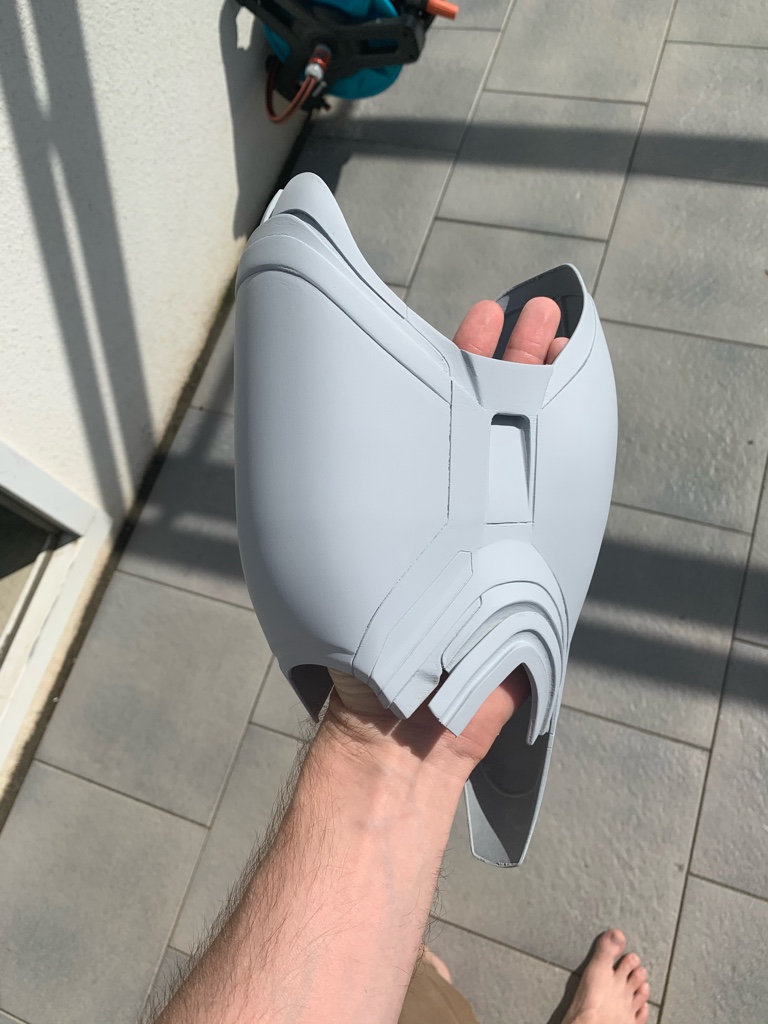

I did two further rounds of spot filling and spray filling:

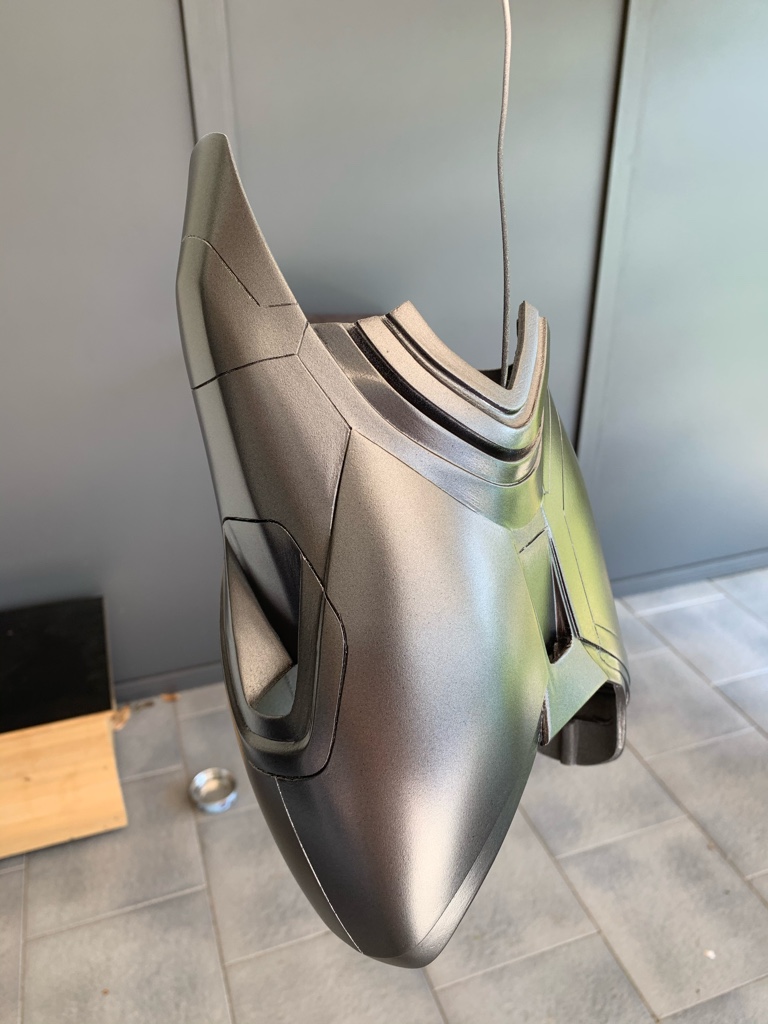

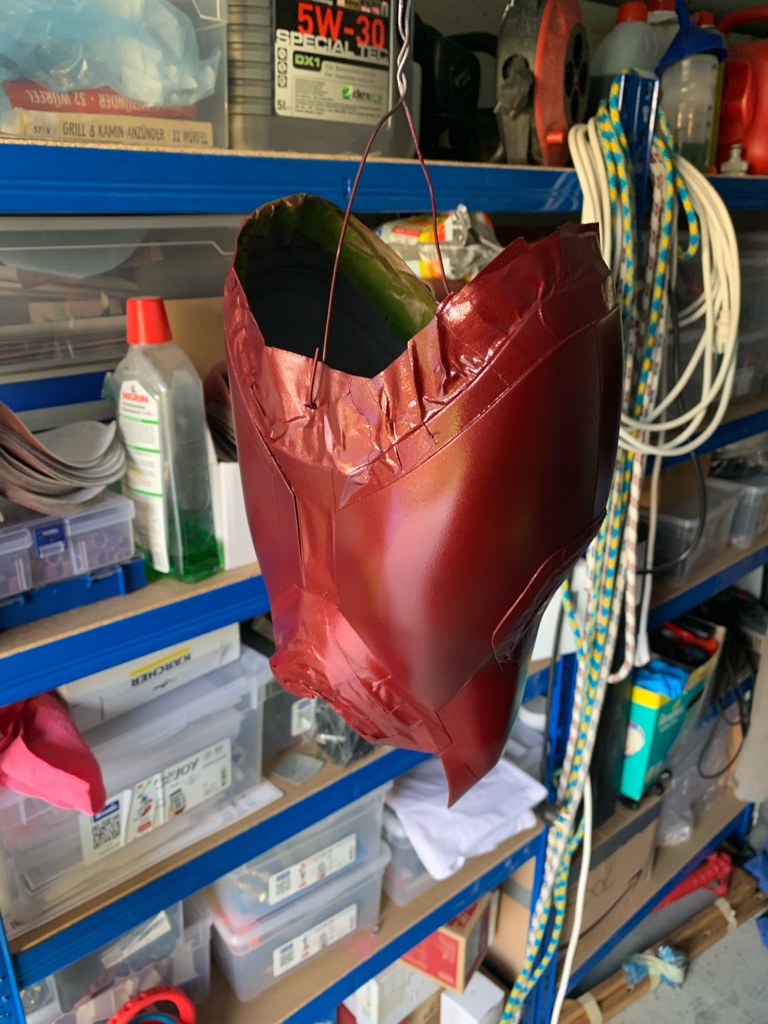

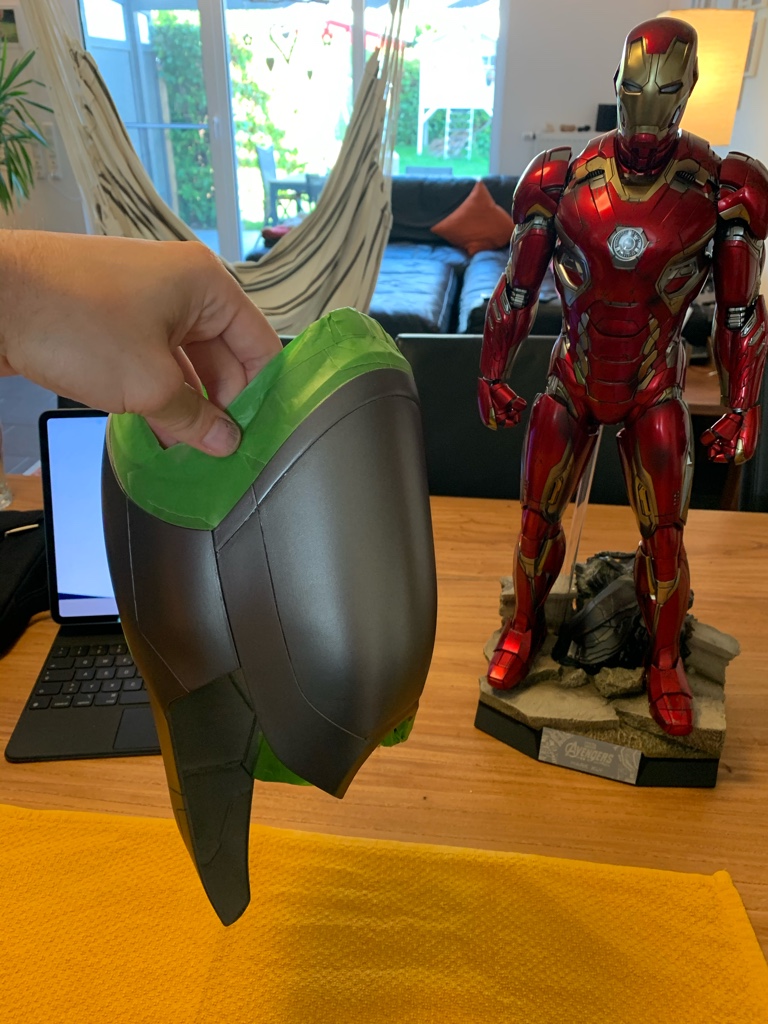

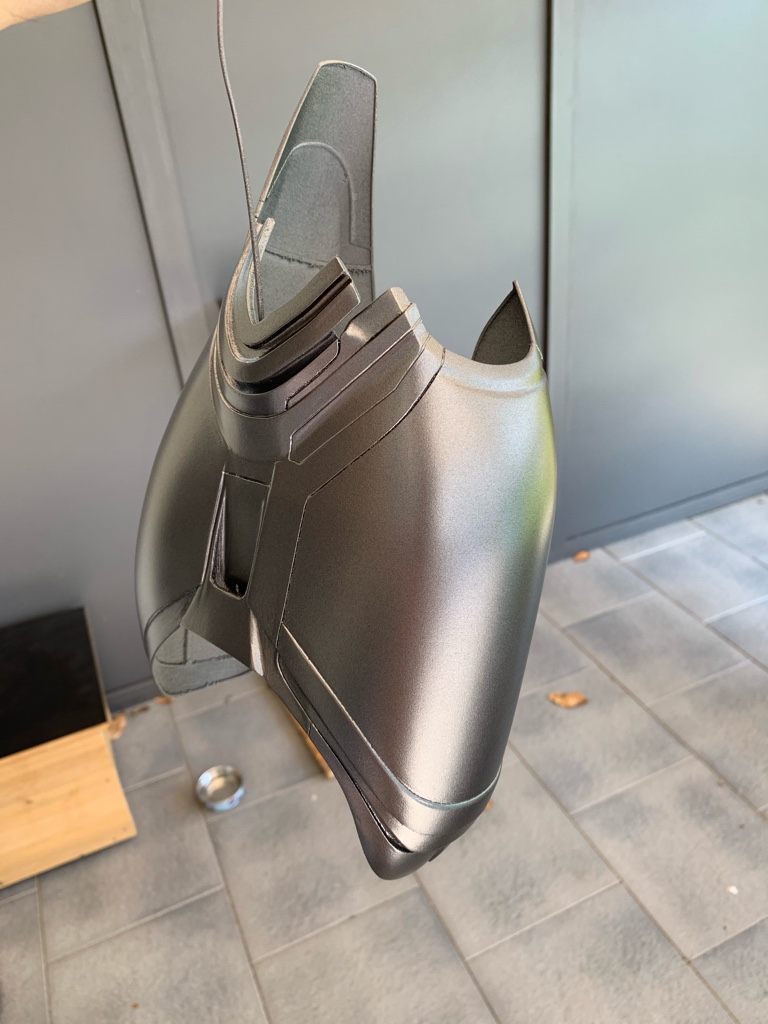

Before I applied the first coat of silver

I really love how it came out! [emoji7]



[USS Endeav]

That is really great work!



[blickfangQ2]

That is really great work!

Thank you [emoji4]!!

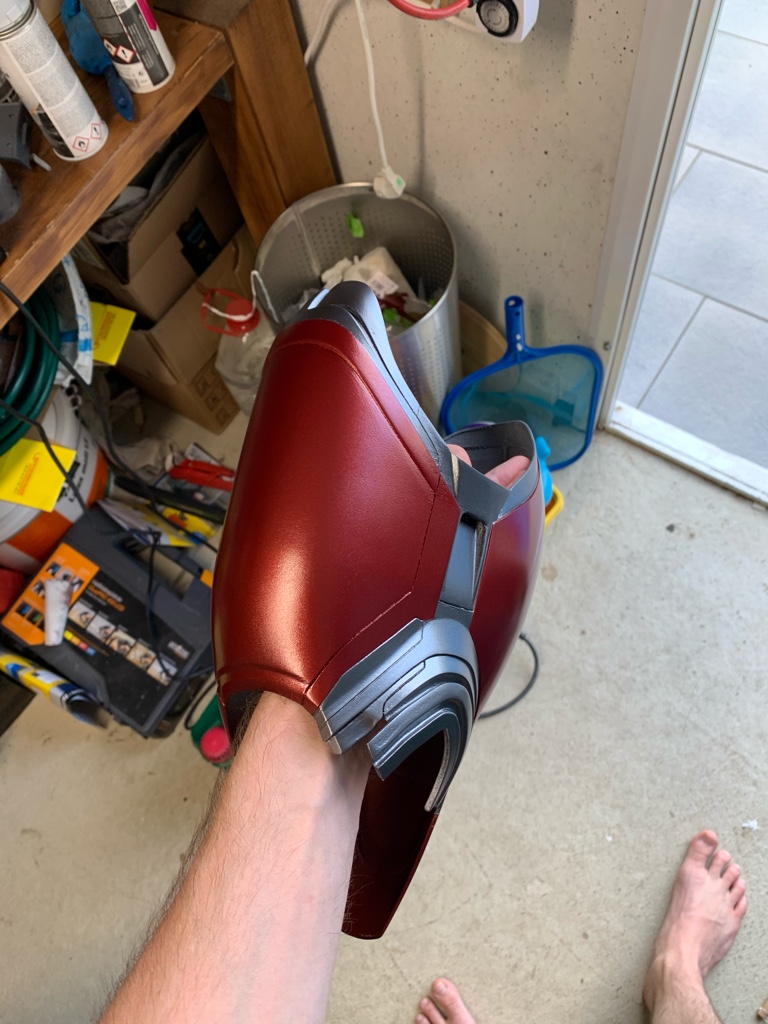

Some more progress on the upper arm section:



[blickfangQ2]

Once ready for painting things are getting done much quicker

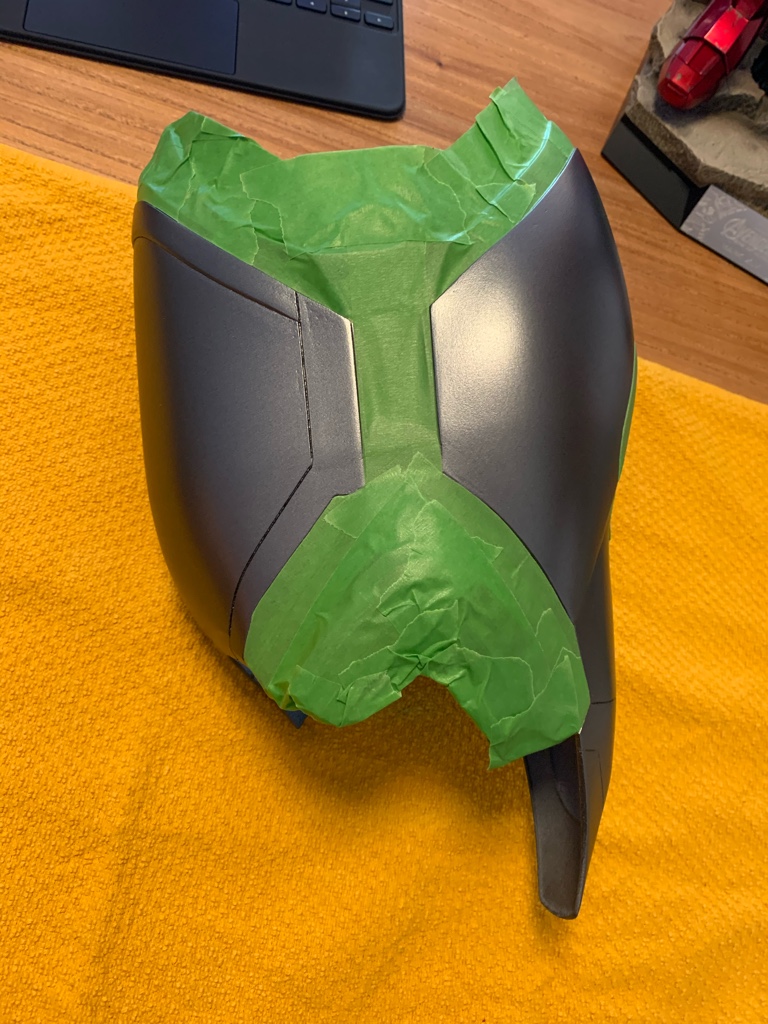

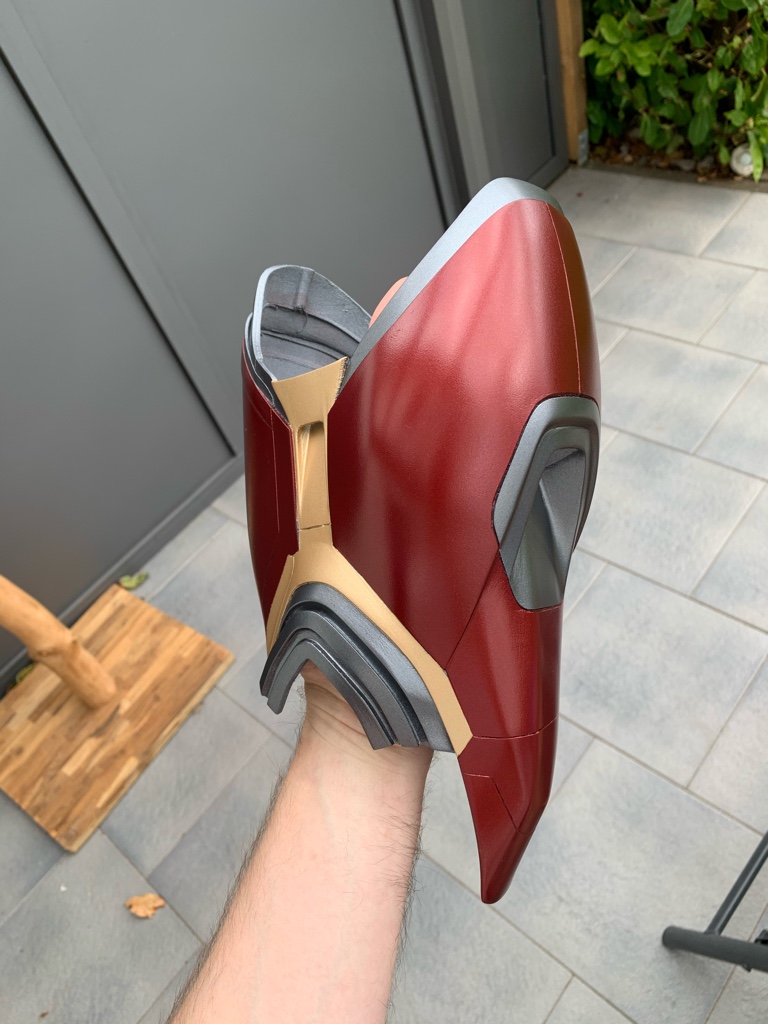

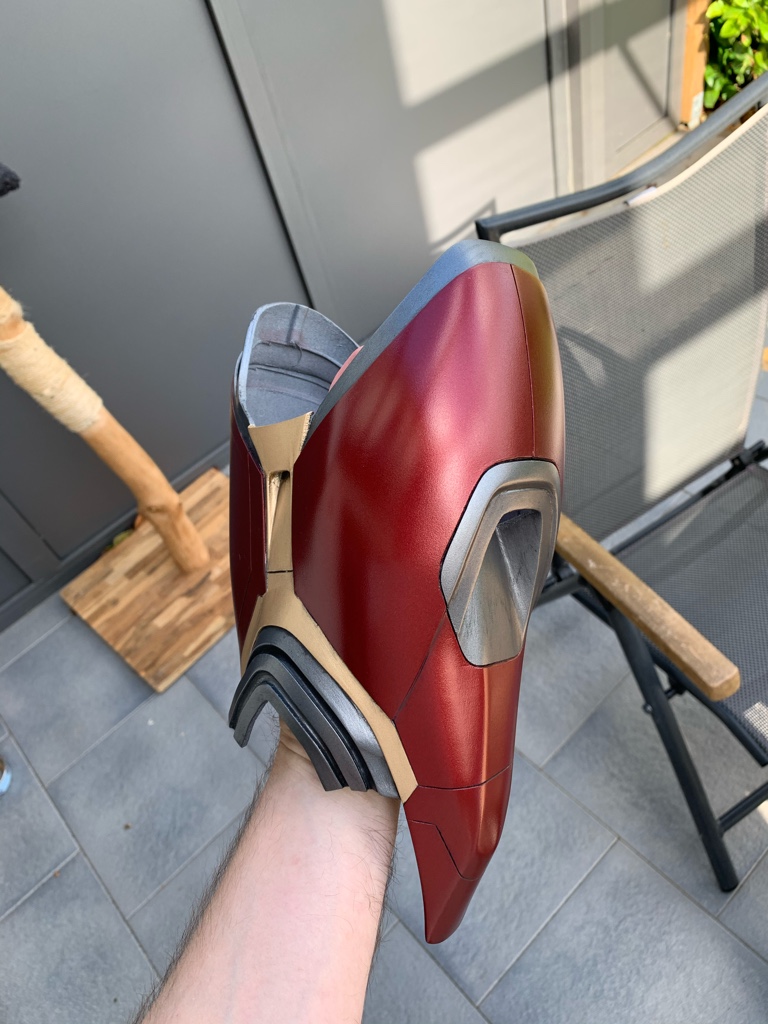

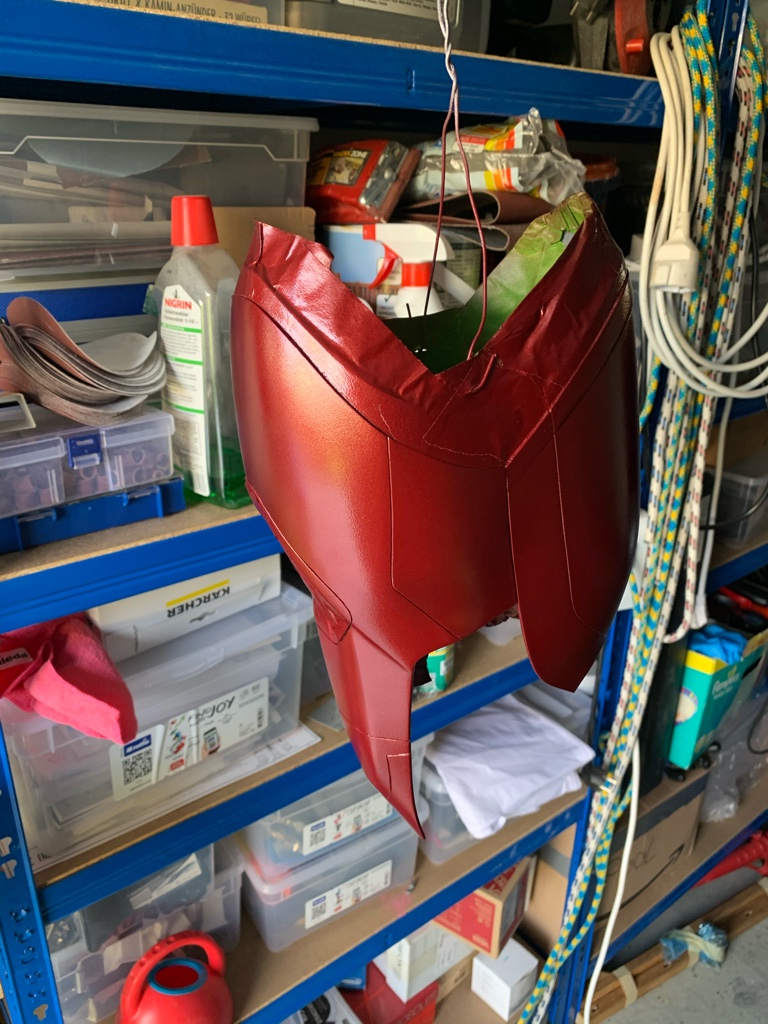

Painted the gold section:

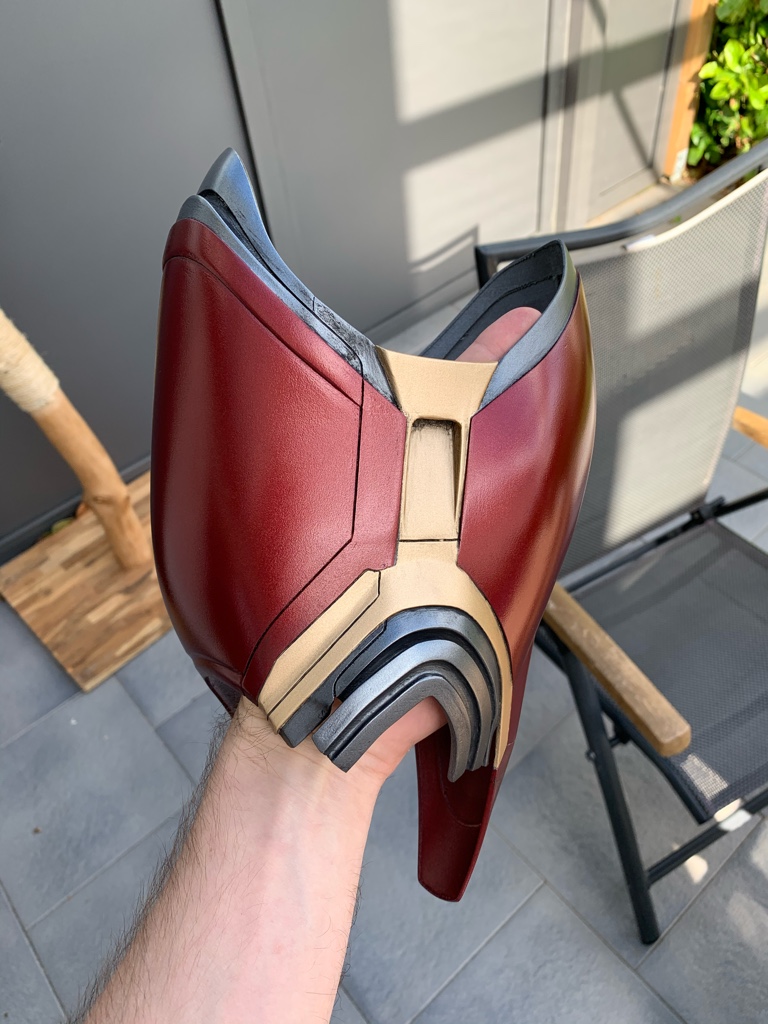

Acrylic weathering:

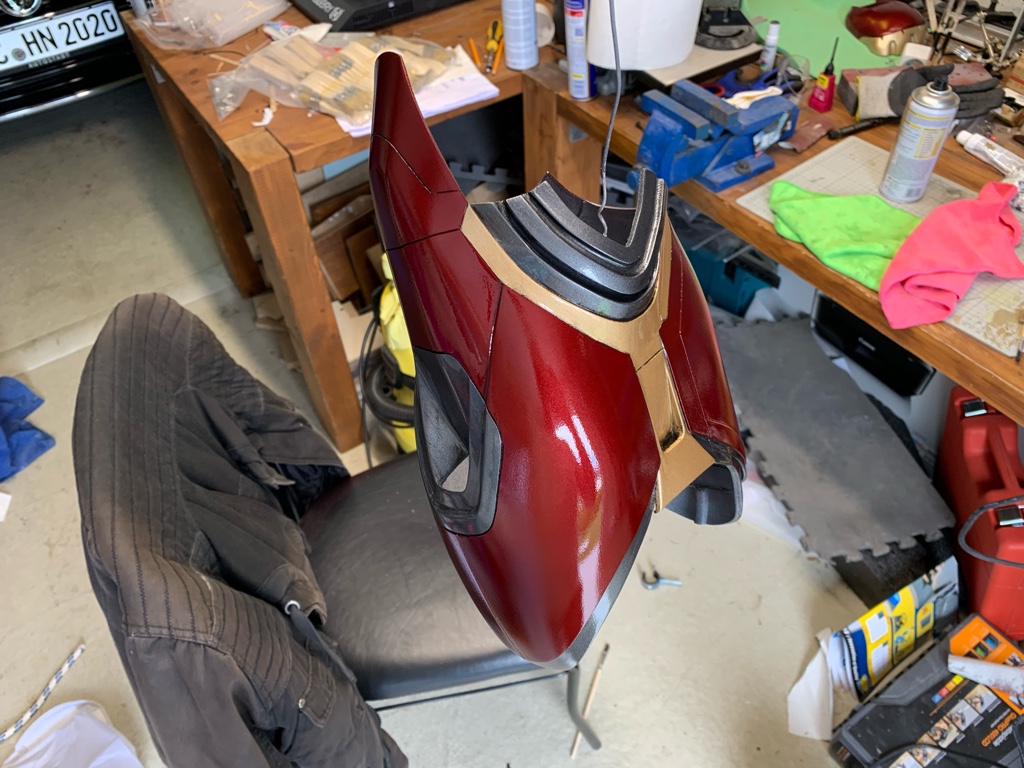

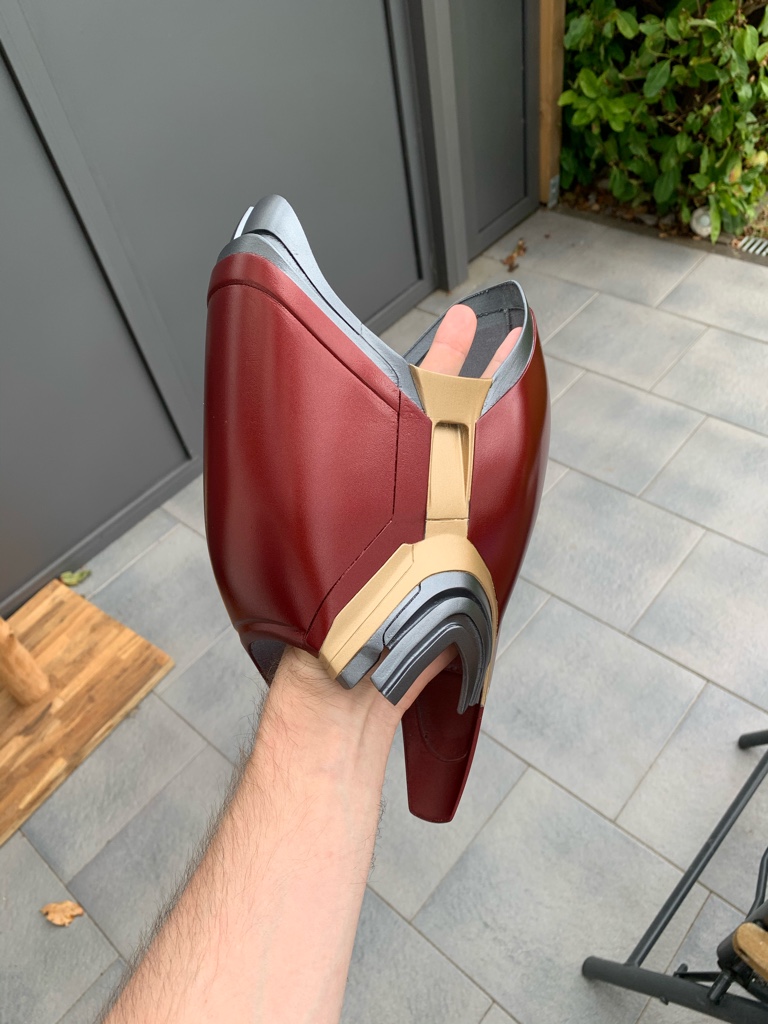

Clear coat:

I’m so happy with this build!



[USS Endeav]

Damn. Such nice work.



[blickfangQ2]

Damn. Such nice work.

Thanks [emoji4]

Next up: Shoulder

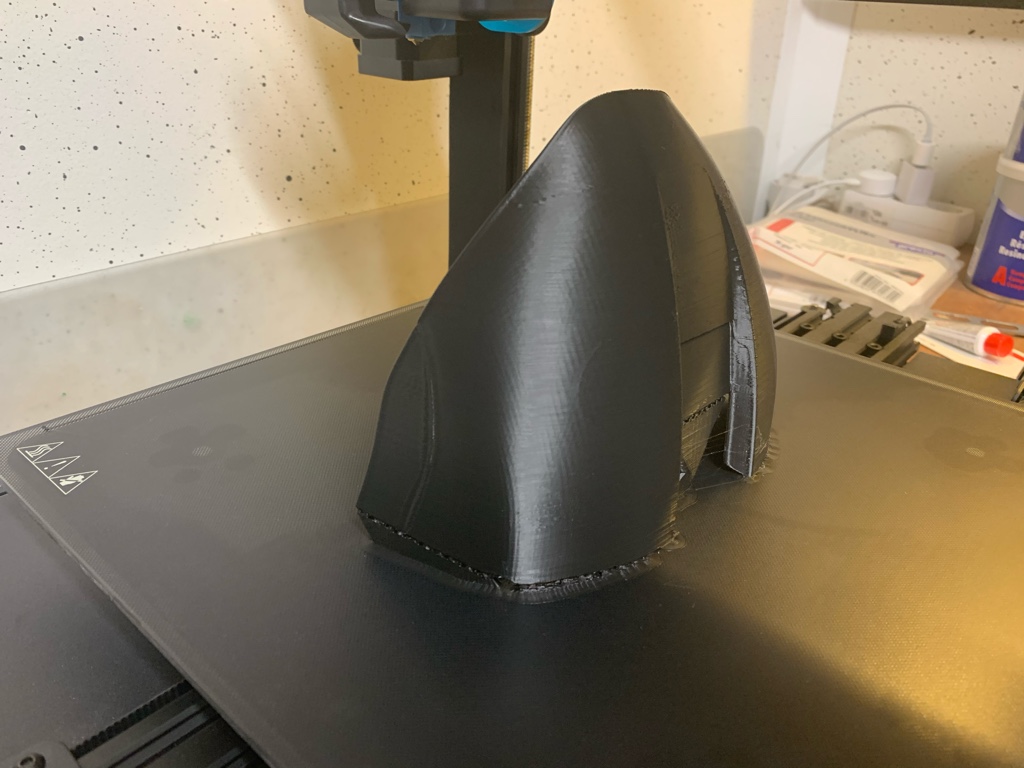

It’s a 3 part section. Bottom one printed very well

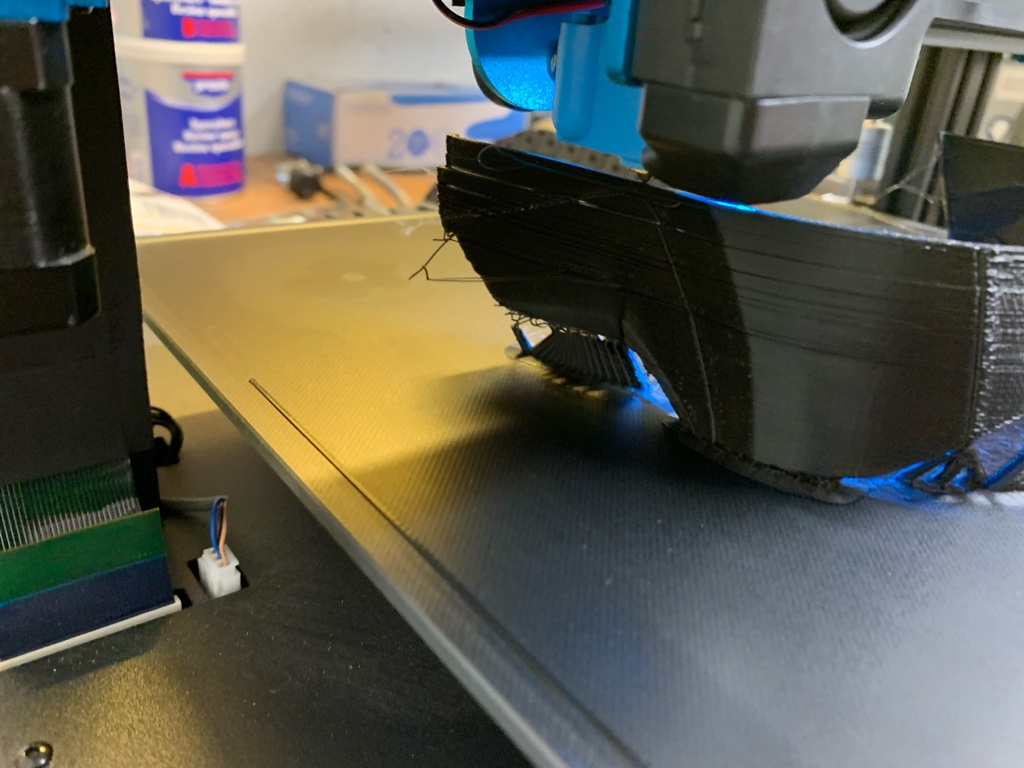

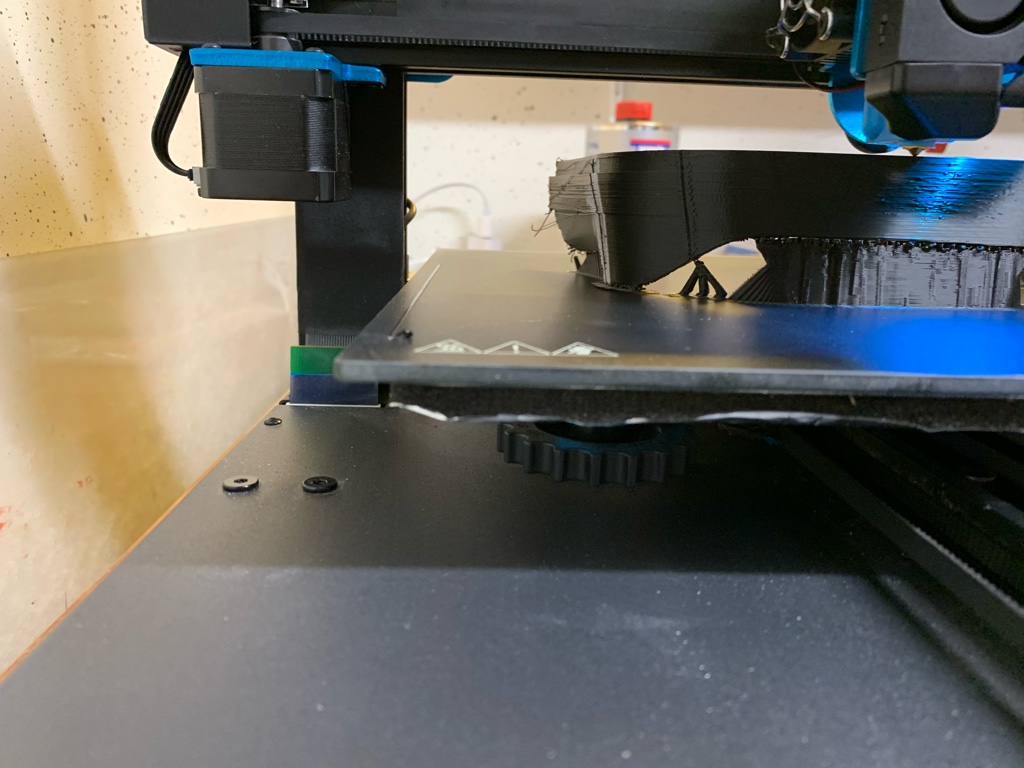

The middle one not so much. The supports didn’t stick to the print and I got layer separation [emoji52]
I’ll rework the print setting and add some more support...



[blickfangQ2]

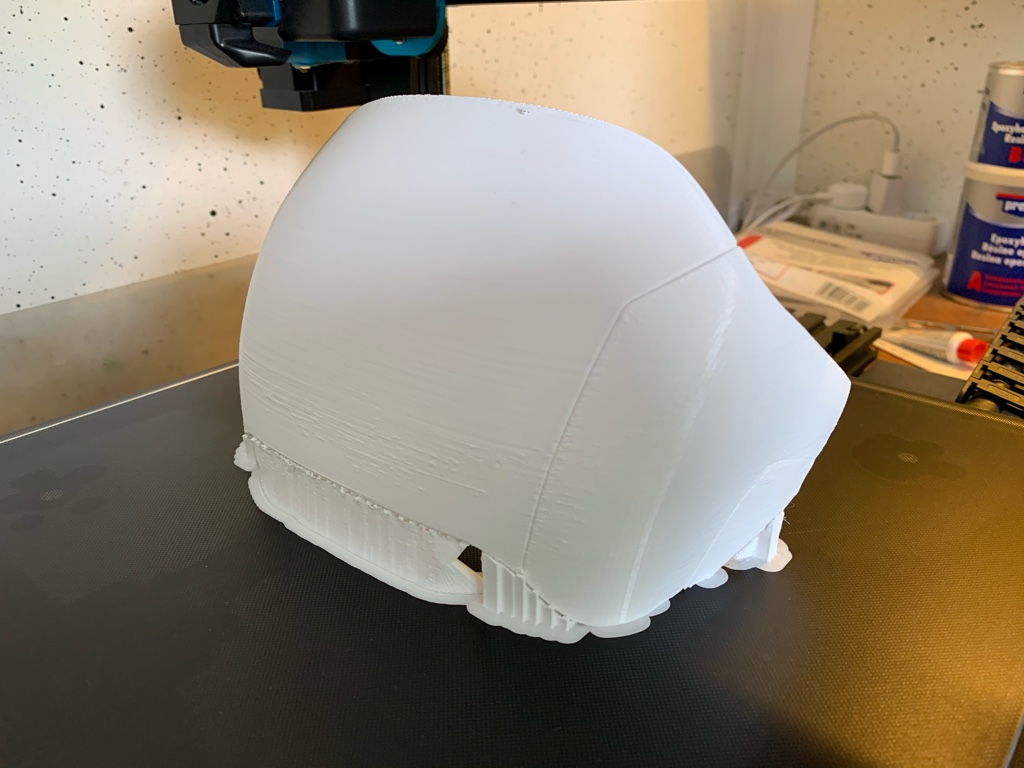

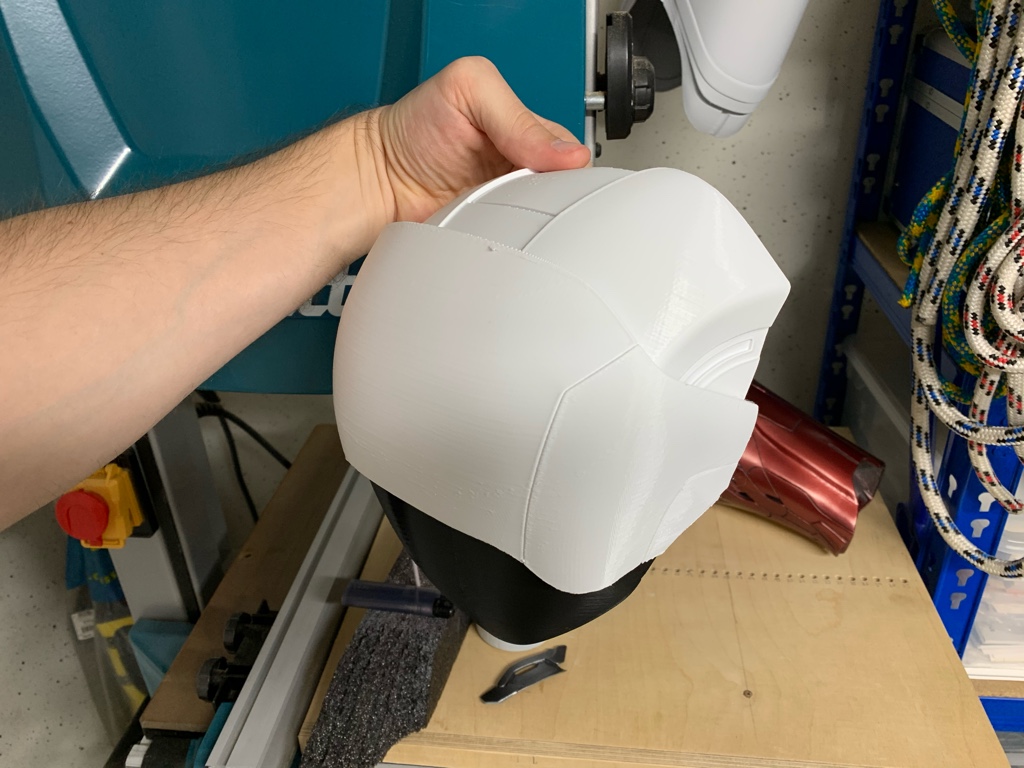

Reprinted the middle part:

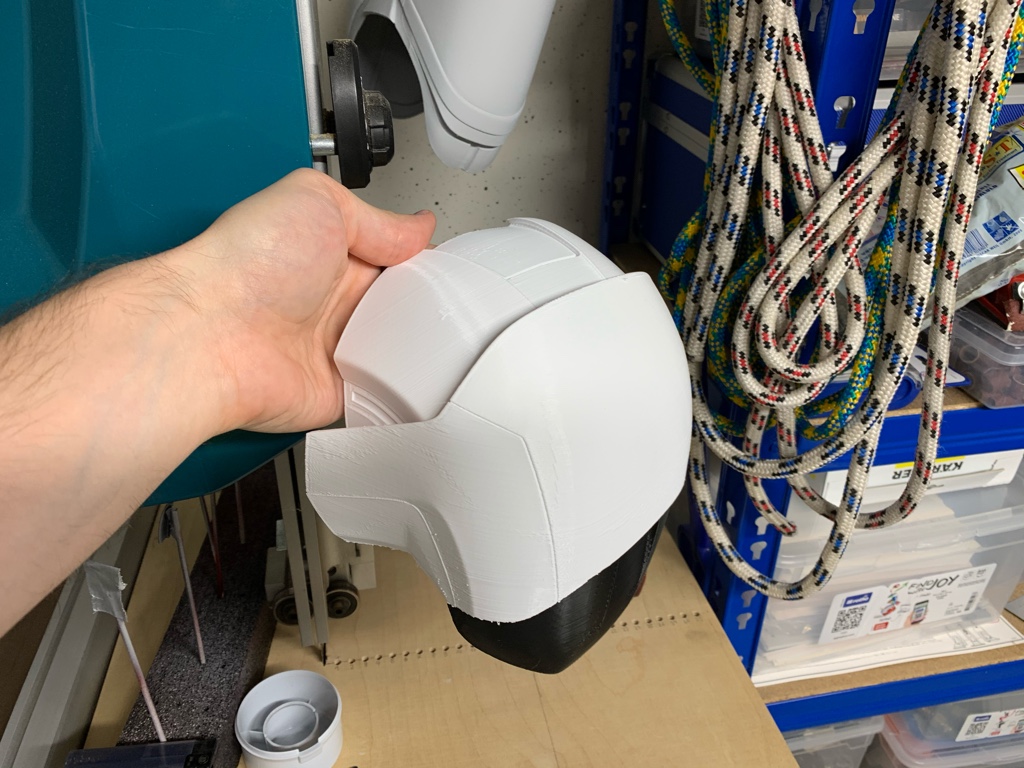

Aaaand printed the top part [emoji4]

Adjusted my printsettings further... looks pretty pretty [emoji16]



[USS Endeav]

Very nice! The lines are crisp and clean. I can't wait to see the finished suit of armor!
