Hasbro U-Wing modification

While I have done a grand total of absolutely nothing as far as work on my Hasbro U-wing, I wanted to share the image below in case it might help someone else.

Because I knew the Hasbro toy's wings are too short, I (naturally) wanted to determine how long they should be. I found what I think is a dorsal rendering of the FX asset from the film, as well a top-down view of the Bandai model from the box art for that kit. I matched the sizes of the two images; after accounting for a little parallax distortion, they seem to be a close match. Then I created the guide images below. There's a caveat here: I resized the two images to match the dimensions of some part of the Hasbro toy. I think it was the exterior width of the cockpit area (with the wings in their closed formation, IIRC). I can't recall for certain, because I created this image over two years ago. Someone would have to verify my measurements against those parts of the toy, as I can't get to mine at the moment. I'm 99 percent sure I used that area because I knew I would be unlikely to change the overall dimensions of that part of the toy, and therefore, this would get me the best possible match and best guidance. My goal was, as stated, to determine the length of the wings when corrected for the scale. So I resized the image to match the toy as best I could, and then used the tools in Adobe Illustrator to get cooresponding linear, 2D measurements of many areas of the model, using translucent colored blocks to try to indicate the area for each measurement. There's definitely a margin of error here, but I was very careful and tried to be as precise as I could be. This will, I am confident, give measurements that are very close to correct.

Note that all measurements are purely linear and don't account for things like the overall length of the cockpit nose, since it slants. Also, each measurement is rounded to the nearest tenth of an inch in most cases, but I went to the nearest hundredth of an inch a few places. I hope this might be helpful for someone here. I would have posted it long ago, but I couldn't find the file for a long time. I created this as a layered file in Illustrator, where I can alternate between looking at the CG model and the Bandai model photo, which I had overlaid on each other. Can't do that here, so I'm posting two images -- one with each reference model -- but note that the measurement callouts and color blocks are exactly the same in both.

SSB

U-wing Bandai measurements scaled for Hasbro.jpg
U-wing CG measurements scaled for Hasbro.jpg

Last edited:

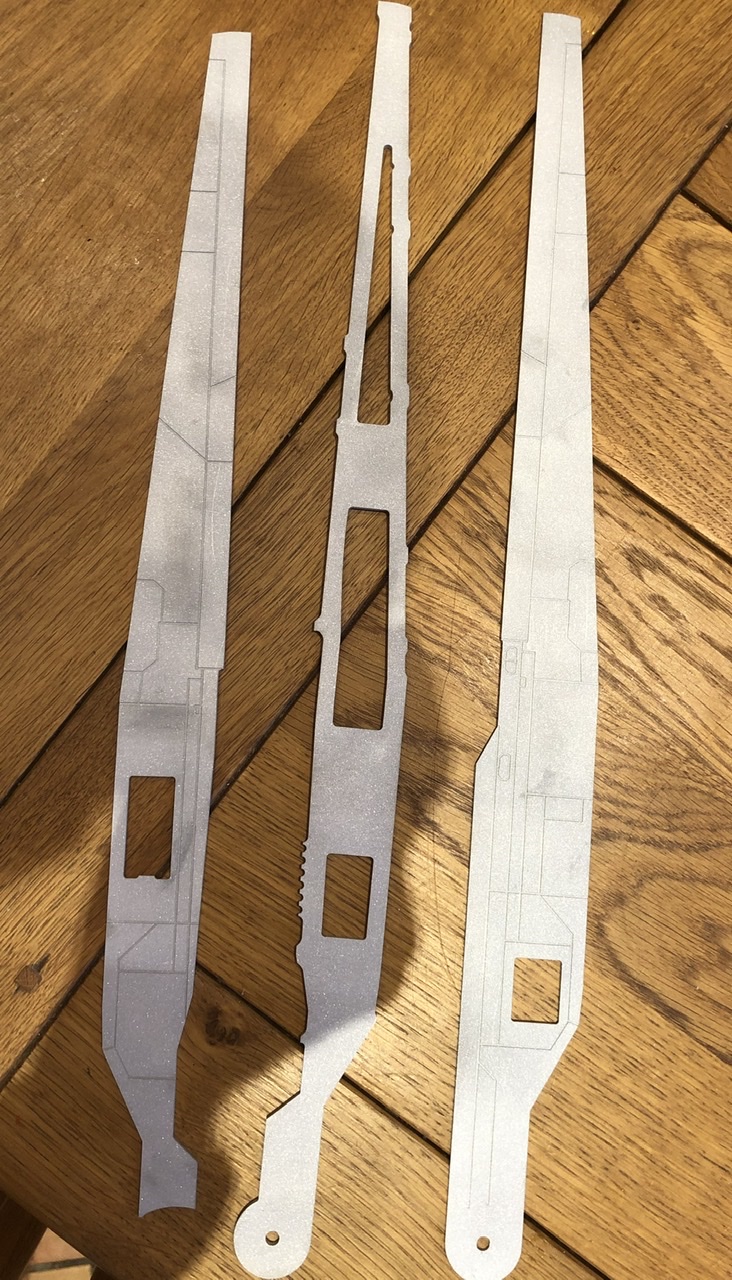

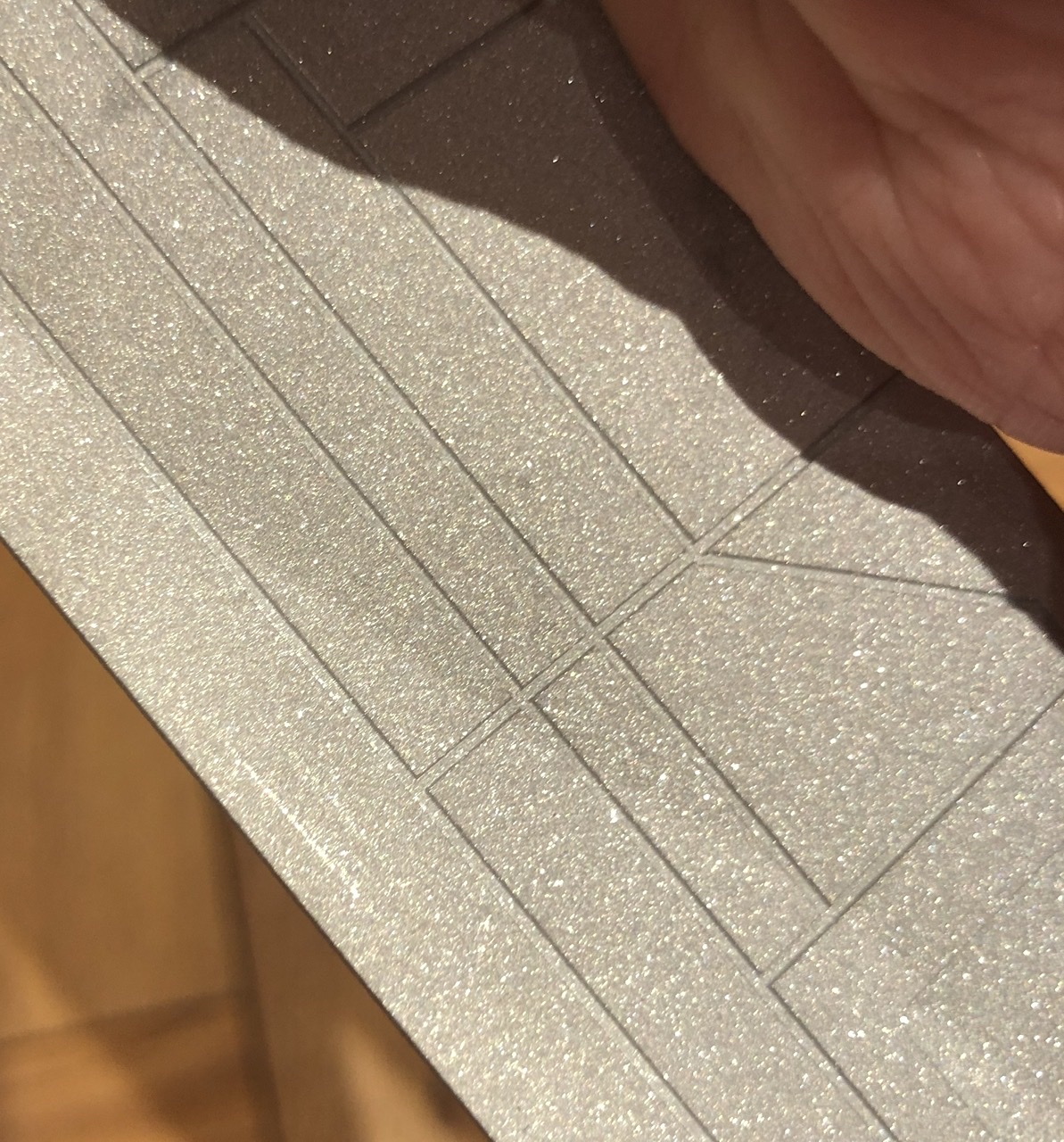

Just wanted to post some pictures of the aluminium wings which Padawan311 was generous enough to send me. I was expecting just the internal frame but there are also panels for the top and bottom as well, complete with panel lines etc. These things are seriously sturdy and look really awesome. Can’t wait to have a go at fitting them onto the toy.

View attachment 1339191View attachment 1339192View attachment 1339193View attachment 1339194
Unfortunately I haven’t had a chance to work on it yet but hope to soon and I will report back and start a build thread. If they work well then I may offer a run of them.

I'm sorry to resurrect this thread, but are these custom wings available for purchase...?

Hi guys. I did the original dxf file for the wings which i sent to padawan311 a long time back. I did ask him to not sell these on, so maybe thats something to do with the quiet on the thread. I don't mind running a couple off for anyone who wants a set. I have since invested in a laser cutter so i can make these out of more lightweight materials and score all the panels, so they should look ok and work better.
Just to be clear, Im not trying to userp any work or anyones integrity here. just trying to help out if needed. :)

Hi guys. I did the original dxf file for the wings which i sent to padawan311 a long time back. I did ask him to not sell these on, so maybe thats something to do with the quiet on the thread. I don't mind running a couple off for anyone who wants a set. I have since invested in a laser cutter so i can make these out of more lightweight materials and score all the panels, so they should look ok and work better.
Just to be clear, Im not trying to userp any work or anyones integrity here. just trying to help out if needed. :)
Flyscriber is correct, he asked me not to sell them and I am honoring that. The ones I sent out were extra that I had left over from cutting myself a set and I just wanted to help out With the build.

Hi guys. I did the original dxf file for the wings which i sent to padawan311 a long time back. I did ask him to not sell these on, so maybe thats something to do with the quiet on the thread. I don't mind running a couple off for anyone who wants a set. I have since invested in a laser cutter so i can make these out of more lightweight materials and score all the panels, so they should look ok and work better.
Just to be clear, Im not trying to userp any work or anyones integrity here. just trying to help out if needed. :)

I would be interested in an acrylic (or similar) material set depending on price

Ill need to find the original file from an old computer and do some tests. Ill have a play and see what i can come up with. Im thinking 3mm perspex or plastic foamboard with a detailed top and bottom etched plasticard skin. Once ive found a decent strong non droopy assembly ill post it on here and pop it in the junkyard.

Ill need to find the original file from an old computer and do some tests. Ill have a play and see what i can come up with. Im thinking 3mm perspex or plastic foamboard with a detailed top and bottom etched plasticard skin. Once ive found a decent strong non droopy assembly ill post it on here and pop it in the junkyard.
That would be awesome, thanks!

Very interested in seeing the further progress on this, as well as a set of those replacement s-foils if the price falls into the "wife will not kill me on the spot" range.

Not to go too far off on a tangent here, but another toy conversion that is a bit of a Holy Grail for me are the two air speeders from AotC, especially the yellow one Anakin "borrows" from Senator Greyshade (with a name like that, he must surely have been a squeaky-clean politician). I'm pretty sure the toys are roughly 1/24th scale. However, I've searched and searched over the years for a way to replace the engines on that one (recall that the toy comes with soft rubber engine sleeves that deform when the speeder "crashes"), to no avail. I think scratch-building replacements is a beyond my skill, complicated as they should be identical but mirror images of one another. If anyone has ideas (3D printable files or model aircraft engines that are pretty close and are the right size or anything else I haven't considered), I'd love to hear it. a 1/24th Anakin and Obi-Wan in the proper attire would be good, as well as parts to replace the lackluster headlamps on the toy would also be welcome. Pretty much everything else I can handle myself. For the green speeder, it's mainly the interior that is daunting -- it is sized to fit a single figure, but it should have two seats. The detail in there otherwise is acceptable to me, after a paint upgrade.

Don't mean to derail the thread, but I keep hoping for solutions!

SSB

Very interested in seeing the further progress on this, as well as a set of those replacement s-foils if the price falls into the "wife will not kill me on the spot" range.

Not to go too far off on a tangent here, but another toy conversion that is a bit of a Holy Grail for me are the two air speeders from AotC, especially the yellow one Anakin "borrows" from Senator Greyshade (with a name like that, he must surely have been a squeaky-clean politician). I'm pretty sure the toys are roughly 1/24th scale. However, I've searched and searched over the years for a way to replace the engines on that one (recall that the toy comes with soft rubber engine sleeves that deform when the speeder "crashes"), to no avail. I think scratch-building replacements is a beyond my skill, complicated as they should be identical but mirror images of one another. If anyone has ideas (3D printable files or model aircraft engines that are pretty close and are the right size or anything else I haven't considered), I'd love to hear it. a 1/24th Anakin and Obi-Wan in the proper attire would be good, as well as parts to replace the lackluster headlamps on the toy would also be welcome. Pretty much everything else I can handle myself. For the green speeder, it's mainly the interior that is daunting -- it is sized to fit a single figure, but it should have two seats. The detail in there otherwise is acceptable to me, after a paint upgrade.

Don't mean to derail the thread, but I keep hoping for solutions!

SSB
I came across these


Engines seem to be separate parts and you should be able to easily size them

Hey y'all!

Am I oversimplifying this?

Take a pic of any object. Import it as jpg and you can 3d print it. When importing over to a 3d file, you can make darker stuff (panel lines) deeper or more shallow, and lighter stuff shallow or deeper.

You want to make wings with "picture perfect" details, just rest it on a scanner, scan it and then use Cura or Flash Forge to make a 3d file. If you already have a jpg of the wing, just open it with 3d software

If you have a model, scan top and bottom, then kiss them together in Flash forge and it will repair the file by merging them. You will have perfect wings!

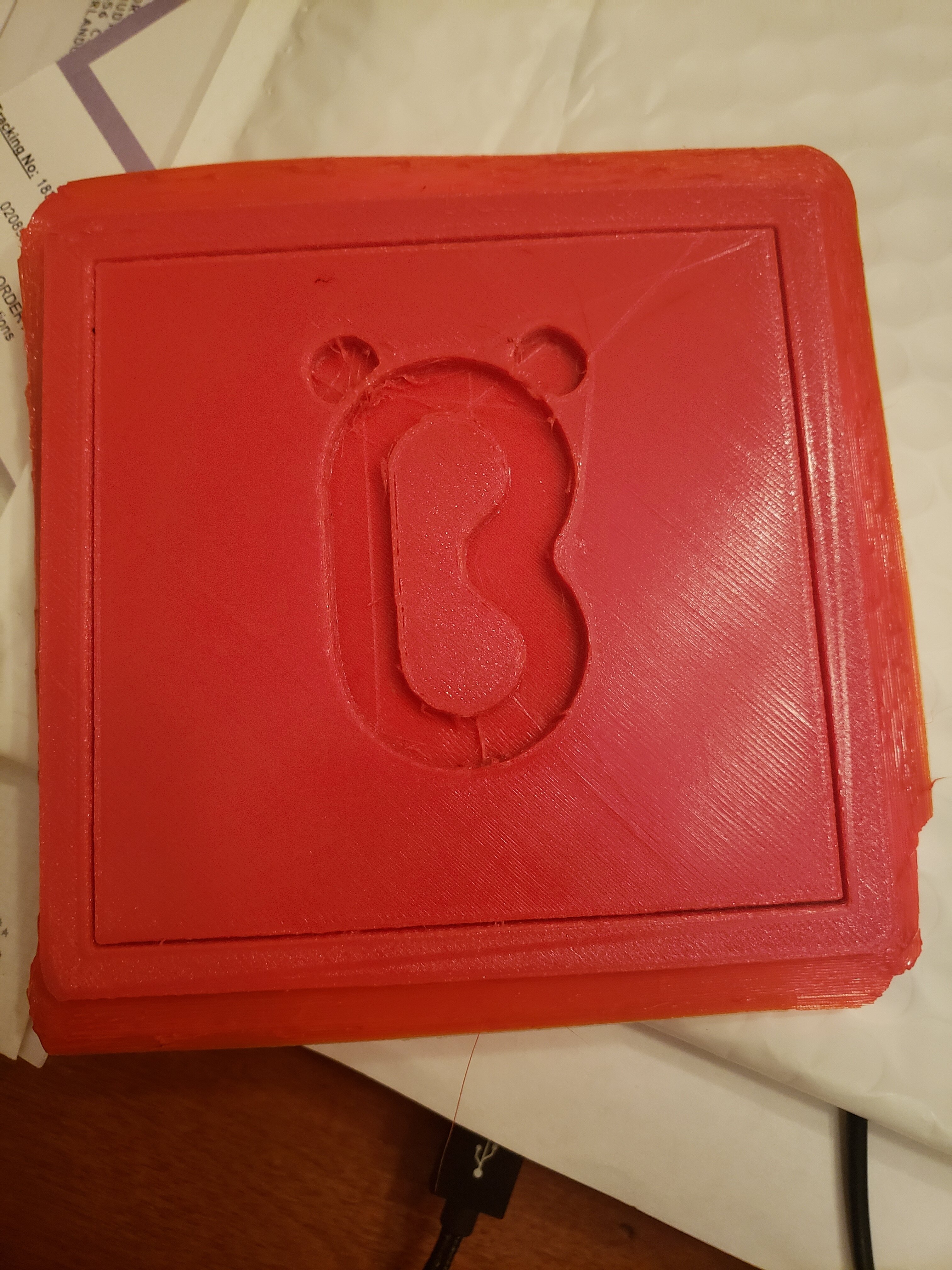

Below, I scanned a Babybus logo and just made the darker part deep. It involved a little tweaking, not alot


Attachments

  • 20200515_063007.jpg
    1.7 MB · Views: 82
Hey y'all!

Am I oversimplifying this?

Take a pic of any object. Import it as jpg and you can 3d print it. When importing over to a 3d file, you can make darker stuff (panel lines) deeper or more shallow, and lighter stuff shallow or deeper.

You want to make wings with "picture perfect" details, just rest it on a scanner, scan it and then use Cura or Flash Forge to make a 3d file. If you already have a jpg of the wing, just open it with 3d software

If you have a model, scan top and bottom, then kiss them together in Flash forge and it will repair the file by merging them. You will have perfect wings!

Below, I scanned a Babybus logo and just made the darker part deep. It involved a little tweaking, not alot

Interesting technique of 3D printing a 2D pic

I have never used Cura or Flash Forge

If you have a pic of the full wing, top and bottom, you can convert it into an STL file. Make sure the panel lines are grey and make the rest of the wing white. Make the background of the pic black. When you open the jpg in FlashForge or Cura it will ask if you want to make lighter shades thicker or darker shades thicker. Pick lighter. Also, it will ask how thick do you want the deepest portion of the pic to be, 1mm? 2mm?

If I am not making sense, send me a scanned flat image of the entire object/wing you want made, top and bottom and how long is the longest measurement (like from wing tip to attachment), and I can try to do it for you in the next week or two.

If you have a pic of the full wing, top and bottom, you can convert it into an STL file. Make sure the panel lines are grey and make the rest of the wing white. Make the background of the pic black. When you open the jpg in FlashForge or Cura it will ask if you want to make lighter shades thicker or darker shades thicker. Pick lighter. Also, it will ask how thick do you want the deepest portion of the pic to be, 1mm? 2mm?

If I am not making sense, send me a scanned flat image of the entire object/wing you want made, top and bottom and how long is the longest measurement (like from wing tip to attachment), and I can try to do it for you in the next week or two.

That makes sense and is a great tip

I could probably draw up a picture that might be cleaner plus it might also help keep the dark blue markings from being interpreted as panel lines

That makes sense and is a great tip

I could probably draw up a picture that might be cleaner plus it might also help keep the dark blue markings from being interpreted as panel lines
Last night I broke out my Revell kit and the wings had pre-painted details. 2d pics of wings in white, with grey panel lines would be GREAT!
I can print up to 12 inches or so. If you make the wings light grey, then the elevated bits on the wing will be printed higher.

EDIT : make panel lines darker grey...but not too Dark. I dunno, shade casual ;)

Last edited:
Last night I broke out my Revell kit and the wings had pre-painted details. 2d pics of wings in white, with grey panel lines would be GREAT!
I can print up to 12 inches or so. If you make the wings light grey, then the elevated bits on the wing will be printed higher.

EDIT : make panel lines darker grey...but not too Dark. I dunno, shade casual ;)

Having never used FlashForge or Cura, are they free or do you need to buy a license/subscription?

  • Like
Reactions: JPH
Having never used FlashForge or Cura, are they free or do you need to buy a license/subscription?
They are free.

If you are worried about that, just get me a copy of the wings and I can do it. Top and bottom. The whiter the panel/detail the more raised it will be.

Flashforge does really good pic translation into 3d images.

They are free.

If you are worried about that, just get me a copy of the wings and I can do it. Top and bottom. The whiter the panel/detail the more raised it will be.

Flashforge does really good pic translation into 3d images.
I was actually thinking of doing a wire frame overlay in paint or similar

Let me see what I can get together
