Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

In some of my other downtime the last few days I have been working on Joe's war club. I started with a styrofoam block that I shaped on my belt sander into what I thought was about the right shape.





I did some bondo work over the foam and attached it to PVC pipe...





I sharpened a little wooden point for the pipe since I figured I'd want it to be made of something a bit more durable in case it gets knocked on things. Once everything was together...



... I decided that it was the wrong shape and started all over again. :wacko Just a bit too big, honestly, so back on the belt sander it went, and it'll get a few more coats once I thin the profile of the thing down a bit.



I have never wished more for a lathe! This would be so easy to crank out from a block of wood. Ah well.



[ahoudini]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

Stellar, stellar work, my friend. Thank you for your painstaking documentation. My rebuild will be so much better for it!


Sent from my iPhone using Tapatalk



[Ein]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

I have been woefully short on time the last few days thanks to work, especially in light of the fact that the convention submission date for the NYCC Eastern Championship is in about a week. To save myself a bit of time and energy, I set my 3d printer to work on the staff while I was otherwise indisposed.







Is it a waste of 3d printing tech? Probably. But it saved me a bit of time. I printed these things in Simplify3d's 'vase mode', which made them very thin single-walled layers that printed out fairly quickly. They are sized to fit on the PVC piping I had without too much fighting; once they got slid onto the pipe, I covered them in epoxy and resin to reinforce and harden them substantially, and now I have a fairly workable prop on my hands.







Does the job well enough! I struggled with figuring out exactly what color it is supposed to be, but I found a brown enamel that looks pretty close that I'm going to go with. I also ended up finding this lovely image of Hugh himself sitting with the club:



I do wish I had seen this image before, as it's a pretty clear look at some of the decorations on the staff. It's also more egg-shaped than I think I've made mine, but at this point I don't have the time to fuss with it. I'll bodge together my own collection of trinkets onto it.

I'll add the files for the staff bits to the OP. I don't think they're perfect, but they're serviceable and they get the job done, so if it helps someone else, so much the better.



[Ein]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

While everything else is going on, and because I am ADD as all hell, I am prototyping something else to go with this whole outfit...





Joe's chrome spray bottle that he uses to anoint Nux.

Now, I haven't got a clue as to what exactly this is supposed to be, but I do know that it'd be a million times more fun if it actually worked. That's why I went out and got a couple of these from my local crafts store.



These are dirt cheap, safe for consumption, silver in color, and fairly compact in size. Just about perfect for when and if a lunatic like me meets a likeminded individual who wants to ride to Valhalla. Even better, the label peels off really easily, which leaves me with an inoffensive, plain-looking spray can. The Amazon reviews for these things even include multiple references to people using them for Warboy cosplays.



I made a reasonable 3d mock-up of the color mist spray after taking some measurements with my calipers and went to town designing the enclosure.









The spray should slot fairly snugly into the bottom, and the 'cap' should snug right over the spray nozzle of the canister and move as a single, unified piece. The V8 emblem on the top is just me having a little fun, while also marking which way the spray should end up going when the top is depressed.

I've got a prototype printing right now, and it looks like the base is going to take about 20 hours to come out with all the necessary supports. Should be interesting - and obviously, if it works, I will put the files up for consumption.



[Ein]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!



Straight off the bed! And with a bit of hasty cleanup...





I've got the top printing now - once everything is confirmed to fit together cleanly, I'll upload the files.



[Ein]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

In the mean time...









Airbag top section is basically done, although we did mess with the levels of stuffing a bit to deflate it some after these photos.





Bottom section should hopefully be much simpler!

Also finished decorating most of the war club. It's far from perfect, and definitely not screen accurate, but it gets the job done well enough for now.



[Ein]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

We're in the home stretch, so things are happening much faster now.

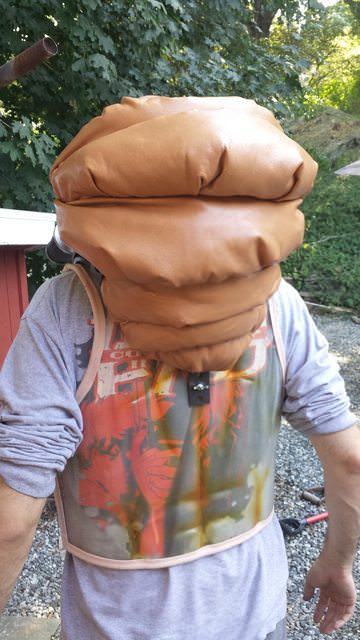

Frame has been all painted up and the mounting brackets attached. Airbag has been pretty much entirely hand-sewn over a foam form to try and give it the approximate shape required. In hindsight, latex is probably the better way to do the airbag, but all things considered I think it's looking pretty good.





With everything mounted up together:

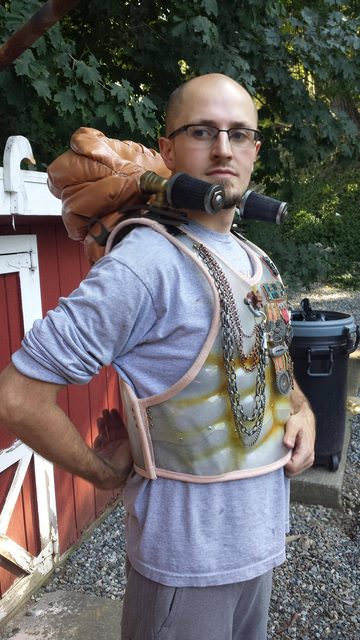

Going to cut and trim two holes in the side of the airbag for the L-shaped hose attachment to go through, and then it should be a simple matter of getting all the hoses and fans hooked up inside the airbag. The battery for the fans (and probably the fans themselves) will be mounted on the Y-frame, hopefully tomorrow, and I should have room for the voice amplifier as well.



[Lowbeer]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

Man, this is such a spectacular build! I can't believe that you've created a bellows that's not only screen accurate, but incorporates actual practical functionality too. Inspiring stuff!


Sent from my iPhone using Tapatalk



[Ein]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

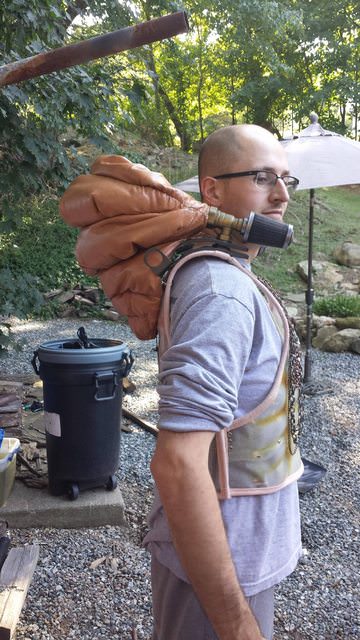

Everything is pretty much mounted up! And it's a bit easier to show in video, so...

I will be elaborating a bit on the electronics in the bag once I sit down and code an arduino to control the fans with a bit more finesse. In the mean time, at least everything is cosmetically done and functional, with the exception of some necessary weathering on the airbag, armor, and fabrics.



[Ein]

Re: Immortan Joe Progress Log - WIP with 3d Models and now working air filtration!

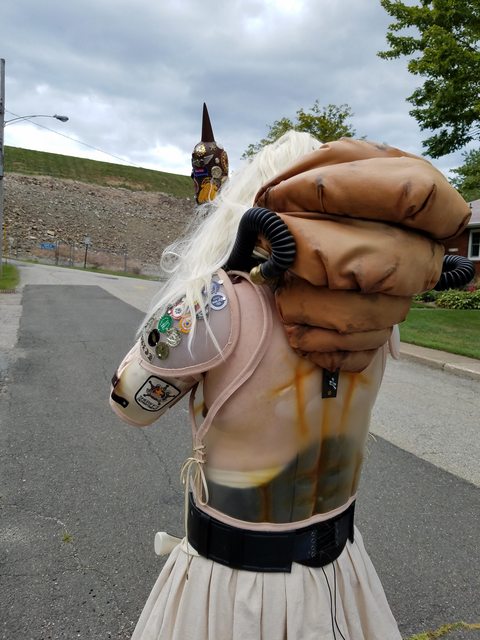

The airbag is pretty much done at this point. We did a bit of weathering and distressing with acrylics, and the whole thing is pretty well self-contained. Only change I think I might make in the next month is going to be trying to quiet or soundproof the fans a bit more than they already are.
