[BRRogers]

Control box mods.
knullzero

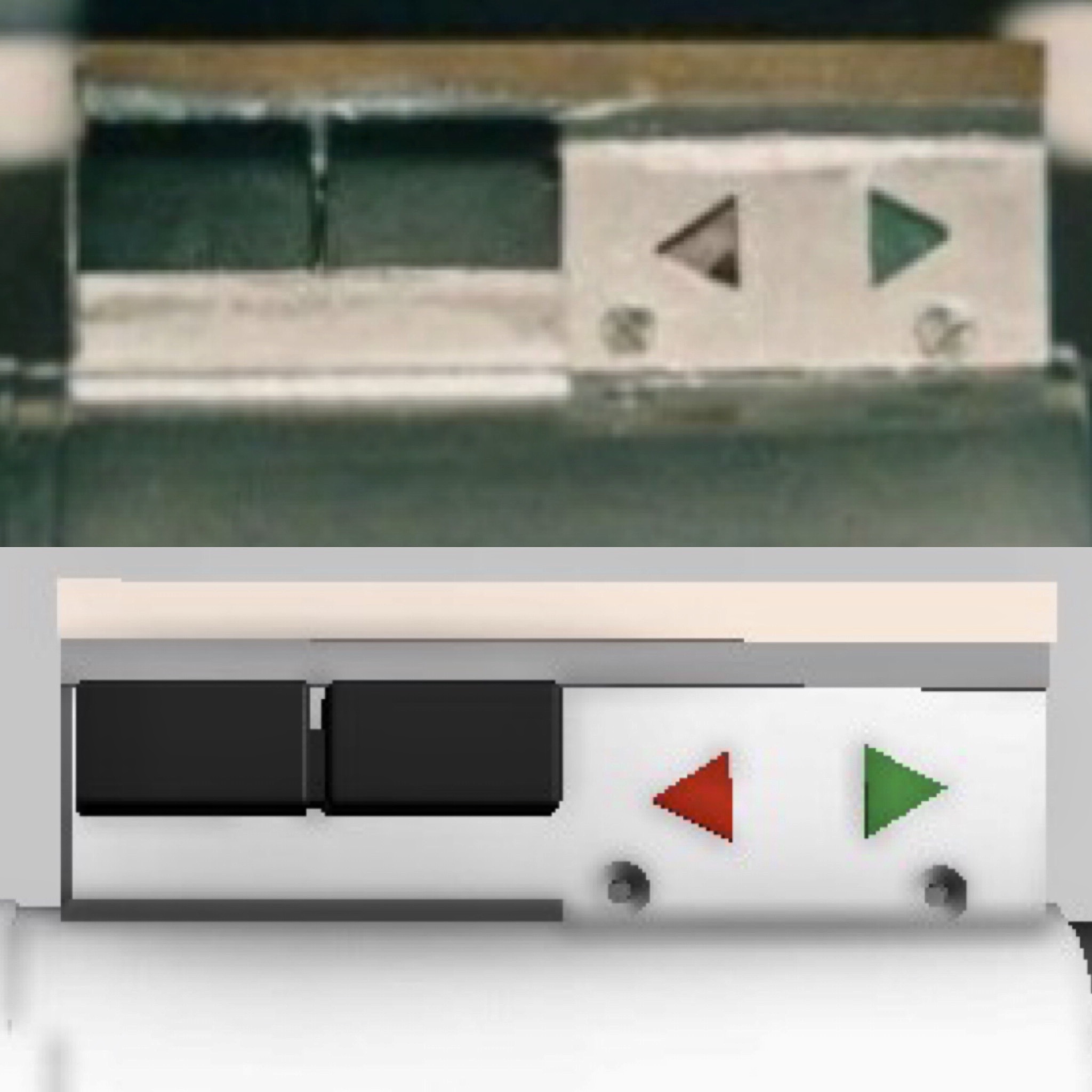

Do those arrows feel better to you?
This is with the ‘canon’ arrow faceplate including tilted/skewed arrows



[knullzero]

They look great. The screw holes look to be a bit further away in the render vs the picture, although maybe it's because there is no screw in the render.



[BRRogers]

They look great. The screw holes look to be a bit further away in the render vs the picture, although maybe it's because there is no screw in the render.

I see what you’re seeing.
Pulling out my magnifying glass and re-examining.



[Verity Cosplay]

I see what you’re seeing.
Pulling out my magnifying glass and re-examining.

Thankfully as long as the horizontal plane does not change this is an easy adjustment in the model.



[amadeusw]

The original was painted of course: and different lighting shows different tones... I’ve been using a mixture of Aztec gold and Balthazar gold metallic paint... although

thd9791
I really like that color: it seems really close

Thank you very much. I'll look into those colors.



[Halliwax]

I’m just curious how the original arrow plate was made

Seems like a lot of work for the prop department



[thd9791]

I watched a doc recently of ILM and how they made spaceships, and they used fiber optics, blinking sequences, etc in quite a few models. It made me a little more convinced this wasnt a PitA for them. the LEDs are big though! (deep)



[Dann]

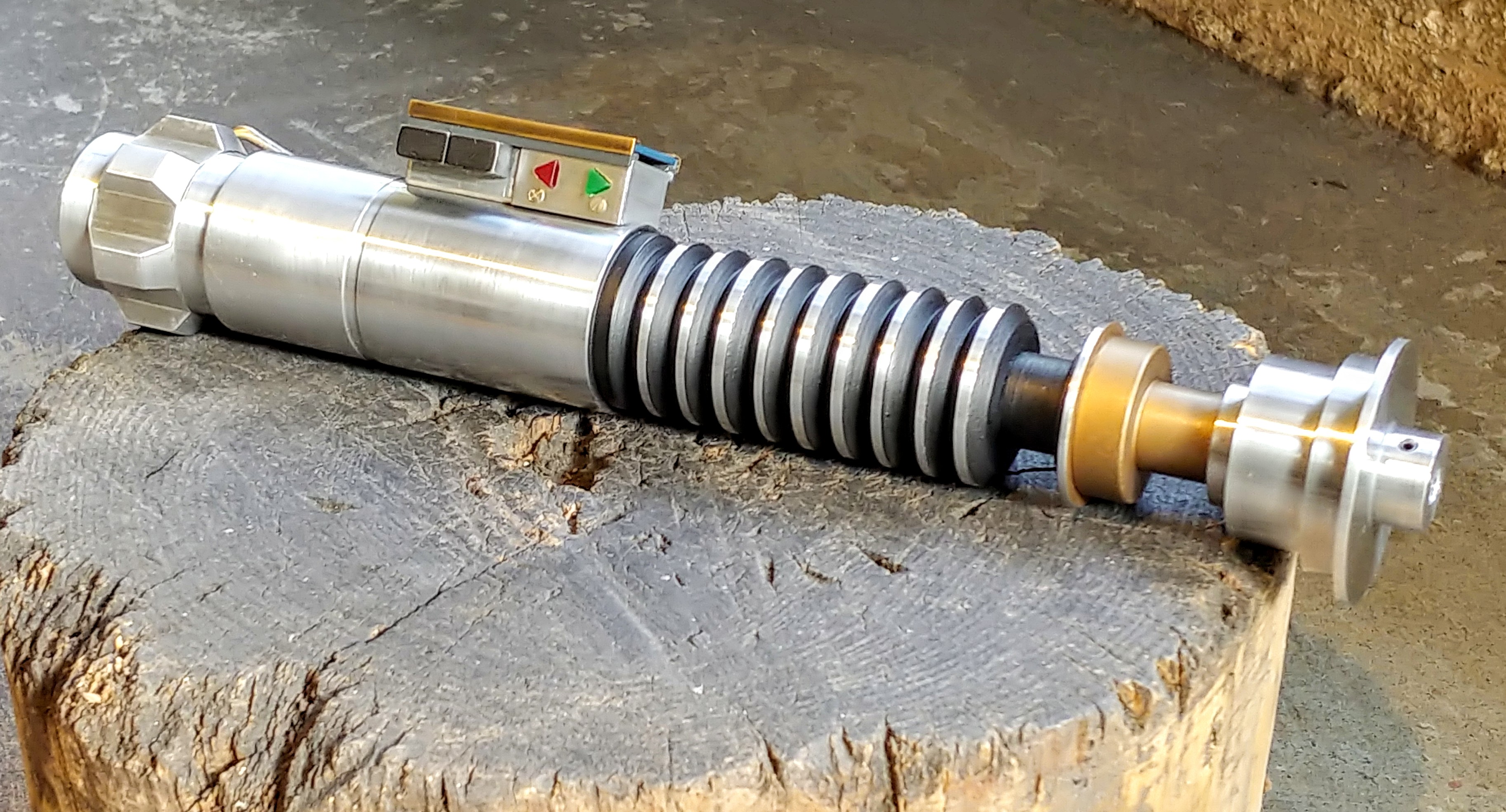

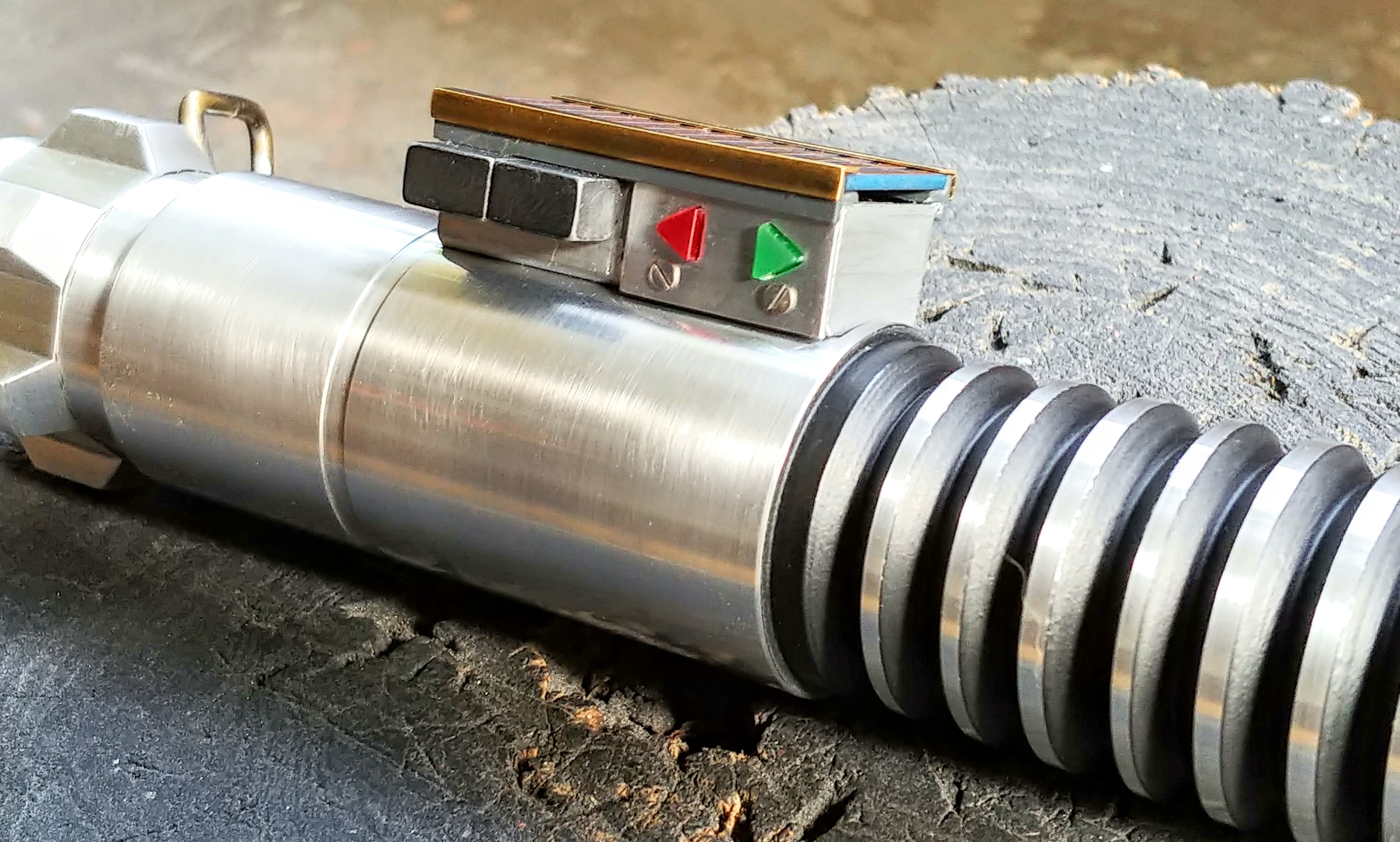

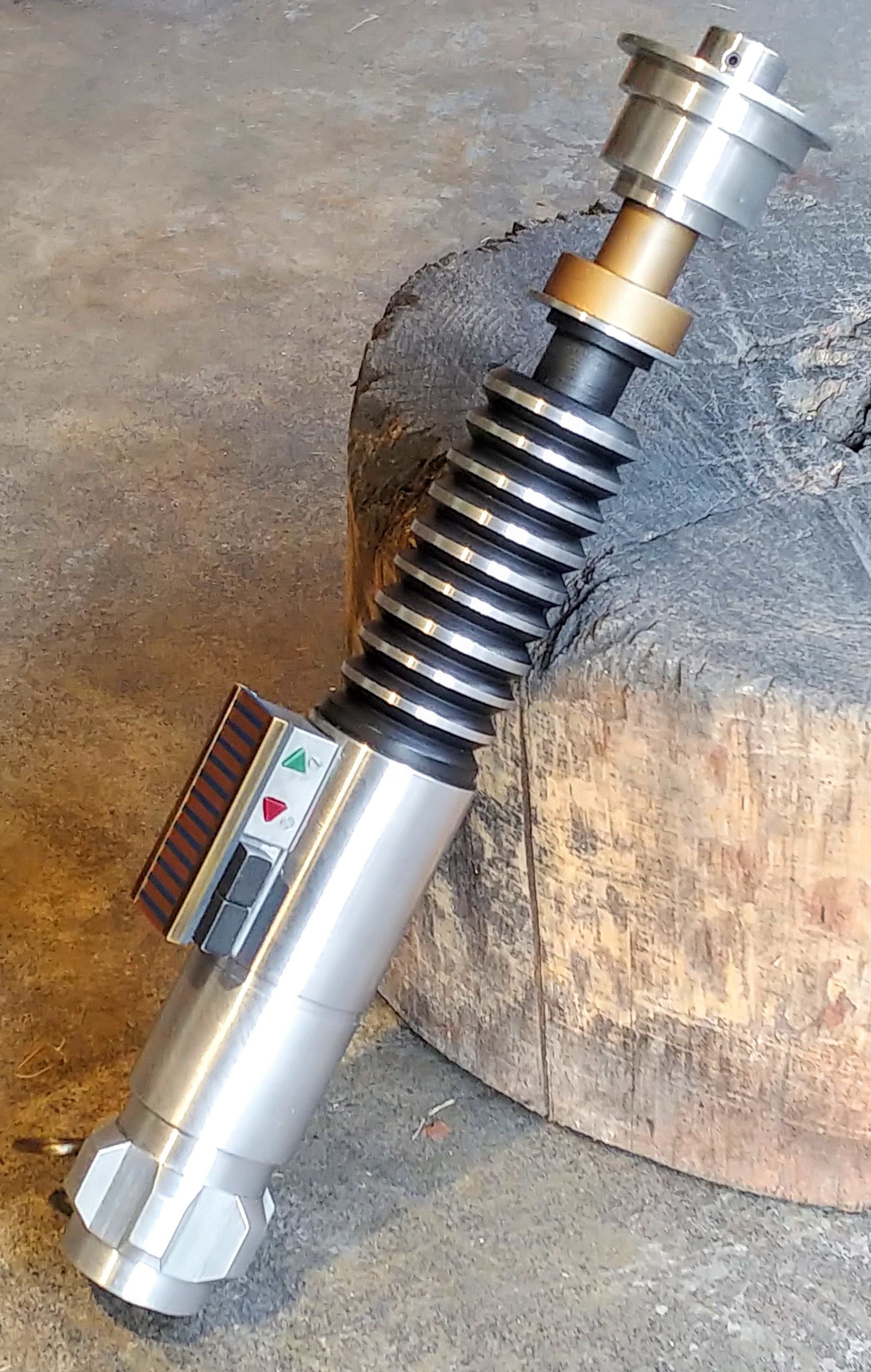

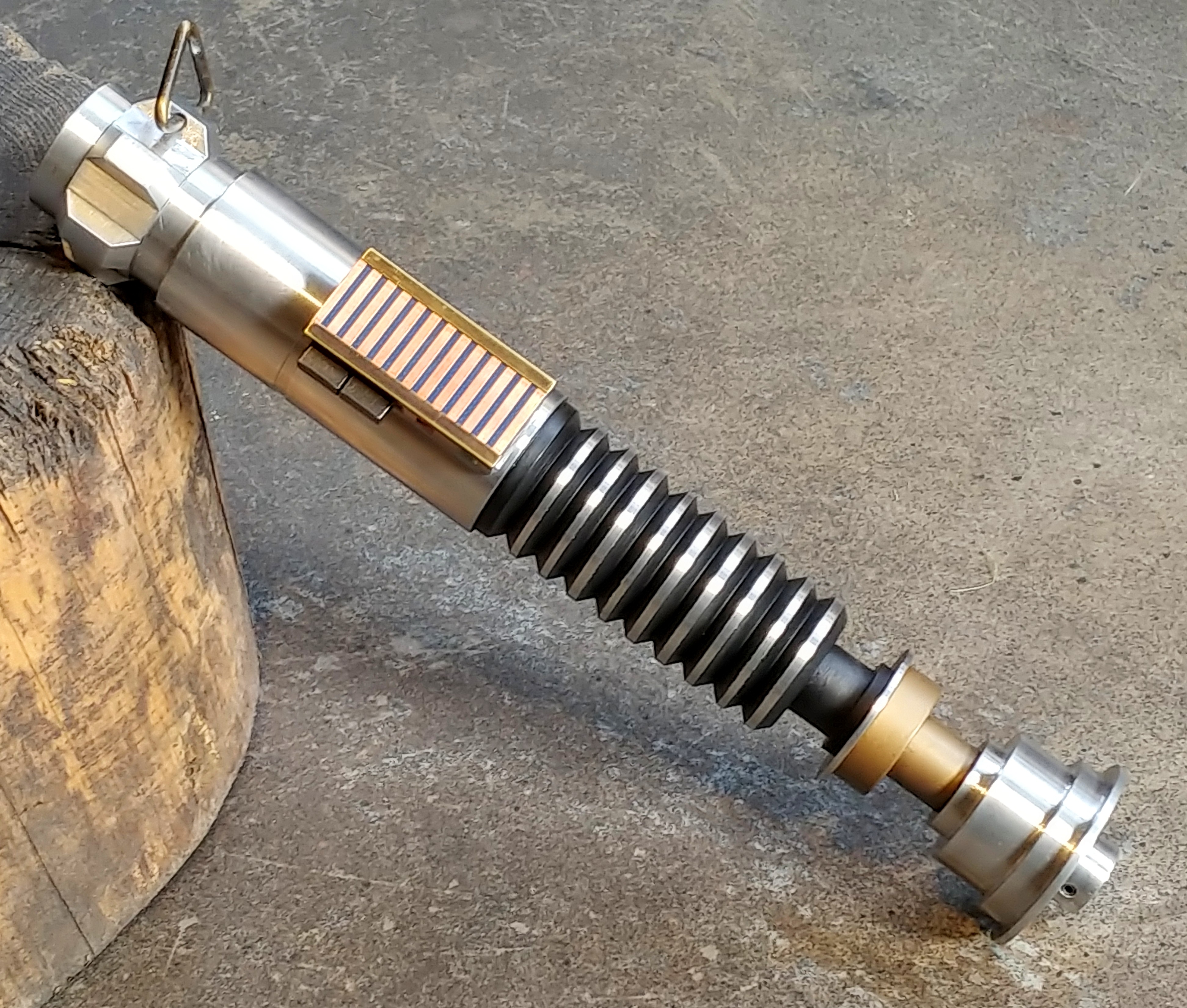

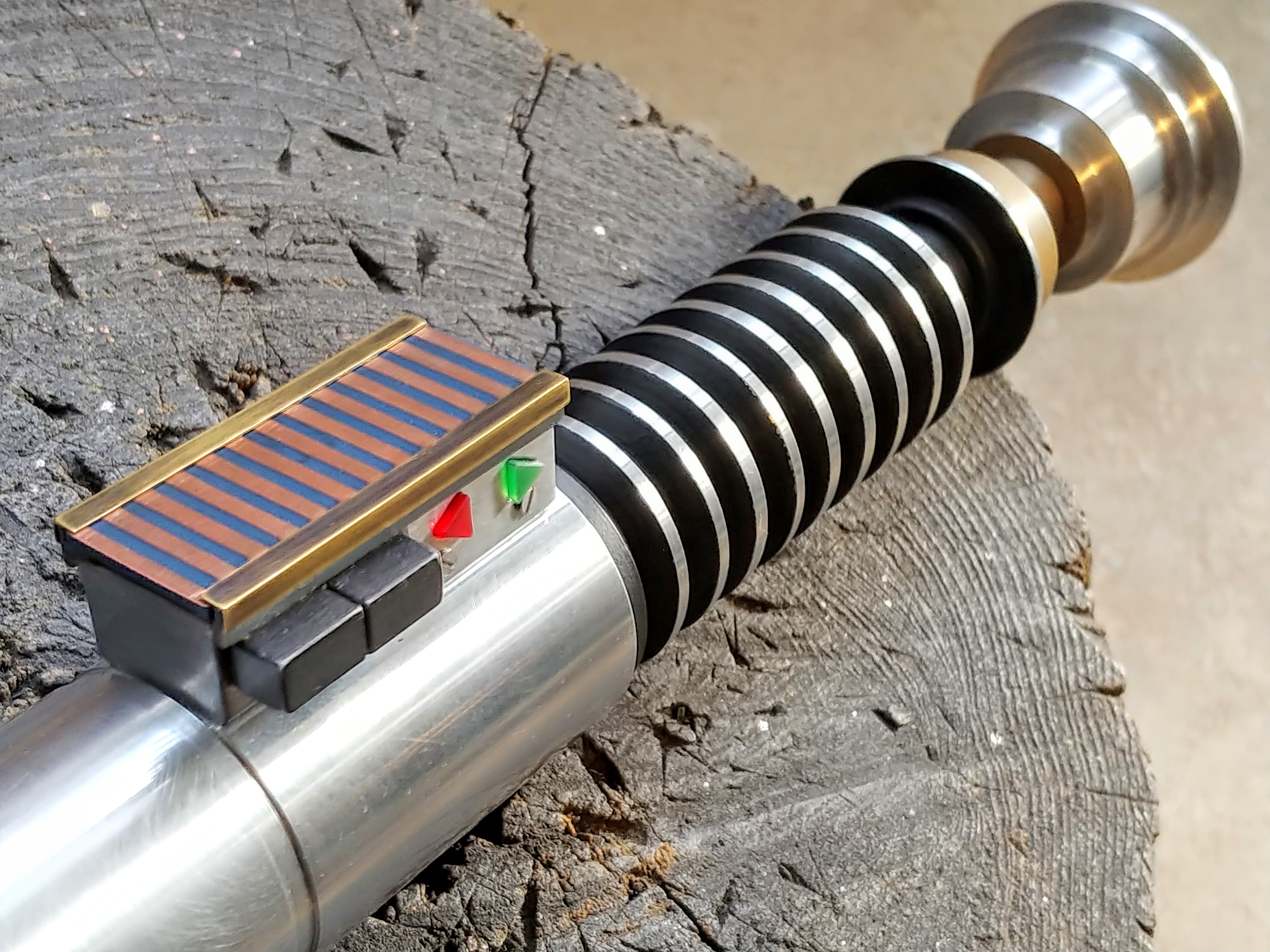

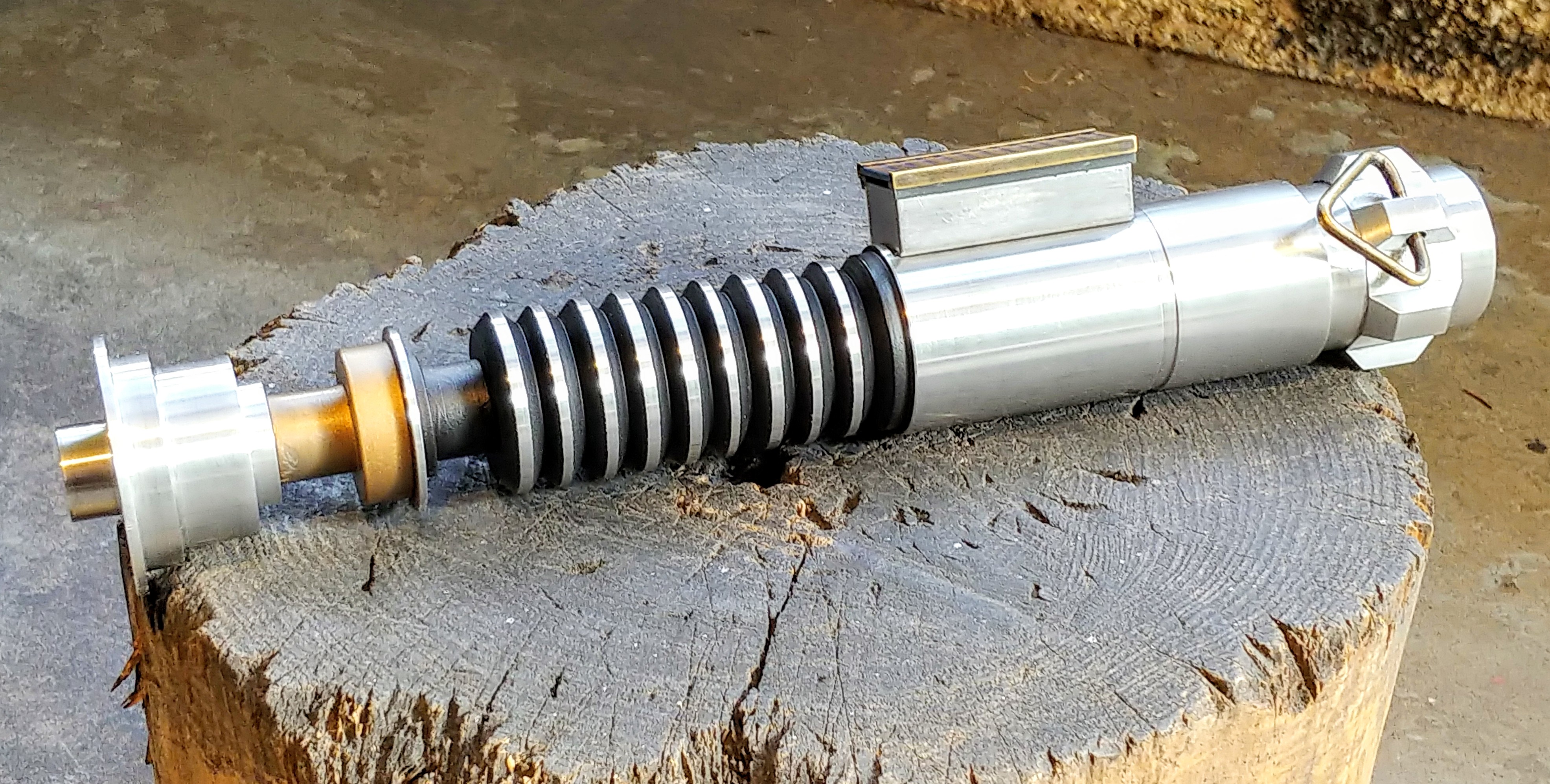

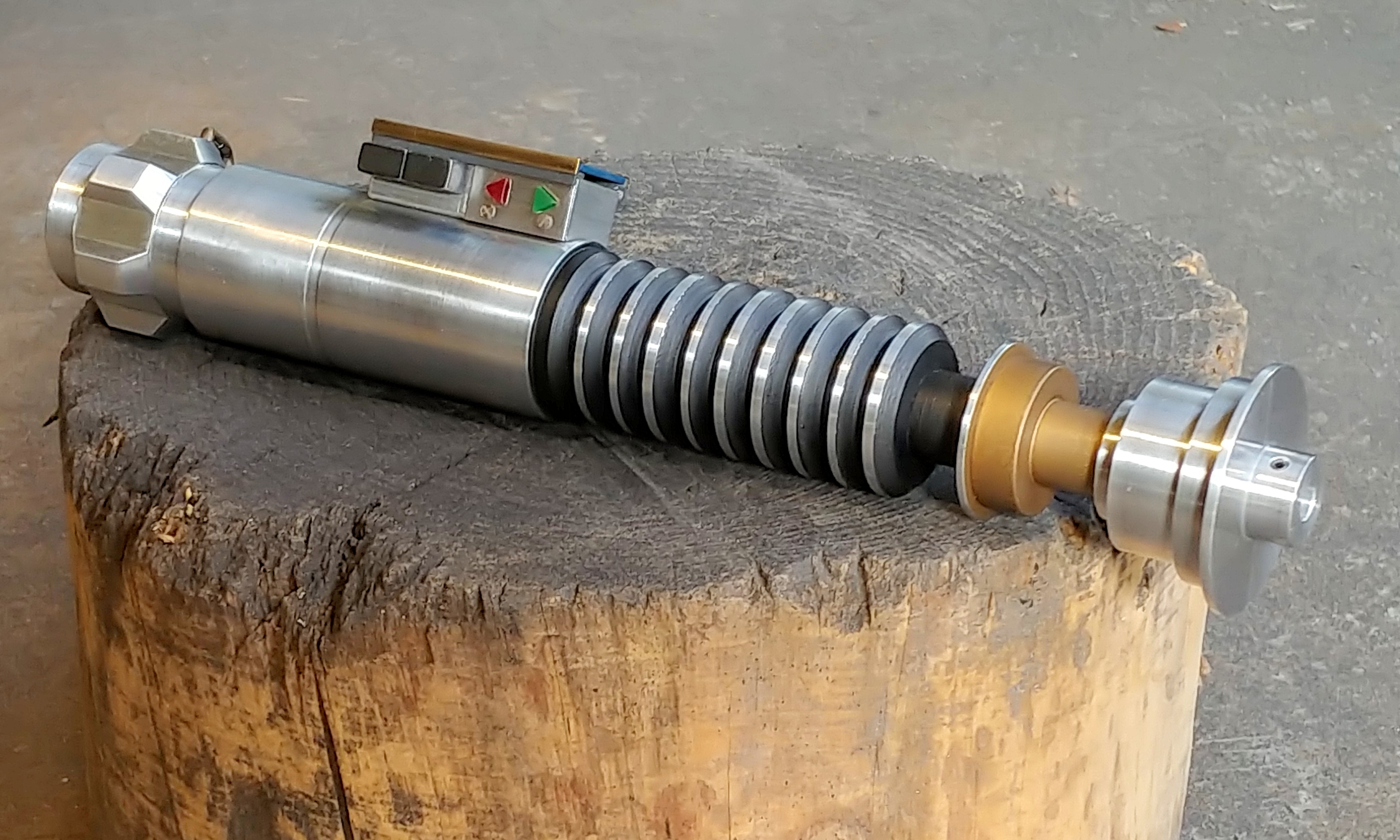

Here's where mine's at, right now.

I'll be redoing the LED plate to make it more accurate.

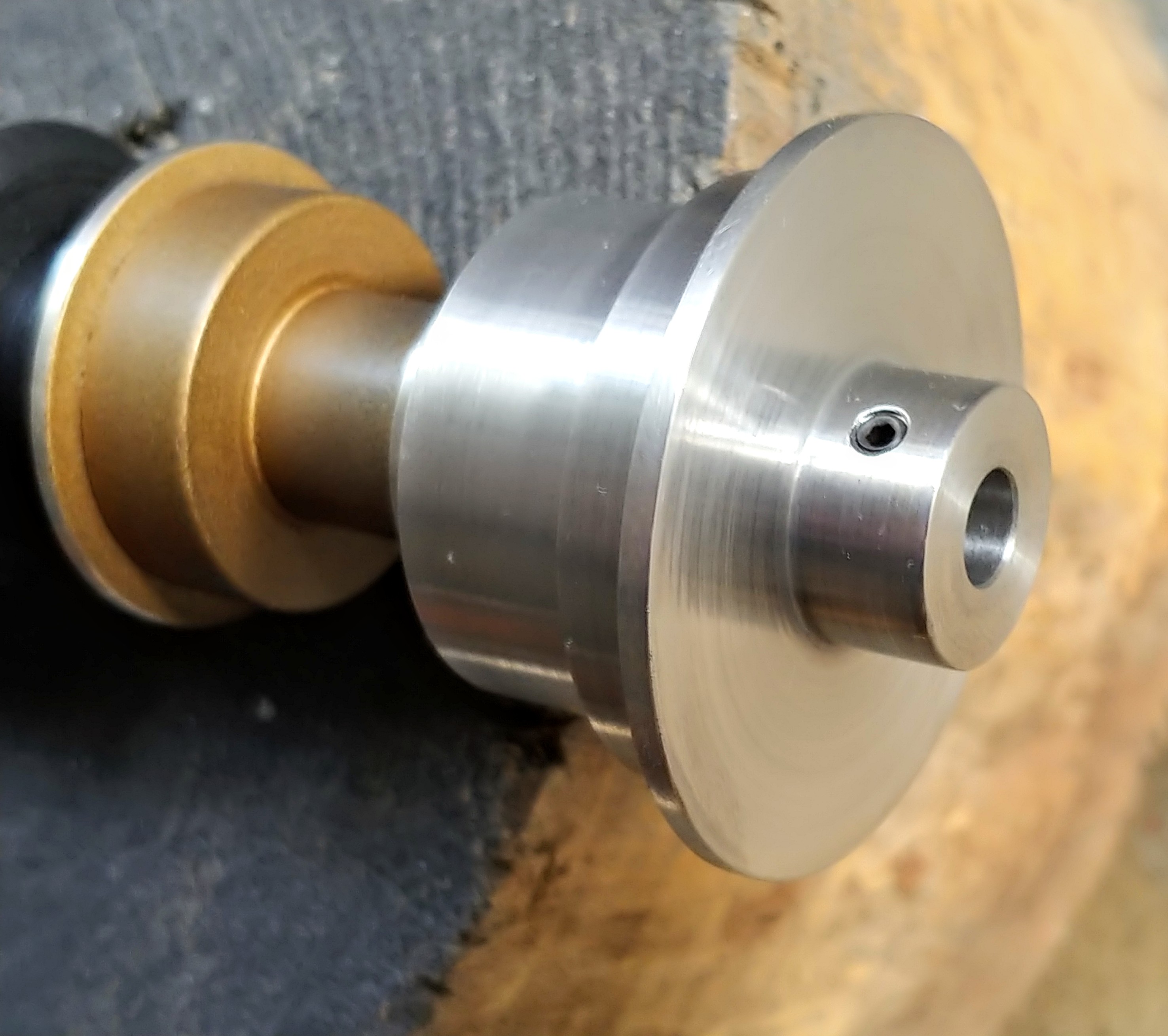

And the paint I used for the neck



[Dann]

And Danny, once you do one, you'll see the plate isn't really all that difficult a thing to make.



[Mouse Vader]

I've not yet seen anyone go the whole hog & chip their red LED.
Anyone done this ?



[Dann]

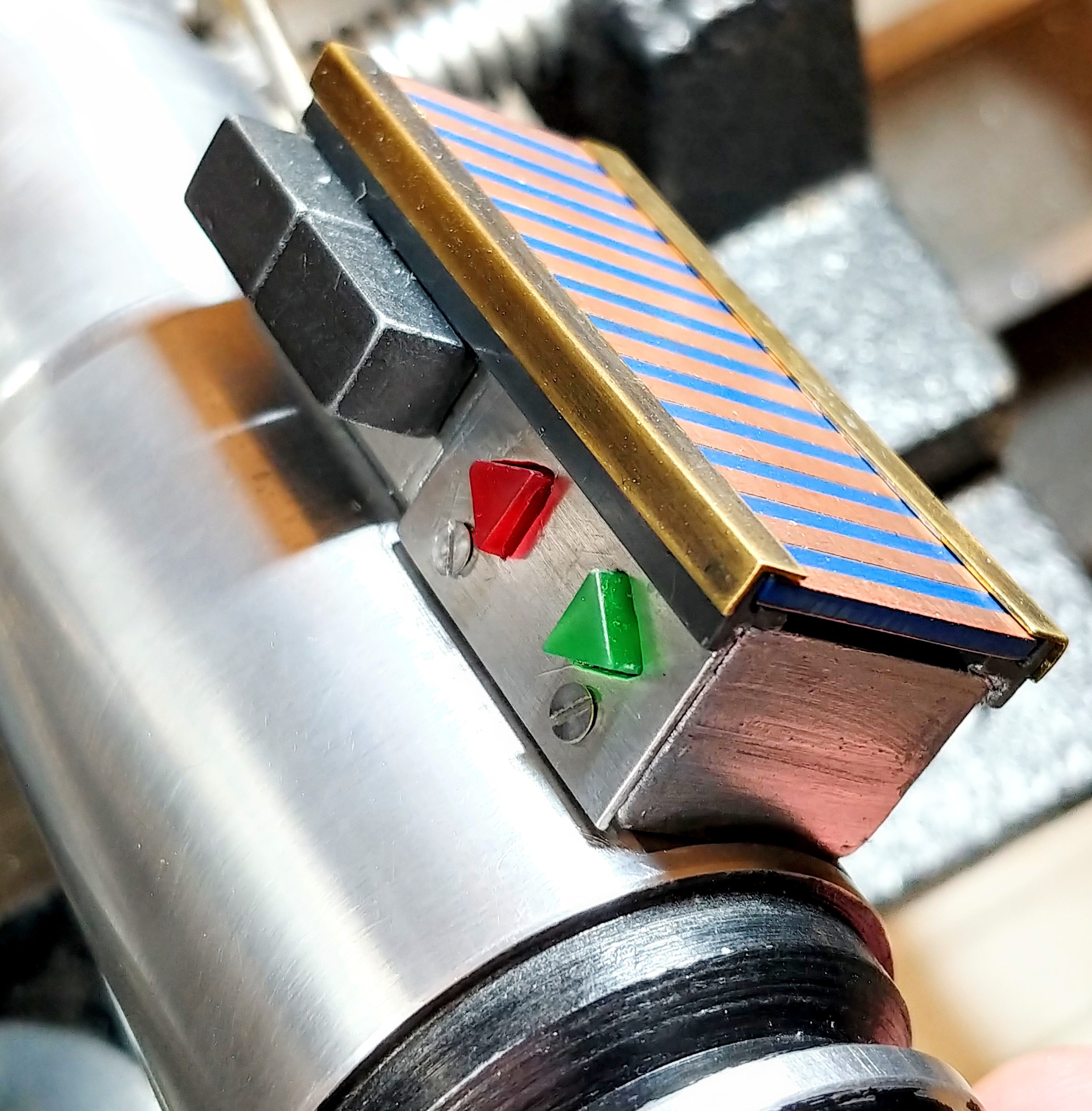

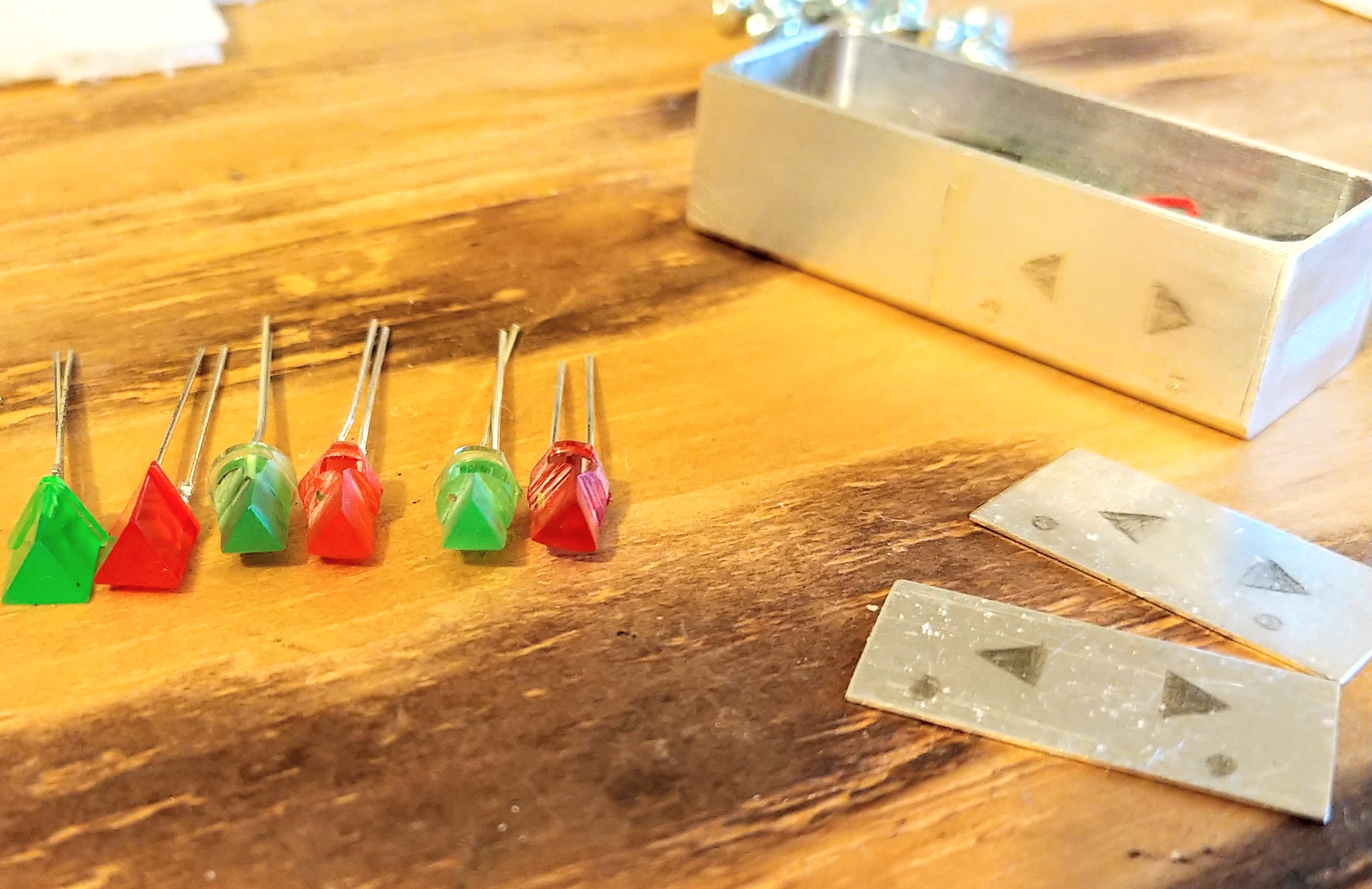

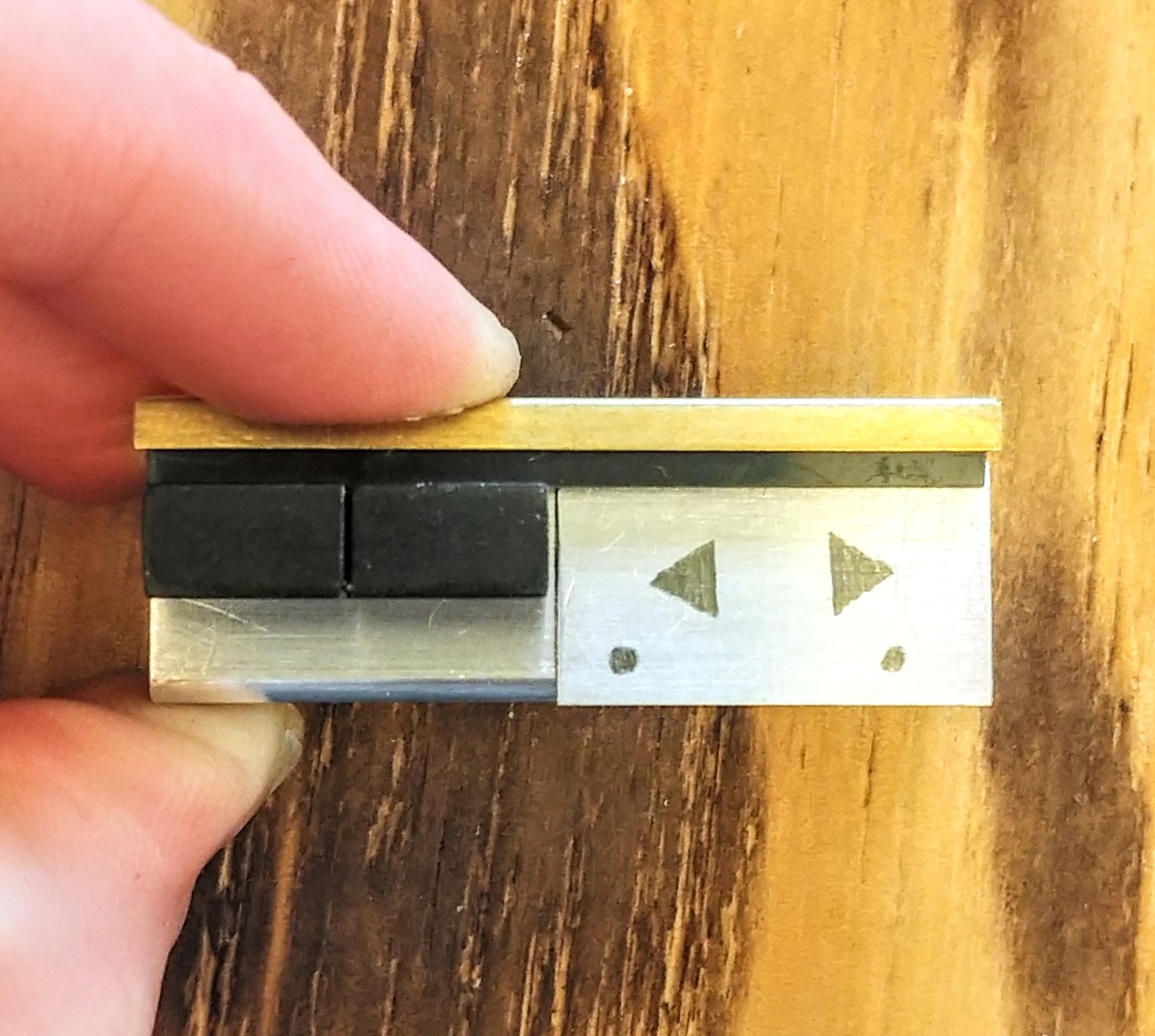

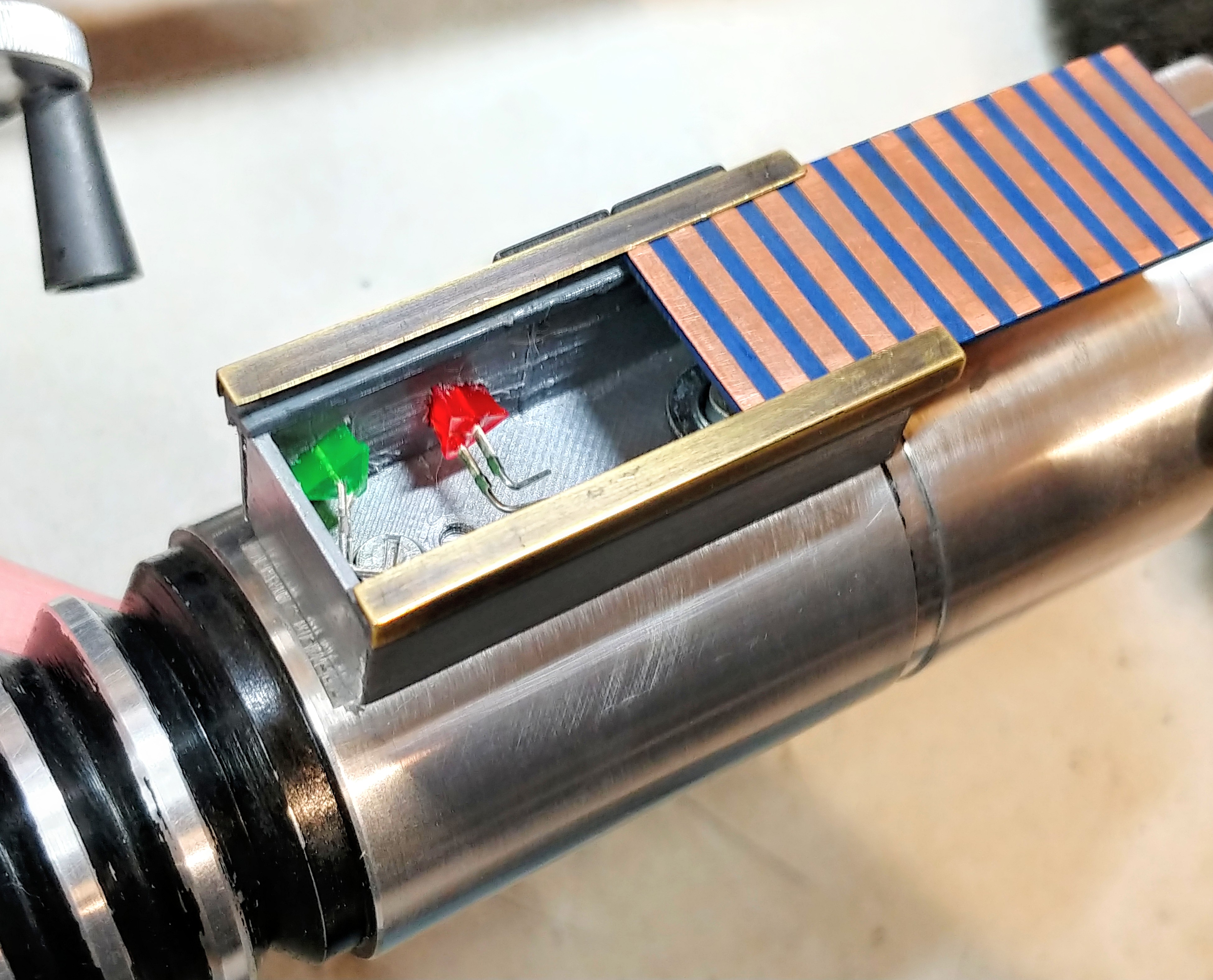

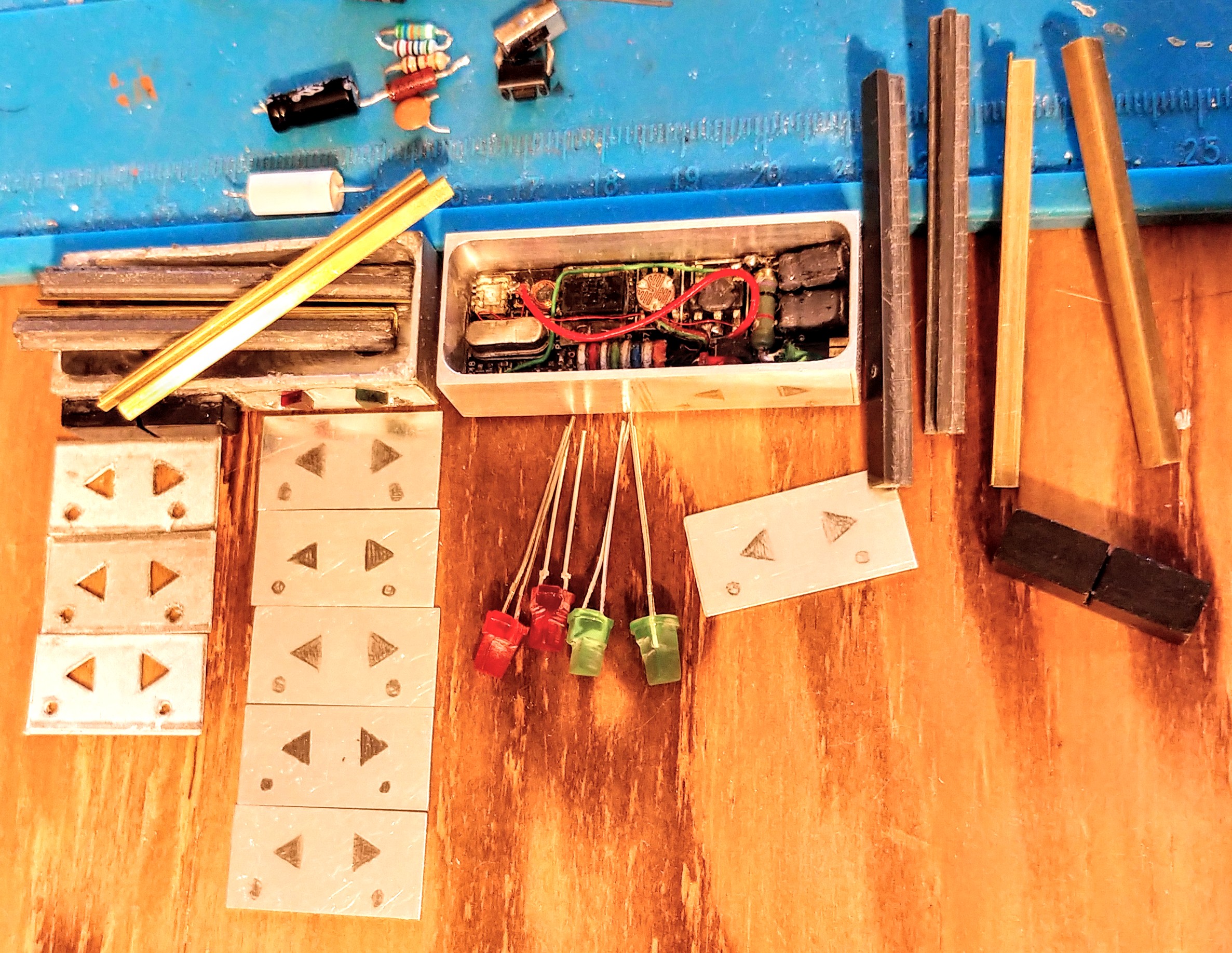

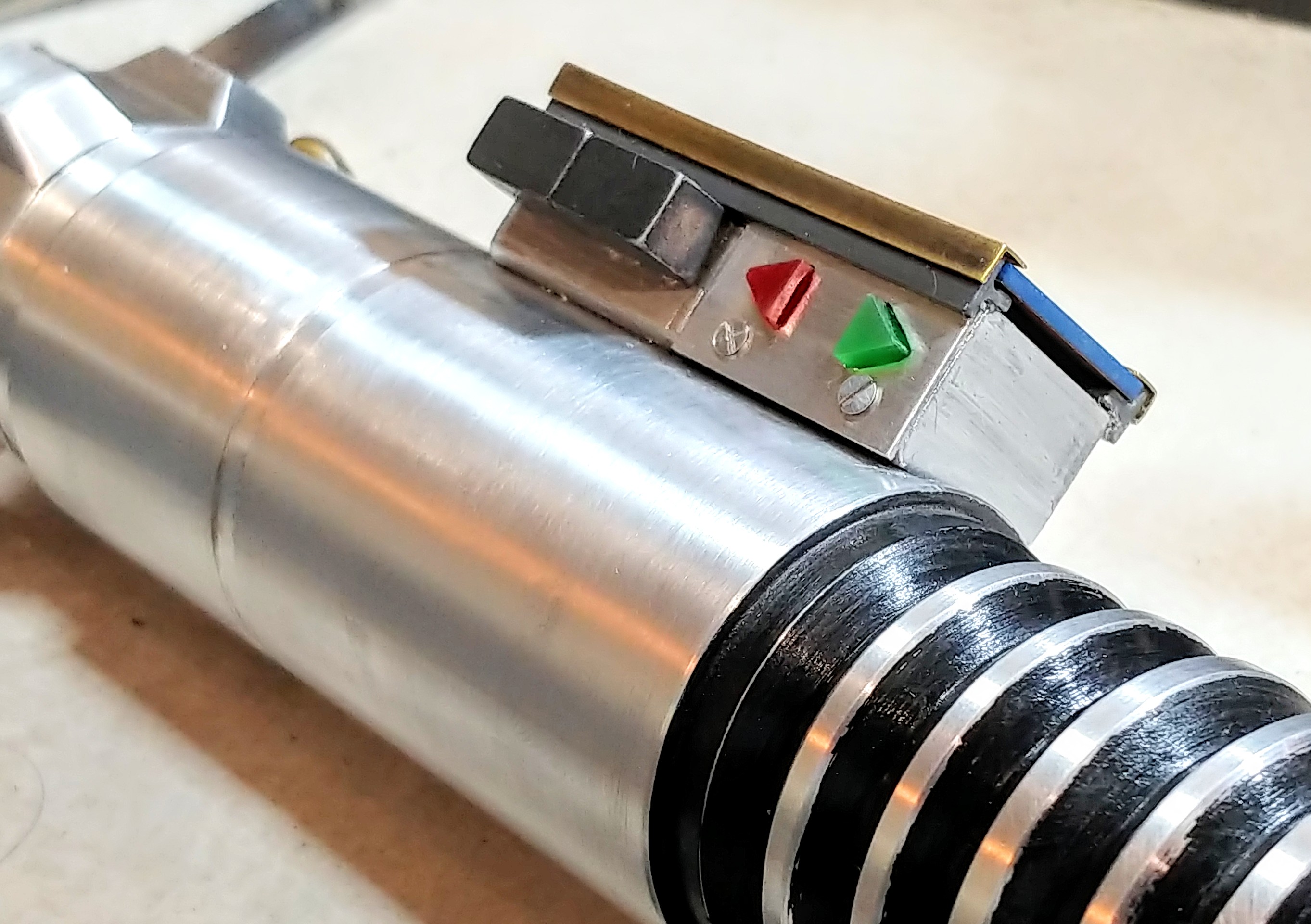

Here's where I'm at with the updated, more accurate plates. I made a few extra for if I screw them up.

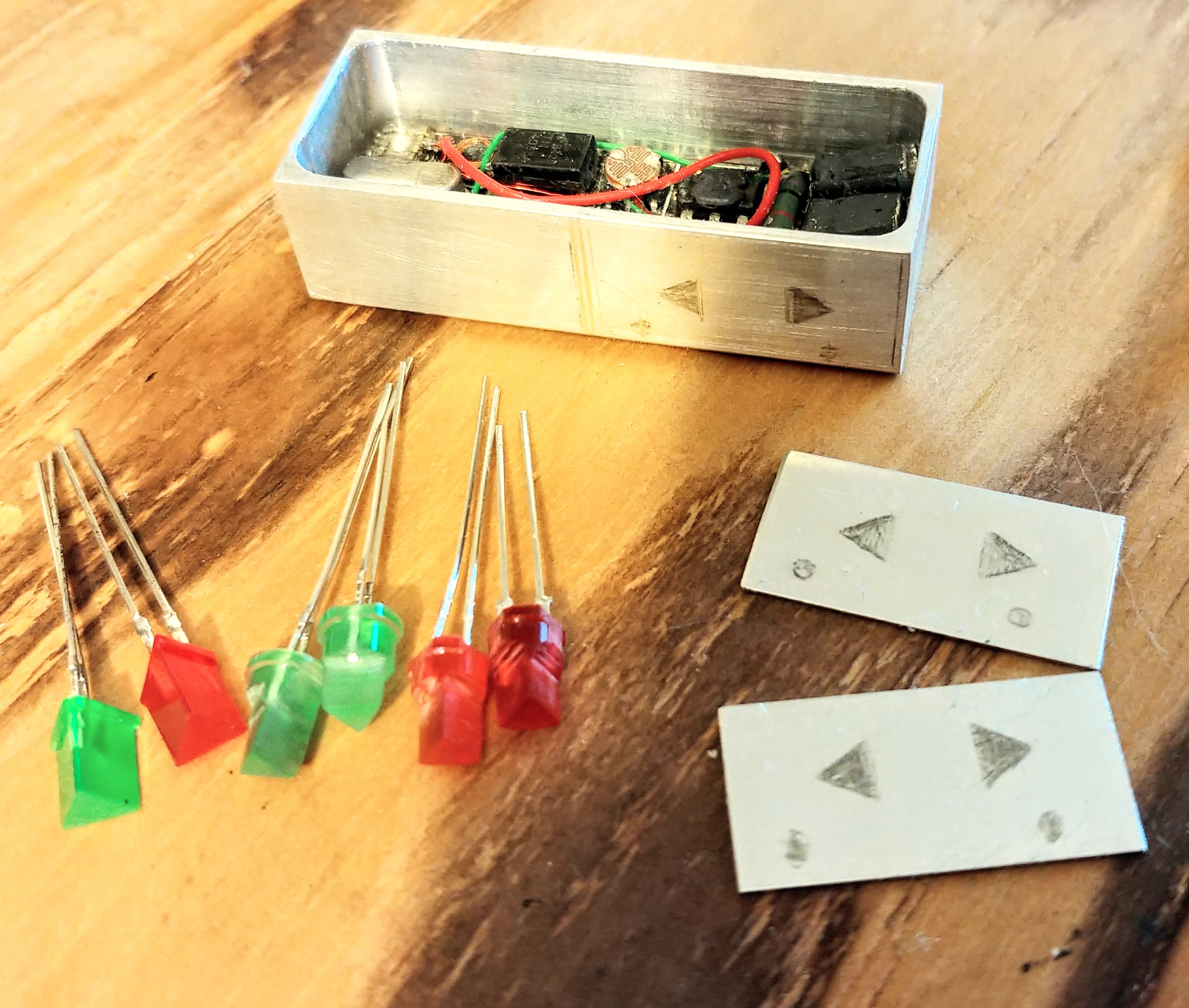

Also, I'm starting to think these triangle LEDs are a little too large, so I tried my hand at modifying some regular LEDs.

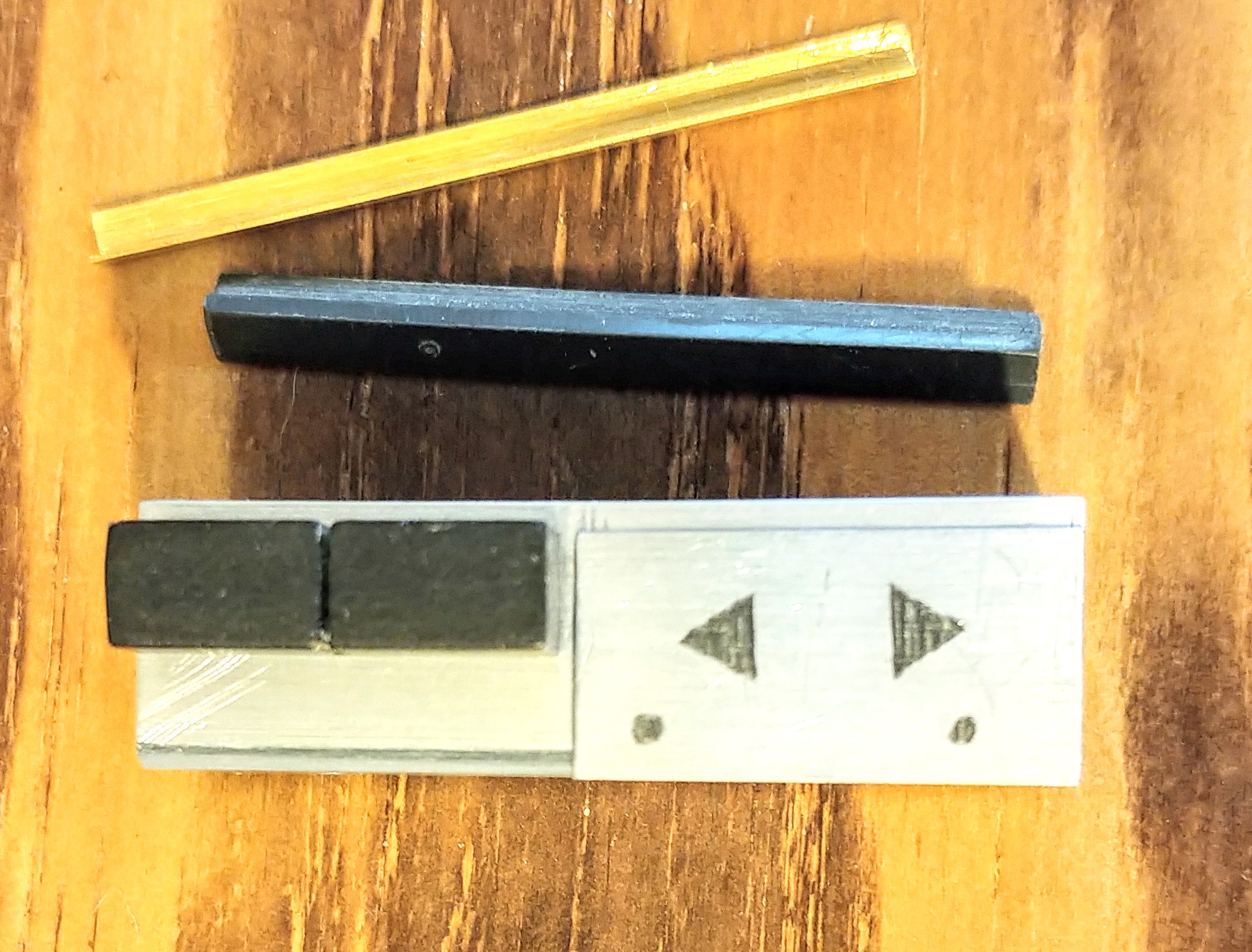

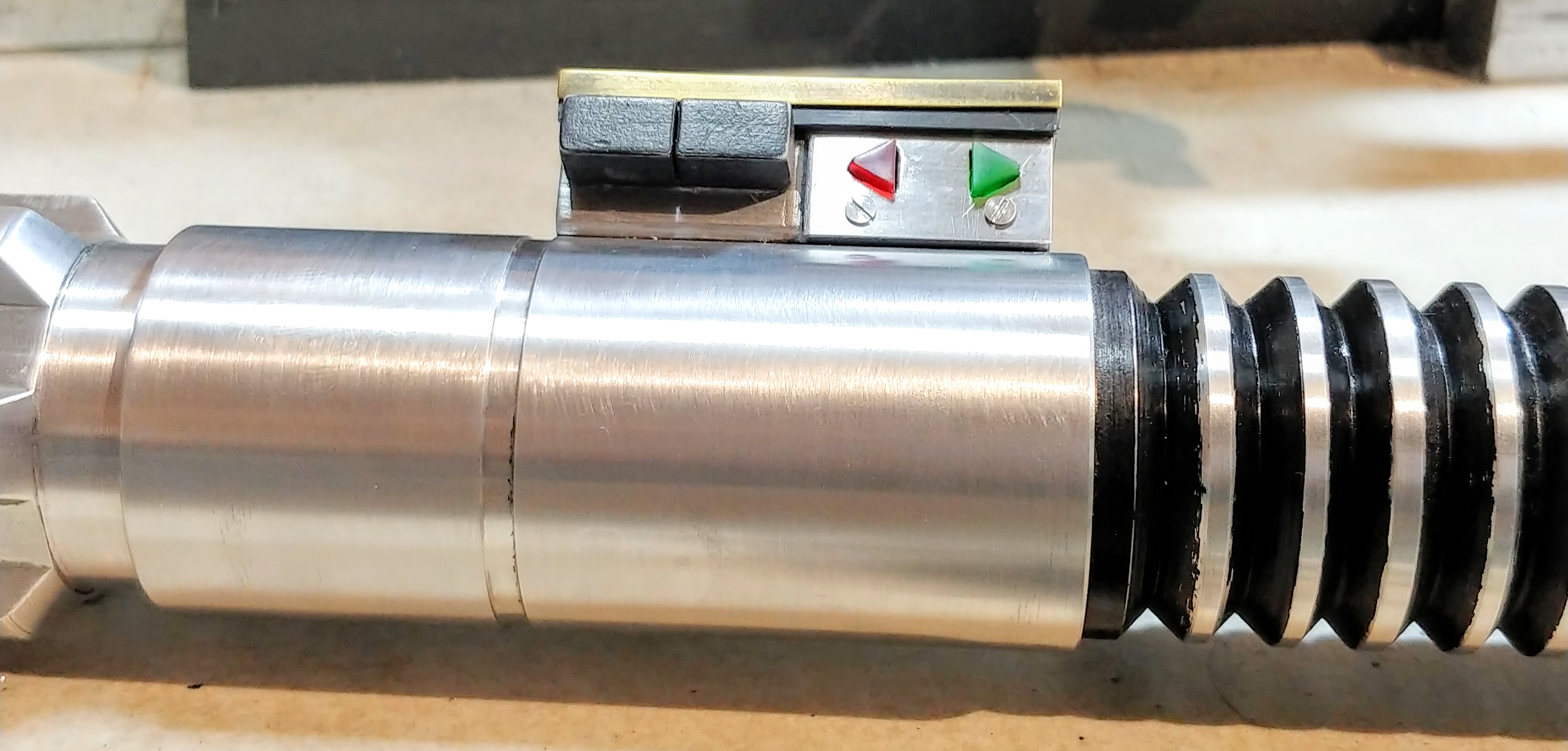

And a quick mockup...



[Halliwax]

Dann out of this world!

How do you make the little triangles? Is it all with files?



[thd9791]

Aw man I just realized you have to mill a small amount off the box to get the triangle plate to sit flush!



[Dann]

I'm not totally sure it DOES sit flush.


EDIT: Now that I've bugged out my eyeballs some more, I'm beginning to think you're right, Tom. Though I'm still not one hundred percent sure, I'm beginning to lean that way. The bottom edge bevel certainly appears less prominent from that front corner.

Another question that I'm not sure has ever been definitively answered (at least I don't recall seeing any pics or reading anything about it) is whether a small section of the main box was cut away underneath/behind the plate. If so, how large is the cutout, and does it extend/reach up to the box lid, leaving only the cover plate for the rails to rest on?



[Dann]

Dann out of this world!

How do you make the little triangles? Is it all with files?

I did use needle files on the first one, but also an exacto. Just start the holes with a small center drill and then go to town!



[Halliwax]

I did use needle files on the first one, but also an exacto. Just start the holes with a small center drill and then go to town!

Wicked time consuming man, but it pays out in the end



[thd9791]

I should also note the box has different bevels on each side, it's not symmetrical

or maybe it wasnt centered when they cut out the curve

noticed that on both casts I have



[BRRogers]

I should also note the box has different bevels on each side, it's not symmetrical

or maybe it wasnt centered when they cut out the curve

noticed that on both casts I have

Correct.
The backside is pretty deep!



[mindaramblin]

After reading through whole thread, I am incredibly interested! You guys are doing an amazing job with all of your research!

I don’t think it’s been posted, but I have to make sure. I didn’t miss an interest thread, did I?

Again, thank you to everyone involved for all of your hard work on this hilt! It is one of my all-time favorites, so seeing this much work going into it is very exciting!



[BRRogers]

After reading through whole thread, I am incredibly interested! You guys are doing an amazing job with all of your research!

I don’t think it’s been posted, but I have to make sure. I didn’t miss an interest thread, did I?

Again, thank you to everyone involved for all of your hard work on this hilt! It is one of my all-time favorites, so seeing this much work going into it is very exciting!

Thanks for that! We’re really honing in.
Just went through and determined the issue knullzero was seeing with the arrow spacing and have that essentially figured out.
Not just yet on the official interest thread although we are noting numbers of those who have expressed interest.
Discussions about logistics are still in the works and: as far as were concerned we’d rather finish the model development and flesh out logistics before announcing the run.
