JarJarSith
New Member
Hello Guys,
Hope all well, i just finished wiring my Saber Bay Darksaber and i have just a small question regarding the config file for the switch LED (Circled here on the diagram).
For the moment it doesnt light, so i guess i need to add a line in the config file. Would anyone help me giving me the right line to add to make it work ?

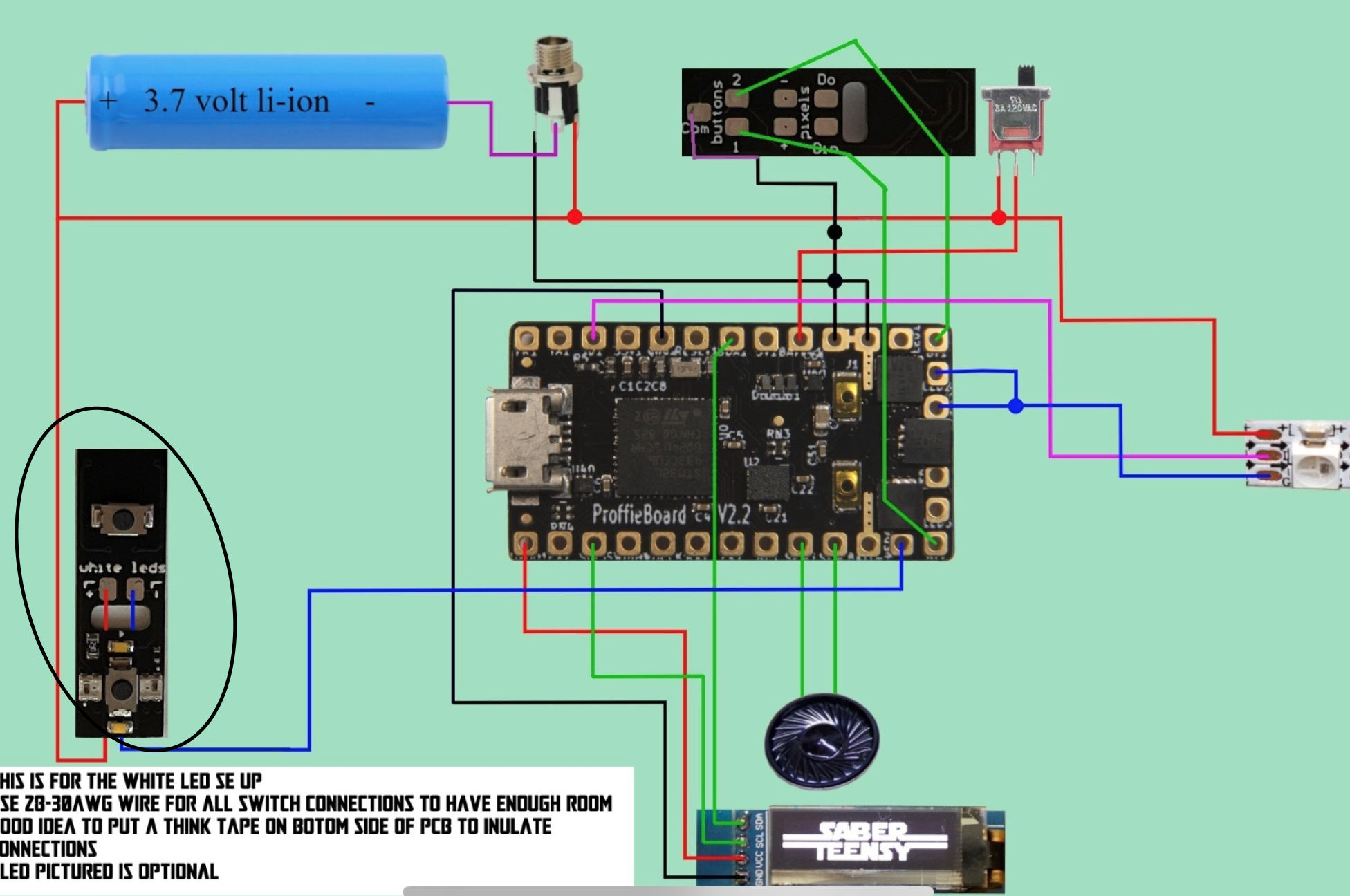

the saber is wired exactly as the diagram.
Here is as well my config file, all works perfectly except those tiny LEDs that don't work.
#ifdef CONFIG_TOP
#include "proffieboard_v2_config.h"
#define NUM_BLADES 2
#define NUM_BUTTONS 2
#define VOLUME 2200
const unsigned int maxLedsPerStrip = 150;
#define CLASH_THRESHOLD_G 5.0
#define ENABLE_AUDIO
#define ENABLE_MOTION
#define ENABLE_WS2811
#define ENABLE_SD
#define ENABLE_SSD1306
#define ORIENTATION ORIENTATION_USB_TOWARDS_BLADE
#define FETT263_BATTLE_MODE_START_ON
#define FETT263_SWING_ON
#define FETT263_TWIST_OFF
#define FETT263_THRUST_ON
#define FETT263_FORCE_PUSH
#define FETT263_LOCKUP_DELAY 200
#define COLOR_CHANGE_DIRECT
#define DISABLE_DIAGNOSTIC_COMMANDS
#endif
#ifdef CONFIG_PROP
#include "../props/saber_fett263_buttons.h"
#endif
#ifdef CONFIG_PRESETS
Preset presets[] = {
{ "Dark1", "tracks/mandotrack.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark1"},
{ "Dark2", "tracks/darkdance.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark2"},
{ "Dark3", "tracks/mando.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark3"},
{ "Dark4", "tracks/moffdance.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark4"},
{ "Dooku", "tracks/dookudance.wav",
//blade
StylePtr<Layers<HumpFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<128,0,0>>,50>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<250>,TrWipeIn<250>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<128,0,0>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,3000>>>>(),"dooku"},
{ "Exegol", "tracks/Kylo.wav",
//blade
StylePtr<Layers<Stripes<3000,-3500,RotateColorsX<Variation,Red>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<60,0,0>>,Black>,BrownNoiseFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<30,0,0>>,200>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,RotateColorsX<Variation,Rgb<30,0,0>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,Black,200>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<100>,Int<1000>>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<60,0,0>>,300>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<200>,Int<1500>>>>>,AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Red>,Black>,Black,RotateColorsX<Variation,Red>,Black>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<StripesX<Int<1500>,Scale<SlowNoise<Int<2500>>,Int<-3000>,Int<-5000>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<80,0,0>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<20,0,0>>,RotateColorsX<Variation,Red>>,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,2000>>>>(),"exegol"},
{ "Highrepublic", "tracks/solodance.wav",
//blade
StylePtr<Layers<Layers<TransitionLoop<RotateColorsX<Variation,Rgb<180,130,0>>,TrConcat<TrBoing<500,2>,Layers<Stripes<10000,100,RotateColorsX<Variation,Rgb<90,65,0>>,RotateColorsX<Variation,Rgb<20,14,0>>,RotateColorsX<Variation,Rgb<141,102,0>>>,AlphaL<Stripes<8000,-200,RotateColorsX<Variation,Rgb<180,130,0>>,RotateColorsX<Variation,Rgb<42,31,0>>>,Int<16384>>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<100>,Int<2000>>>>>,TransitionLoopL<TrConcat<TrWipe<200>,RandomBlinkL<Int<30000>,White>,TrWipe<200>,AlphaL<White,Int<0>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<300>,Int<3000>>>>>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipeSparkTip<White,250>,TrWipeInSparkTip<White,500>,Black>>>(),
//crystal chamber
StylePtr<Layers<Layers<TransitionLoop<RotateColorsX<Variation,Rgb<180,130,0>>,TrConcat<TrBoing<500,3>,Layers<Stripes<10000,100,RotateColorsX<Variation,Rgb<90,65,0>>,RotateColorsX<Variation,Rgb<20,14,0>>,RotateColorsX<Variation,Rgb<141,102,0>>>,AlphaL<Stripes<8000,-200,RotateColorsX<Variation,Rgb<180,130,0>>,RotateColorsX<Variation,Rgb<42,31,0>>>,Int<16384>>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<100>,Int<2000>>>>>,TransitionLoopL<TrConcat<TrWipe<200>,RandomBlinkL<Int<30000>,White>,TrWipe<200>,AlphaL<White,Int<0>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<300>,Int<3000>>>>>>,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<180,130,0>>,RotateColorsX<Variation,Rgb<7,5,0>>,4000>>>>(),"high"},
{ "Maul", "tracks/maul.wav",
//blade
StylePtr<Layers<Stripes<6000,-3000,RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<60,0,0>>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<250>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<Stripes<6000,-3000,RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<60,0,0>>>,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,3000>>>>(),"Maul"},
{ "Proto", "tracks/protodance.wav",
//blade
StylePtr<Layers<Layers<AudioFlicker<RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Rgb<200,0,0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Tomato>,40>,Int<250>,Int<100>,Int<200>,Int<0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Red>,40>,Int<350>,Int<100>,Int<300>,Int<0>>>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Rgb<200,0,0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Tomato>,40>,Int<250>,Int<100>,Int<200>,Int<0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Red>,40>,Int<350>,Int<100>,Int<300>,Int<0>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,2000>>>>(),"proto"},
{ "Unstable", "tracks/Kylo.wav",
//blade
StylePtr<Layers<Stripes<3000,-3500,RotateColorsX<Variation,Red>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<60,0,0>>,Black>,BrownNoiseFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<30,0,0>>,200>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,RotateColorsX<Variation,Rgb<30,0,0>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,Black,200>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<100>,Int<1000>>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<60,0,0>>,300>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<200>,Int<1500>>>>>,AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Red>,Black>,Black,RotateColorsX<Variation,Red>,Black>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<TransitionLoop<RotateColorsX<Variation,Red>,TrConcat<TrBoing<1000,15>,RotateColorsX<Variation,Rgb<10,0,0>>,TrFade<10>>>,InOutTrL<TrInstant,TrInstant,TransitionLoop<RotateColorsX<Variation,Red>,TrConcat<TrBoing<1000,15>,RotateColorsX<Variation,Rgb<10,0,0>>,TrFade<10>>>>>>(),"unstable"},
{ "SmthJedi", "tracks/mars.wav",
//blade
&style_charging,
//crystal chamber
StylePtr<Layers<AudioFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<128,0,0>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,3000>>>>(),"Battery\nLevel"},
};
BladeConfig blades[] = {
{ 0, WS281XBladePtr<150, bladePin, Color8::GRBw, PowerPINS<bladePowerPin2, bladePowerPin3> >(),
WS281XBladePtr<1, blade2Pin, Color8::GRB, PowerPINS<bladePowerPin4> >(),
CONFIGARRAY(presets) },
};
#endif
#ifdef CONFIG_BUTTONS
Button PowerButton(BUTTON_POWER, powerButtonPin, "pow");
Button AuxButton(BUTTON_AUX, auxPin, "aux");
#endif
Hope all well, i just finished wiring my Saber Bay Darksaber and i have just a small question regarding the config file for the switch LED (Circled here on the diagram).
For the moment it doesnt light, so i guess i need to add a line in the config file. Would anyone help me giving me the right line to add to make it work ?
the saber is wired exactly as the diagram.
Here is as well my config file, all works perfectly except those tiny LEDs that don't work.
#ifdef CONFIG_TOP
#include "proffieboard_v2_config.h"
#define NUM_BLADES 2
#define NUM_BUTTONS 2
#define VOLUME 2200
const unsigned int maxLedsPerStrip = 150;
#define CLASH_THRESHOLD_G 5.0
#define ENABLE_AUDIO
#define ENABLE_MOTION
#define ENABLE_WS2811
#define ENABLE_SD
#define ENABLE_SSD1306
#define ORIENTATION ORIENTATION_USB_TOWARDS_BLADE
#define FETT263_BATTLE_MODE_START_ON
#define FETT263_SWING_ON
#define FETT263_TWIST_OFF
#define FETT263_THRUST_ON
#define FETT263_FORCE_PUSH
#define FETT263_LOCKUP_DELAY 200
#define COLOR_CHANGE_DIRECT
#define DISABLE_DIAGNOSTIC_COMMANDS
#endif
#ifdef CONFIG_PROP
#include "../props/saber_fett263_buttons.h"
#endif
#ifdef CONFIG_PRESETS
Preset presets[] = {
{ "Dark1", "tracks/mandotrack.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark1"},
{ "Dark2", "tracks/darkdance.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark2"},
{ "Dark3", "tracks/mando.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark3"},
{ "Dark4", "tracks/moffdance.wav",
//blade
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>>,AlphaL<RotateColorsX<Variation,Rgb<175,175,225>>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,TransitionEffectL<TrConcat<TrInstant,HumpFlickerL<RotateColorsX<Variation,Rgb<175,175,225>>,40>,TrFade<1200>>,EFFECT_IGNITION>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<BrownNoiseFlicker<Mix<SwingSpeed<400>,RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<150,150,225>>>,Stripes<5000,-300,RotateColorsX<Variation,Rgb<25,25,55>>,RotateColorsX<Variation,Rgb<75,75,120>>,RotateColorsX<Variation,Rgb<10,10,20>>,RotateColorsX<Variation,Rgb<50,50,75>>>,300>,RotateColorsX<Variation,Rgb<35,35,75>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<100,100,150>>,RotateColorsX<Variation,Rgb<4,4,6>>,3000>>>>(),"dark4"},
{ "Dooku", "tracks/dookudance.wav",
//blade
StylePtr<Layers<HumpFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<128,0,0>>,50>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<250>,TrWipeIn<250>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<128,0,0>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,3000>>>>(),"dooku"},
{ "Exegol", "tracks/Kylo.wav",
//blade
StylePtr<Layers<Stripes<3000,-3500,RotateColorsX<Variation,Red>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<60,0,0>>,Black>,BrownNoiseFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<30,0,0>>,200>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,RotateColorsX<Variation,Rgb<30,0,0>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,Black,200>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<100>,Int<1000>>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<60,0,0>>,300>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<200>,Int<1500>>>>>,AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Red>,Black>,Black,RotateColorsX<Variation,Red>,Black>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<StripesX<Int<1500>,Scale<SlowNoise<Int<2500>>,Int<-3000>,Int<-5000>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<80,0,0>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<20,0,0>>,RotateColorsX<Variation,Red>>,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,2000>>>>(),"exegol"},
{ "Highrepublic", "tracks/solodance.wav",
//blade
StylePtr<Layers<Layers<TransitionLoop<RotateColorsX<Variation,Rgb<180,130,0>>,TrConcat<TrBoing<500,2>,Layers<Stripes<10000,100,RotateColorsX<Variation,Rgb<90,65,0>>,RotateColorsX<Variation,Rgb<20,14,0>>,RotateColorsX<Variation,Rgb<141,102,0>>>,AlphaL<Stripes<8000,-200,RotateColorsX<Variation,Rgb<180,130,0>>,RotateColorsX<Variation,Rgb<42,31,0>>>,Int<16384>>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<100>,Int<2000>>>>>,TransitionLoopL<TrConcat<TrWipe<200>,RandomBlinkL<Int<30000>,White>,TrWipe<200>,AlphaL<White,Int<0>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<300>,Int<3000>>>>>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Red,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Red,Orange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipeSparkTip<White,250>,TrWipeInSparkTip<White,500>,Black>>>(),
//crystal chamber
StylePtr<Layers<Layers<TransitionLoop<RotateColorsX<Variation,Rgb<180,130,0>>,TrConcat<TrBoing<500,3>,Layers<Stripes<10000,100,RotateColorsX<Variation,Rgb<90,65,0>>,RotateColorsX<Variation,Rgb<20,14,0>>,RotateColorsX<Variation,Rgb<141,102,0>>>,AlphaL<Stripes<8000,-200,RotateColorsX<Variation,Rgb<180,130,0>>,RotateColorsX<Variation,Rgb<42,31,0>>>,Int<16384>>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<100>,Int<2000>>>>>,TransitionLoopL<TrConcat<TrWipe<200>,RandomBlinkL<Int<30000>,White>,TrWipe<200>,AlphaL<White,Int<0>>,TrDelayX<Scale<SlowNoise<Int<3000>>,Int<300>,Int<3000>>>>>>,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Rgb<180,130,0>>,RotateColorsX<Variation,Rgb<7,5,0>>,4000>>>>(),"high"},
{ "Maul", "tracks/maul.wav",
//blade
StylePtr<Layers<Stripes<6000,-3000,RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<60,0,0>>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<250>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<Stripes<6000,-3000,RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<60,0,0>>>,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,3000>>>>(),"Maul"},
{ "Proto", "tracks/protodance.wav",
//blade
StylePtr<Layers<Layers<AudioFlicker<RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Rgb<200,0,0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Tomato>,40>,Int<250>,Int<100>,Int<200>,Int<0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Red>,40>,Int<350>,Int<100>,Int<300>,Int<0>>>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<AudioFlicker<RotateColorsX<Variation,Rgb<128,0,0>>,RotateColorsX<Variation,Rgb<200,0,0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Tomato>,40>,Int<250>,Int<100>,Int<200>,Int<0>>>,TransitionLoopL<TrWaveX<HumpFlickerL<RotateColorsX<Variation,Red>,40>,Int<350>,Int<100>,Int<300>,Int<0>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,2000>>>>(),"proto"},
{ "Unstable", "tracks/Kylo.wav",
//blade
StylePtr<Layers<Stripes<3000,-3500,RotateColorsX<Variation,Red>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<60,0,0>>,Black>,BrownNoiseFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<30,0,0>>,200>,RandomPerLEDFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,RotateColorsX<Variation,Rgb<30,0,0>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<RotateColorsX<Variation,Rgb<80,0,0>>,Black,200>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<100>,Int<1000>>>>>,TransitionLoopL<TrConcat<TrWaveX<AudioFlicker<RotateColorsX<Variation,Red>,BrownNoiseFlicker<Black,RotateColorsX<Variation,Rgb<60,0,0>>,300>>,Int<400>,Int<100>,Int<200>,Int<0>>,AlphaL<Red,Int<0>>,TrDelayX<Scale<SlowNoise<Int<1000>>,Int<200>,Int<1500>>>>>,AlphaL<Stripes<1000,-2000,RandomPerLEDFlicker<RotateColorsX<Variation,Red>,Black>,Black,RotateColorsX<Variation,Red>,Black>,SwingSpeed<600>>,LockupTrL<Layers<AlphaL<AudioFlickerL<White>,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Scale<SwingSpeed<100>,Int<14000>,Int<18000>>>>,AlphaL<White,Bump<Scale<BladeAngle<>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>>,Int<10000>>>>,TrConcat<TrInstant,White,TrFade<400>>,TrConcat<TrInstant,White,TrFade<400>>,SaberBase::LOCKUP_NORMAL>,ResponsiveLightningBlockL<Strobe<White,AudioFlicker<White,Blue>,50,1>,TrConcat<TrInstant,AlphaL<White,Bump<Int<12000>,Int<18000>>>,TrFade<200>>,TrConcat<TrInstant,HumpFlickerL<AlphaL<White,Int<16000>>,30>,TrSmoothFade<600>>>,ResponsiveStabL<Orange,TrWipeIn<600>,TrWipe<600>>,ResponsiveBlastL<White,Int<400>,Scale<SwingSpeed<200>,Int<100>,Int<400>>,Int<400>>,ResponsiveClashL<White,TrInstant,TrFade<400>,Scale<BladeAngle<0,16000>,Int<4000>,Int<26000>>,Int<6000>,Int<20000>>,LockupTrL<AlphaL<BrownNoiseFlickerL<White,Int<300>>,SmoothStep<Int<30000>,Int<5000>>>,TrWipeIn<400>,TrFade<300>,SaberBase::LOCKUP_DRAG>,LockupTrL<AlphaL<Mix<TwistAngle<>,Rgb<255,200,0>,DarkOrange>,SmoothStep<Int<28000>,Int<5000>>>,TrWipeIn<600>,TrFade<300>,SaberBase::LOCKUP_MELT>,InOutTrL<TrWipe<300>,TrWipeIn<500>,Black>>>(),
//crystal chamber
StylePtr<Layers<TransitionLoop<RotateColorsX<Variation,Red>,TrConcat<TrBoing<1000,15>,RotateColorsX<Variation,Rgb<10,0,0>>,TrFade<10>>>,InOutTrL<TrInstant,TrInstant,TransitionLoop<RotateColorsX<Variation,Red>,TrConcat<TrBoing<1000,15>,RotateColorsX<Variation,Rgb<10,0,0>>,TrFade<10>>>>>>(),"unstable"},
{ "SmthJedi", "tracks/mars.wav",
//blade
&style_charging,
//crystal chamber
StylePtr<Layers<AudioFlicker<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<128,0,0>>> ,BlastL<White>,InOutTrL<TrInstant,TrFade<300>,Pulsing<RotateColorsX<Variation,Red>,RotateColorsX<Variation,Rgb<10,0,0>>,3000>>>>(),"Battery\nLevel"},
};
BladeConfig blades[] = {
{ 0, WS281XBladePtr<150, bladePin, Color8::GRBw, PowerPINS<bladePowerPin2, bladePowerPin3> >(),
WS281XBladePtr<1, blade2Pin, Color8::GRB, PowerPINS<bladePowerPin4> >(),
CONFIGARRAY(presets) },
};
#endif
#ifdef CONFIG_BUTTONS
Button PowerButton(BUTTON_POWER, powerButtonPin, "pow");
Button AuxButton(BUTTON_AUX, auxPin, "aux");
#endif
Attachments
can we please keep soundboard support to their respective manufacturers support. Dont want to muddy this thread to much and updates be lost in the mix
Bruinrogue
New Member
Quick question, on the switch PCB, if I’m also using the white leds (and it’s pads on top), does that change in the config to a RGBW or keep as RGB?
If your using the white LEDs they are standard LEDs that require + and -. No data required for a standard led so rgb or rgbw has nothing to do with them.
They are off or on in patterns set forth by your sound board .
This are mostly called accent LEDs in most manuals
Bruinrogue
New Member
Ah ok so they just go along with the other RGB LED's. Gotcha. Thanks!
Hey what’s the best email for you? I tried emailing the one I have from the invoicing but haven’t heard back
satoshi71100
New Member
can i simply connect the white leds + and - to 5v and gnd of the proffieboard? i would like it to be always on fixed when the proffie is on
Thanks
enterprise0216
Sr Member
WOOT!! WOOT!!! just got notification Darksaber is on the WAY!!
BayAreaBrenner
New Member
Installed Darksaber arrived today. No drama except I had to punch the UPS driver in order to make sure it was really mine.
The only means I have to describe this thing would likely get me banned. It’s simply incredible. I honestly don’t think I’ll own another saber as cool as this thing is. Anyone still waiting, I assure it it’s well worth it.
Sorry for the crappy video quality. I had about five minutes with it before having to head out to an appointment.
The only means I have to describe this thing would likely get me banned. It’s simply incredible. I honestly don’t think I’ll own another saber as cool as this thing is. Anyone still waiting, I assure it it’s well worth it.
Sorry for the crappy video quality. I had about five minutes with it before having to head out to an appointment.
Bruinrogue
New Member
I'm guessing that's one way to do it. I just have + going to the + terminal and - to going to the ground of the board. Unless Saberbay recommends anything differently.can i simply connect the white leds + and - to 5v and gnd of the proffieboard? i would like it to be always on fixed when the proffie is on
Thanks
draggerlane
Member
Well It's been 1 year 9 months and 2 days since this long Journey began when I first put my pre-order in for this saber. And tomorrow I will finally have it in my hands. I'm so excited.
Yes that's possible but you will want to make sure it's between the kill switch. For proffie sound board questions or support please ask here Proffieboards
Does anyone have an unboxing video (assembled)? Showing how to install the battery, turn it on, put in the blade, etc. This is a gift to a friend and I want to make sure they're not feeling in the dark. I know there are details for total install, but looking for something for us less talented
Edit: also looking for instructions on the buttons (how to change colors, call out sounds, etc.)
Edit: also looking for instructions on the buttons (how to change colors, call out sounds, etc.)
Last edited:
We are working on oneDoes anyone have an unboxing video (assembled)? Showing how to install the battery, turn it on, put in the blade, etc. This is a gift to a friend and I want to make sure they're not feeling in the dark. I know there are details for total install, but looking for something for us less talented
Edit: also looking for instructions on the buttons (how to change colors, call out sounds, etc.)
Battery positive goes toward the blade blade emitter
Slide negative side in first then push down battery positive
Jango Sket
New Member
Just got mine, well worth the wait!!!!
Just wanted to ask, the 4 screws for blade retention - the black set screws, or the silver ones?
Just wanted to ask, the 4 screws for blade retention - the black set screws, or the silver ones?
xwingercrash
Active Member
Got my installed hilt/blade and wow this is fantastic!! A question about the chamber...the plastic one that came with the hilt works fine but when I replace it with the brass one I got directly from Shapeways the hilt won't startup. The only difference I see are the 4 tiny magnets installed in the plastic one. Are these required to be installed in the chamber for the hilt to operate properly? Thanks
xwingercrash
Active Member
On the installed version is there a setting to make the blade light up constant white without flickering? I've gone through all the sound/FX selection options and haven't found one.
Also, after I scroll/light up; and then fully retract the light in the blade (using the primary round lit button) until the blade is unlit, if I click on the secondary (black) button one short press the blade scrolls/lights up blue with no sound effects and the light only extends about 75% from the base to the tip of the blade. This happens with all of the different sounds selections. Is this normal? Thanks
Also, after I scroll/light up; and then fully retract the light in the blade (using the primary round lit button) until the blade is unlit, if I click on the secondary (black) button one short press the blade scrolls/lights up blue with no sound effects and the light only extends about 75% from the base to the tip of the blade. This happens with all of the different sounds selections. Is this normal? Thanks
BayAreaBrenner
New Member
Not sure about your first question, but that second function you mentioned is a battery life indicator.
