Star Trek: Mark IX TR-590 Tricorder

[Dreamscape]

A little bit of masking tape and careful cutting to create a stencil...



[Dreamscape]

And so it continues... now with electronics.



[Dreamscape]

So I had a few wiring issues with the lights in the door, but tracked it down to a loose soldering connection.

I've masked off all the areas that need to be protected before I give it the first coat of primer.

20190103_201616

• Dreamscape
• Jan 3, 2019

And I've filled and sanded down the hinges/magnet in the door - and given it a good week to contract.

20190103_201816

• Dreamscape
• Jan 3, 2019

As you can see, there's some small dips in the deepest filled holes. So I'll be filling these in and giving it another week to harden/contract before sanding back again.



[Dreamscape]

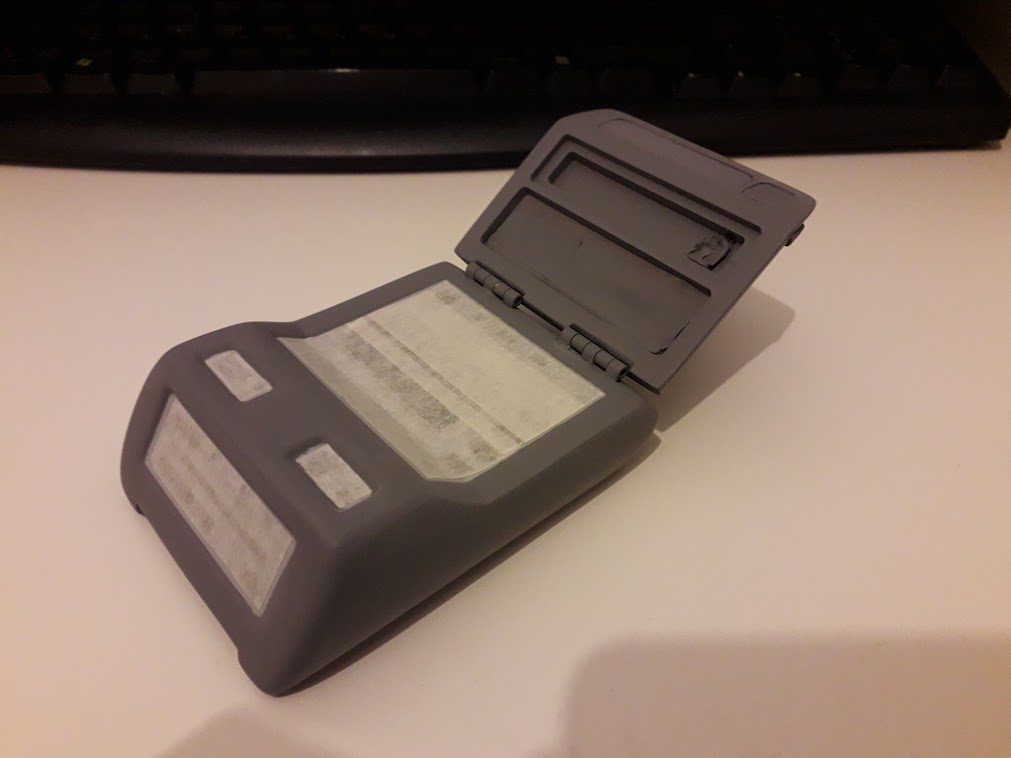

So I've got all the dips out and given it it's first 2 coats of primer.

Apart from a little nick which caught the hinge (and needed further sanding so it wouldn't scrap the paint of the hinge) all looks good.

1st prime coat

• Dreamscape
• Jan 22, 2019



[xl97]

no permissions on your posted image(s).. FYI



[Dreamscape]

Thanks - hopefully I've fixed that now.



[Dreamscape]

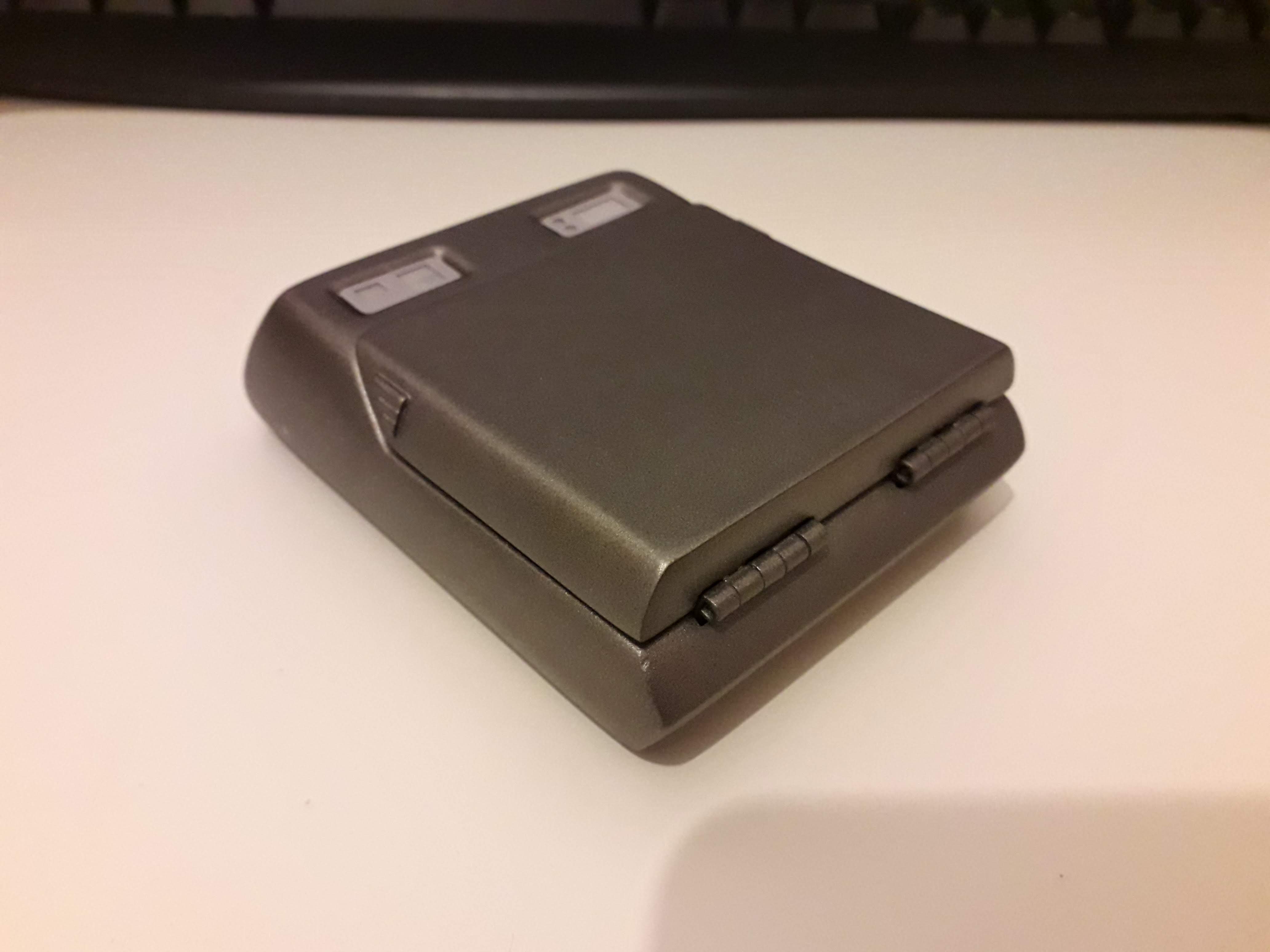

There's just a coat of lacquer to seal it, but I'm really pleased how this has come out compared to my static medical tricorder.



[AJK001]

That looks great.



[Dreamscape]

Here's a quick video of the electronics in action.

Guess I'd better focus on my phaser rifle now!
