XWing Parts Maps

[Scott Graham]

Next to the cannons is a part of engine deck from Tamiya's m4a3e8 in 1/35 scale. Larger kit.



[Junk Pilot]

Here is the Hasegawa part, the centre of which is used on the cannon body.

Yes. Hasegawa small scale sherman m4a3e8.



[Enohado]

Does anyone still frequent this thread to gather reference? I noticed that they never posted a parts map for theEngines, Cannons, Cockpit & Fuselage were never posted.

Anyone who stumbles upon this happen to know where a reliable source for those parts can be found for reference?



[Ogibendogy]

Enohado , try the SSM forums. The maps you seek are still posted there. If you're not a member yet, look up Studio Scale Models on Facebook.



[Enohado]

Enohado , try the SSM forums. The maps you seek are still posted there. If you're not a member yet, look up Studio Scale Models on Facebook.

Ah awesome, much appreciated.

Enohado , try the SSM forums. The maps you seek are still posted there. If you're not a member yet, look up Studio Scale Models on Facebook.

I tried to register but the admin disabled new account registrations. :/



[Moska]

Does anyone still frequent this thread to gather reference? I noticed that they never posted a parts map for theEngines, Cannons, Cockpit & Fuselage were never posted.

Anyone who stumbles upon this happen to know where a reliable source for those parts can be found for reference?

Hi Enohado.

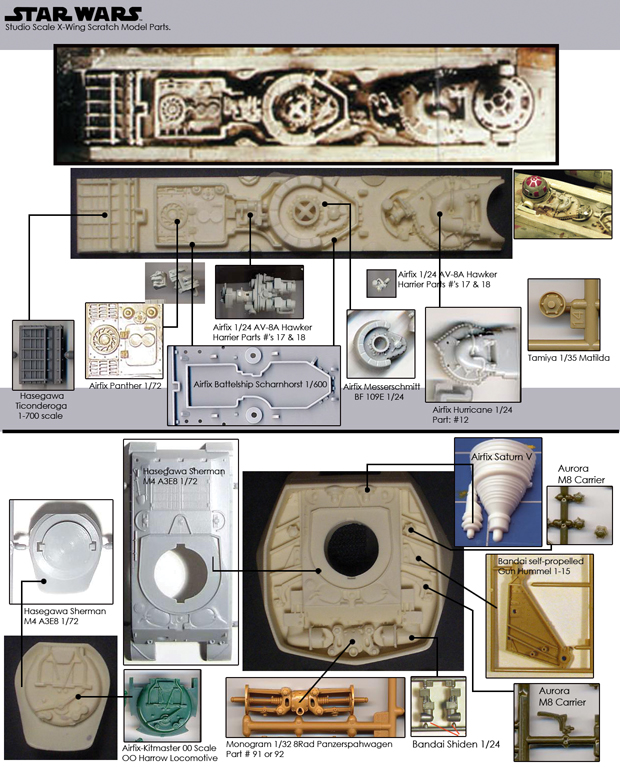

I made this parts map (PDF) a few years ago. It is not complete, but I hope you find it useful.

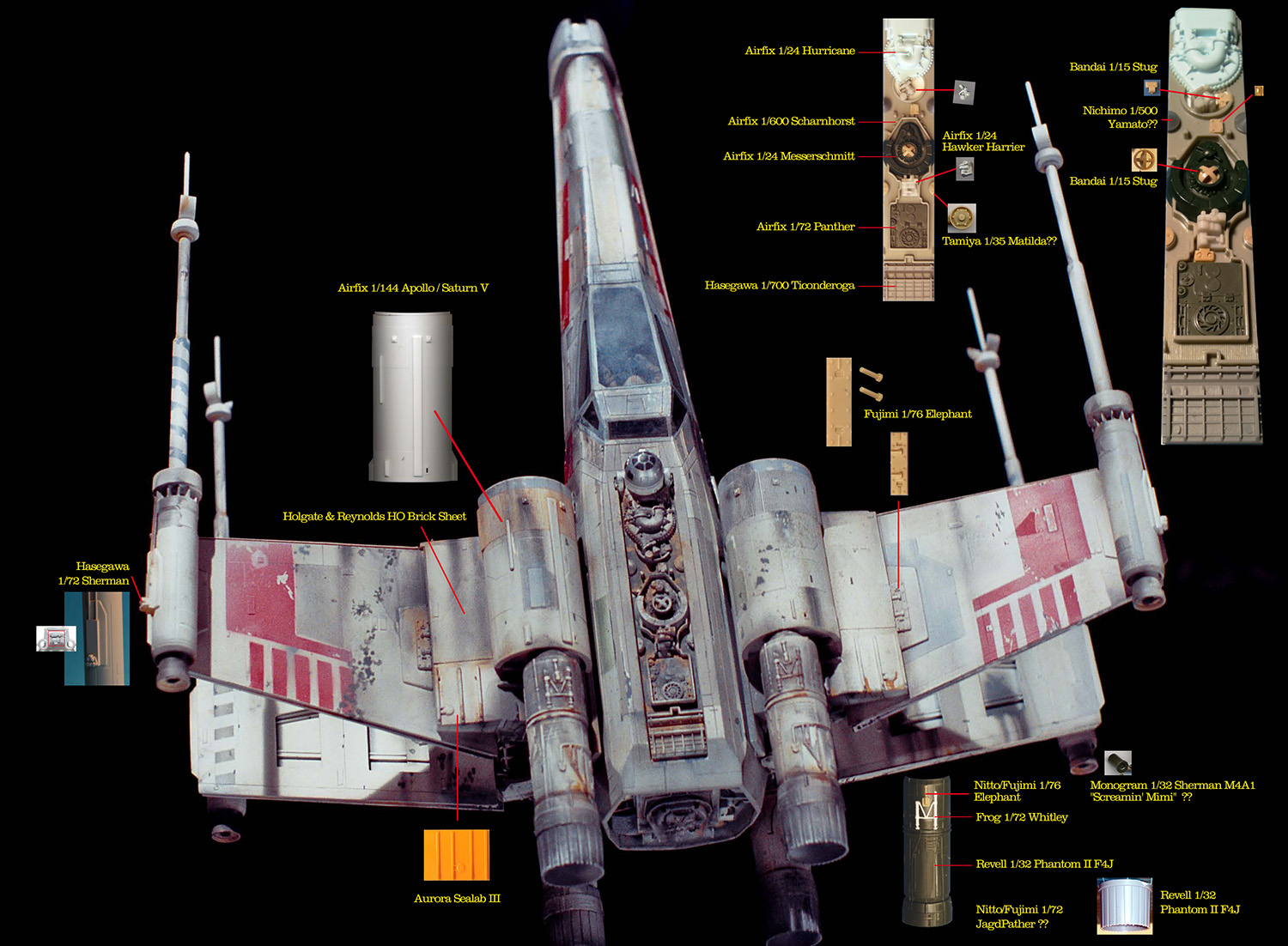

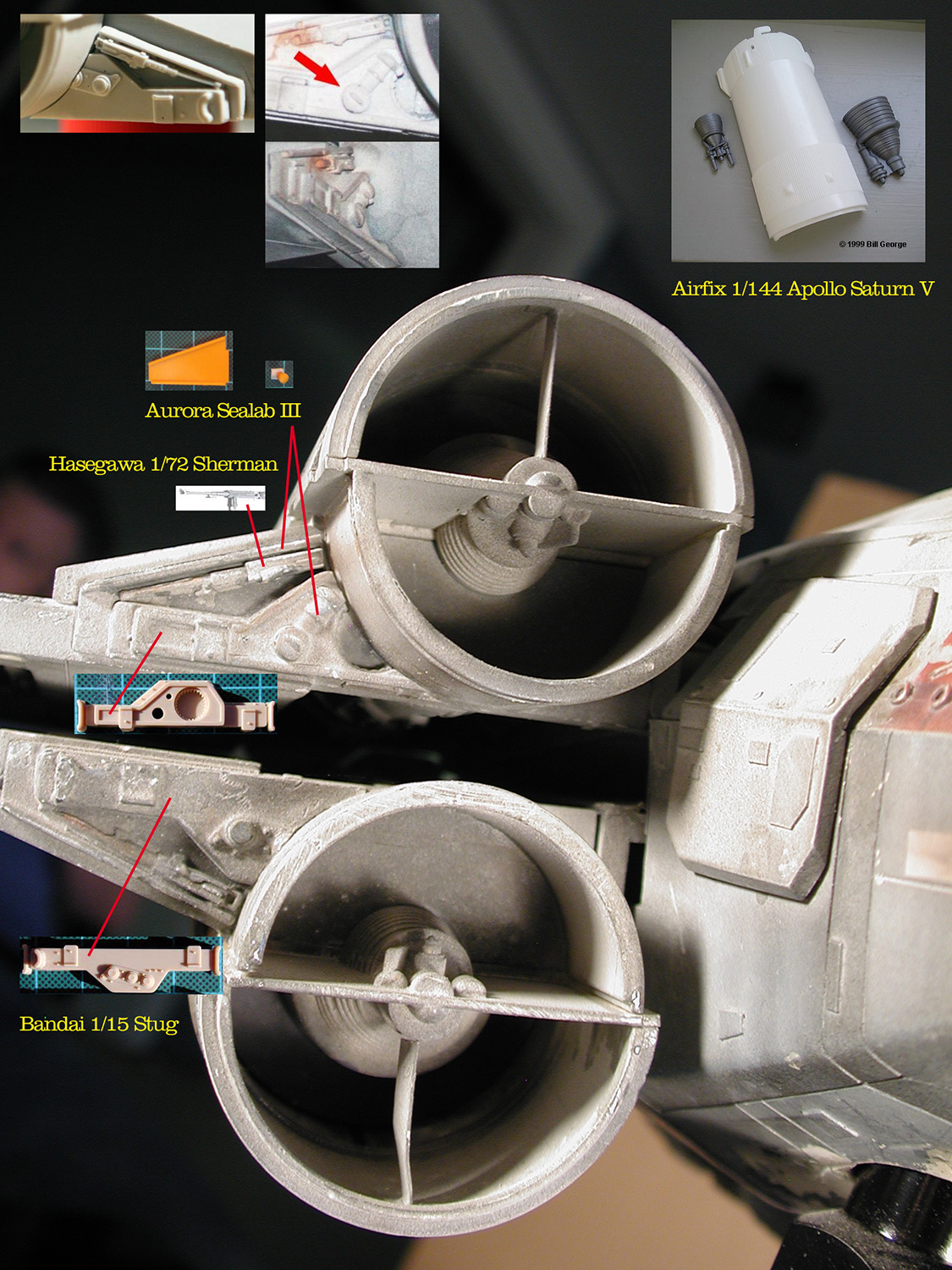

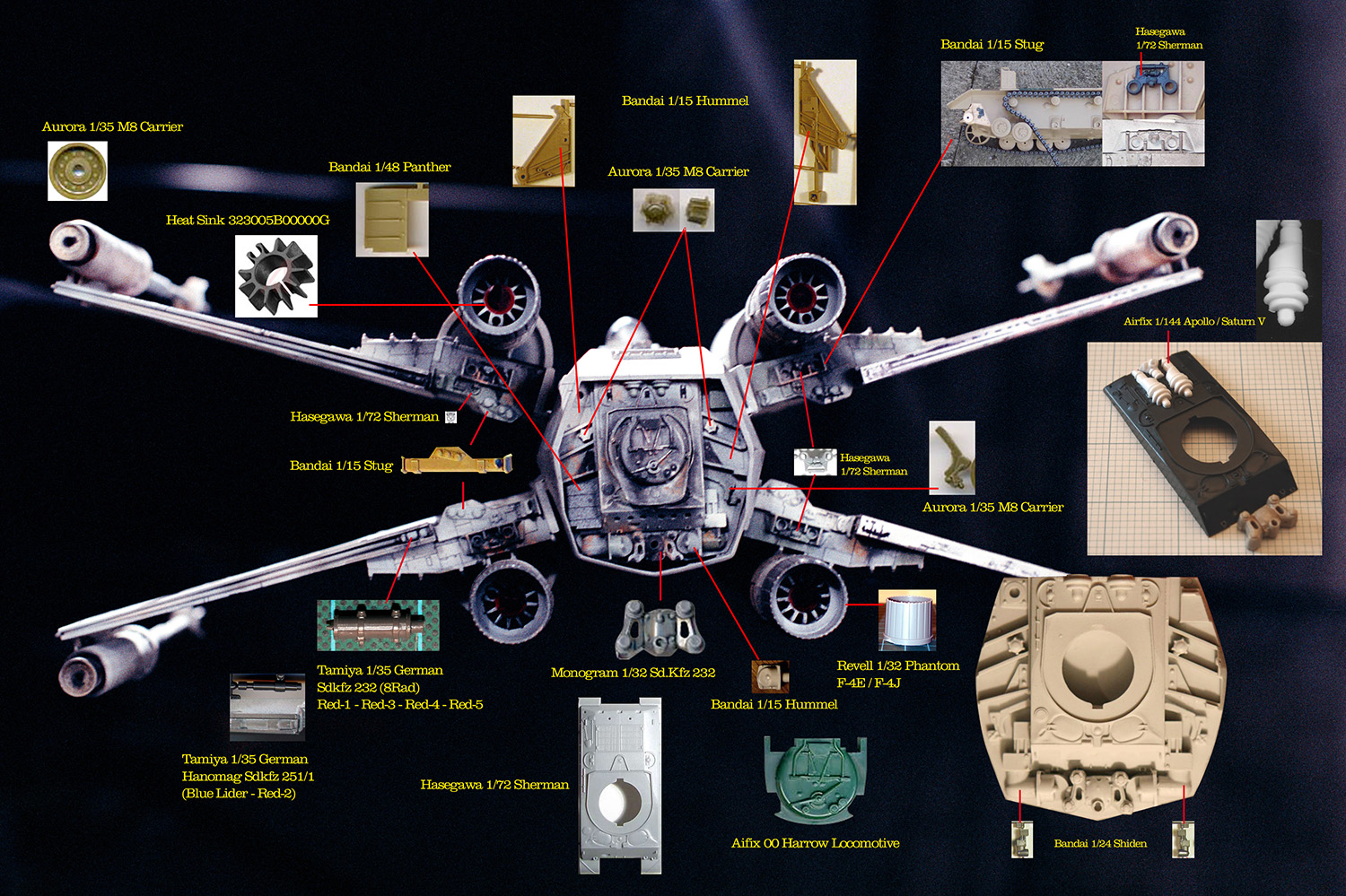

I also put some images of parts maps that were very helpful to me.

Best regards.
Rafa



[Ogibendogy]

Great share, Rafa!



[ganesha7]

Wow, Rafa!
You did it again...
I want to take this opportunity to thank you for your mythical tie bomber parts map.
That pdf changed my life!
Un abrazo desde Valencia!



[wizardofthenorth]

Does anyone know what the 5 plugs for the electronics on the side are?
Any modern equivalents?

Thank you



[Jkirkon]

Does anyone know what the 5 plugs for the electronics on the side are?
Any modern equivalents?

Thank you

I just used brass tubing to replicate it.



[Bjorn]

I would have thought that they were just brass or copper tube.

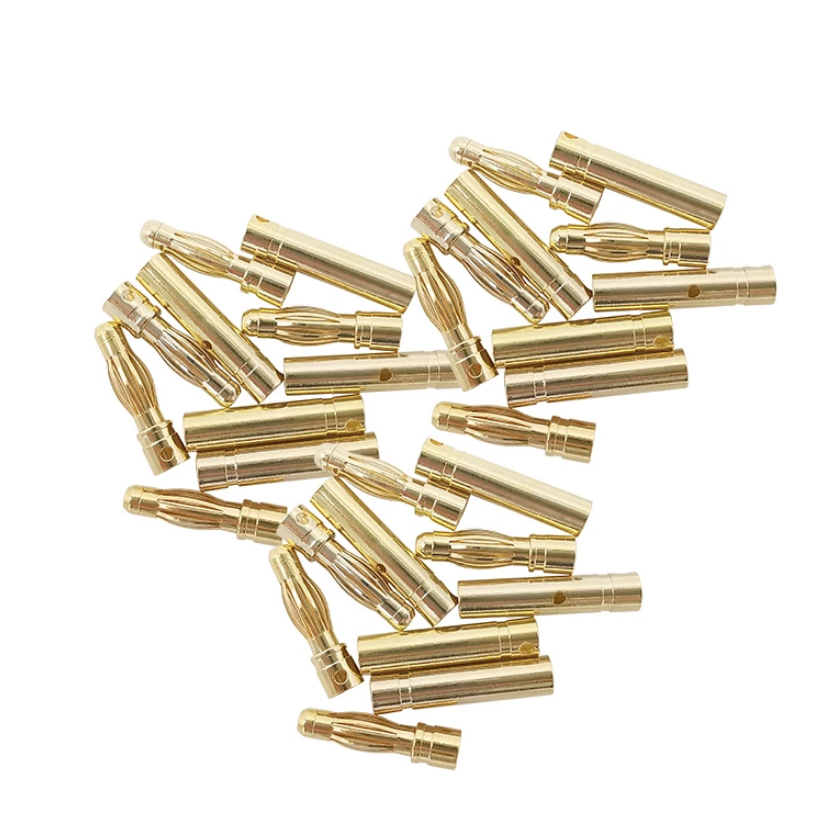

There are now a variety of small round gold plated connectors used for electric rc model aircraft that are somewhat similar.

I known them as bullet or banana plugs.

K&S style tube is probably more authentic though.

I should add, excellent, ID work in this thread! A big thank you to the amazing pioneers here!



[wizardofthenorth]

I would have thought that they were just brass or copper tube.

There are now a variety of small round gold plated connectors used for electric rc model aircraft that are somewhat similar.

I known them as bullet or banana plugs.
View attachment 1493745

K&S style tube is probably more authentic though.

I should add, excellent, ID work in this thread! A big thank you to the amazing pioneers here!

That is what I was thinking they were, banana plugs. Ty



[kh39]

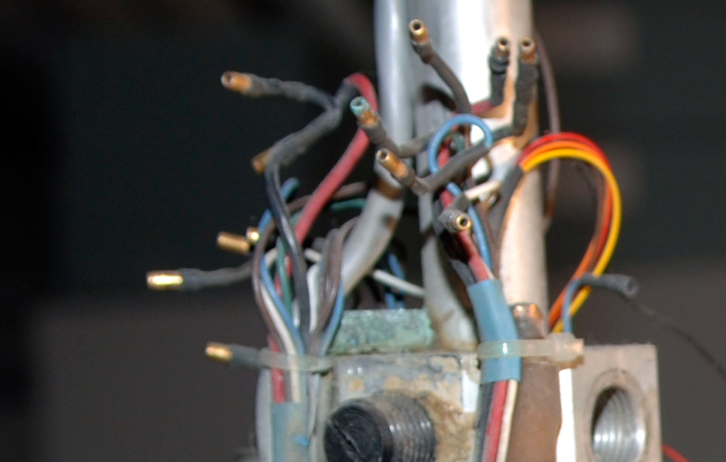

This image was posted by Jason. I couldn't find the correct female plugs before my X-Wing was finished but I'm interested in what were used for X-Wings.



[Jkirkon]

I imagine they originally used the female end of the connectors. The female connectors would be made from a thinner gauge brass, but I think brass tube looks the part well enough, though.



[Bjorn]

Great shot from Jason, jeez he has some great references...

Yes, it appears they a small bullet/banana connectors.

Awesome!



[kh39]

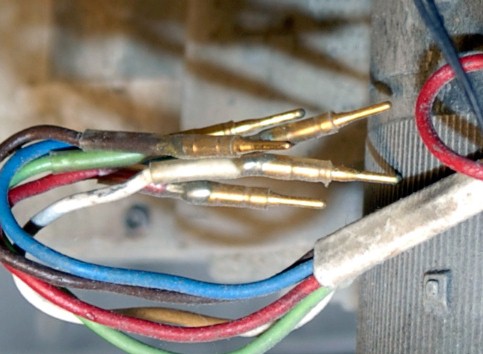

Sorry, I forgot to post this.



[Redfinger]

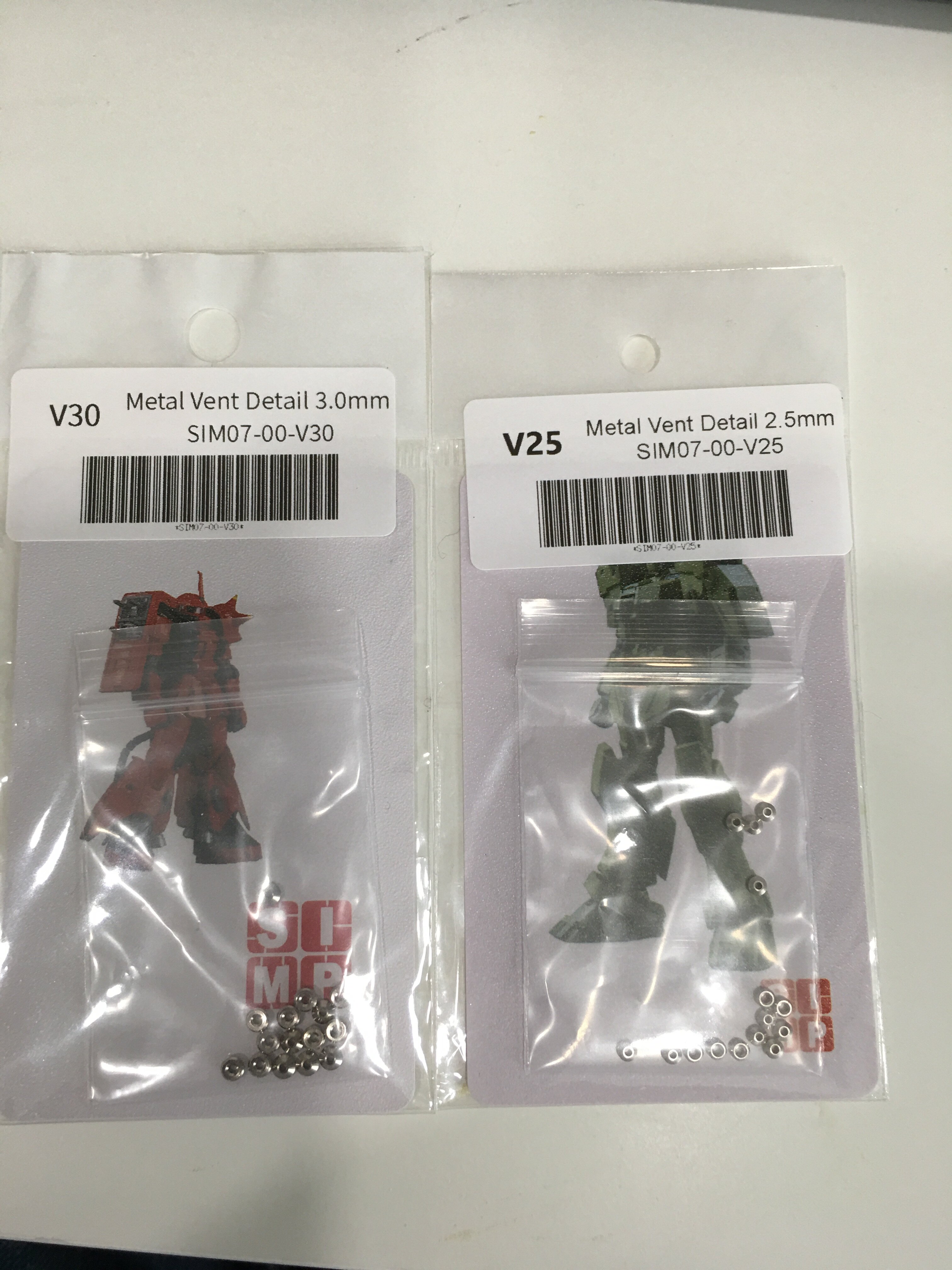

This is what I am planning on using. Not sure the exact size as I haven’t gotten to that part of my build. They are detail parts for Gundam models. Not studio accurate, but I think they look better.



[bwayne64]

Anyone know why the Droid strip map has 9 parts, but the list underneath has 14.



[joewhite]

Anyone know why the Droid strip map has 9 parts, but the list underneath has 14.

That first one is my map. However, it looks like Jason used text from a older map he had on SSM. Same parts but that other map had different a different numbering pattern.

Joe



[bwayne64]

Thanks I figured it was something like that. I know my eyes are bad, but knew they weren't that bad, ; )
