NASA ACES HELMET

[Hughes]

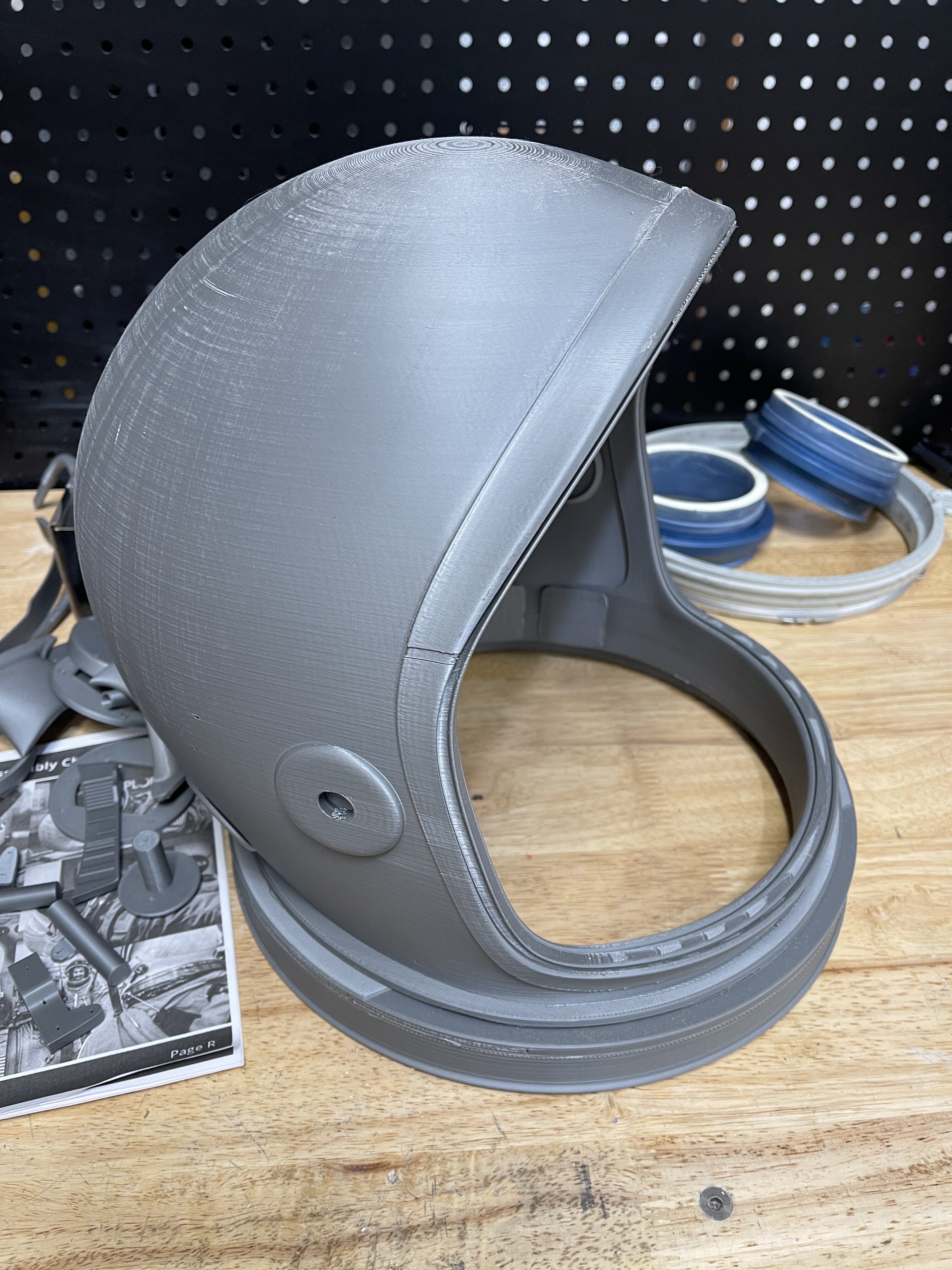

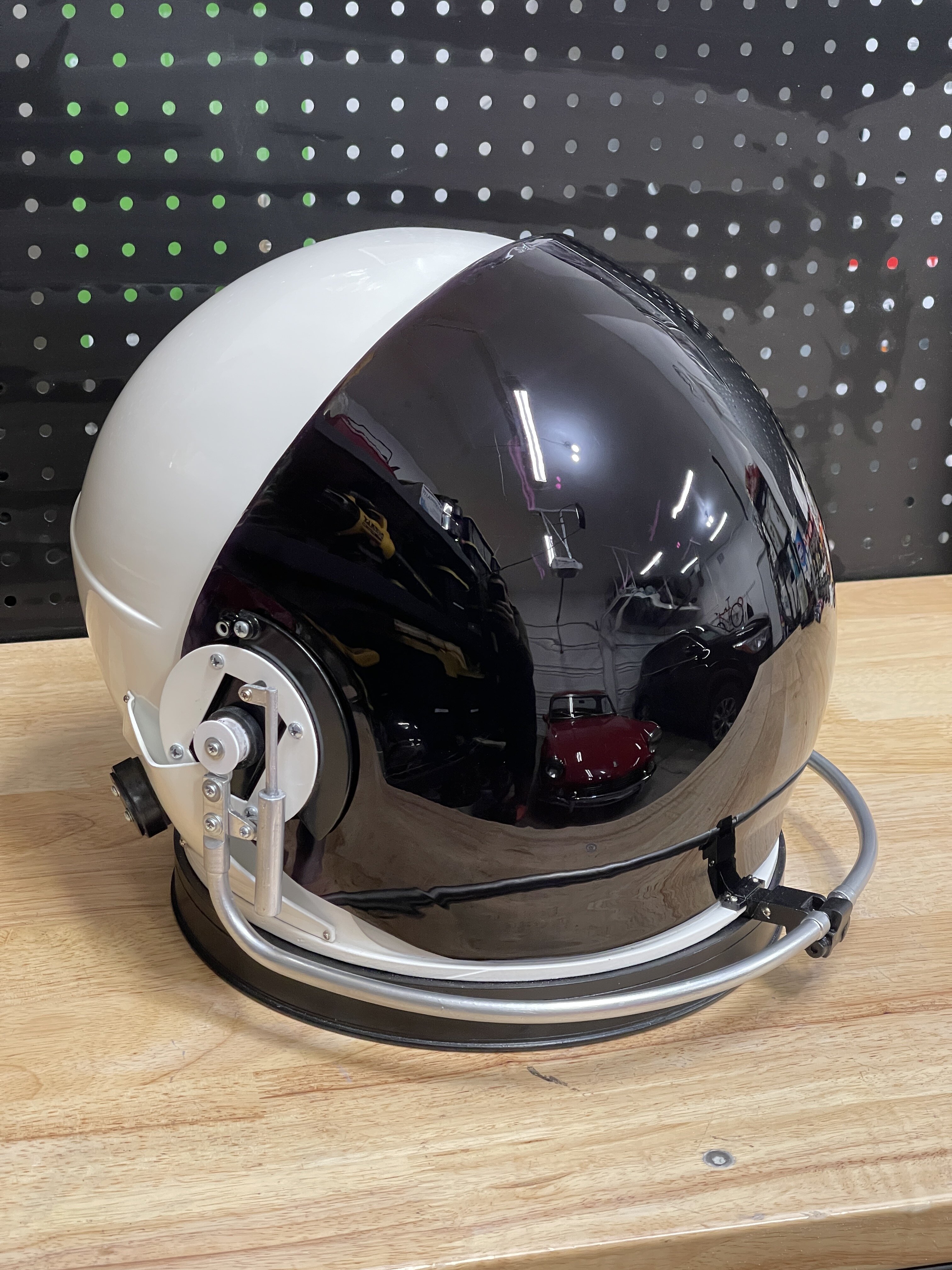

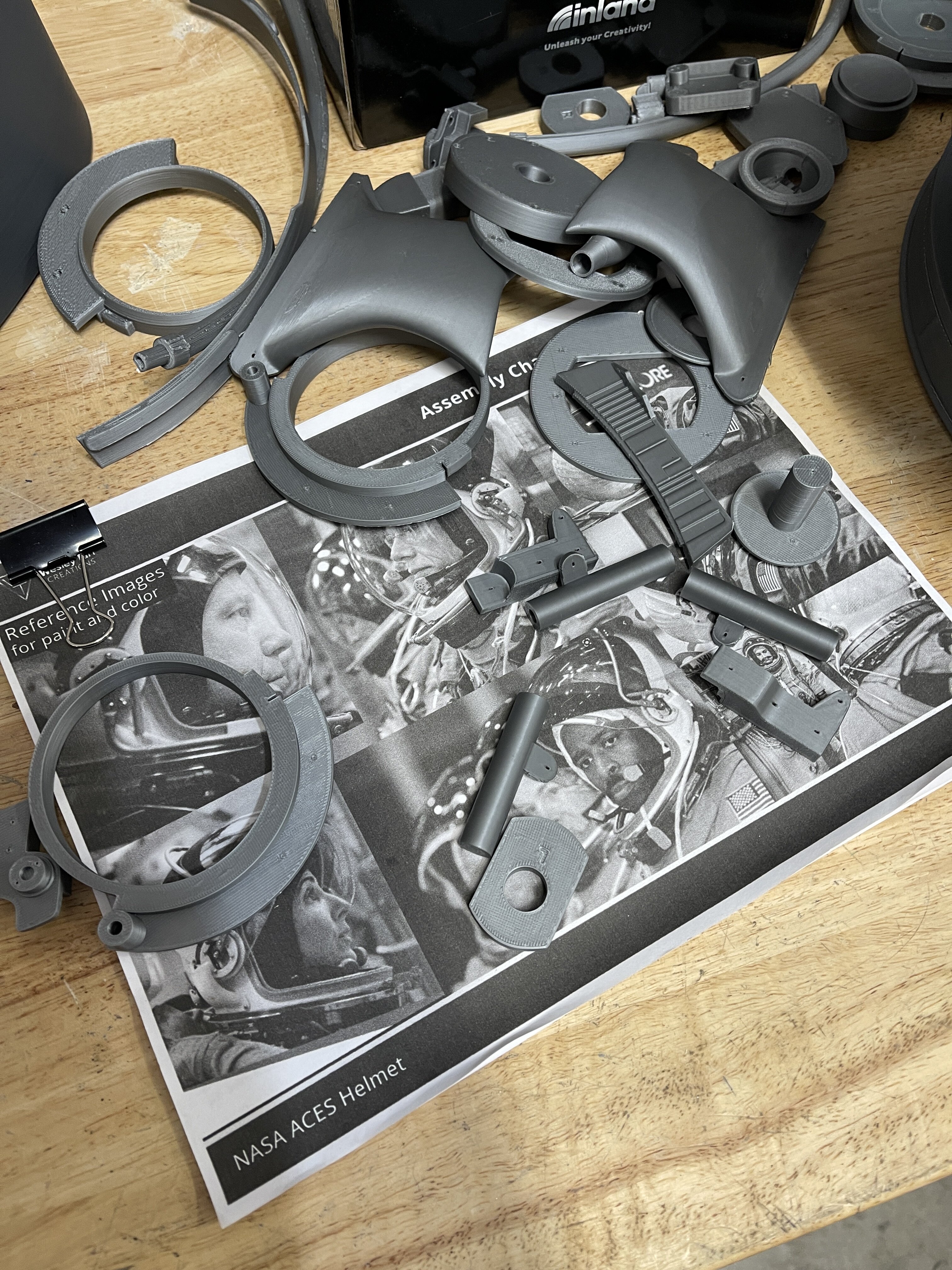

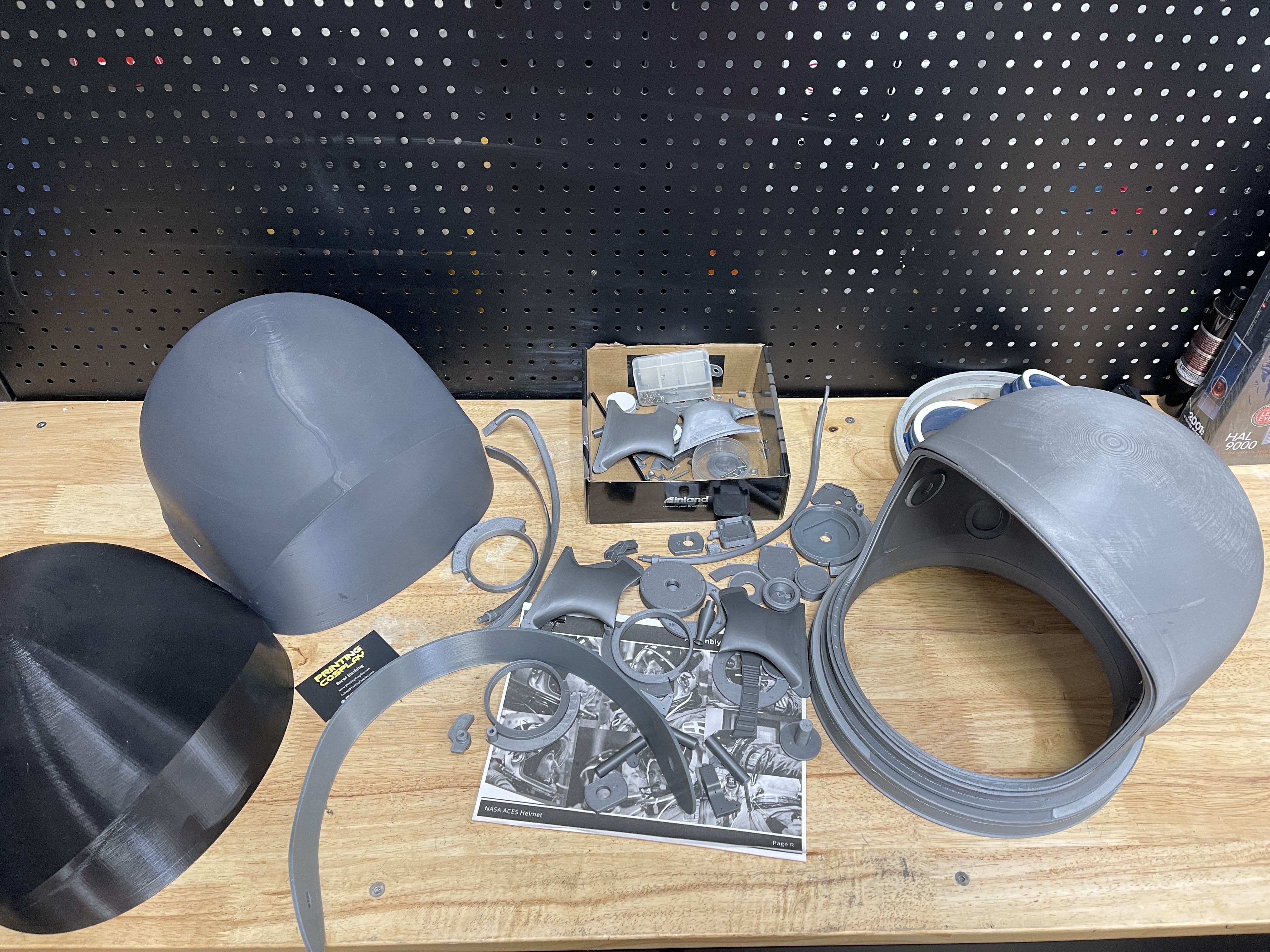

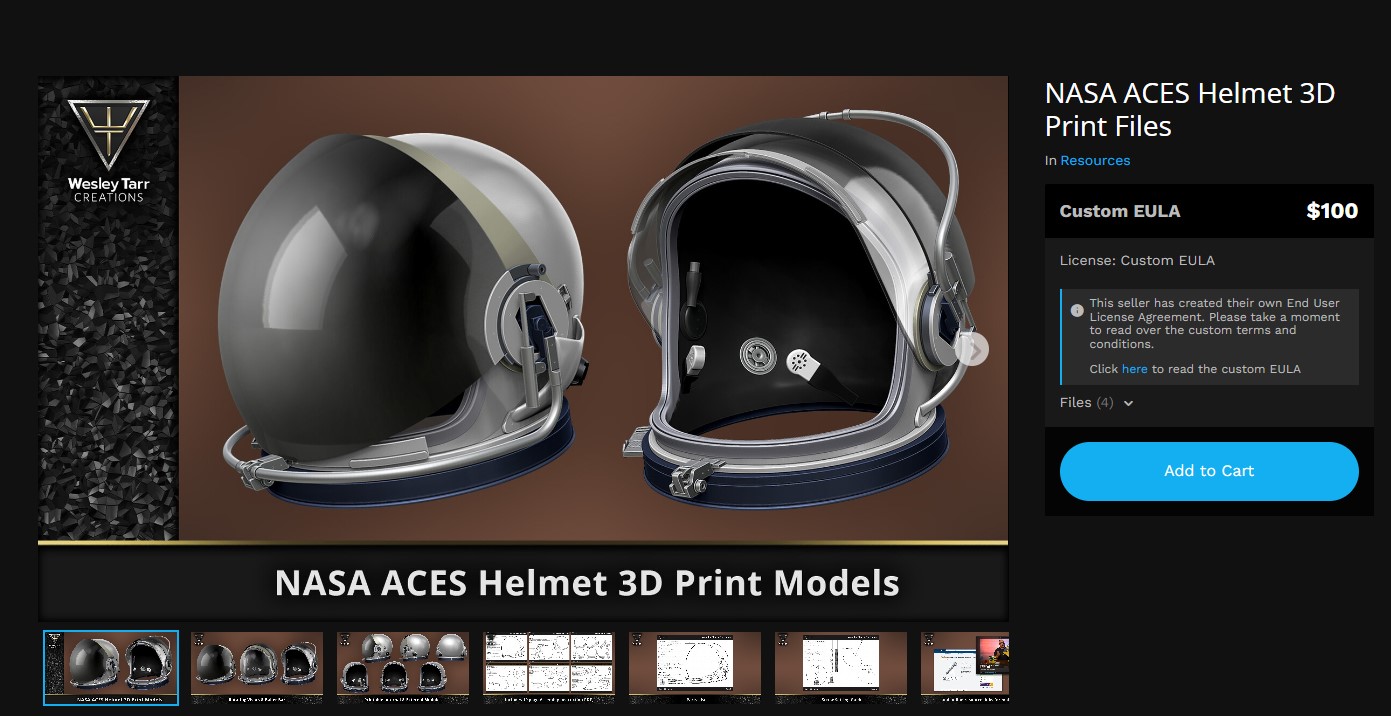

Starting another NASA ACES Helmet build. I've included pictures of the first one finished. This helmet is also a print from Wesley Tarr files. I've just started sanding and it's really bringing back some memories of the process. Lots and lots of sanding and filler primer. Fortunately I already have everything this time around to vacuum form the visors.



[Hughes]

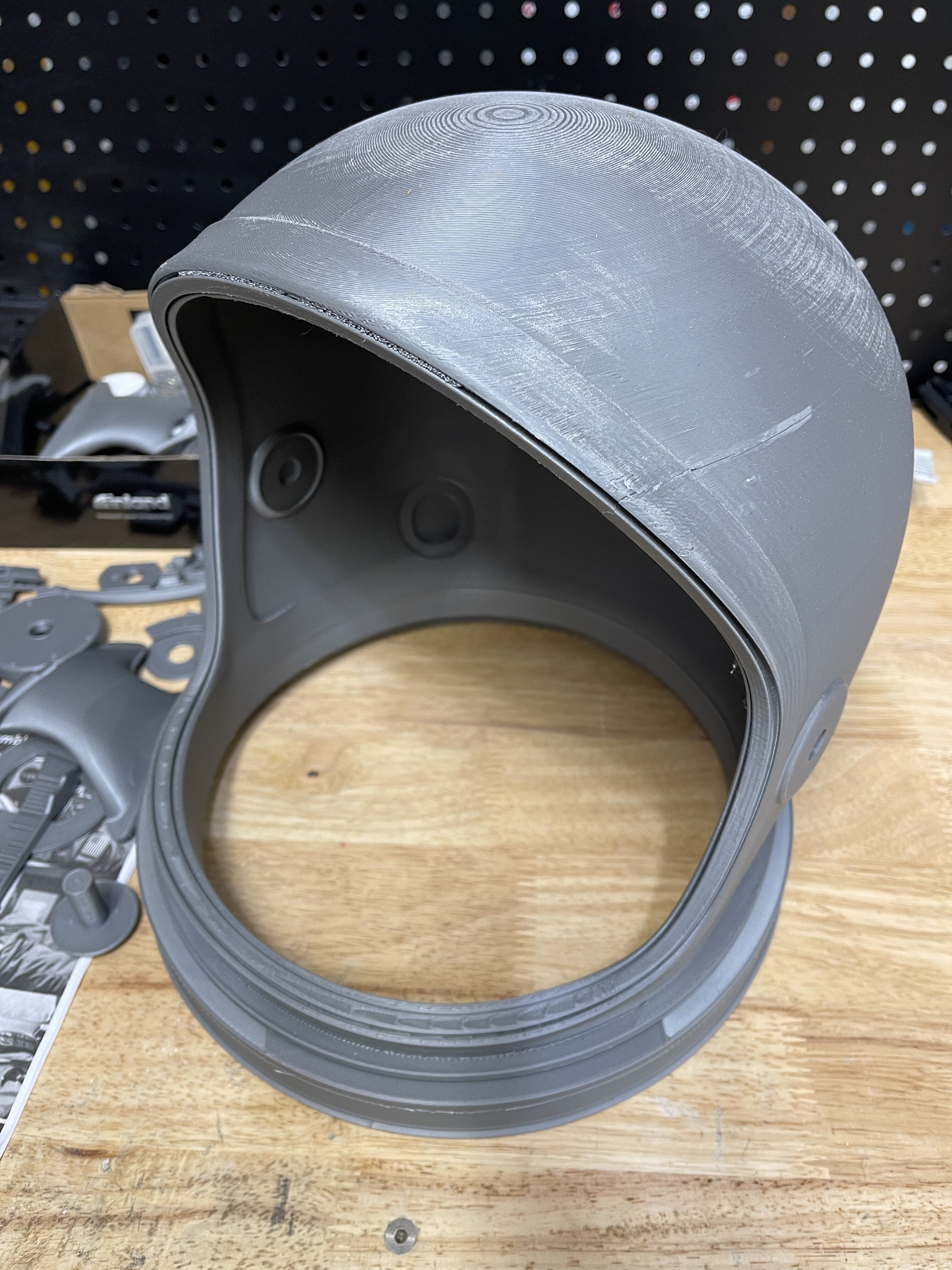

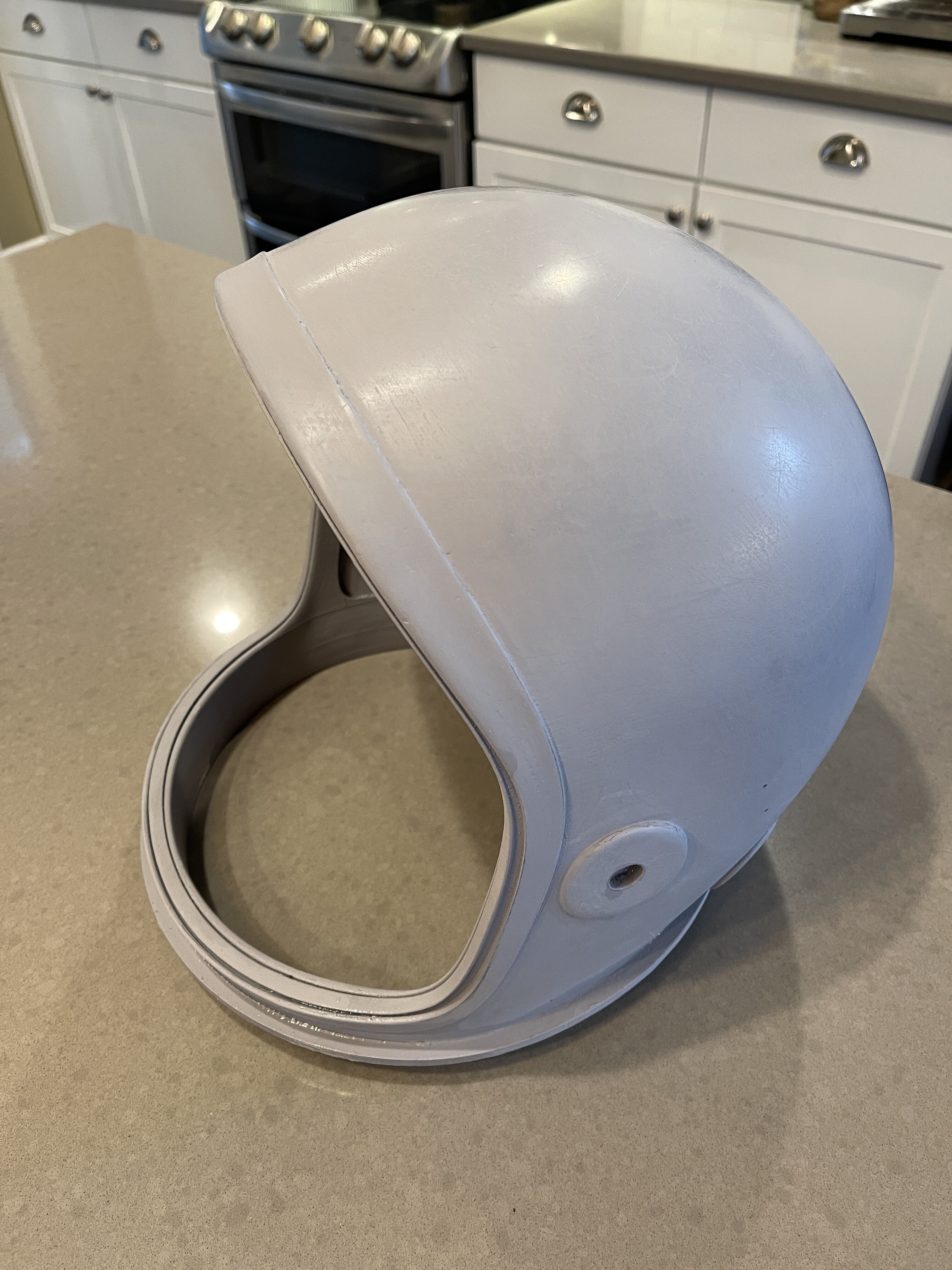

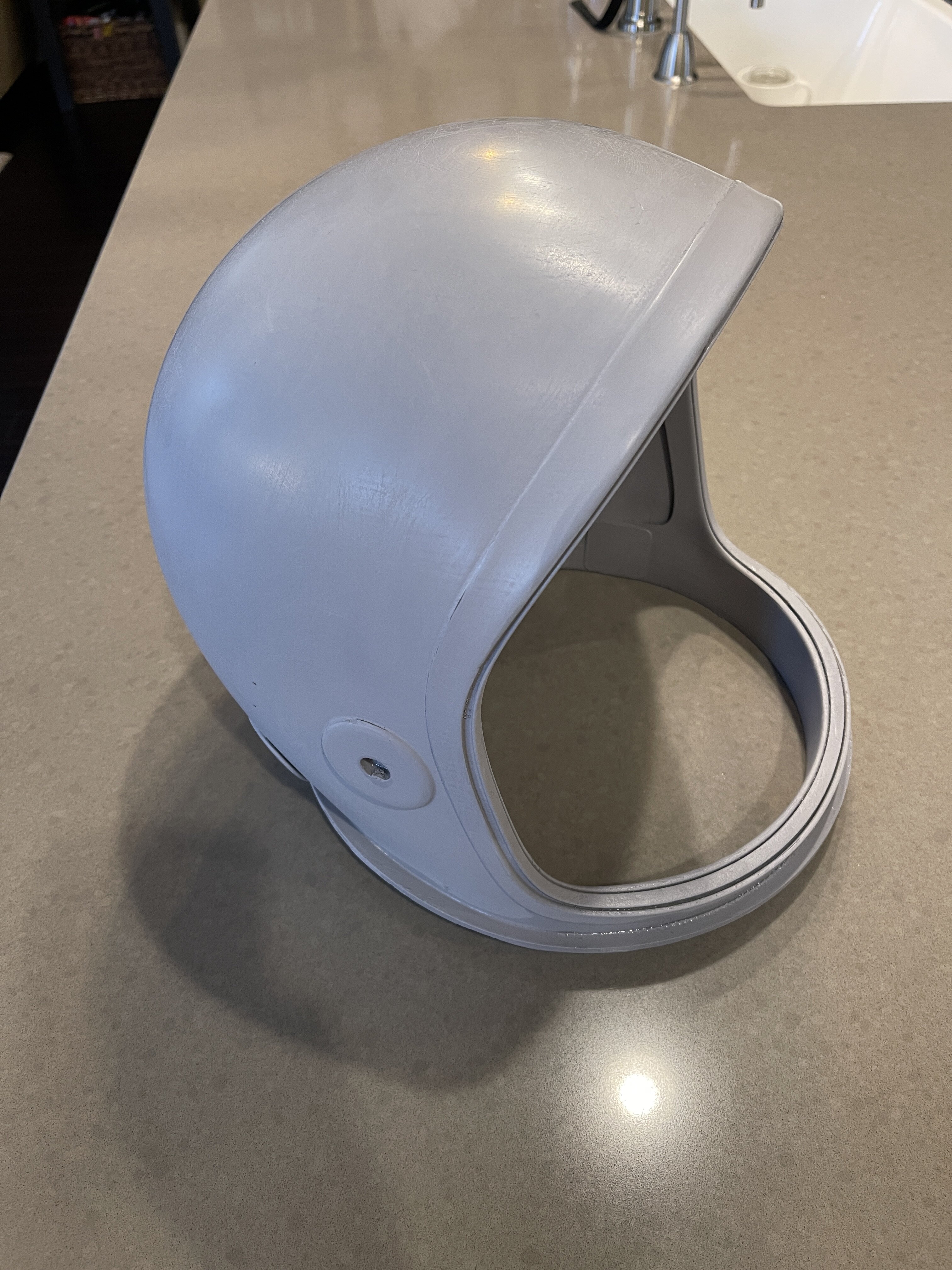

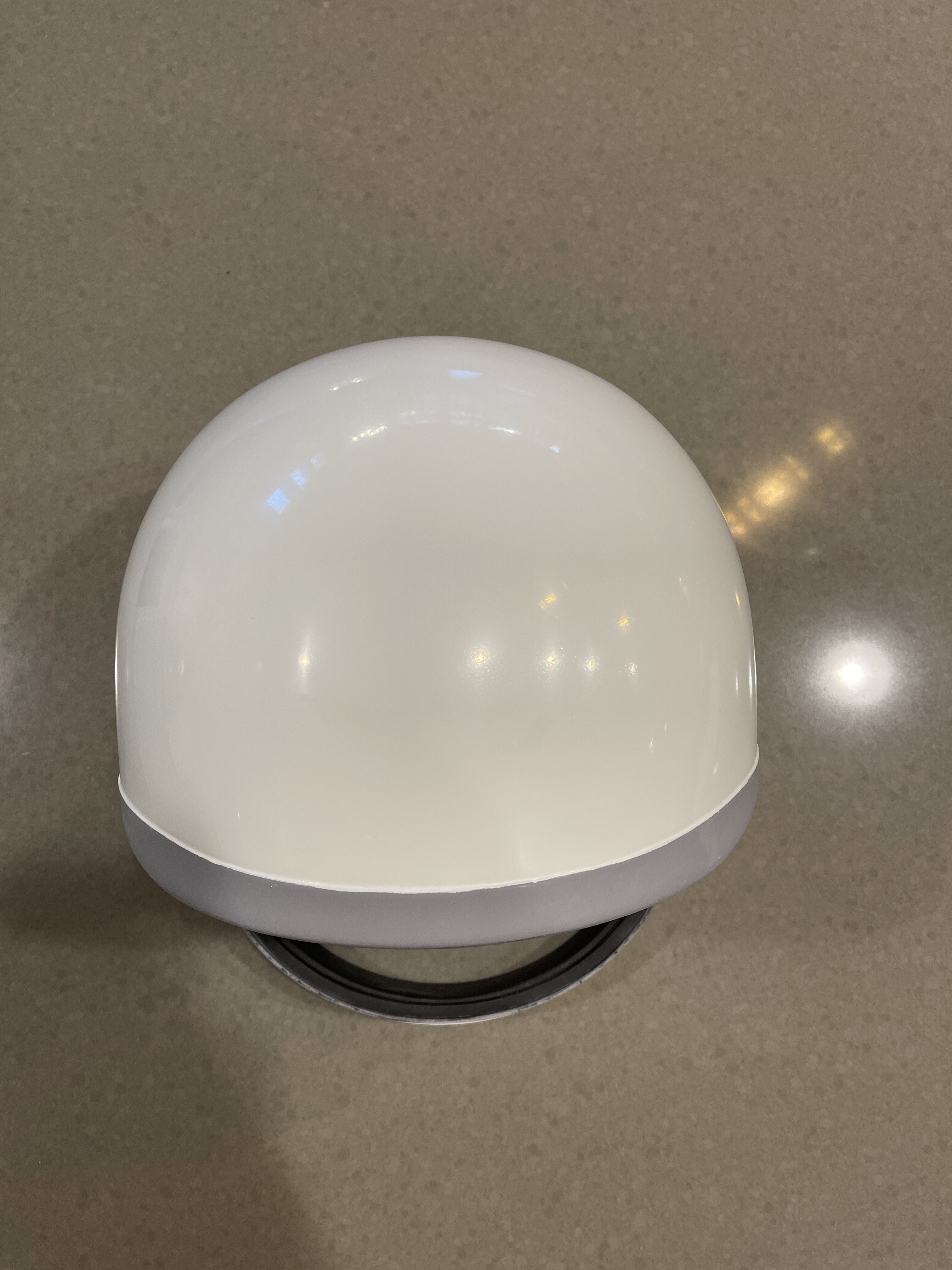

A bit of progress on the main helmet filler primer and sanding. Still a bit to go.



[Hughes]

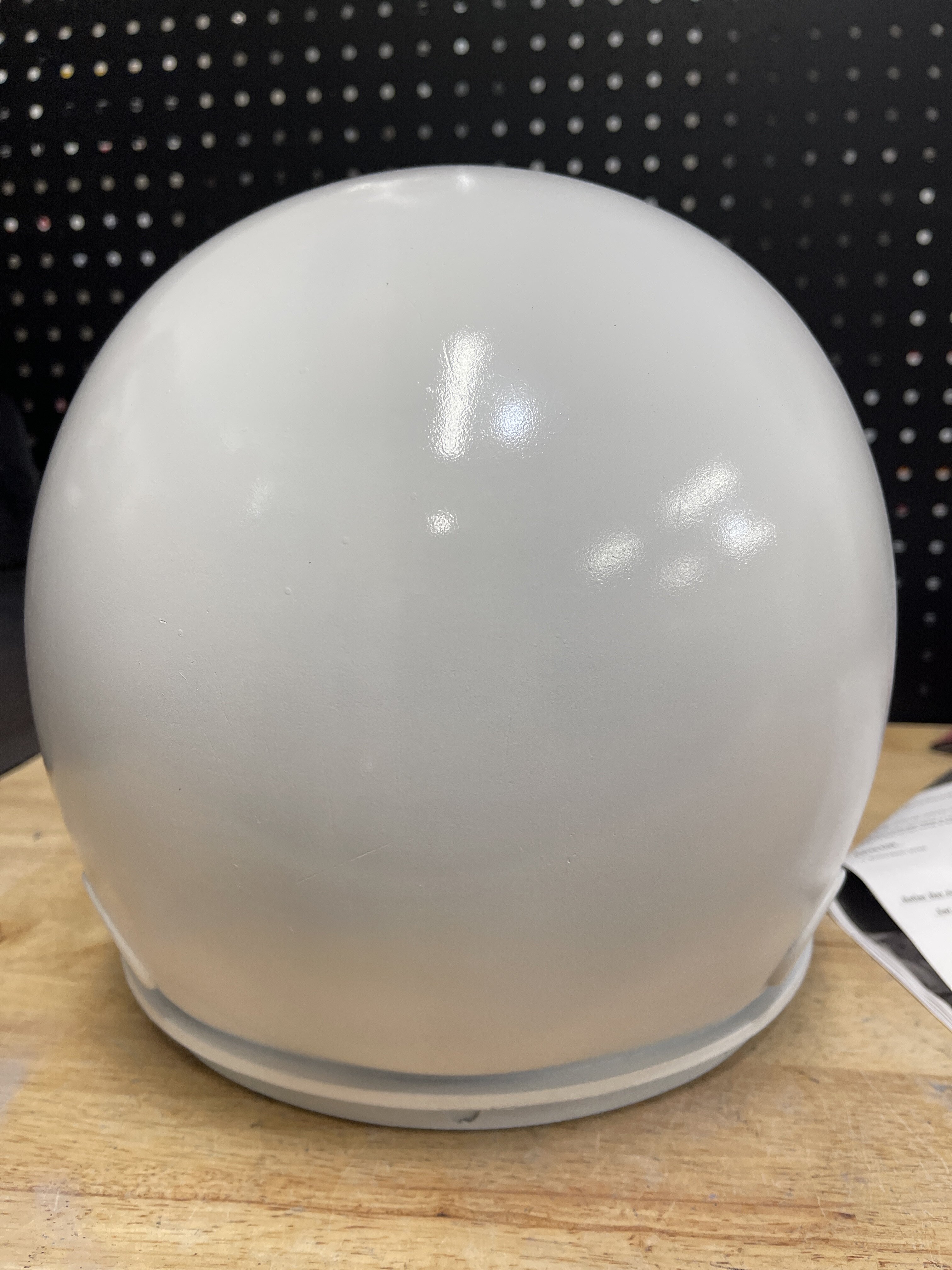

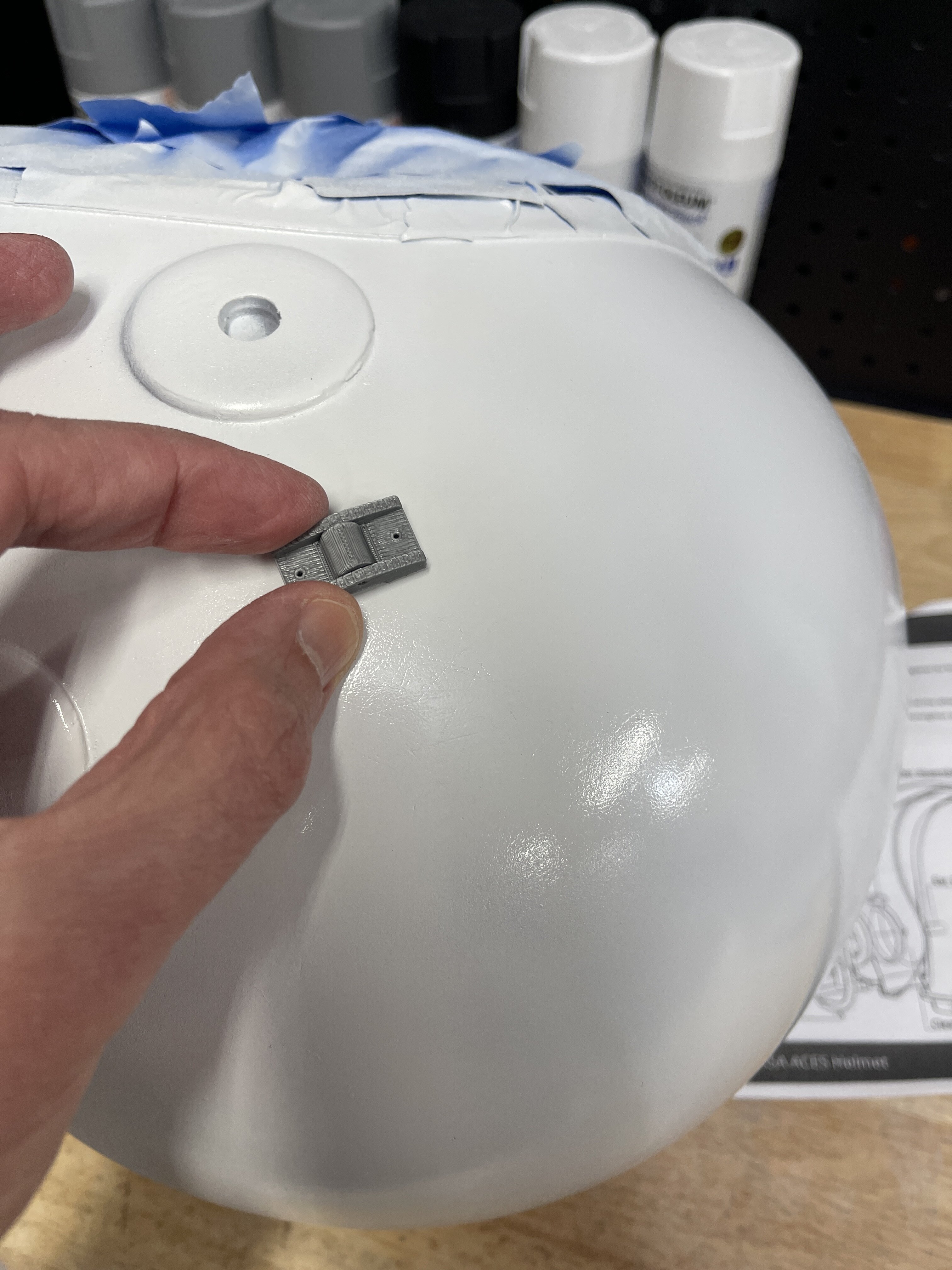

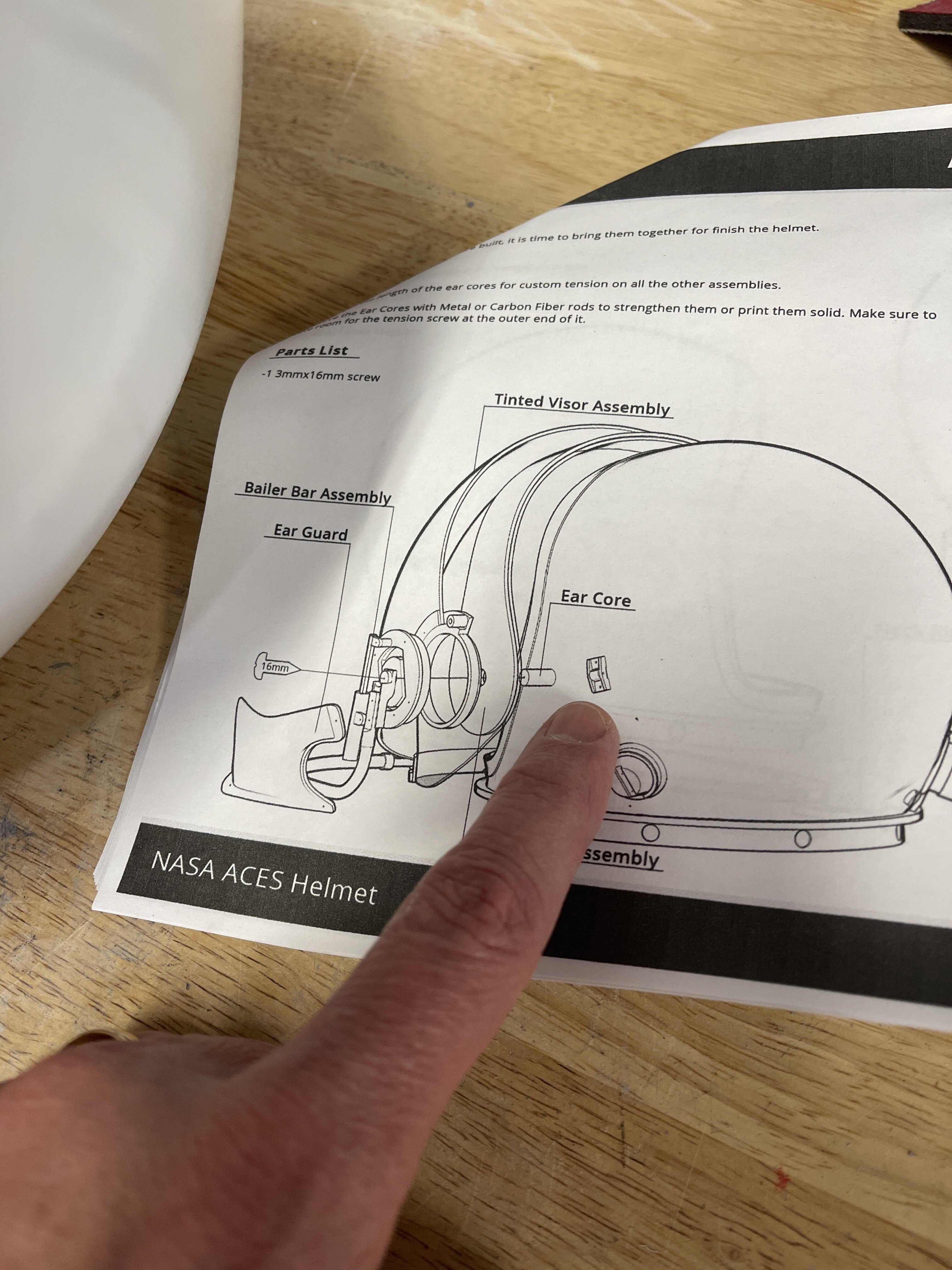

Assembly instructions show a bracket behind the ear core. I kind of like a clean clutter free look, but I suppose I’ll mount them. They are also on original ACES helmets….hmmm. This is just a couple of light coats of white at this point.



[Hughes]

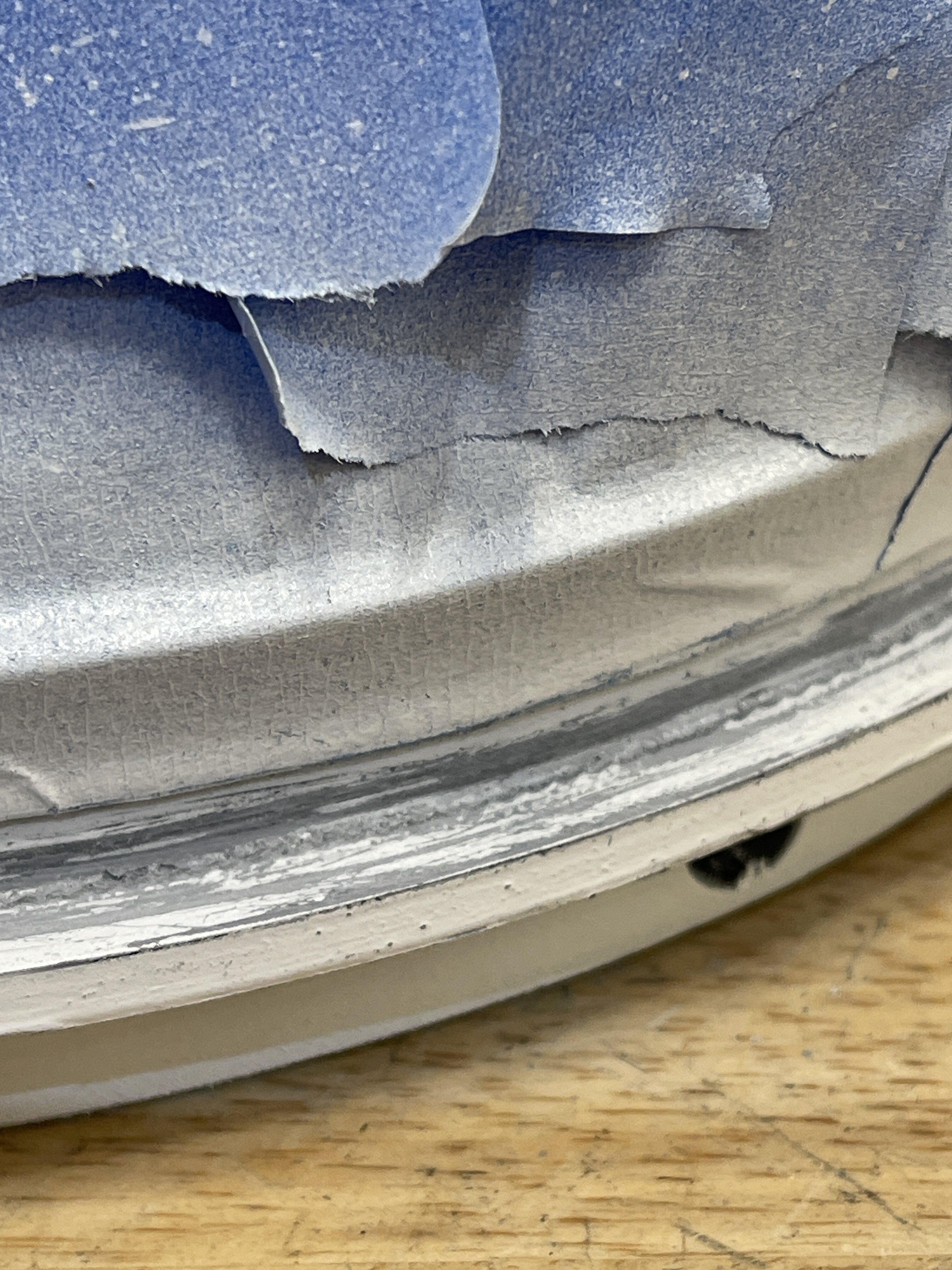

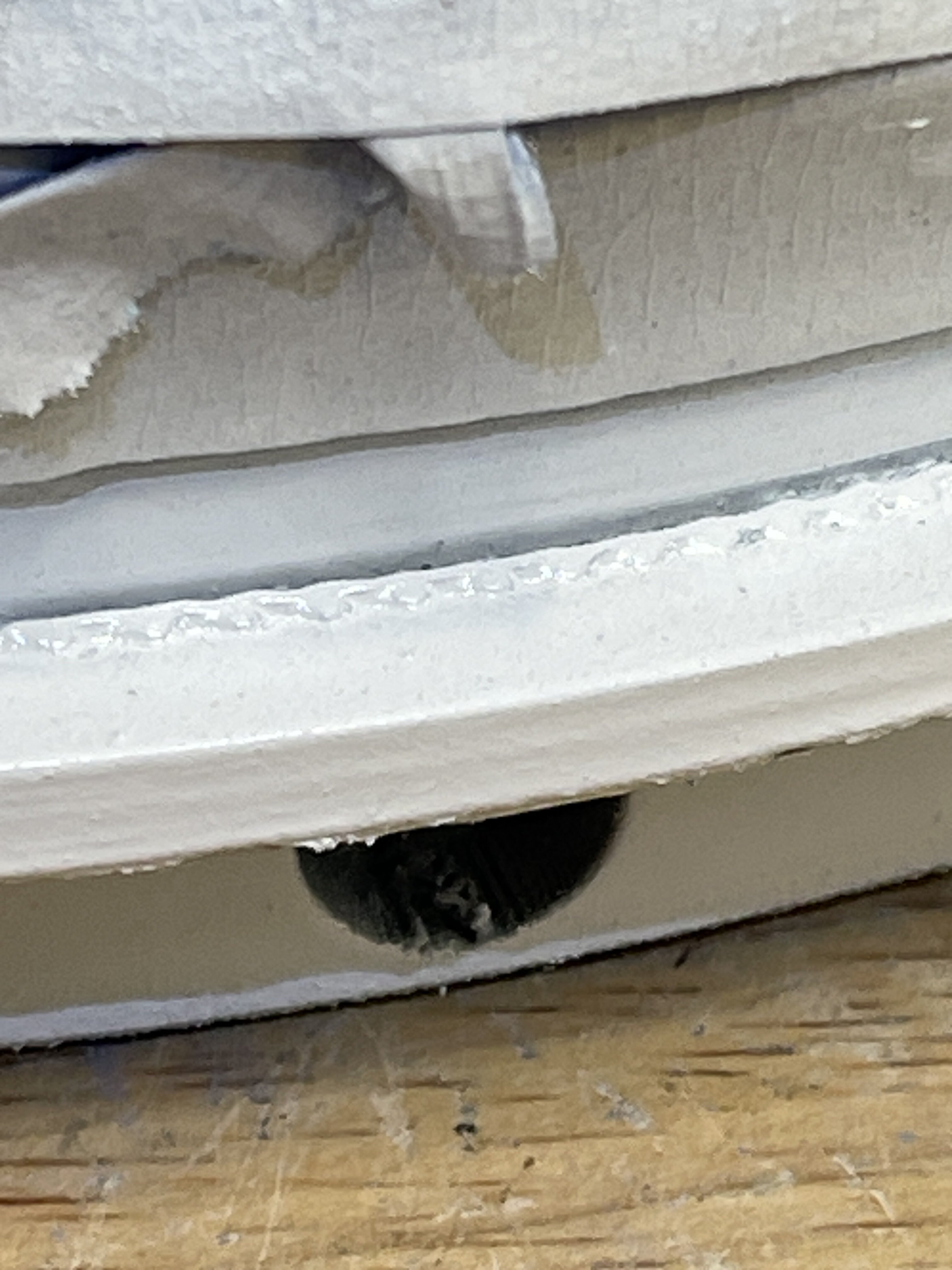

Noticed some areas that have 3D printing issues that I missed on sanding.

Trimming these ridges down and then painting again.



[Hughes]

Looks better after some more fine tuning.



[gregday]

That looks tremendous!



[Hughes]

That looks tremendous!

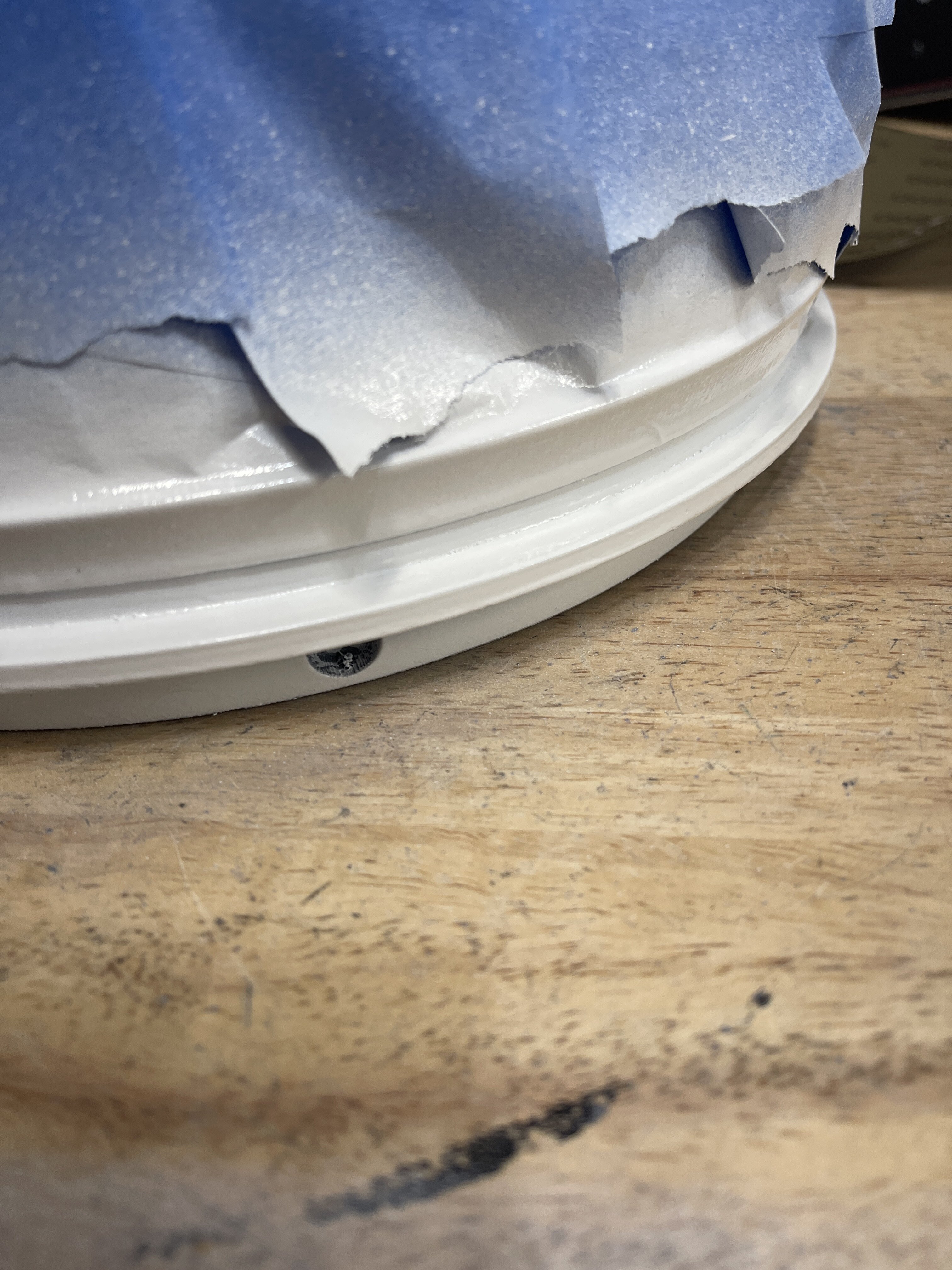

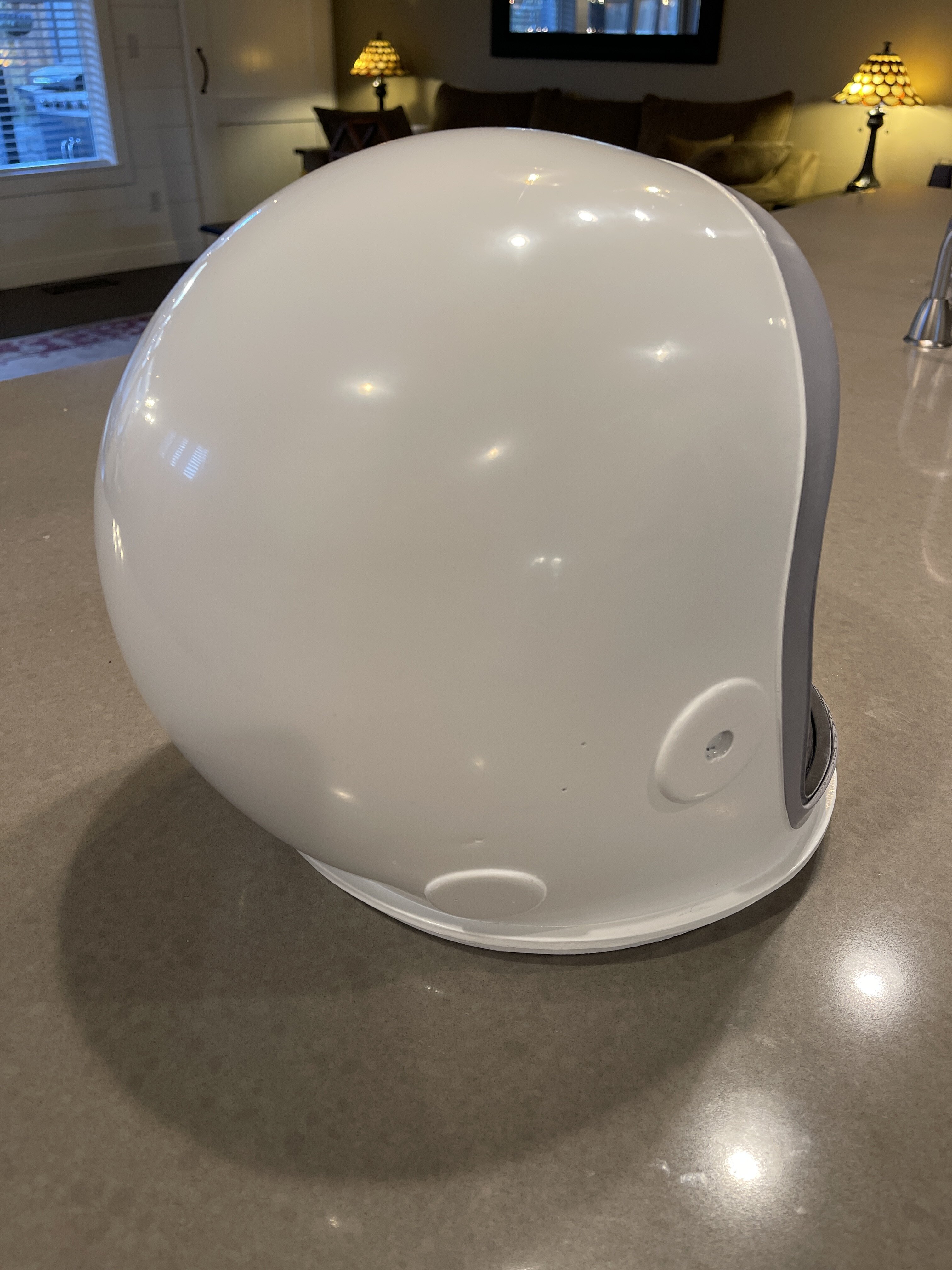

Some more wet sanding to 3000 grit, but I think more is required .



[Hughes]

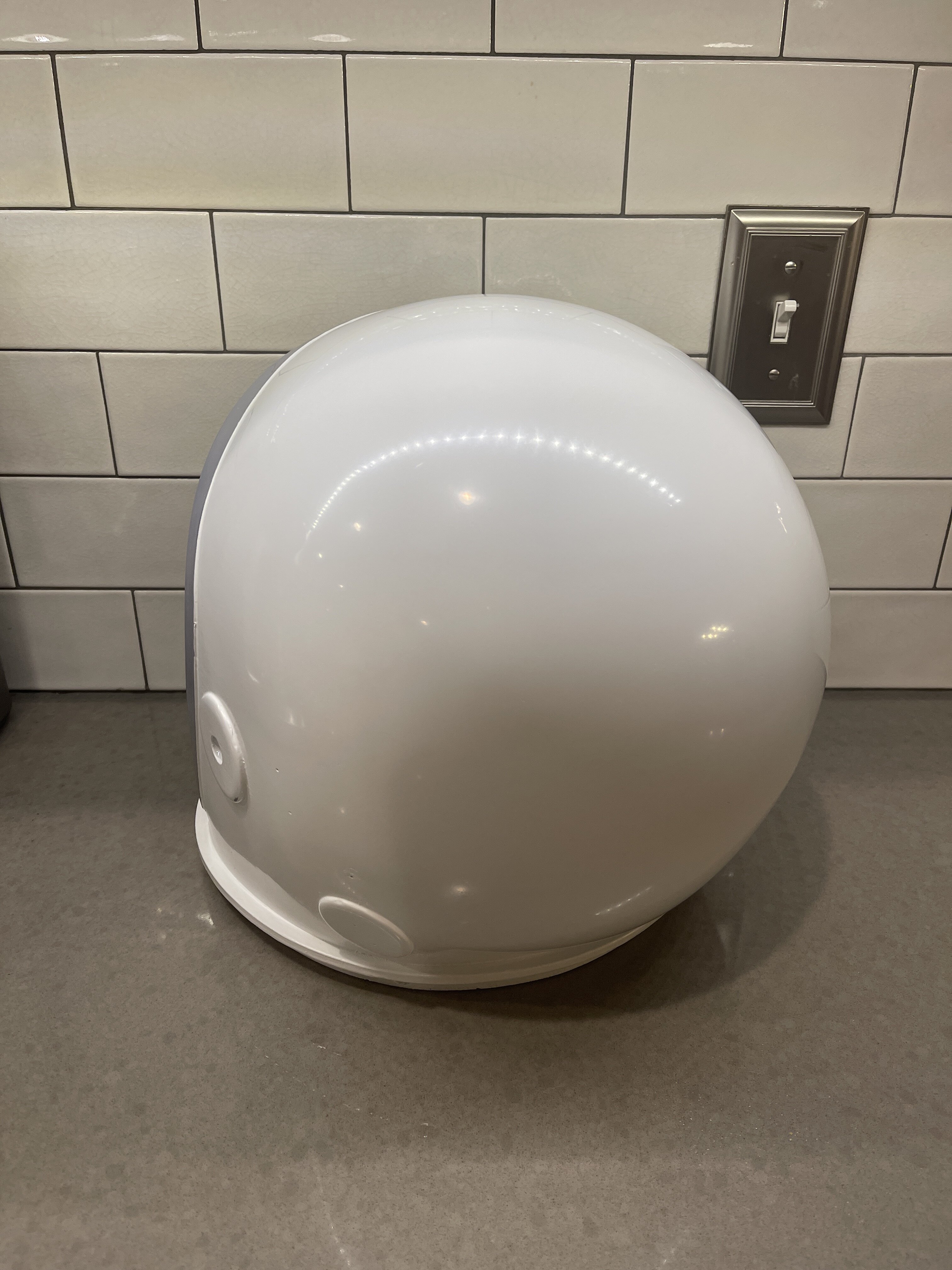

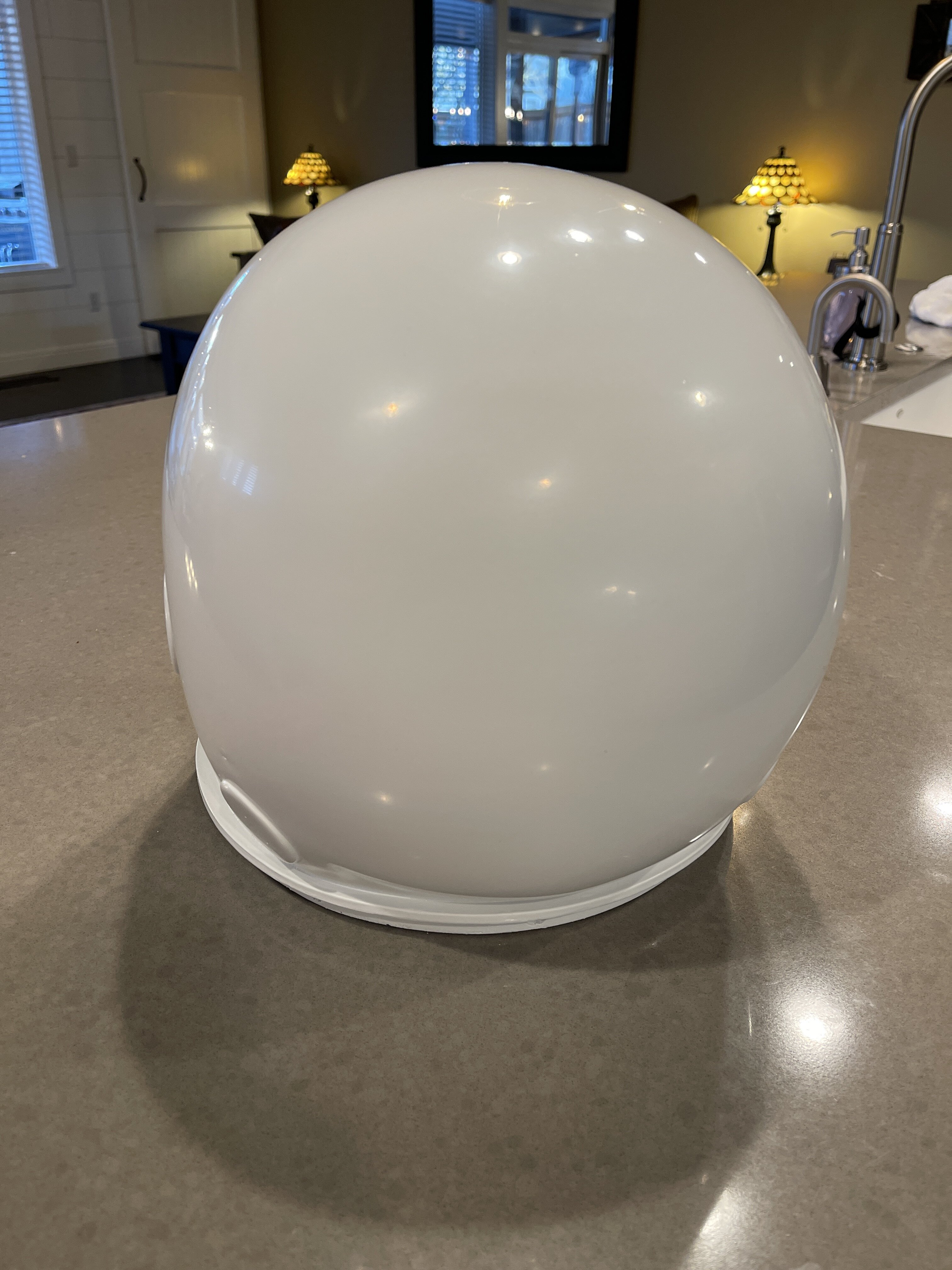

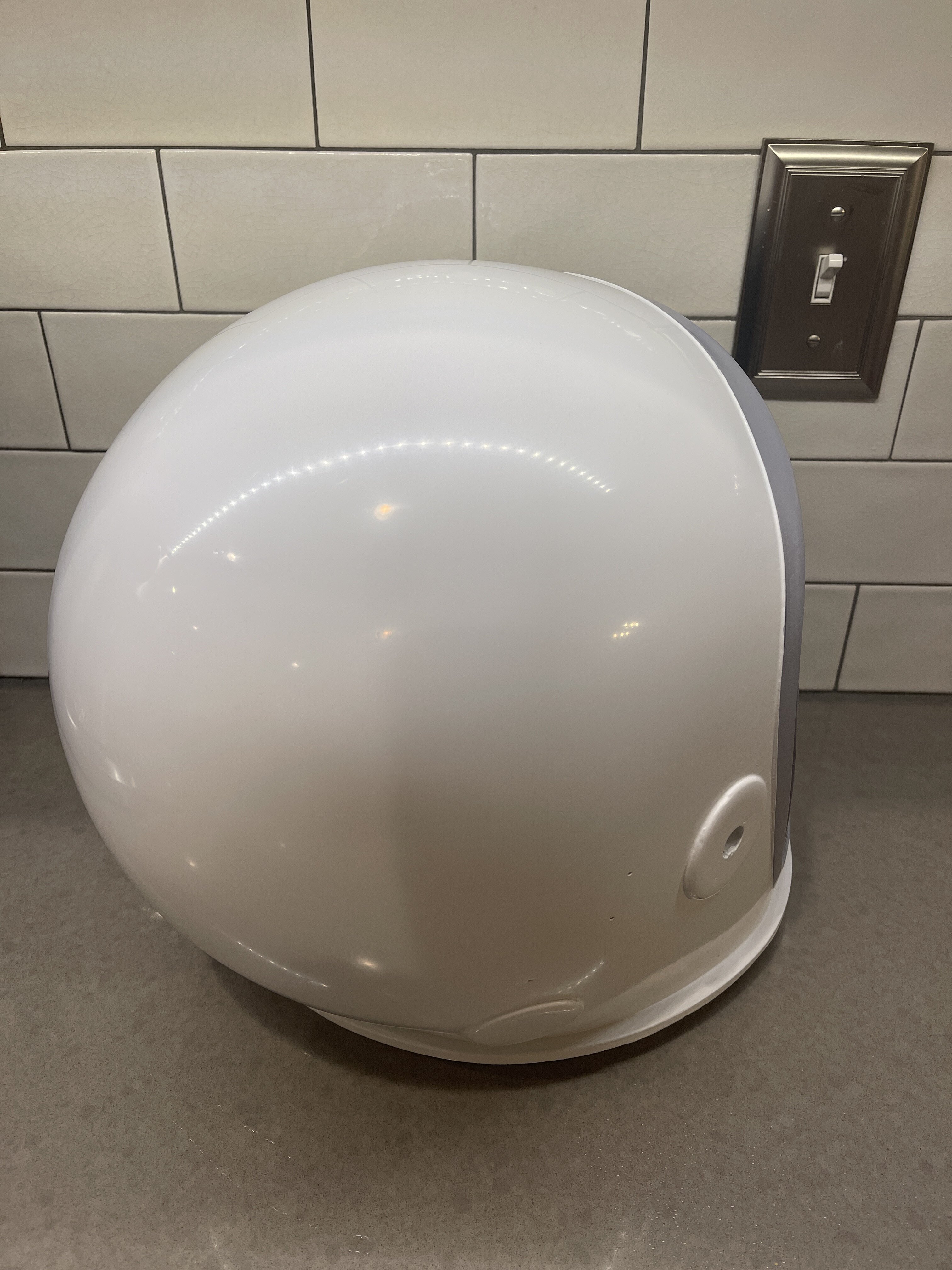

Okay a bit more sanding and I think it’s probably good enough.



[Hughes]

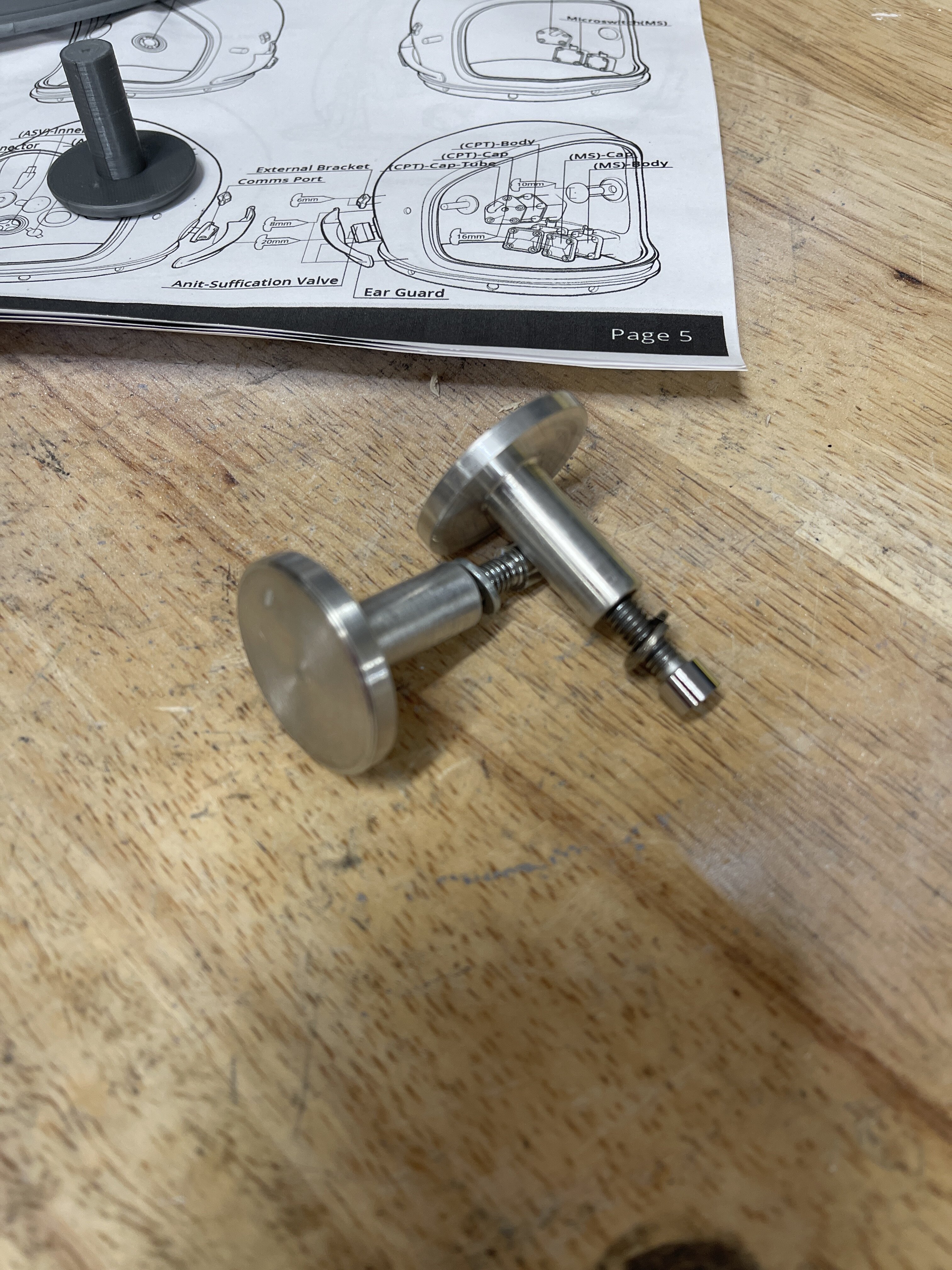

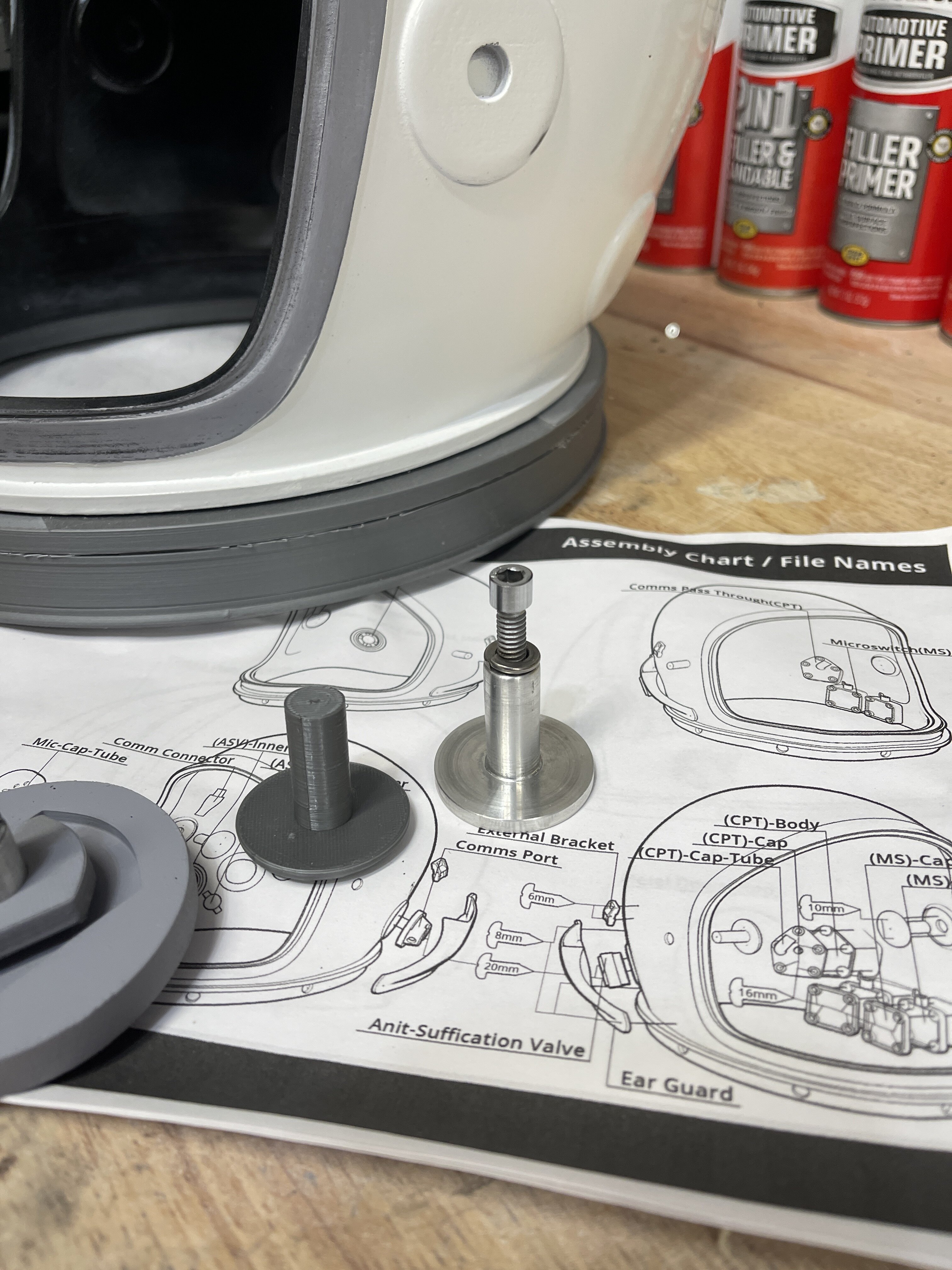

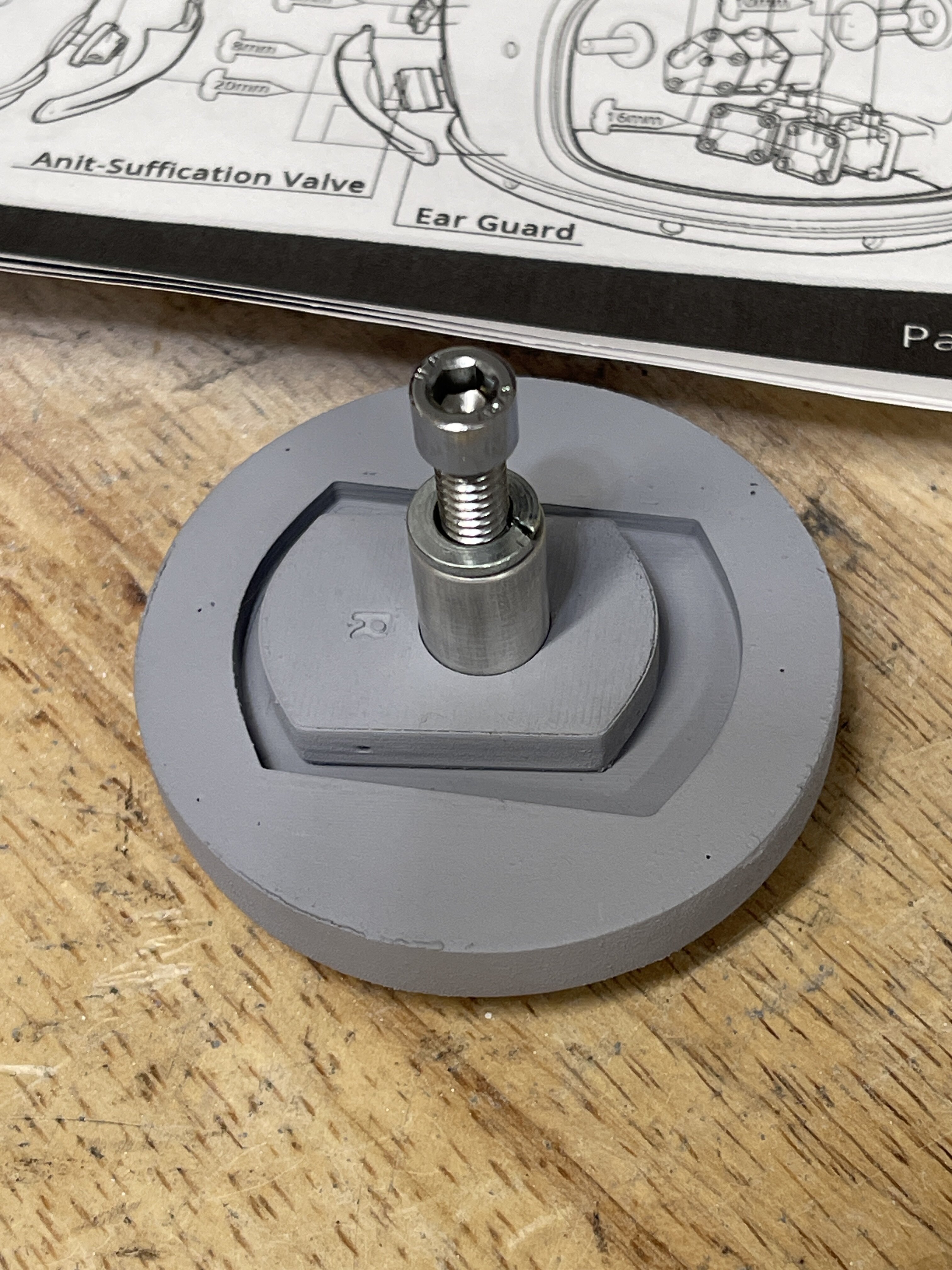

Machined out a couple Ear Cores for the helmet. Pretty nice upgrade over the 3D printed parts, but a lot more work too.
