Limited Run Indiana Jones m1917 “Bapty” sight **RUN SIGNUP**
- Thread starter lostinperiphery
- Start date
There's a lot of the wrong ones out there, and few correct ones that are lower on the price scale. Let me know if you need help. I tried to get one with all the mostly correct markings. There will never be an exact match, but I've got a 98% match.
lostinperiphery
Well-Known Member

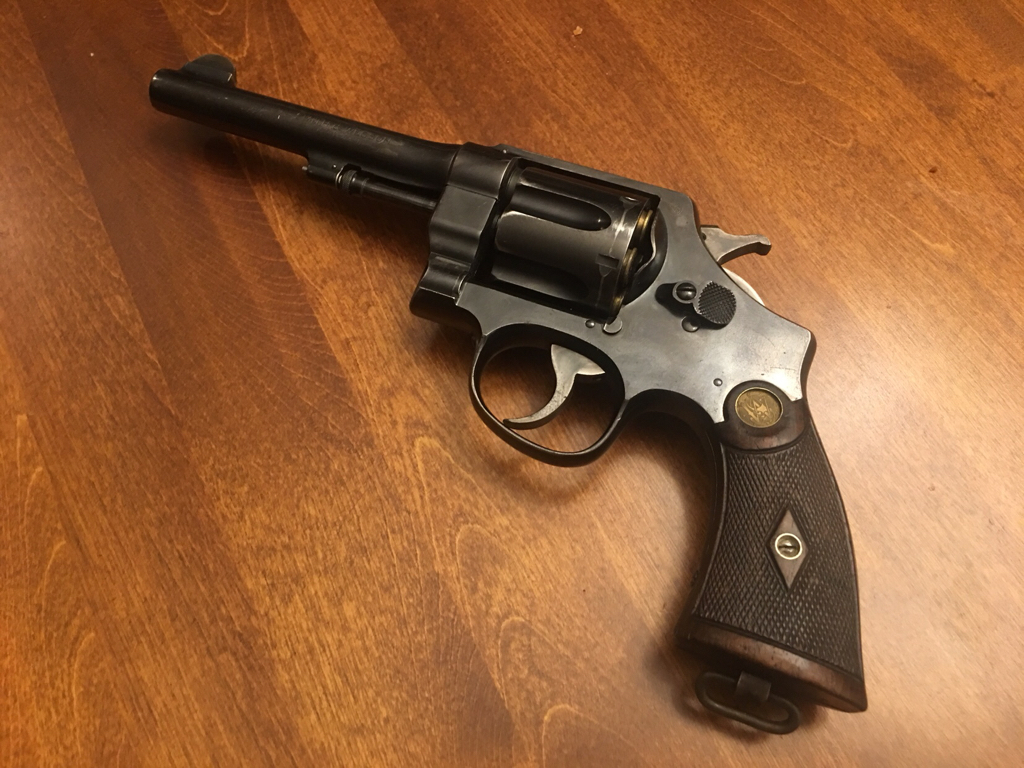

Very nice Scott! Mine is all wrong, being a 45ACP with a barrel from a 1950. Haha. But i really wanted a revolver that could shoot 45acp, and preferred not to cut the barrel of an historically relevant item. It took me a long while to find one that had already been modified in a way that ruined its collectors value, but not in a way that prevented me from Indy’ing it. So my commitment to screen accuracy of the sight blade has mostly been for you guys, as the rest of my pistol doesn’t technically cut it
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Oh crap! I didn’t know that... when the time comes I’ll be sure to ask you before I purchase. Thanks for giving me the heads up, I won’t jump the gun again like I did with my bolo...
Sent from my iPhone using Tapatalk
I'm in for one screen-accurate. (Possibly two, depending on final price).
To confirm: This is for the Bapty prop Hand Ejector 2, correct? (The Stembridge had that weird band, right? I switch them in my mind sometimes)
Any word on timeline? I've got the gun and got a smith lined up. Was trying to source a sight, so this is perfect timing.
To confirm: This is for the Bapty prop Hand Ejector 2, correct? (The Stembridge had that weird band, right? I switch them in my mind sometimes)
Any word on timeline? I've got the gun and got a smith lined up. Was trying to source a sight, so this is perfect timing.
I just took my unmodified pistol to the range and it shot very true and accurately.
So thinking about this... I want to keep the screen accurate front sight ramp... but shouldn't it be possible to correct the sight picture by milling the rear notch deeper slightly????
Group Thoughts on this? If so how much do you think it should be milled?
So thinking about this... I want to keep the screen accurate front sight ramp... but shouldn't it be possible to correct the sight picture by milling the rear notch deeper slightly????
Group Thoughts on this? If so how much do you think it should be milled?
lostinperiphery
Well-Known Member

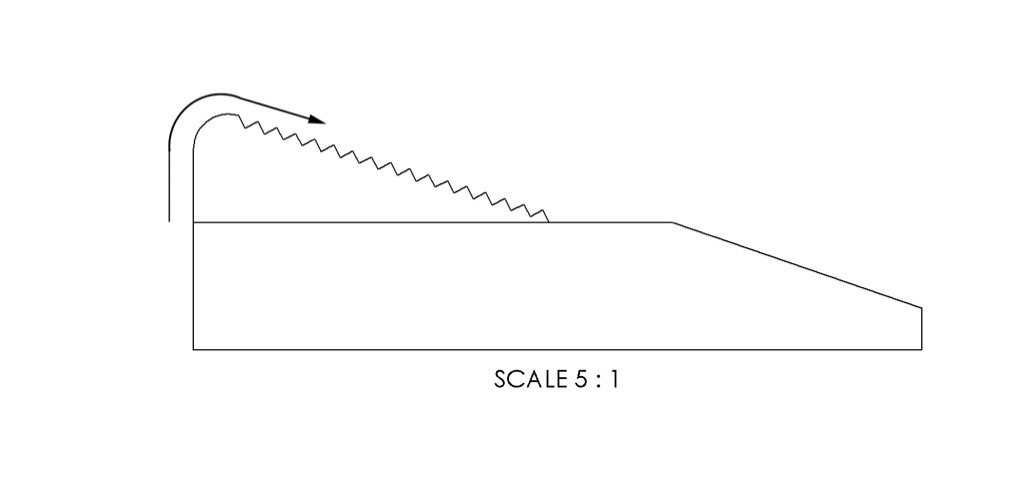

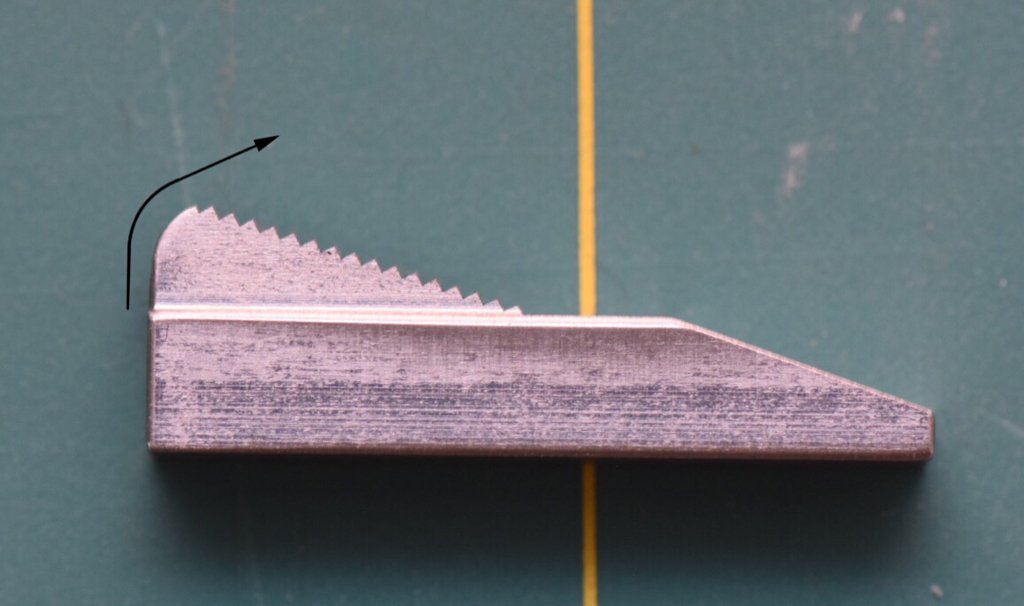

Hey all! Good news and bad news. Got the batch of sights in, and they look fantastic as far as the quality of machining goes. Unfortunately, they machined the shape of the sight blade a shy different from what my CAD data showed. The difference is very subtle, and in fact without the recent propstore photos, would be impossible to even tell the difference. However, they just weren’t quite as perfect as I’d hoped, so I’m having these recut, and expect to take another few weeks.

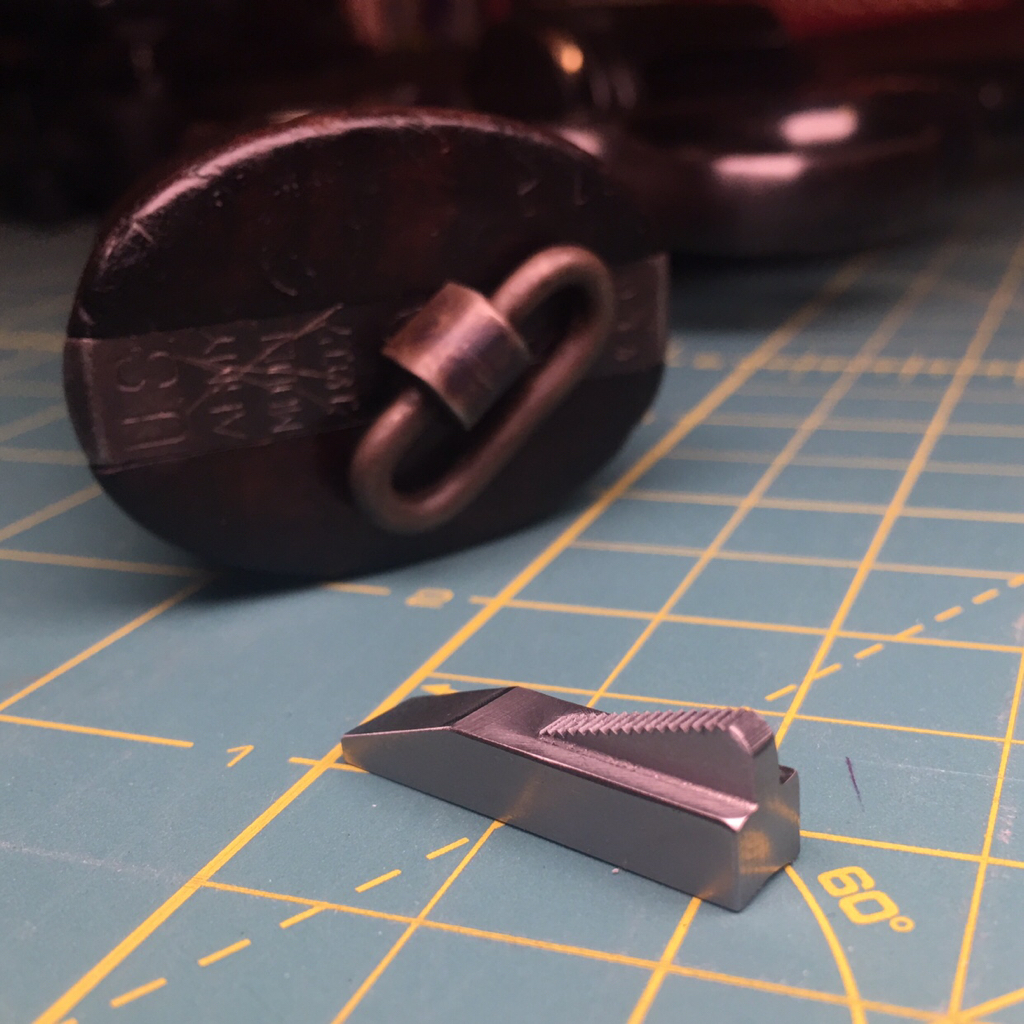

Here’s a quick pic of one of the “blemished” sights. Rather than scrap these, I’m considering offering them as an inexpensive add-on for anyone who purchases the correct sight. Perhaps folks would like to have a spare in order to experiment with the finish, etc.
Sent from my iPhone using Tapatalk
Here’s a quick pic of one of the “blemished” sights. Rather than scrap these, I’m considering offering them as an inexpensive add-on for anyone who purchases the correct sight. Perhaps folks would like to have a spare in order to experiment with the finish, etc.
Sent from my iPhone using Tapatalk
lostinperiphery
Well-Known Member
I wouldn’t figure most people would. But it’d irk me forever knowing that it could be more accurate but wasn’t, due to a machining mistake.
Sent from my iPhone using Tapatalk
lostinperiphery
Well-Known Member
Apologies. To answer your question about the rear sight, your thought process is in the right direction, but as the typical sight picture has the tops of the sights aligned, it would also be necessary to lower the top of the rear sight, not just deepen the notch. As the top of the rear sight is basically flush with the entire length of the topstrap, this would require milling the entire topstrap lower.
Now, creating a deeper notch could potentially allow from an atypical sight picture, in which you align the front sight deeper in the notch, however, you are still faced with the challenge of limited material on the revolver topstrap. Milling the notch deeper, and you may encounter that the topstrap groove would also need to be deeper, and would then extend into the portion of the frame that the barrel is threaded into (just forward of where the groove currently ends)
As for how much change is required, it would be best to test fire the new sight and evaluate the zero shift. However, you could probably estimate by comparing the difference in height from the factory sight to the new sight, and the rear would likely need to change by a similar amount.
I would definitely advise first consulting with a reputable gunsmith, to see if modifications to the rear sight/topstrap are even feasible without compromising the frame strength.
Sent from my iPhone using Tapatalk
Very cool to see the outcome of your work lostinperiphery :thumbsup
Last edited by a moderator:
lostinperiphery
Well-Known Member
lostinperiphery
Well-Known Member

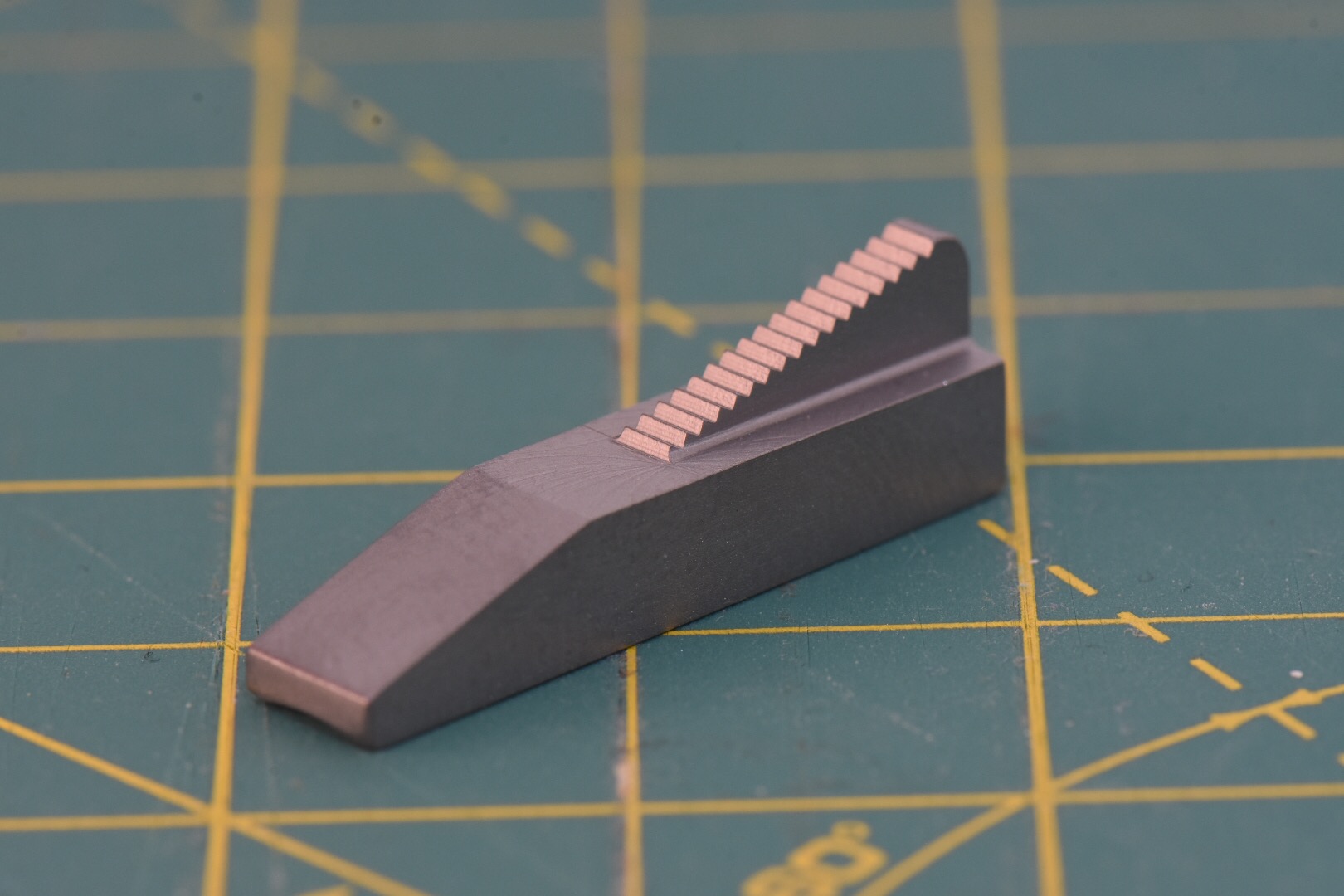

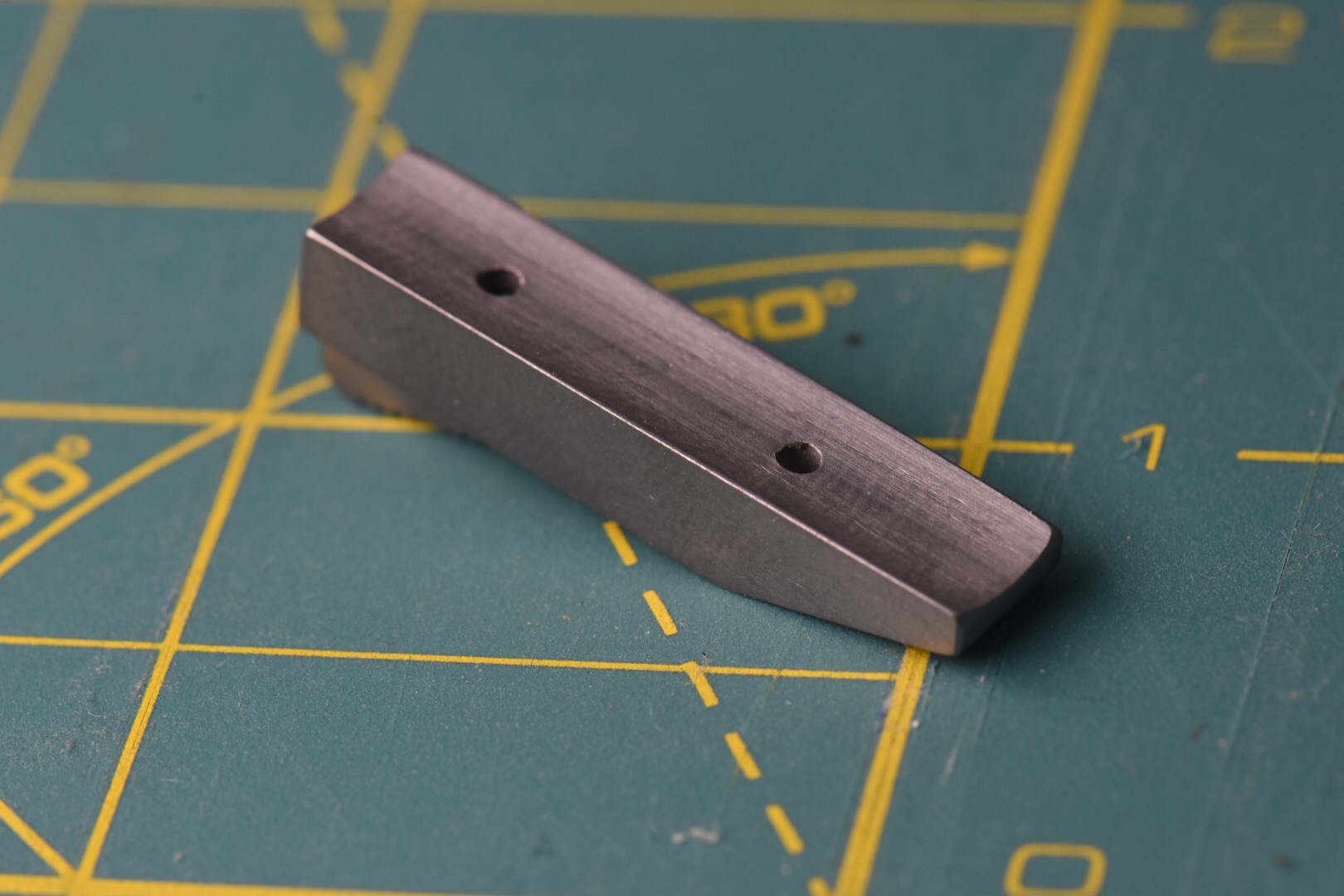

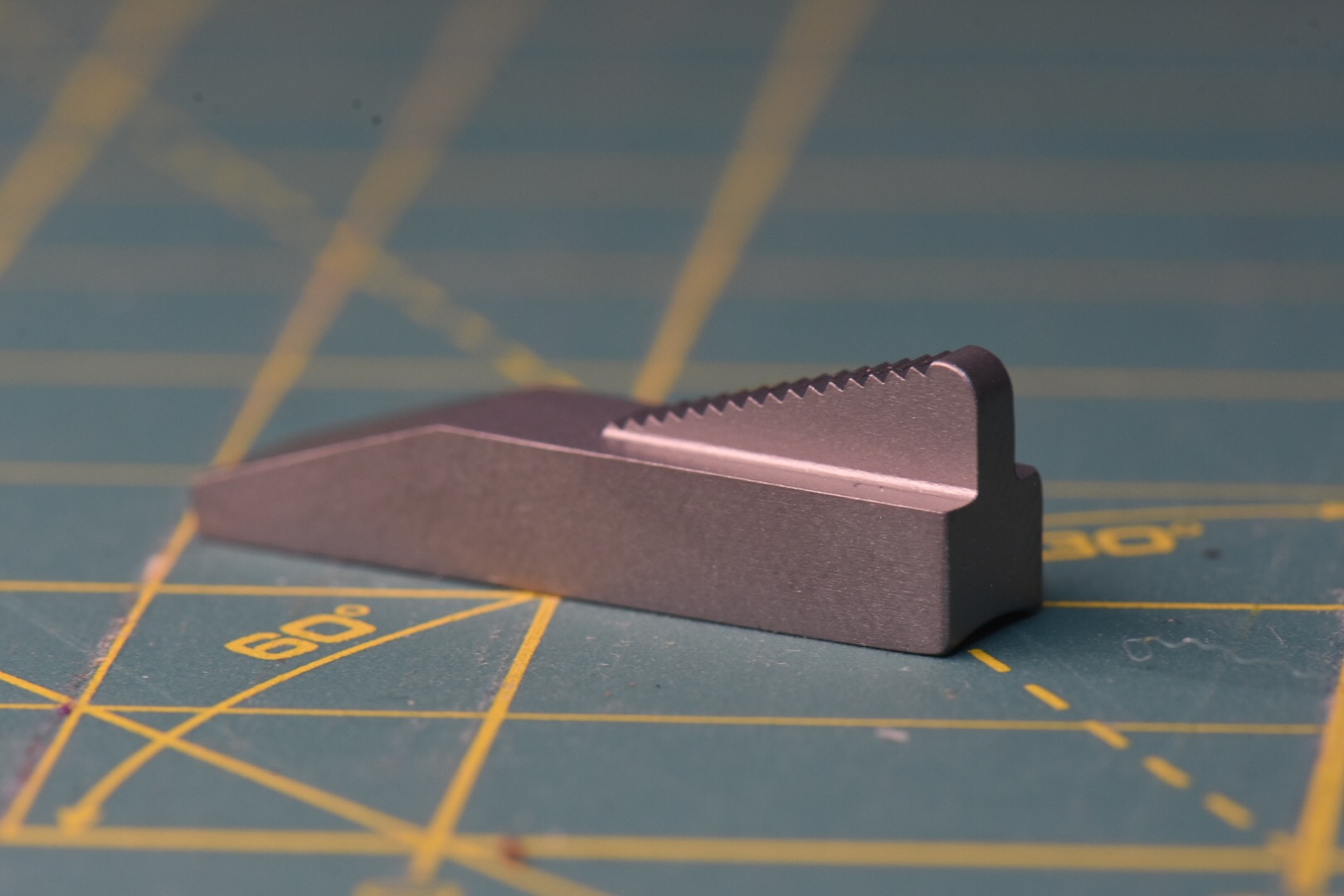

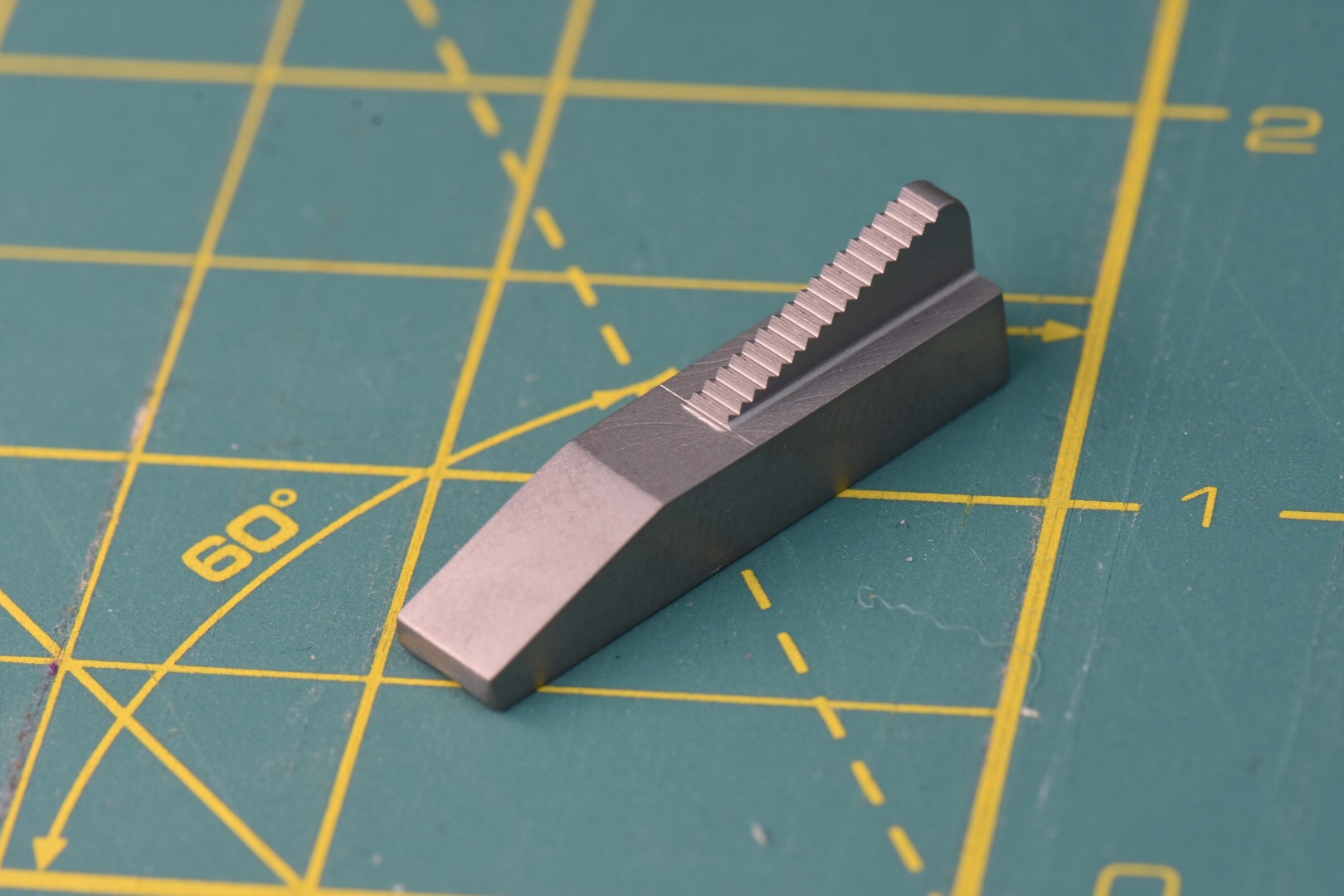

Hello all! Good news! The front sights are complete, and they look great. Dimensionally as accurate as I could make them, down to the number of serrations down the ramp. I've hand sanded the flats, and then had these lightly beadblasted for a nice semi-satin finish, and to remove what machine marks I could. I'll leave the final finish up to you guys, as some folks may wish to leave them as-is before blueing, or sand them further bringing them to a more brushed or polished look. Order/Payment info DM's will be incoming shortly
Since only a limited number of these were made, the priority goes to anyone on the signup list prior to this post, but feel free to post if you would like one should any remain.
And of course, pictures!
Since only a limited number of these were made, the priority goes to anyone on the signup list prior to this post, but feel free to post if you would like one should any remain.
And of course, pictures!
