Unlimited Run Hellboy Sidearm - Comic Version (3D Printed Kit)

Re: 3d Printed Hellboy Sidearm (Comic Version)

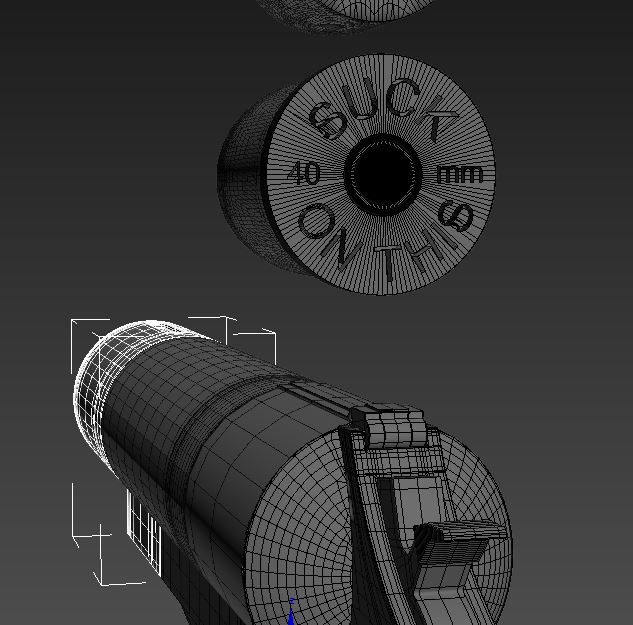

Here's a bullet from the scaled up version - it's comically large :) Comic Sidearm bullet, bullet from my big baby, samaritan bullet



But if we look at pics of hellboy in the comics, he loads it with his "right hand of doom" and even then the bullets are a good size


Last edited:
Re: 3d Printed Hellboy Sidearm (Comic Version)

She's soooooo close. need to print trigger and hammer, bottom ring and we'll have a working prototype. The size is real good now. It's not HUGE, but it's definitely large!





I'm not liking the BPRD logo on the grip. All the comic pics of the gun show it plain (well the pics I could find, which are few). So I think we'll remove that for the final version.

Re: 3d Printed Hellboy Sidearm (Comic Version)

Looks great.

I like the BPRD logo. Not crazy about the three horizontal lines on the lower grip.

If it's not too late can the cylinder release be larger?

Re: 3d Printed Hellboy Sidearm (Comic Version)

Hirohawa said:
Looks great.

I like the BPRD logo. Not crazy about the three horizontal lines on the lower grip.

If it's not too late can the cylinder release be larger?
Click to expand...

The lines are one of the only bits of detail I've seen in the comic reference, I'm worried w/o the grips will be boring. The cylinder release is being enlarged a bit.

Re: 3d Printed Hellboy Sidearm (Comic Version)

Plus we're going to print the grips in half, laying down so they get the wood grain appearance like our Samaritan had :)

Re: 3d Printed Hellboy Sidearm (Comic Version)

We've made a bunch of small changes and are printing out the final version. I'll be switching this to a FS thread probably first thing next week. Will have some pics of the final version very soon;wish I had 3 more printers :cry

Re: 3d Printed Hellboy Sidearm (Comic Version)

Couple quick pics of final prototype, no sanding, filling or painting done:

2014-04-26 09.47.12.jpg

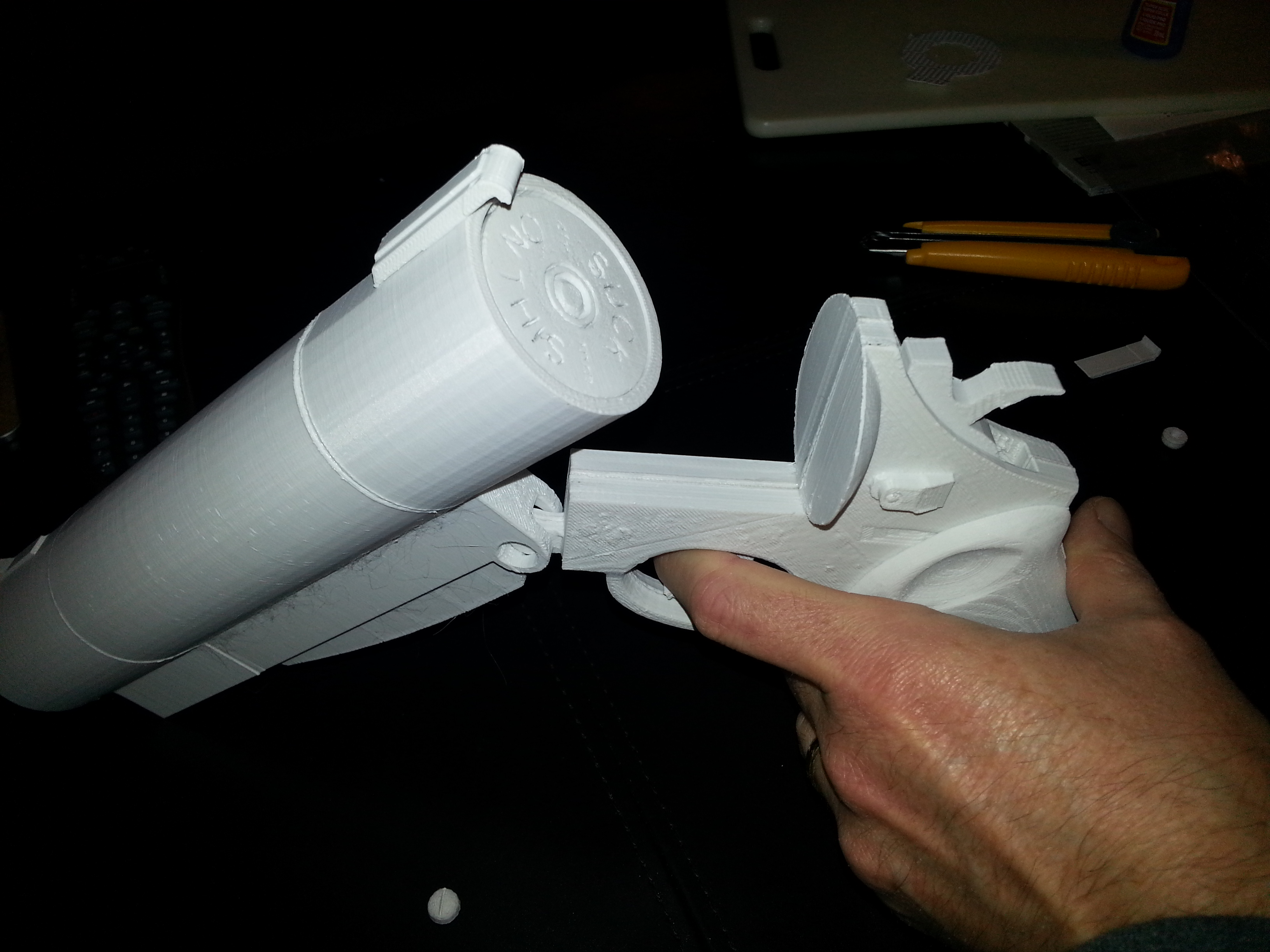

2014-04-26 09.48.04.jpg

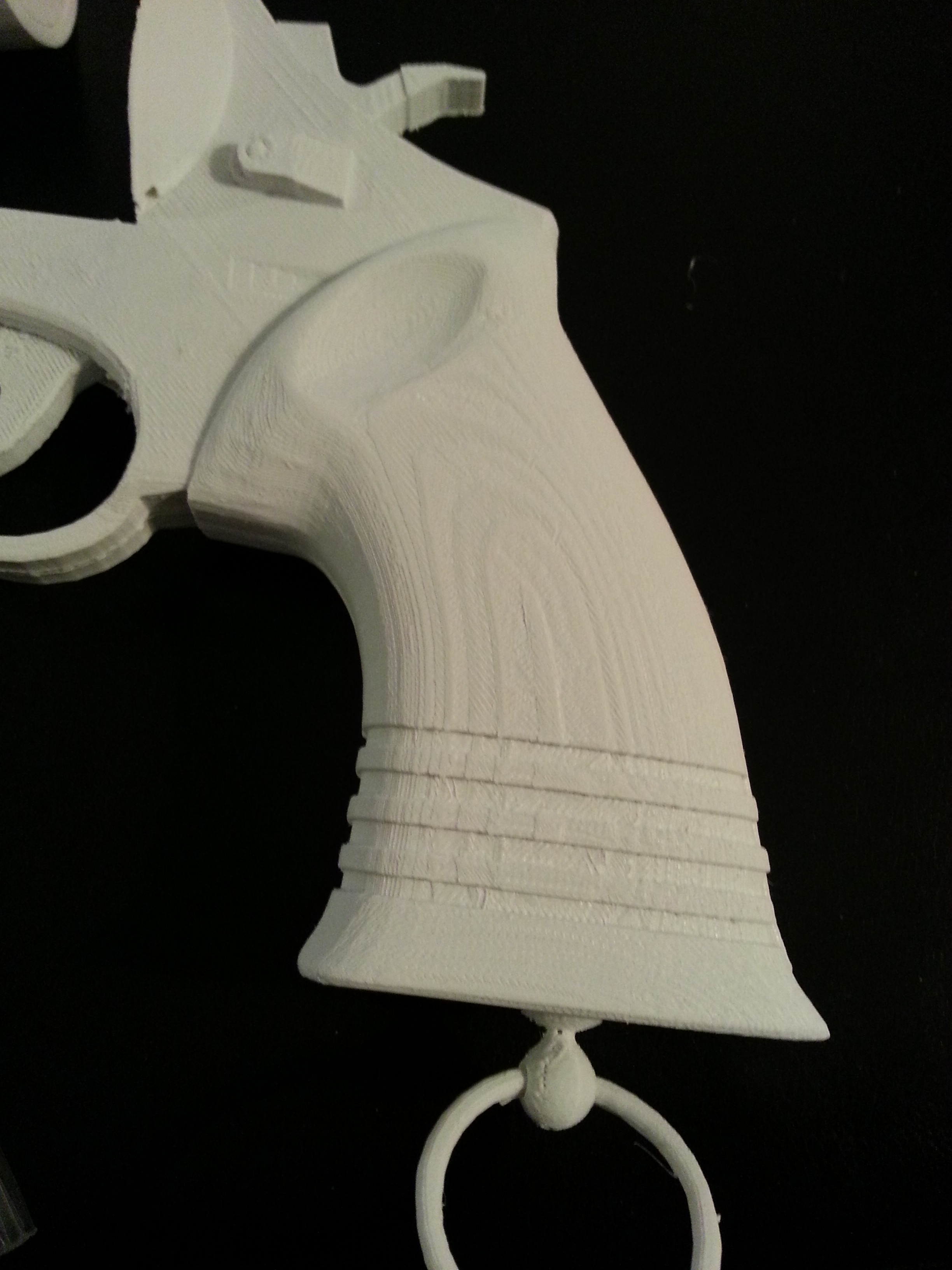

2014-04-26 09.49.52.jpg

Re: 3d Printed Hellboy Sidearm (Comic Version)

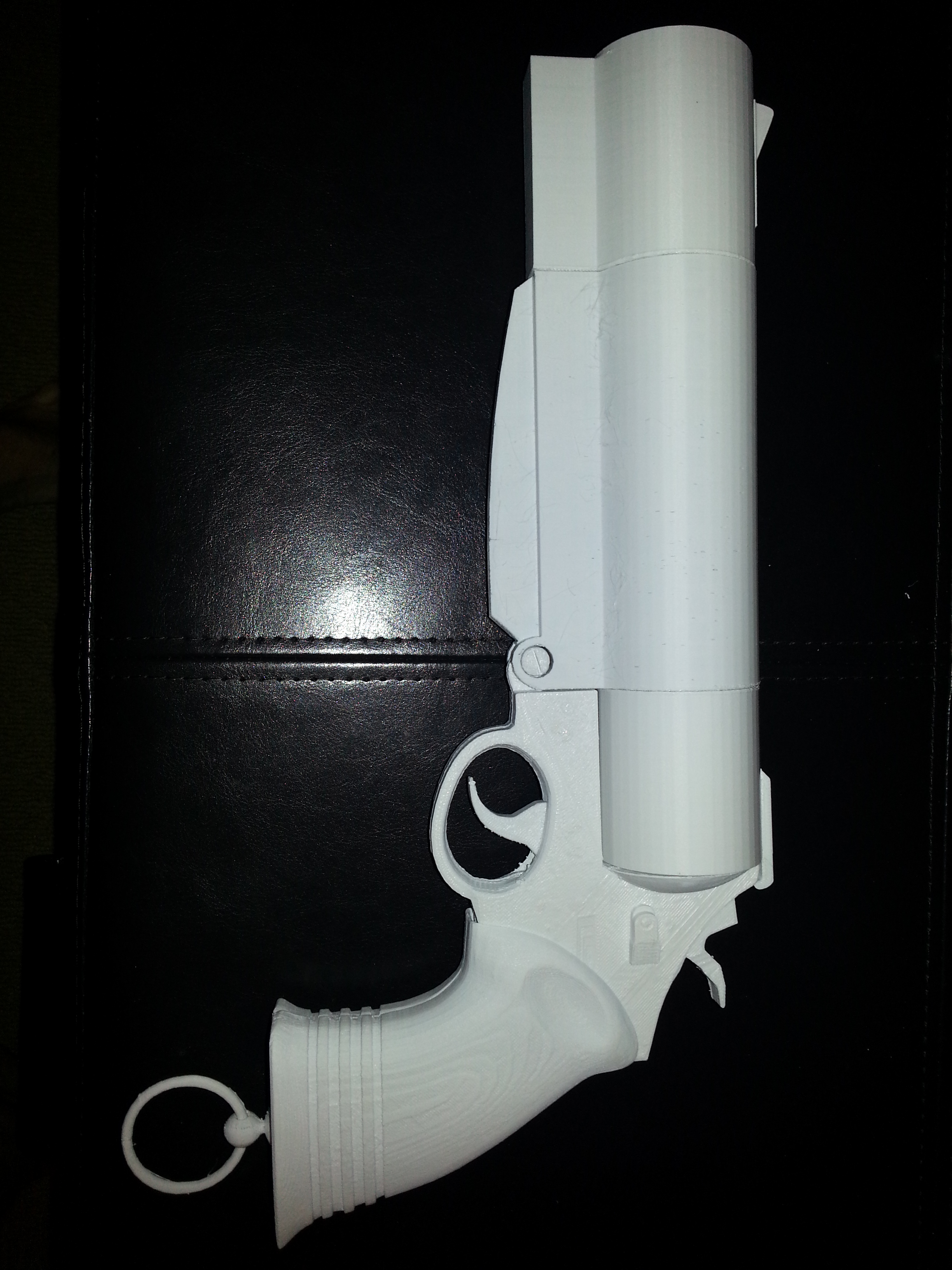

So, we're almost ready to go with this one. I just want to finish 1 other commitment before I switch this to a FS thread. Here's some better pics, still cell phone, but I hope it gives you a better idea of the detail level. This gun is almost 15 inches of Hellboy goodness. These pics are all untouched 3D prints, some sanding and painting and polishing will only make these awesomer :lol










Last edited:
Re: 3d Printed Hellboy Sidearm (Comic Version)

There is no seperate bullet? Or are we just not seeing it with the bullet out?
-Terry

Re: 3d Printed Hellboy Sidearm (Comic Version)

firespiter said:
There is no seperate bullet? Or are we just not seeing it with the bullet out?
-Terry
Click to expand...
Ya, sorry the bullet is in the breach, here's a quick pic with a ruler and a shell from Big Baby


Last edited:
